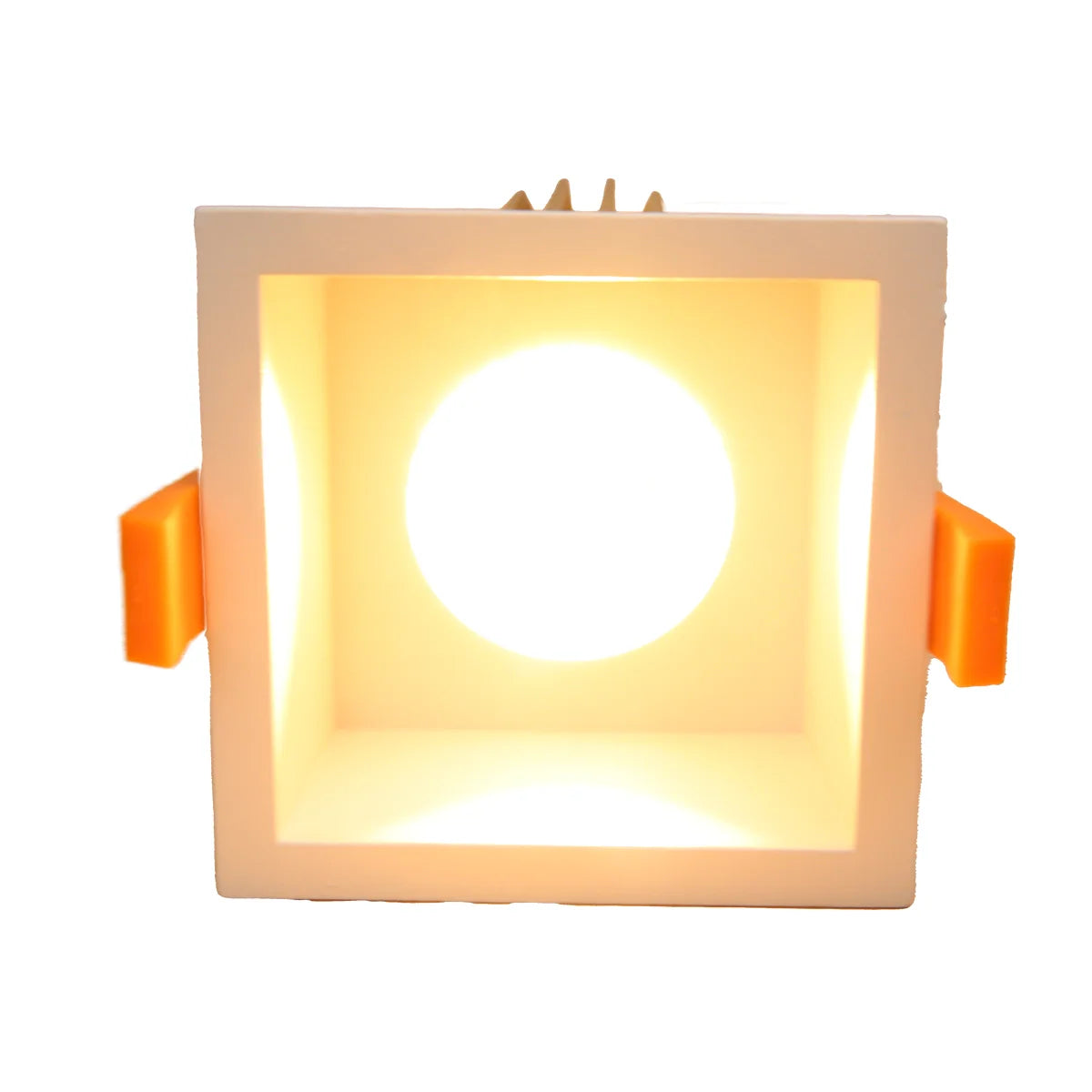

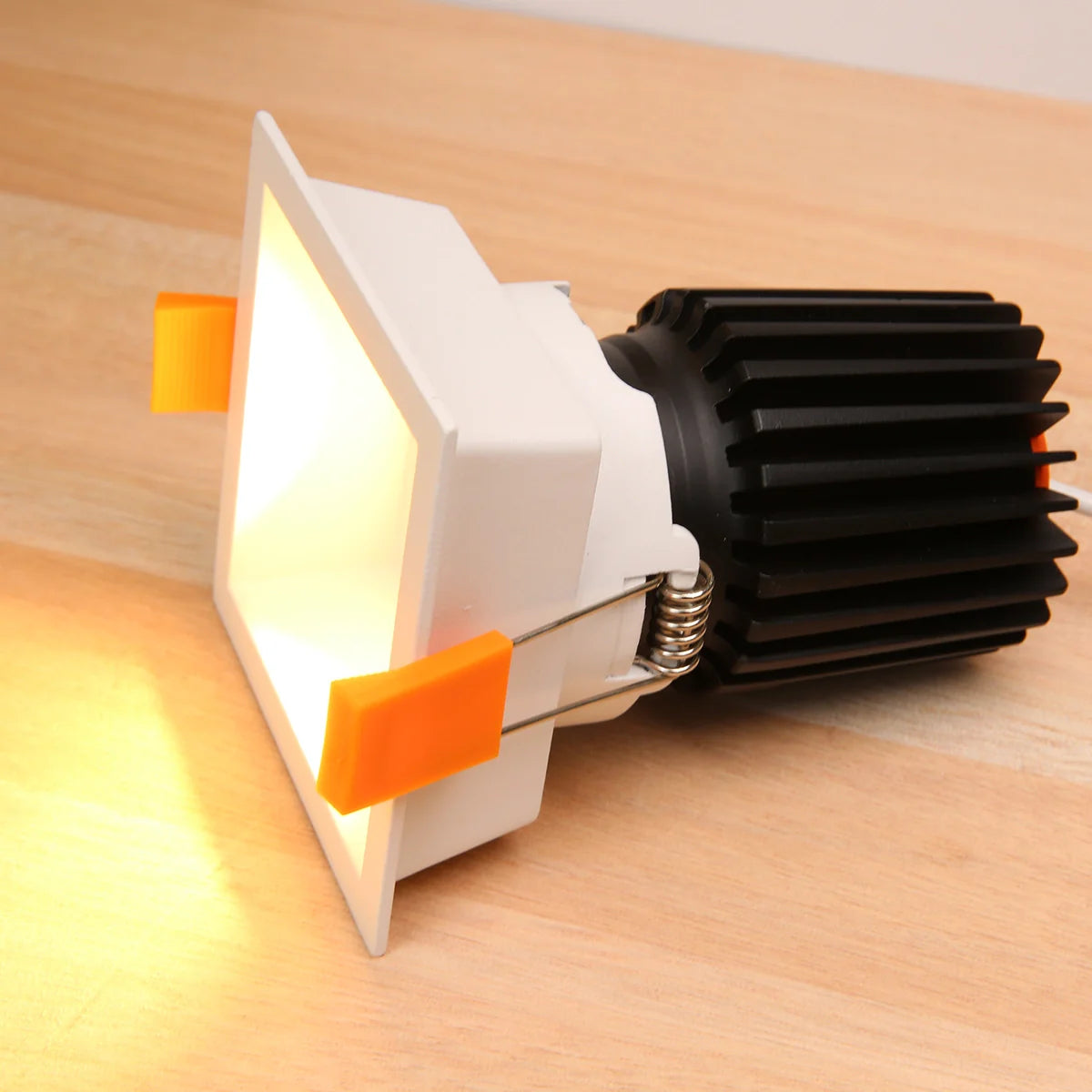

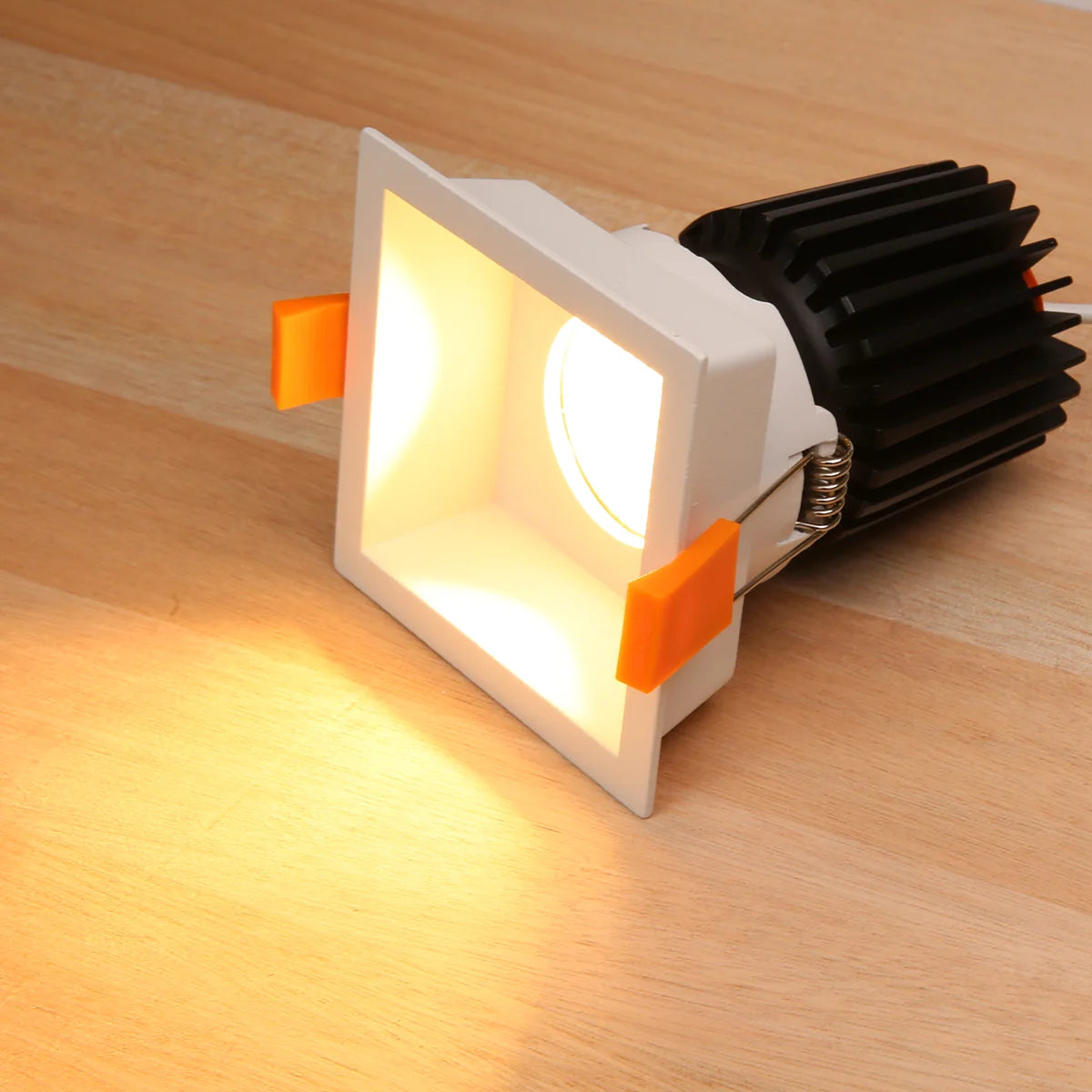

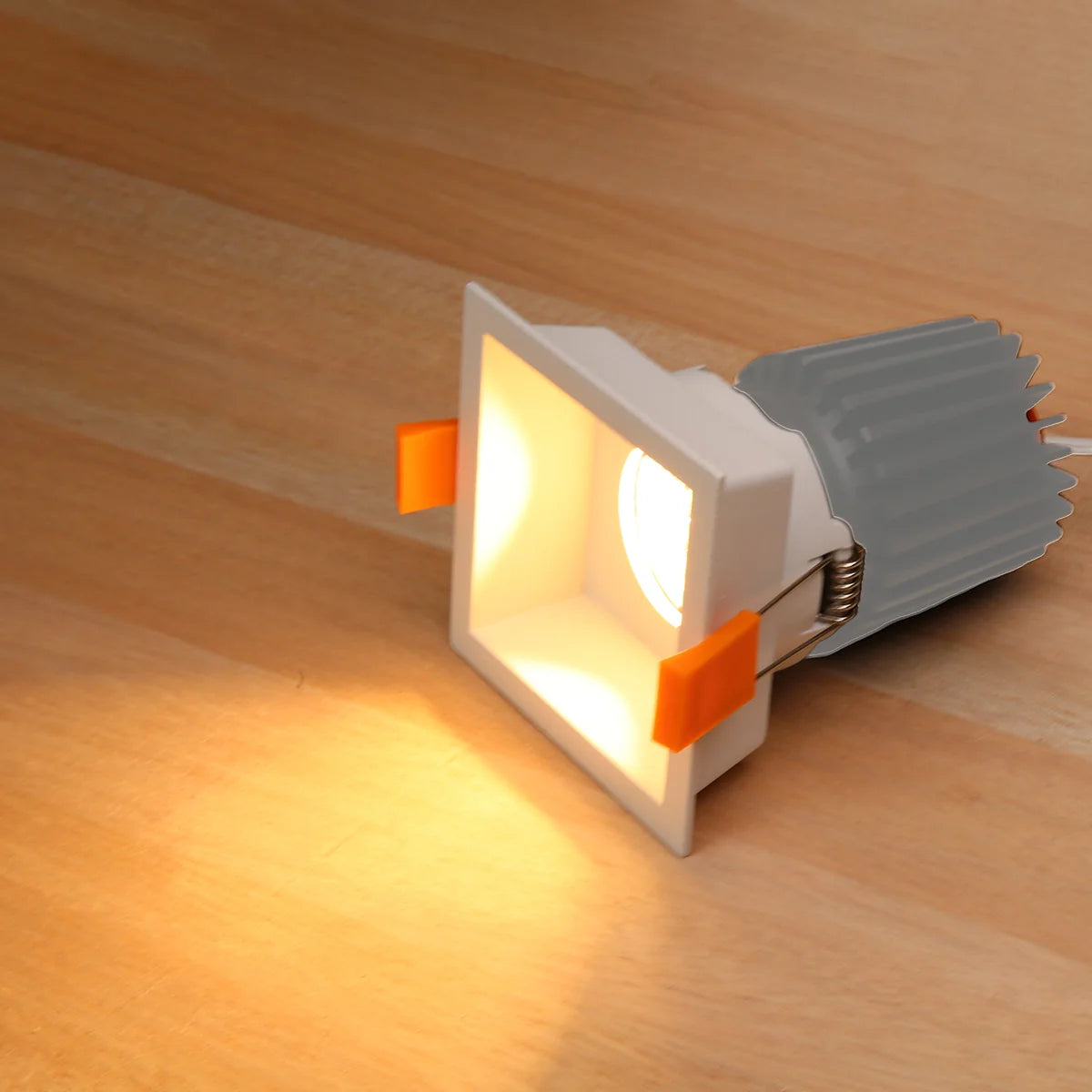

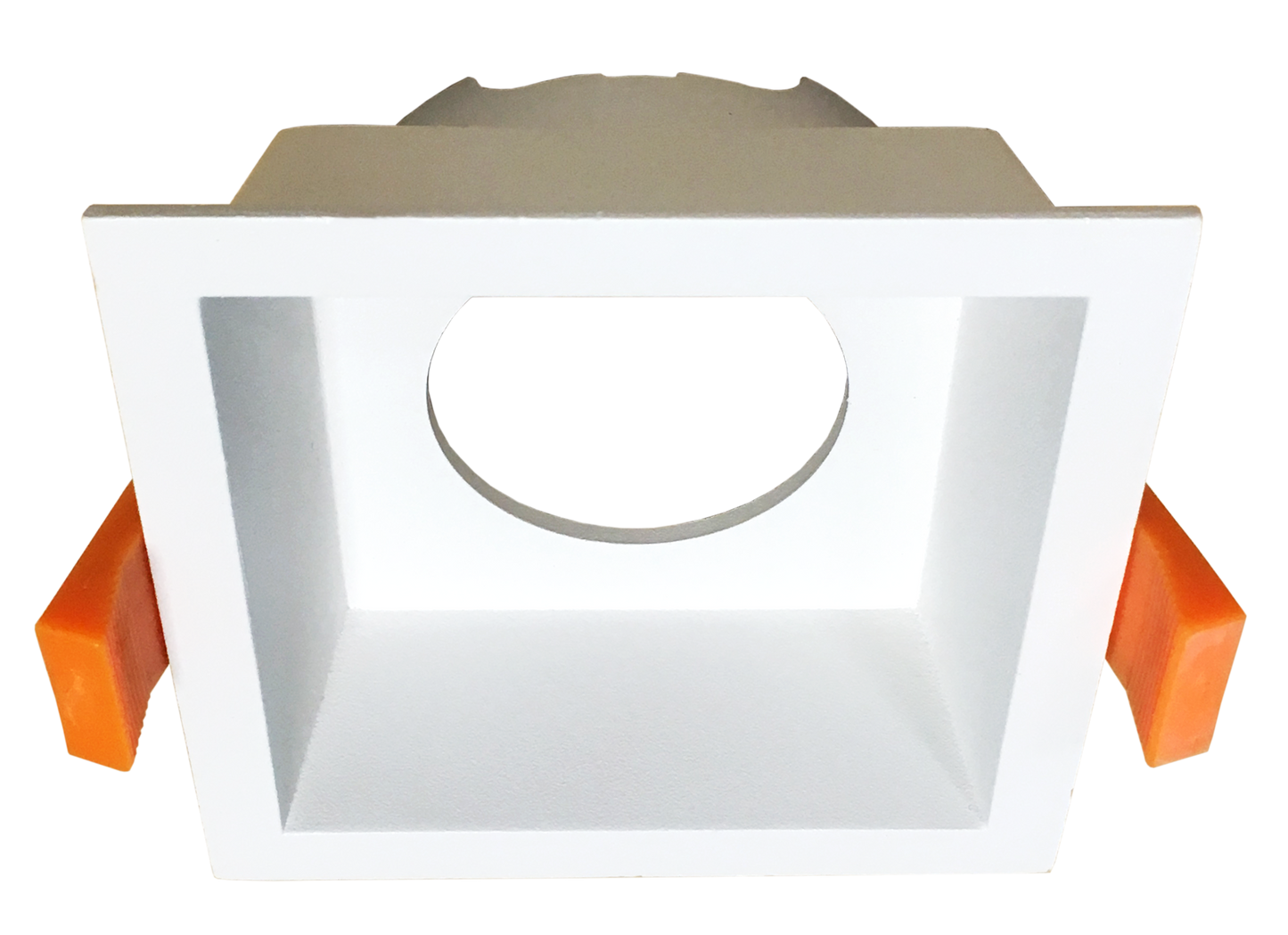

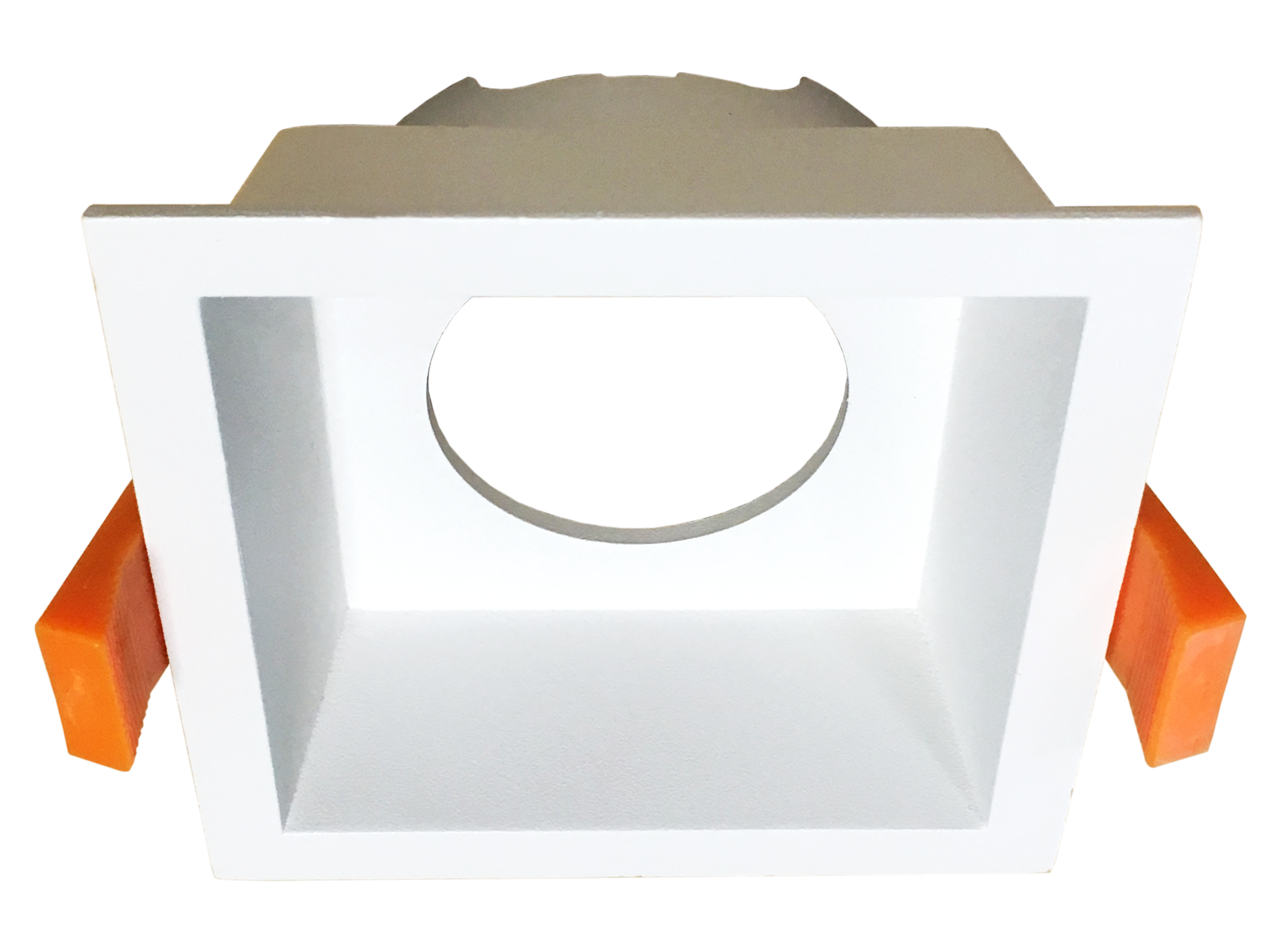

SQ17 White- Square fixed IP20 surface mount trim for X Series COB Modules
SQ17 White- Square fixed IP20 surface mount trim for X Series COB Modules
SKU:SQ17 White
58 in stock
We will match any competitor's advertised price
Couldn't load pickup availability
Bulk discounts is a genuine discount for customers who are actually looking for more value. Please note that the below conditions will apply to items that were purchased on bulk discount. Returns on bulk buy discounts will be processed at the adjusted price disallowing for bulk discounts. A further deduction of delivery cost for the returned items will also be deducted from the refund amount.

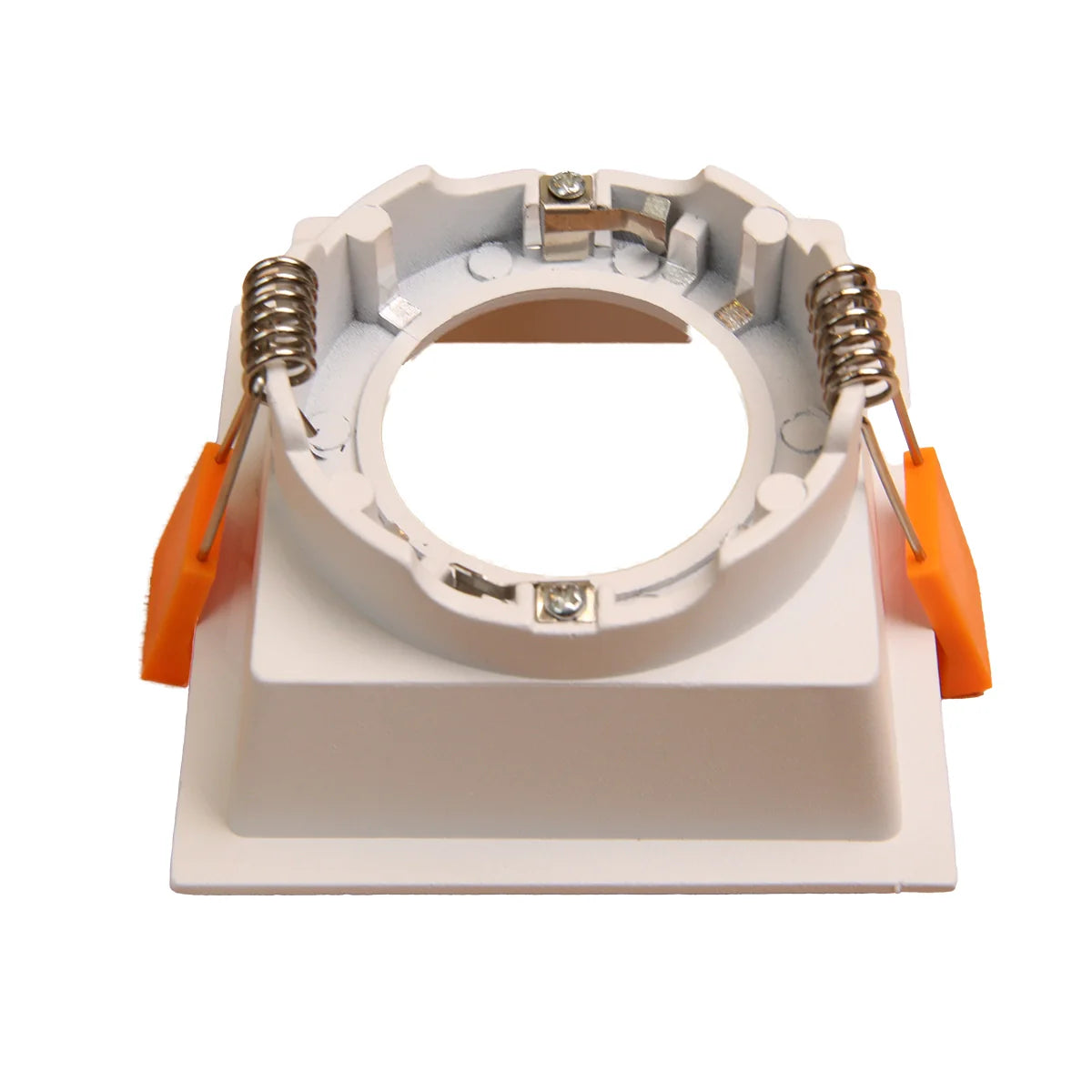

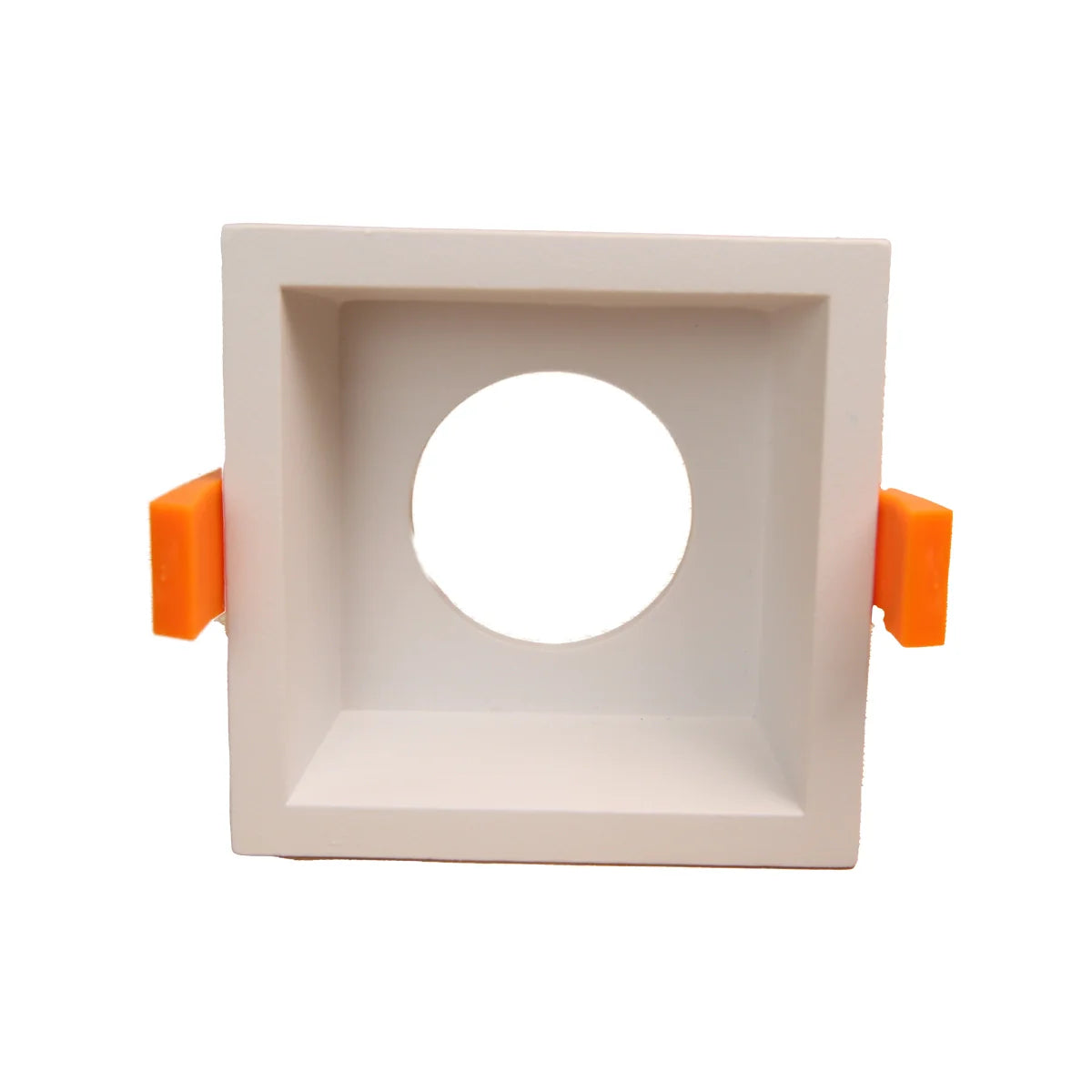

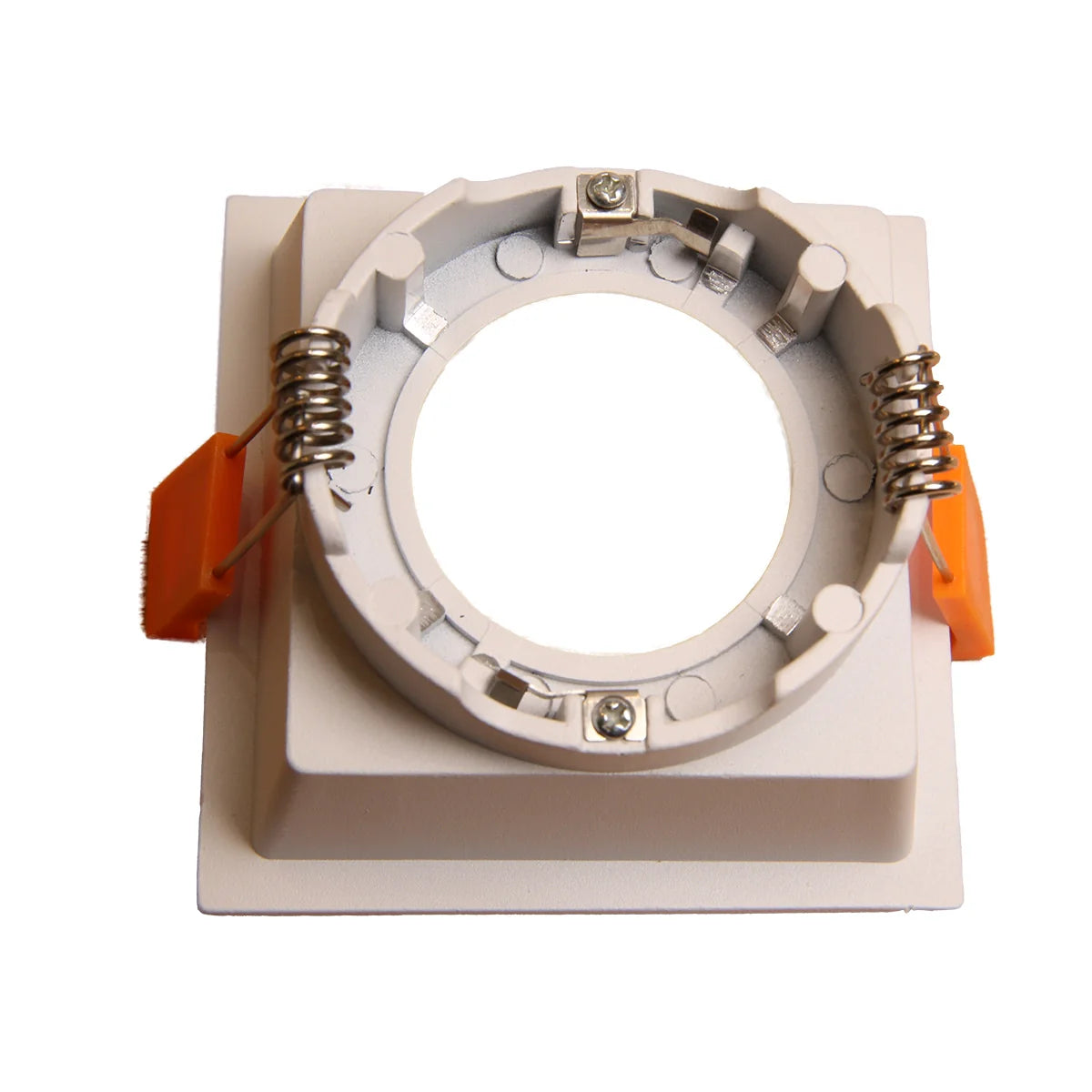

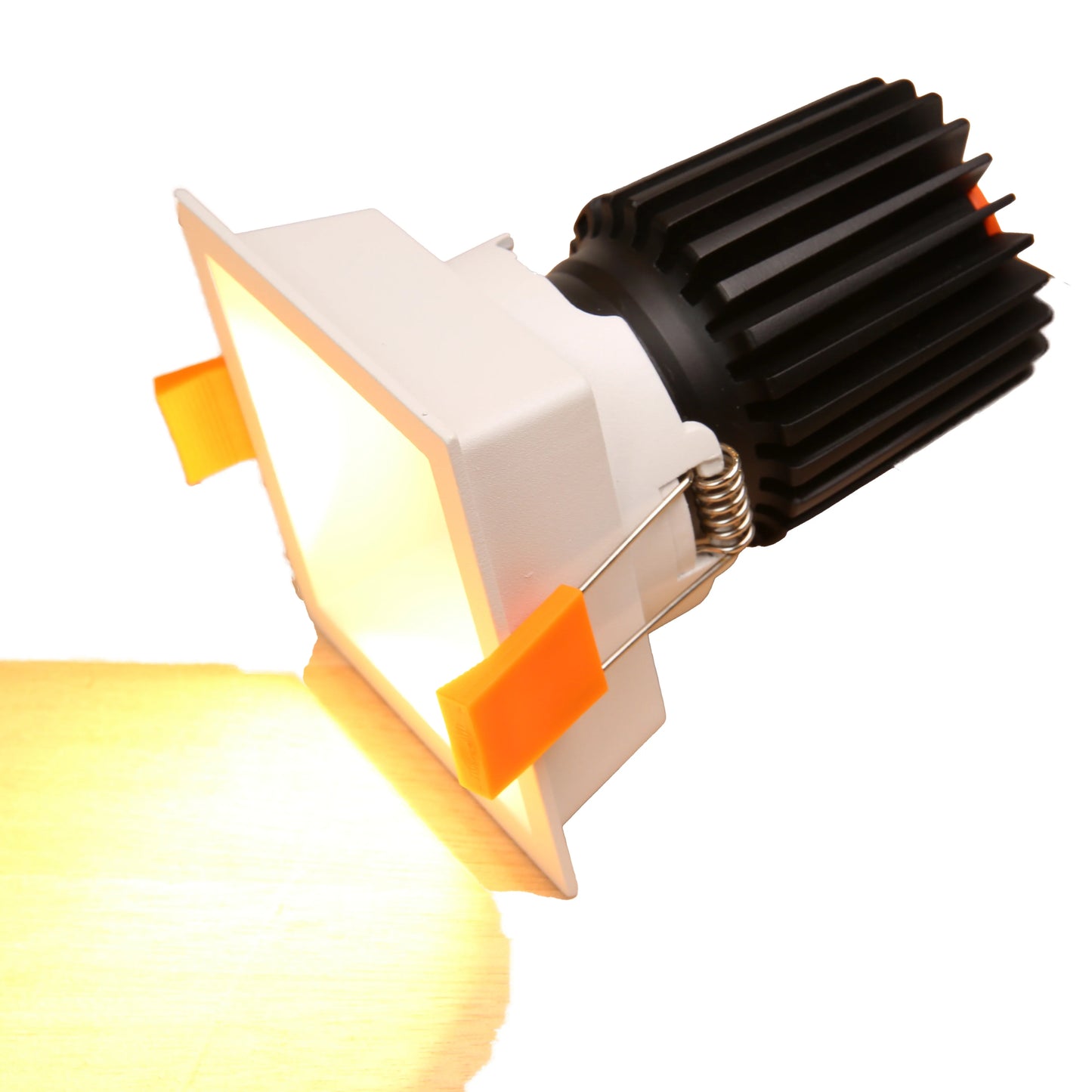

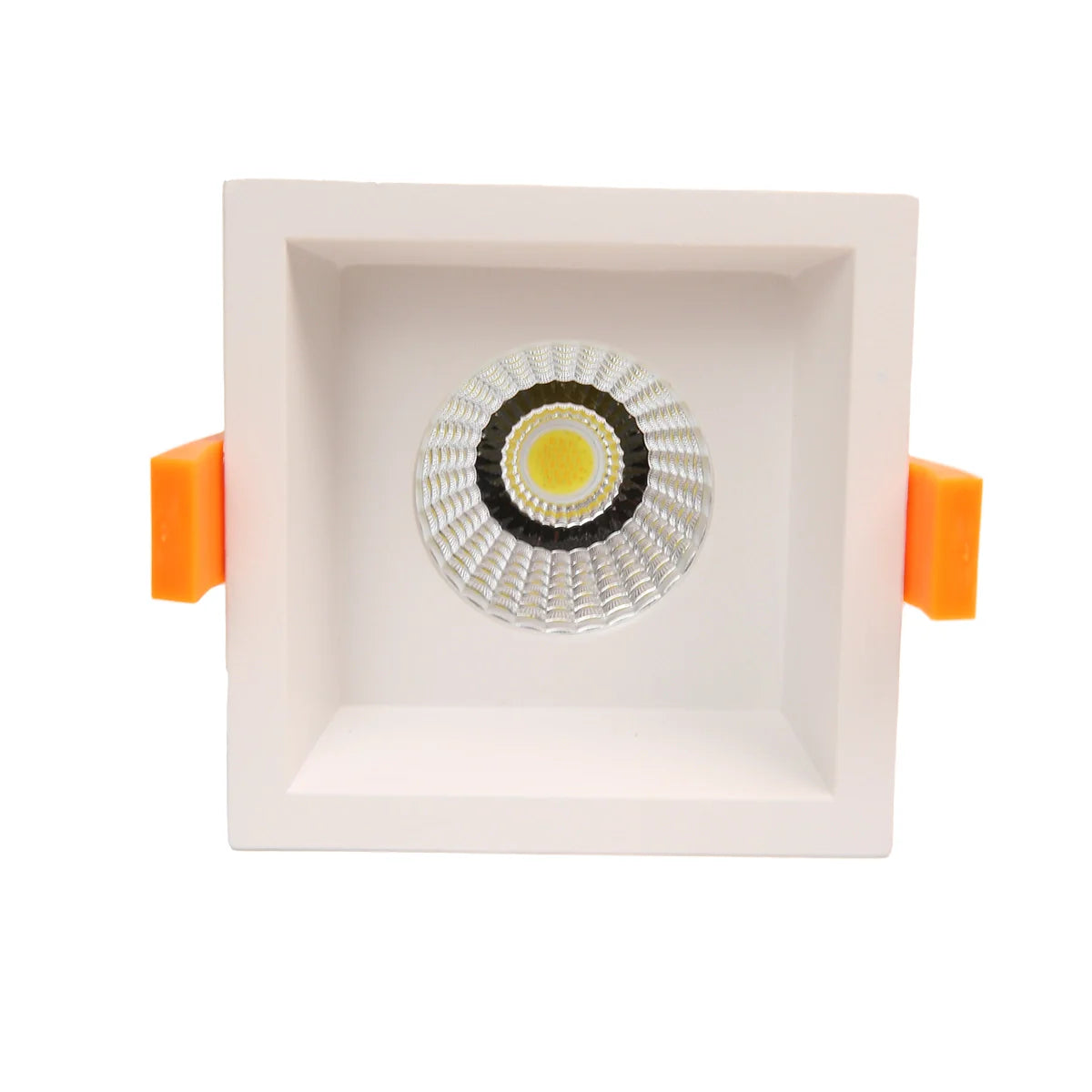

IP20, Adjustable Surface mount ring for X3A, X15A, X20A, XRGBW and XCCT COB down light modules.
Choose this trim if
a. when you want a square trim.
b. Very low profile bezel makes it architecturally very attractive.
c. Low glare rating as the light is set back.
Do not choose this trim if
a. you are planning to use it in high moisture areas like external eves and shower rooms as its IP20 rated.
b. if you are overly restricted in mounting depth.
c. if you are planning to use X20A (18W) modular COB module in your project.
|

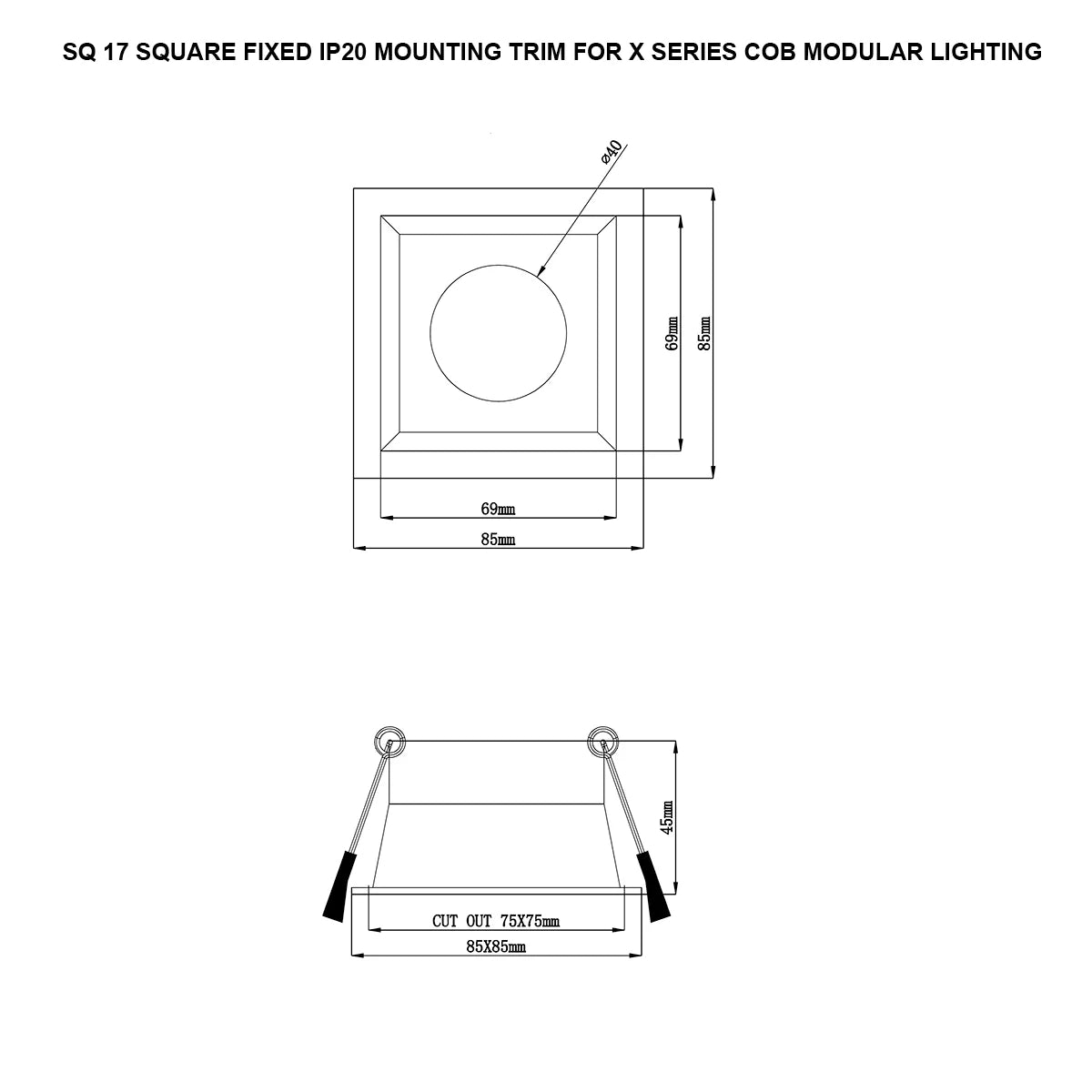

Cut out |
75 x 75 mm |
|
Diameter of face |
85 x 85 mm |
|
Total height of fitting |
45 mm |
|
Mounting depth with X3A |
95 mm |
|

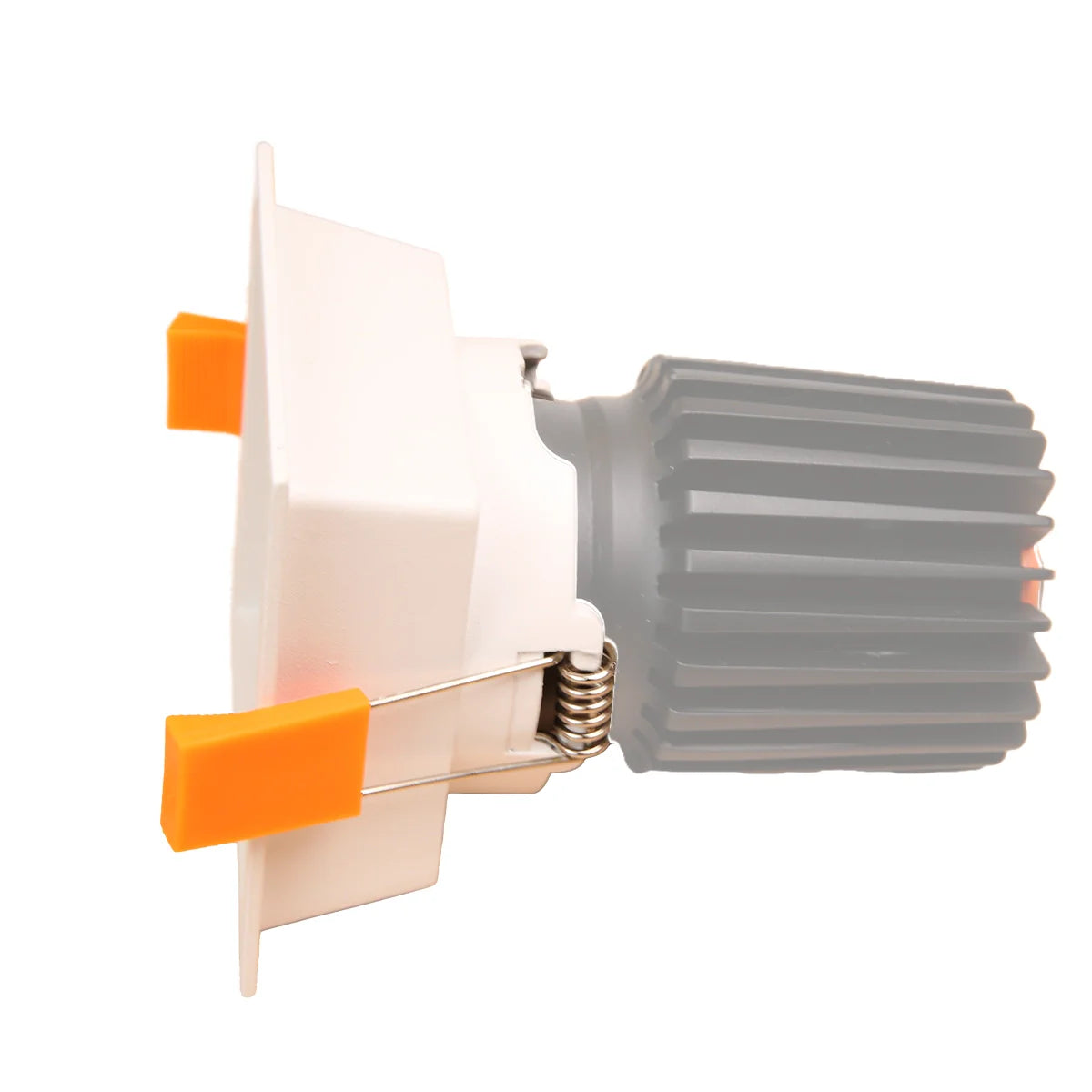

Mounting depth with X15A |
104 mm |
|
Mounting depth with X20A |
Not suitable |
|
Mounting depth with XRGBW |
95 mm |
|
Mounting depth with XCCT |
80 mm |
Click here to download a pdf spec sheet for SQ17 square fix IP20 trim.
