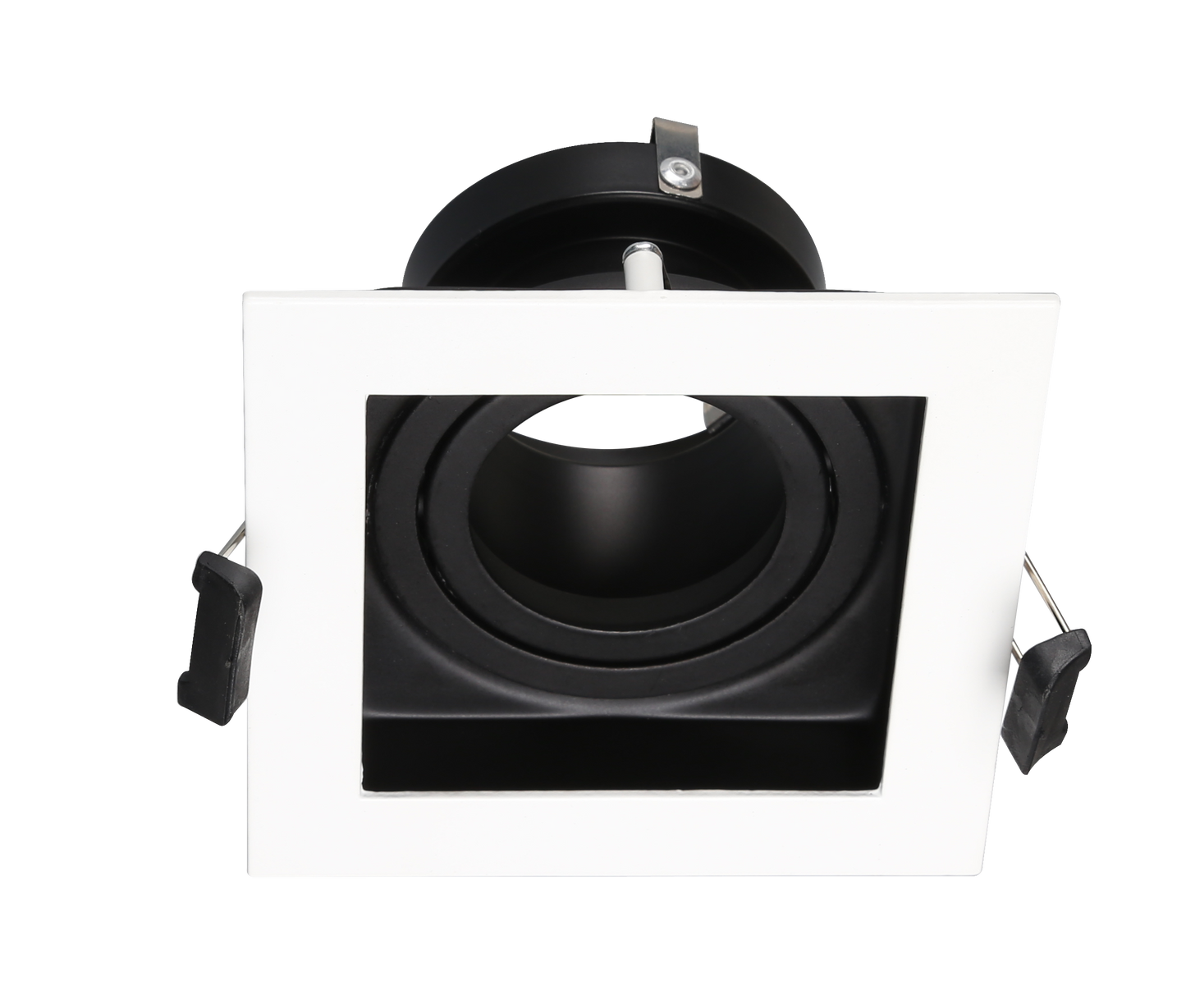

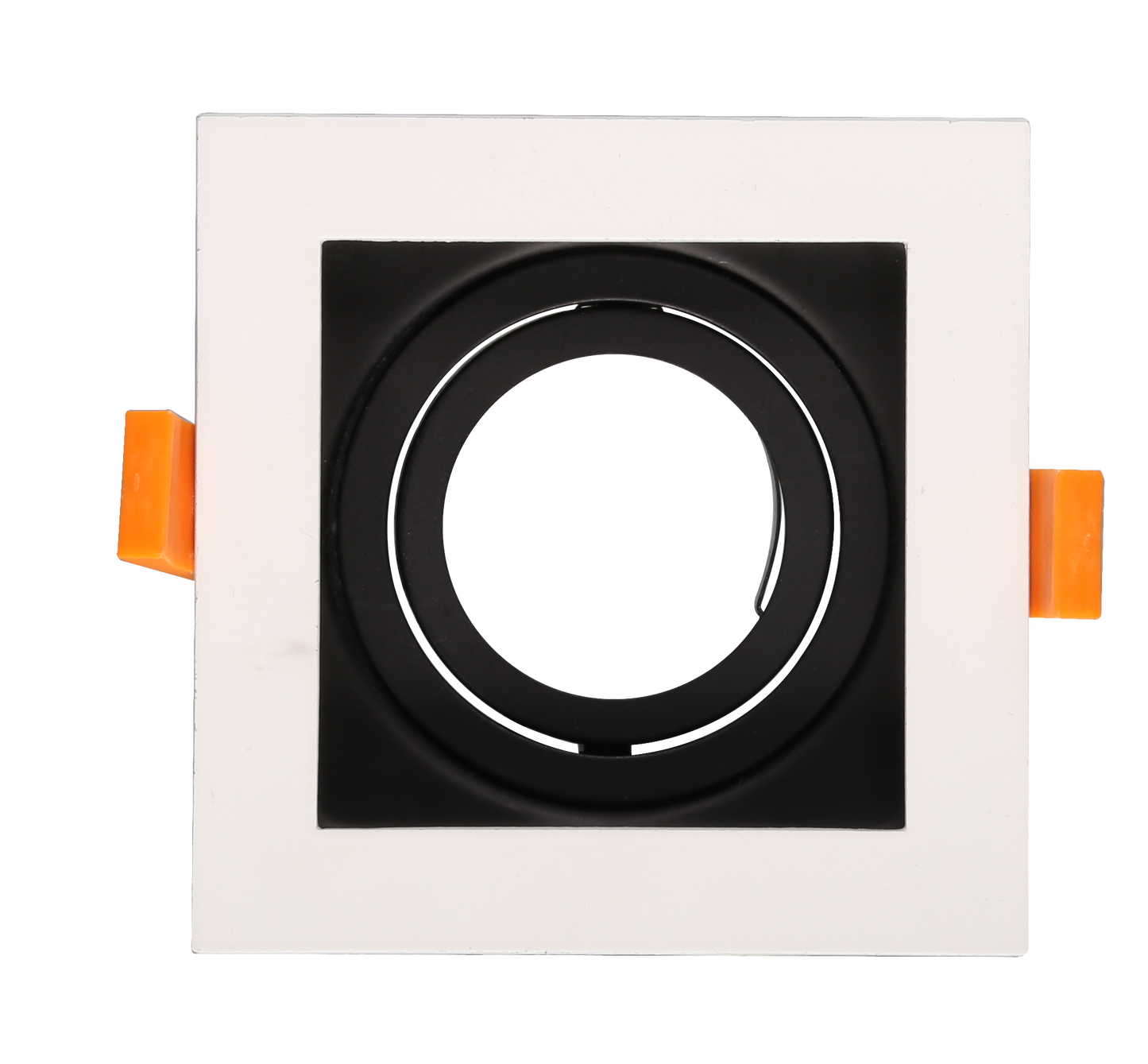

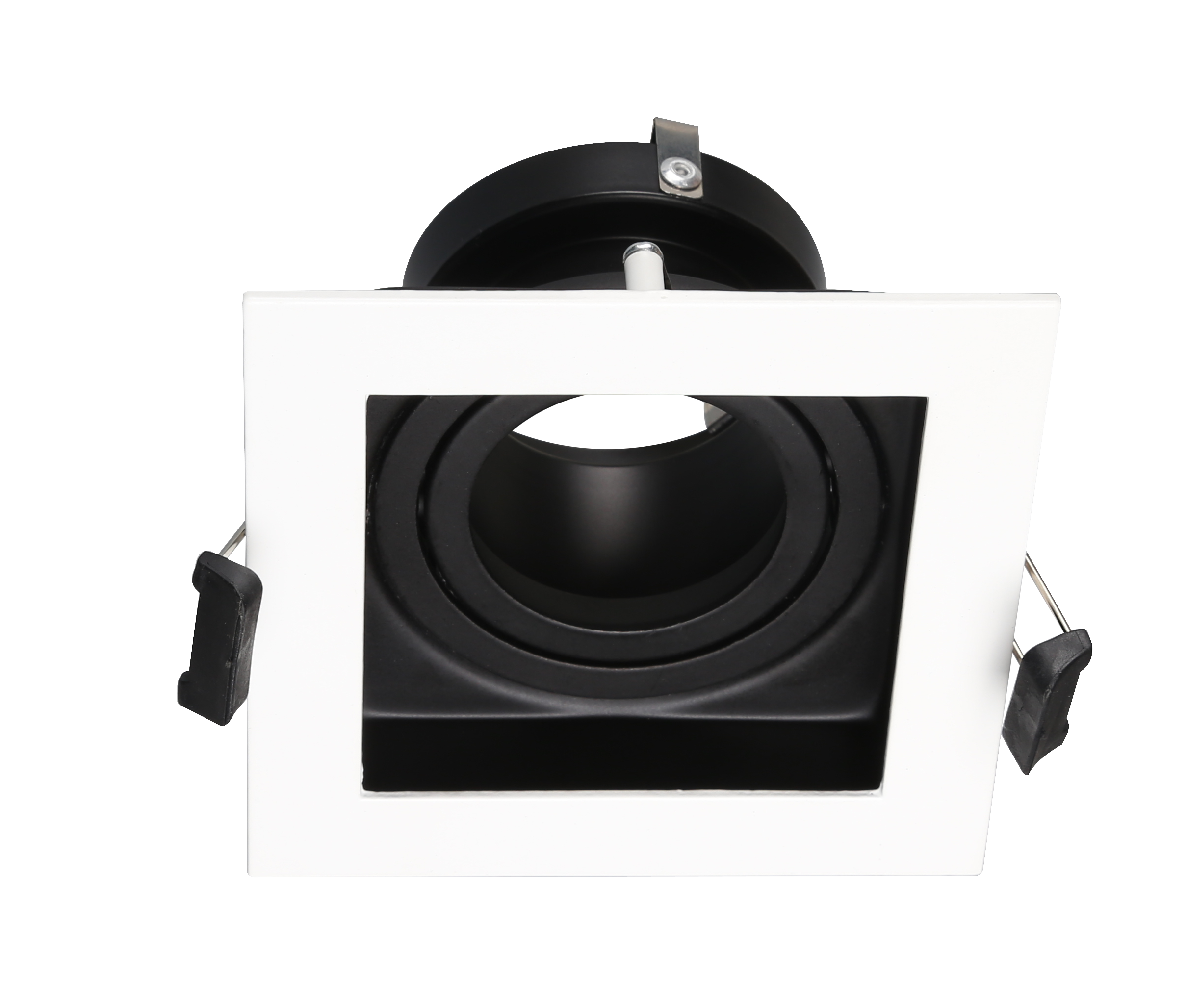

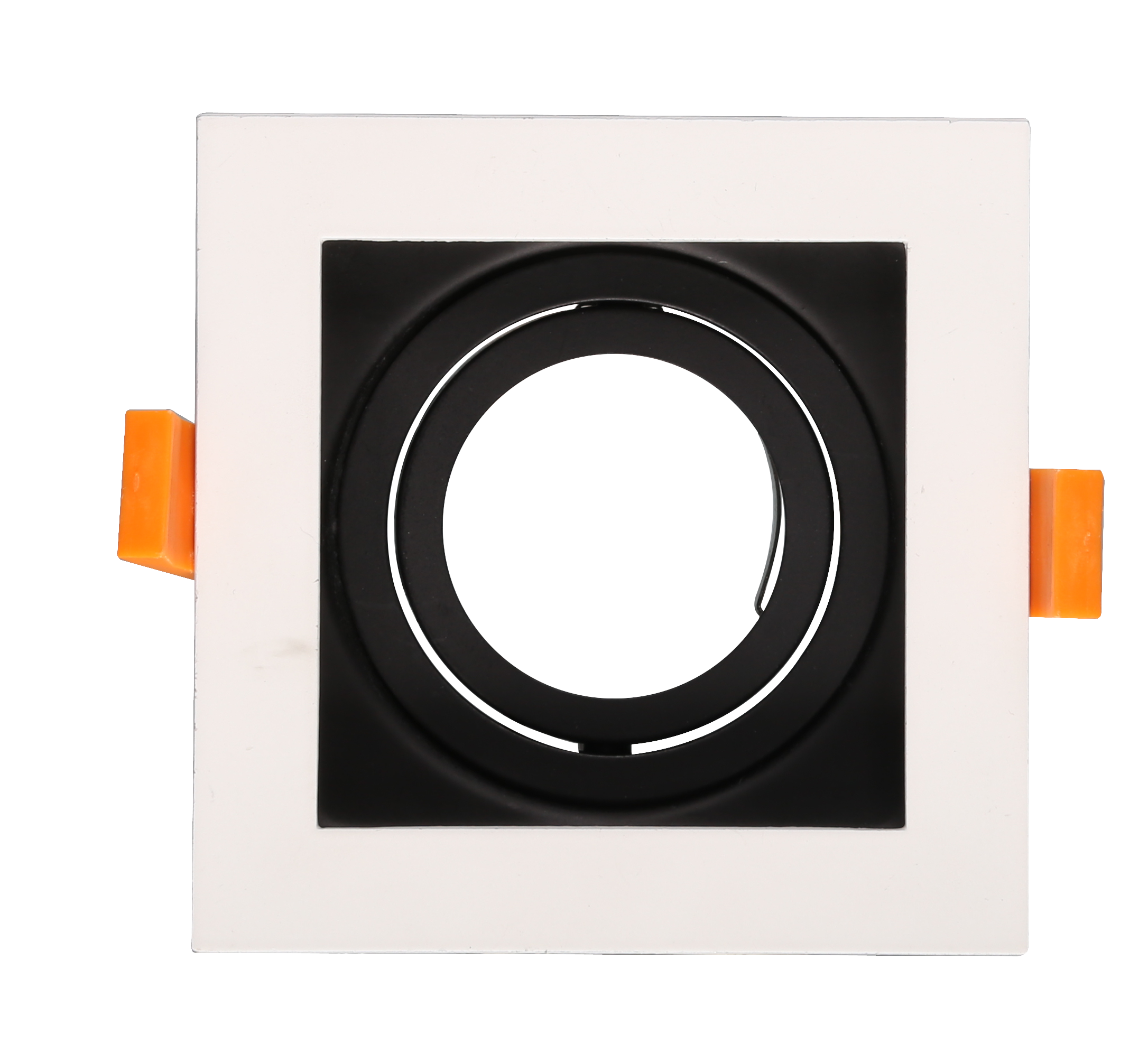

SQ1 Black and White, Square gimbal IP20 single light surface mount trim for X Series COB Modules
SQ1 Black and White, Square gimbal IP20 single light surface mount trim for X Series COB Modules
SKU:SQ1 Black and White
47 in stock
We will match any competitor's advertised price
Couldn't load pickup availability
Bulk discounts is a genuine discount for customers who are actually looking for more value. Please note that the below conditions will apply to items that were purchased on bulk discount. Returns on bulk buy discounts will be processed at the adjusted price disallowing for bulk discounts. A further deduction of delivery cost for the returned items will also be deducted from the refund amount.
IP20, Adjustable Surface mount ring for X3A, X15A, X20A, XRGBW and XCCT COB down light modules.
Choose this trim if
a. when you want a gimbal square trim.
b. reasonable low profile bezel makes it architecturally very attractive.
c. Low glare rating as the light is set back.
Do not choose this trim if
a. you are planning to use it in high moisture areas like external eves and shower rooms as its IP20 rated.
|

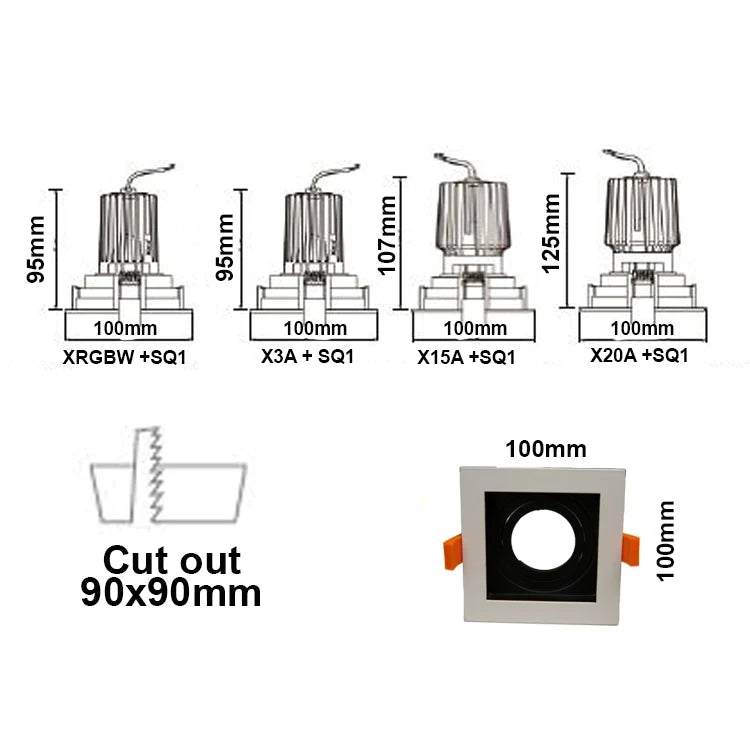

Cut out |
90 x 90 mm |
|
Diameter of face |
100 x 100 mm |
|
Total height of fitting |
45 mm |
|
Mounting depth with X3A |
95 mm |
|
Mounting depth with X15A |
104 mm |
|
Mounting depth with X20A |
121 mm |
|
Mounting depth with XRGBW |
95 mm |
|
Mounting depth with XCCT |
80 mm |

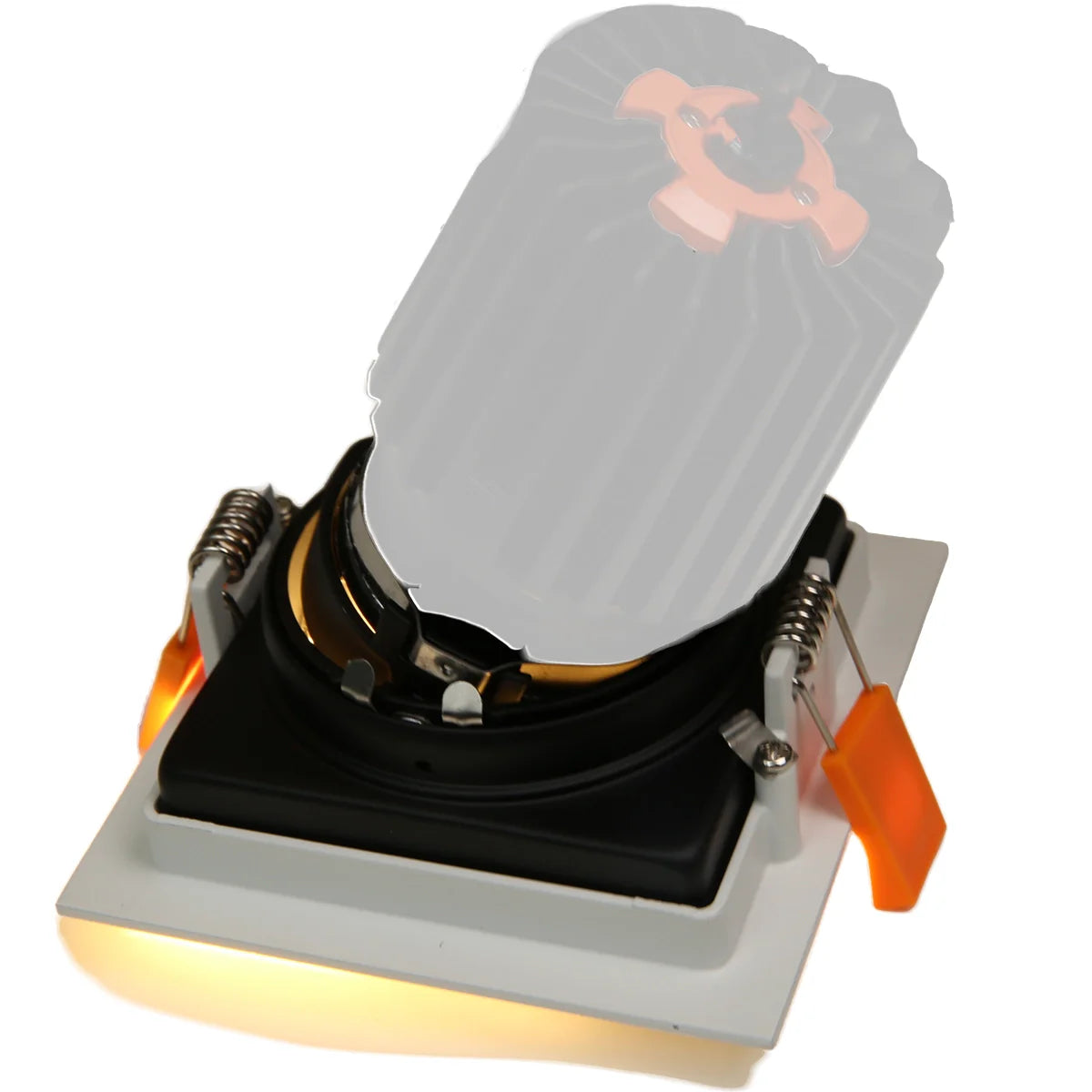

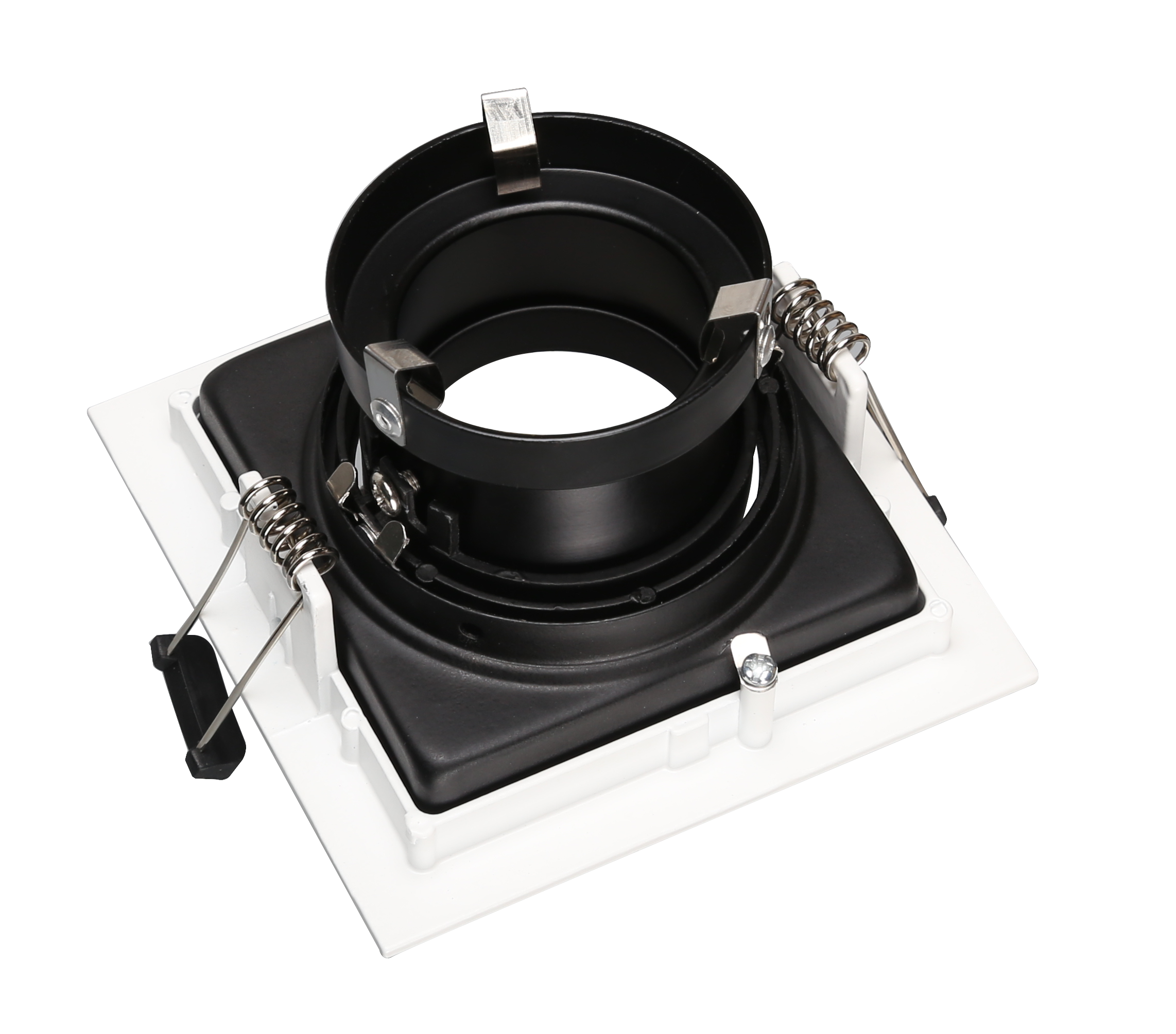

Please note that the light module can be removed without pulling the trim out. This is a design feature of this trim.
Click here to download a pdf spec sheet for SQ1 square adjustable IP20 single light trim.

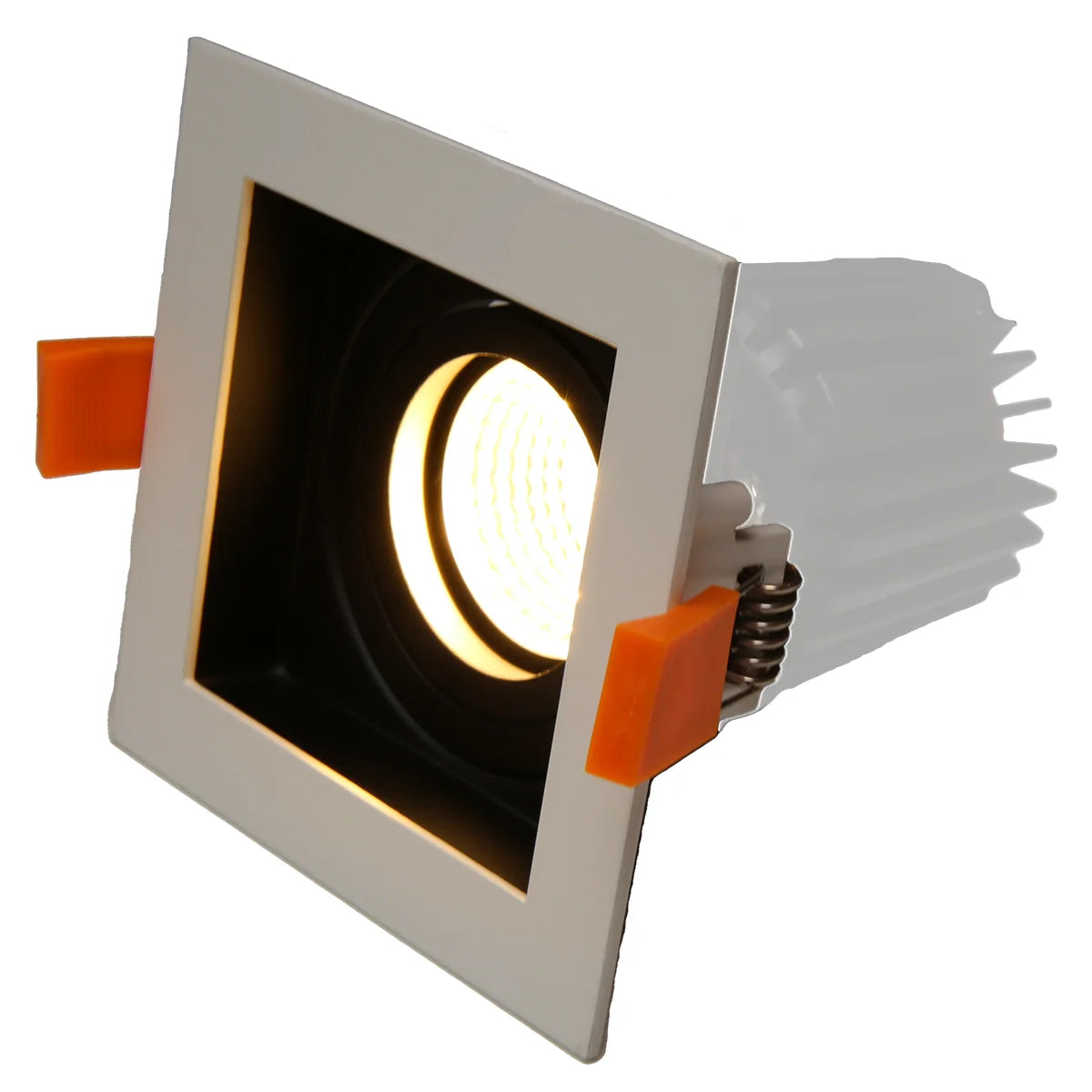

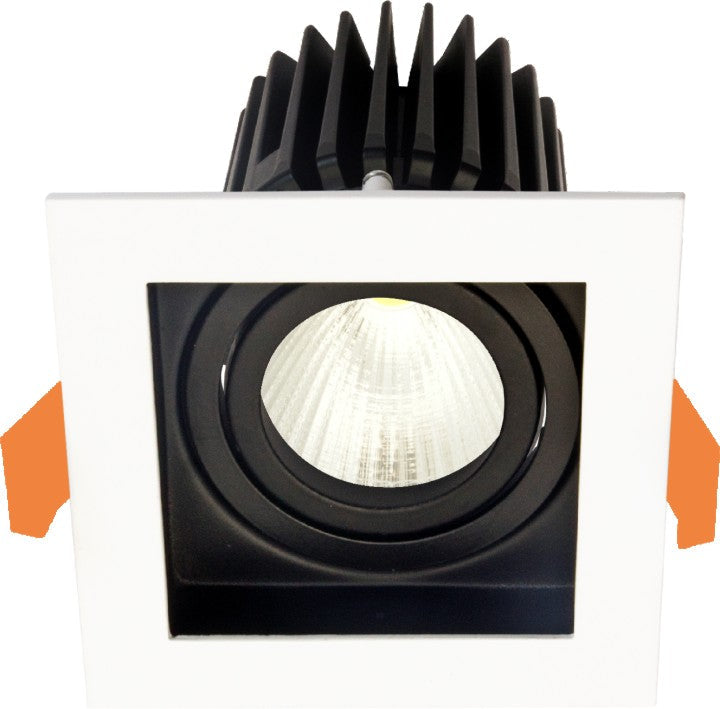

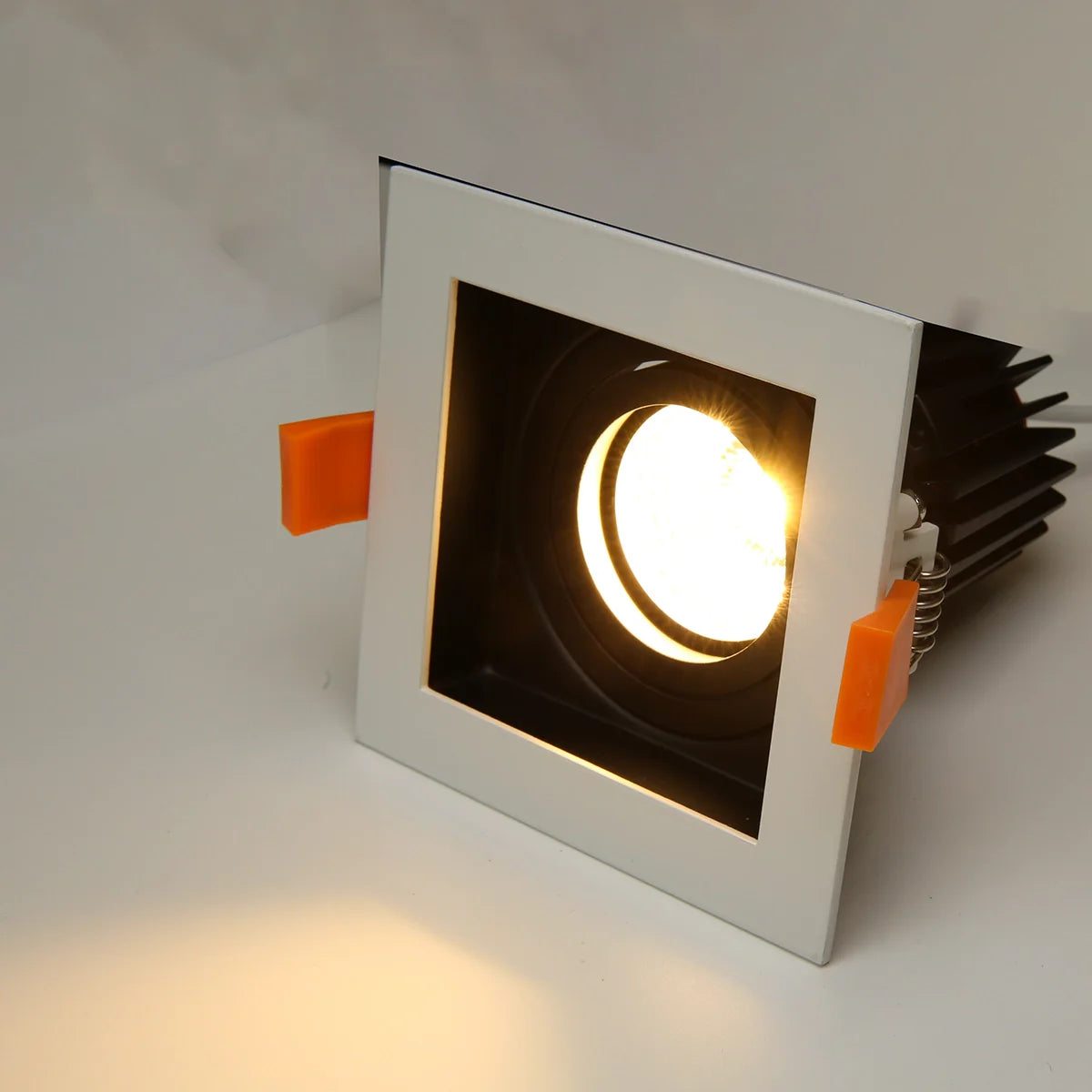

The price is for the surface mount trim only. The light is shown for illustration purposes only.
