RF7 White- Round fix IP44 surface mount trim for X Series COB Modules
Tax included. Shipping calculated at checkout
Shipping & Returns
- Free shipping on orders over $300 Australia-wide
- Flat $19 shipping on orders under $300
- Oversized items: flat $69 fee
- Returns accepted — see our returns policy
- Questions? Call (02) 6170 2923 or visit our Fyshwick showroom
Pickup available at LUMI-FI
Usually ready in 24 hours
RF7 White- Round fix IP44 surface mount trim for X Series COB Modules
LUMI-FI
89 Collie Street
Fyshwick ACT 2609
Australia
Choose options
DETAILS
Product Information

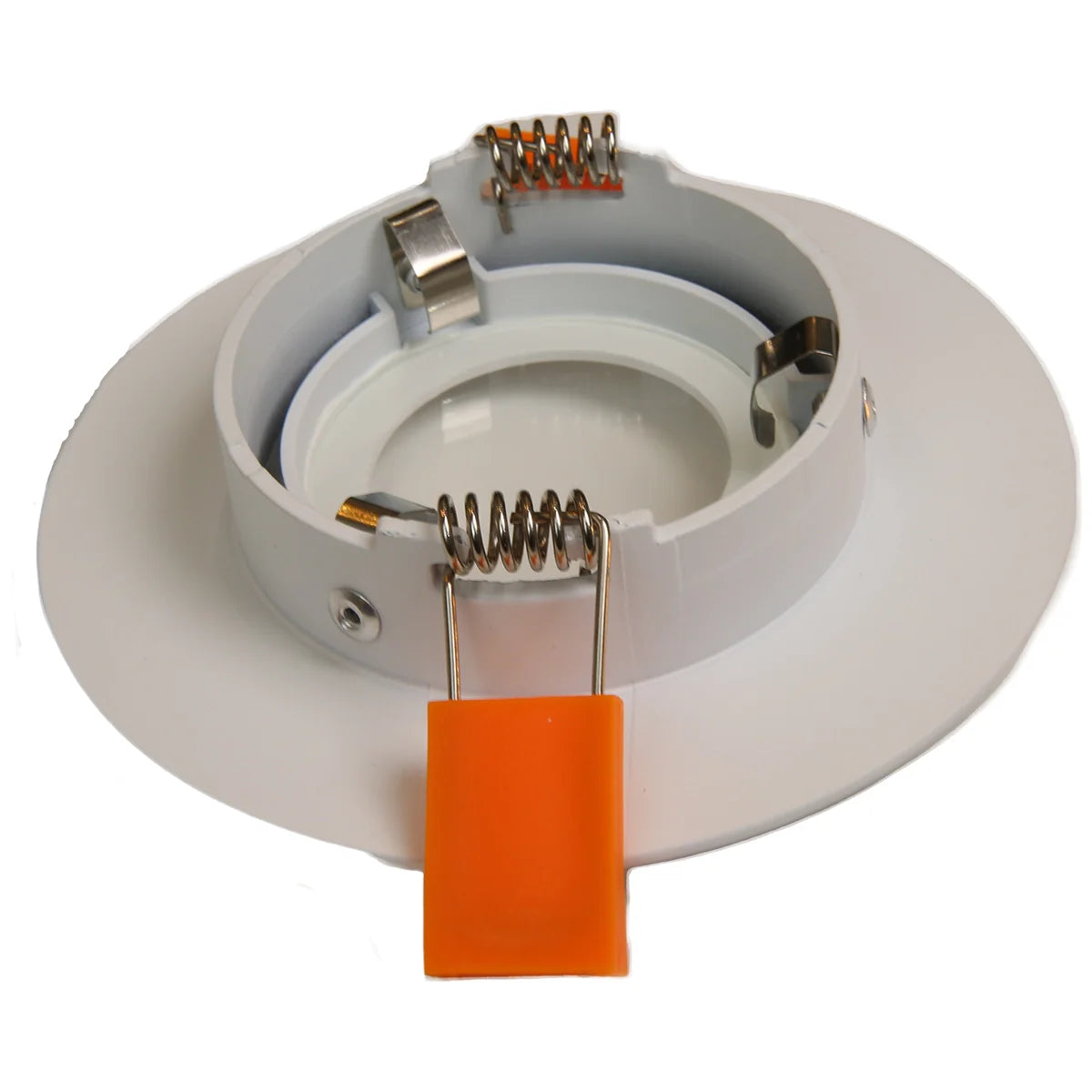

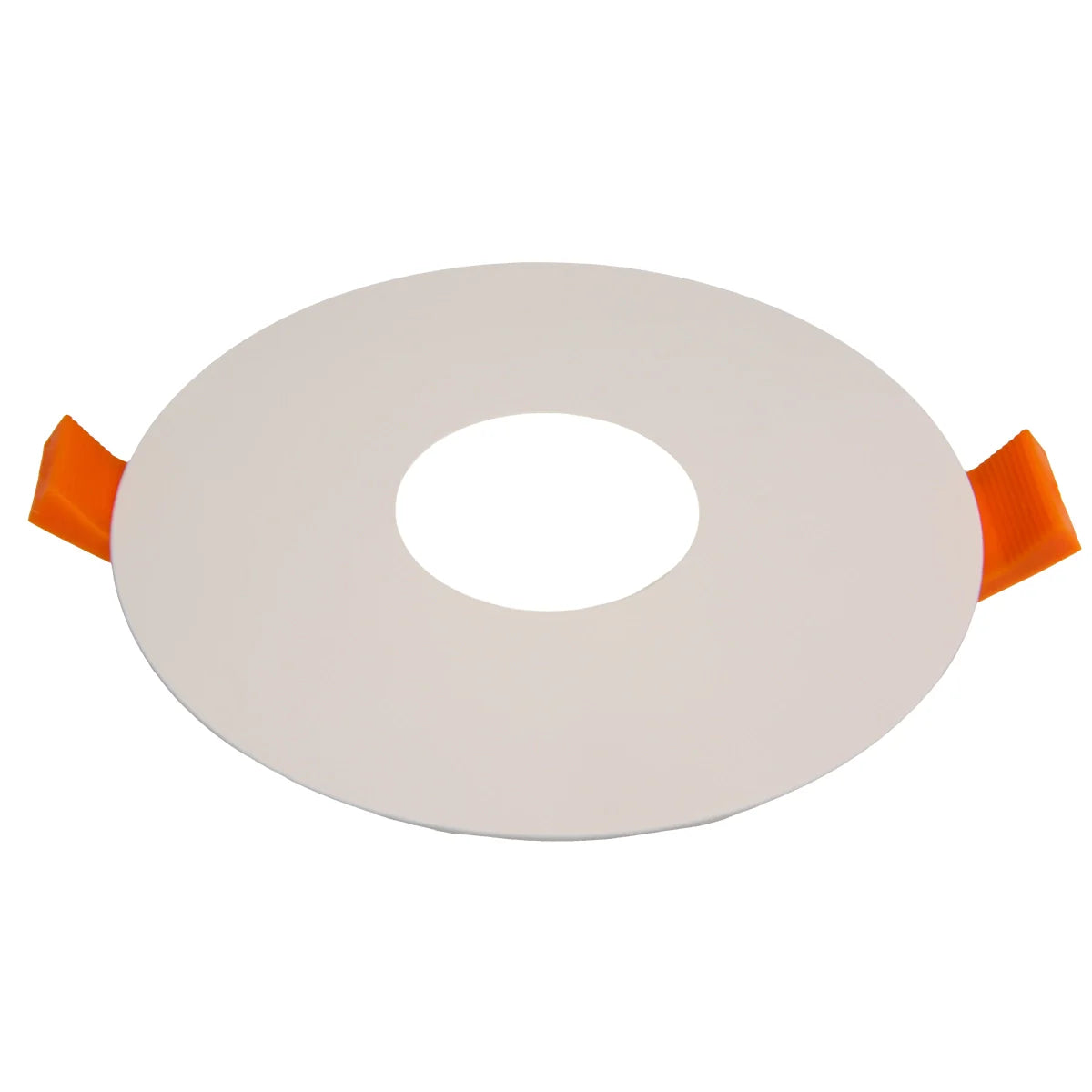

IP44, Surface mount ring for X3A, X15A, XRGBW and XCCT COB down light modules.
Choose this trim if
a. you are installing in high moisture area, external eves or shower room.
b. when replacing old lights that are installed with a 70-92 mm cut out. The larger face covers a much bigger cut out.
c. fixed non adjustable trim
d. Relatively shallower mounting depth is available.
Do not choose this trim if
a. if you are looking for adjustable angle trim.
b. if you desire to have the best architectural outcome. The very large face serves the purpose of covering the widest range of cut outs, but does not look as classy as RF1, RF4 and RF8.
|

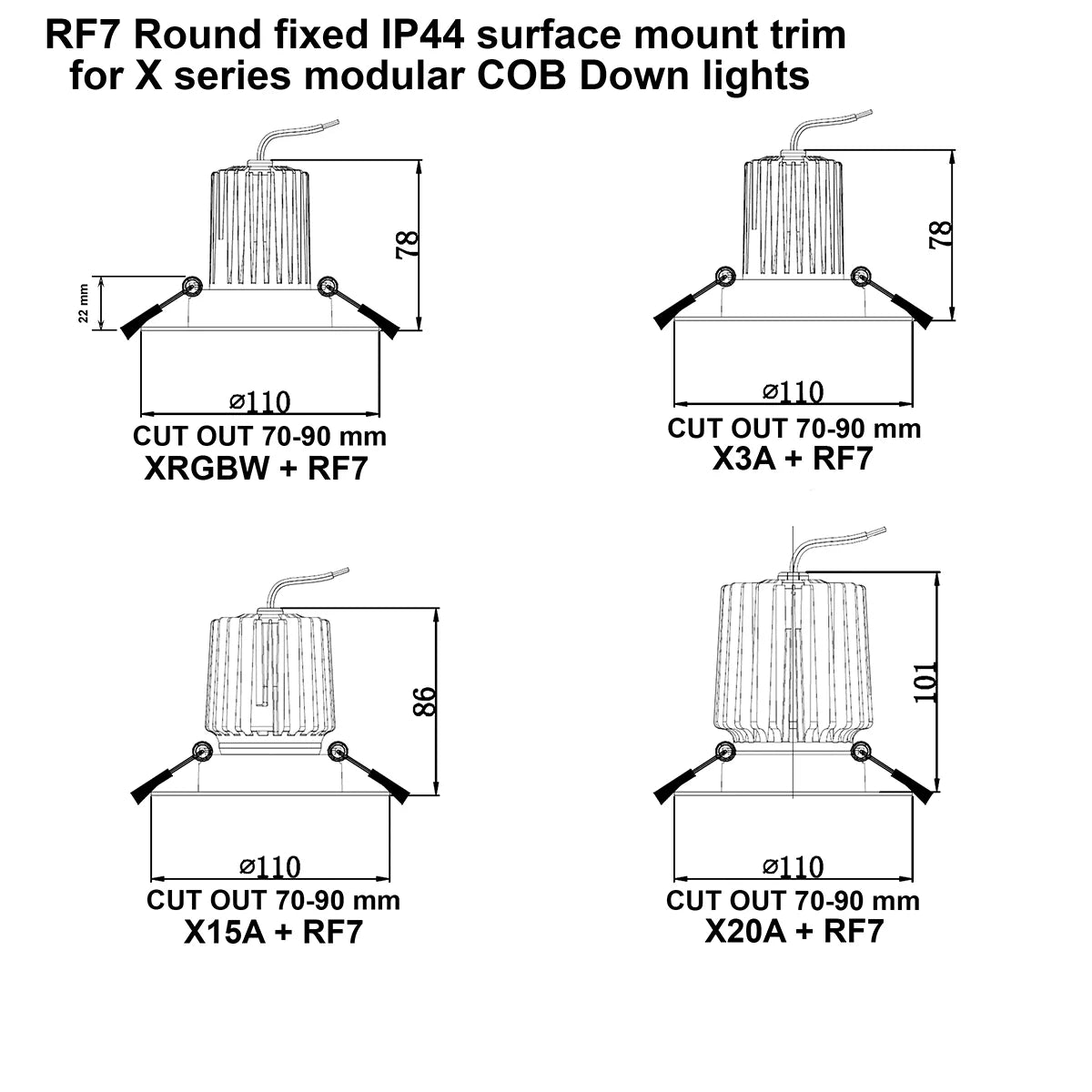

Cut out |
70-92 mm |
|
Diameter of face |
110 mm |
|
Total height of fitting |
22 mm |
|
Mounting depth with X3A |
78 mm |
|
Mounting depth with X15A |
86 mm |
|
Mounting depth with X20A |
101 mm |
|
Mounting depth with XRGBW |
78 mm |
|
Mounting depth with XCCT |
63 mm |
Click here to download a pdf spec sheet for RF7 round fix IP44 trim.

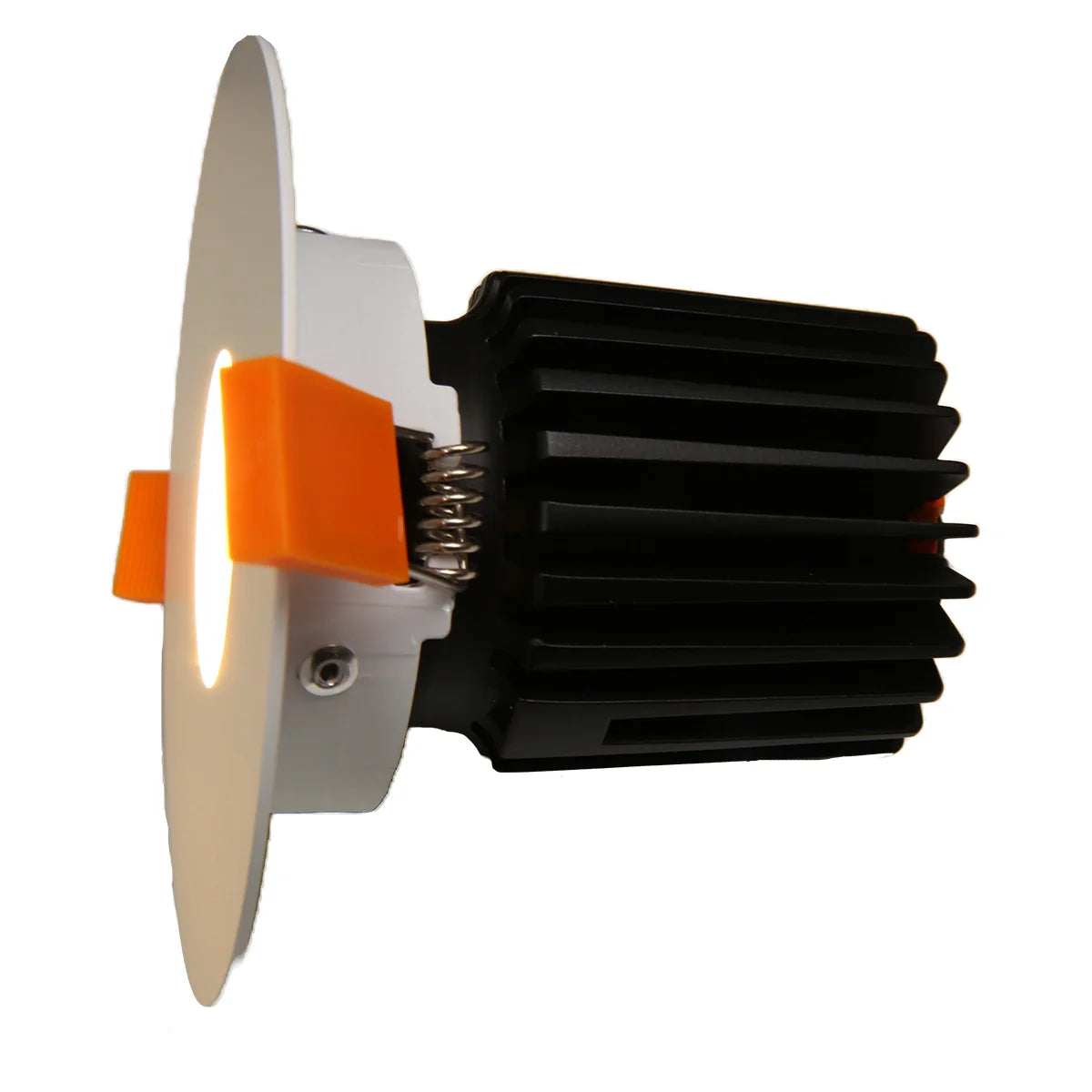

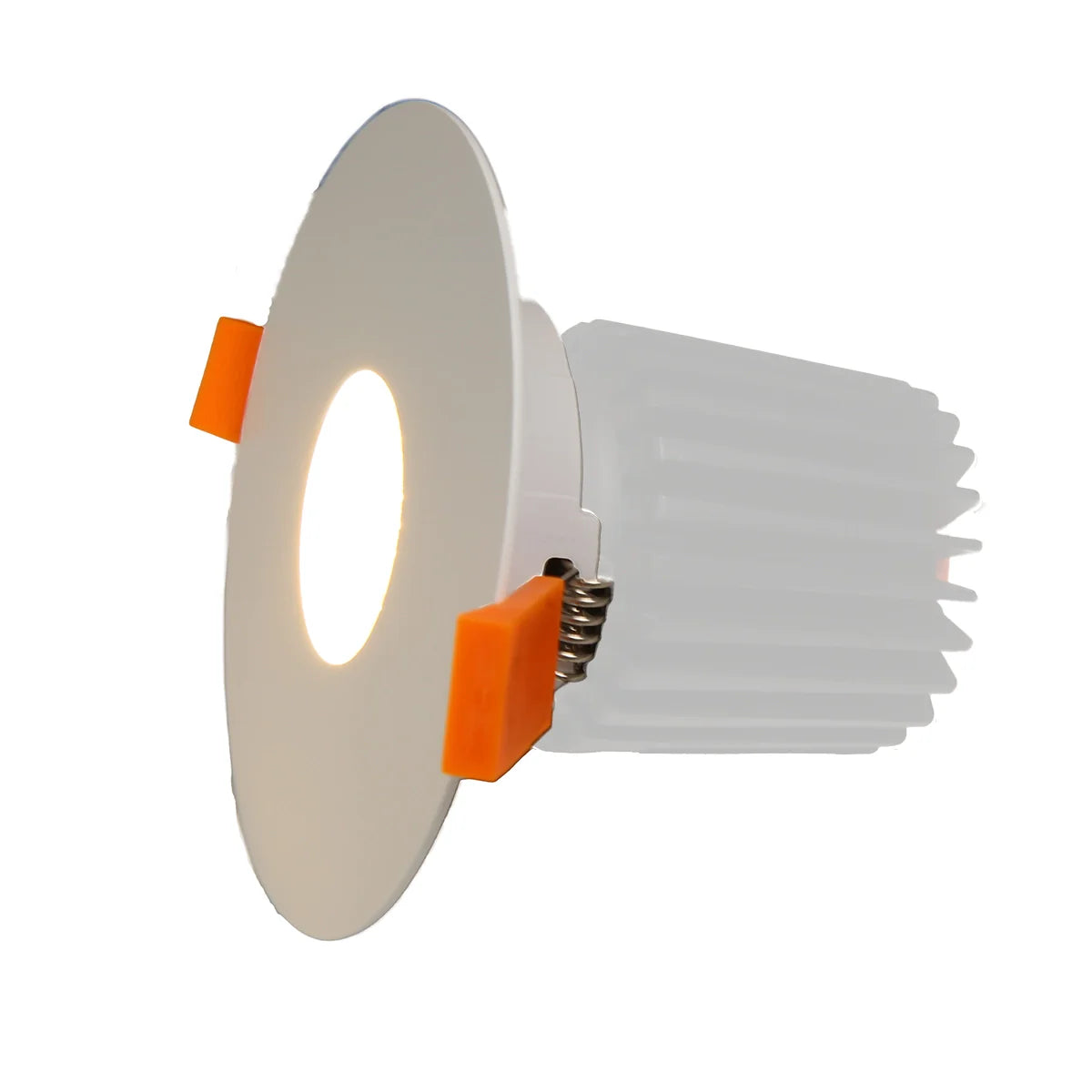

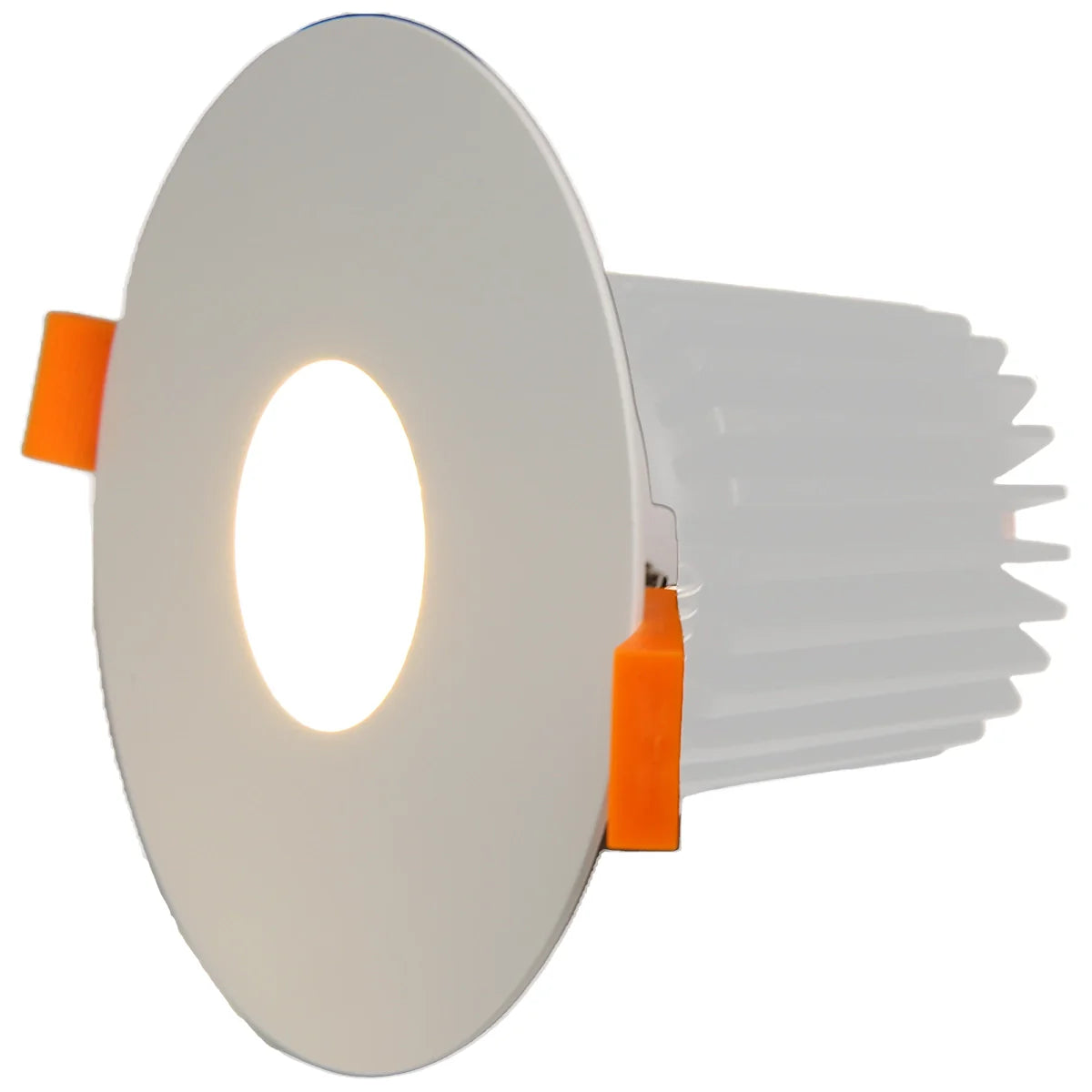

The price is for the surface mount trim only. The light is shown for illustration purposes only.
