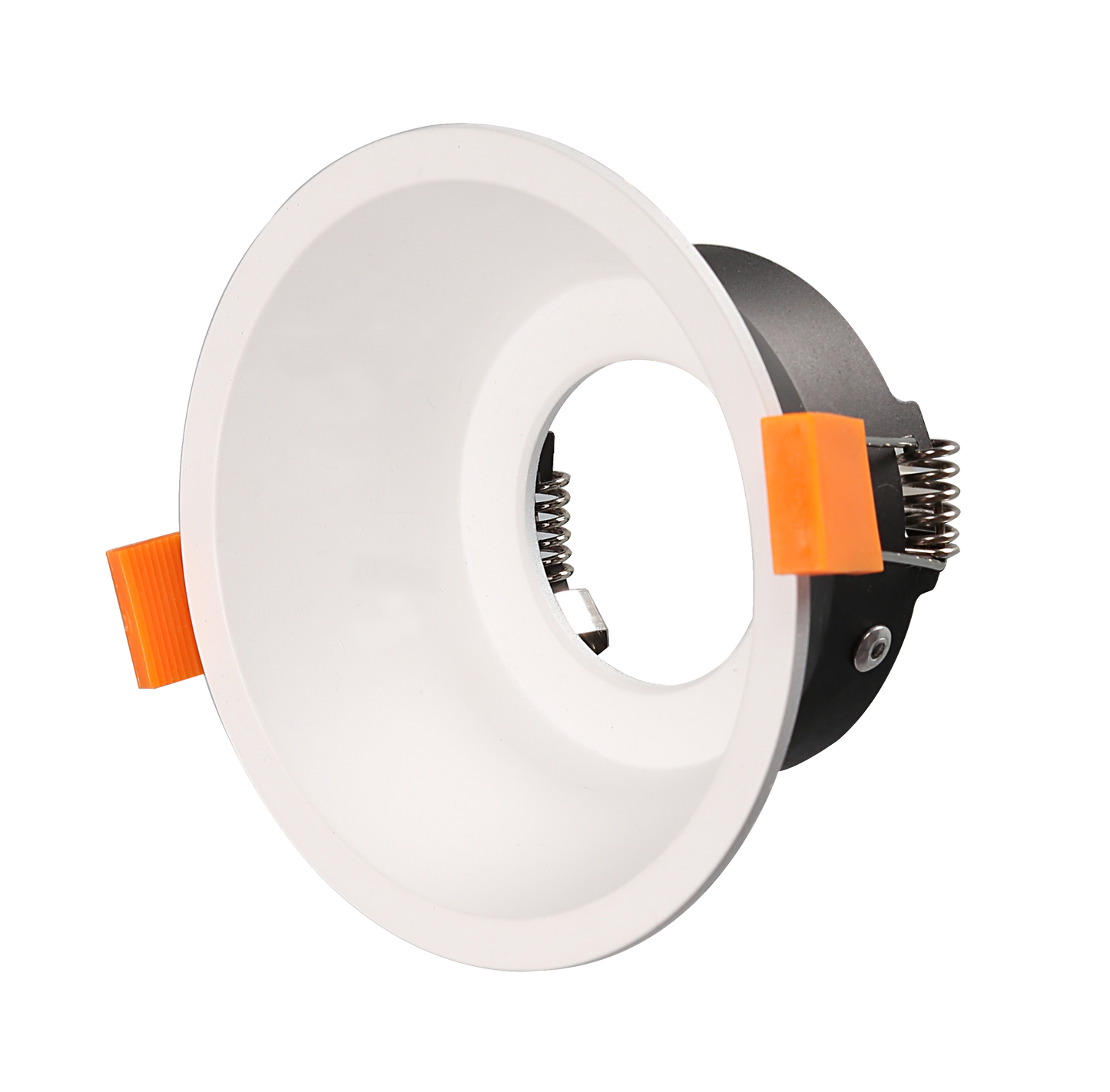

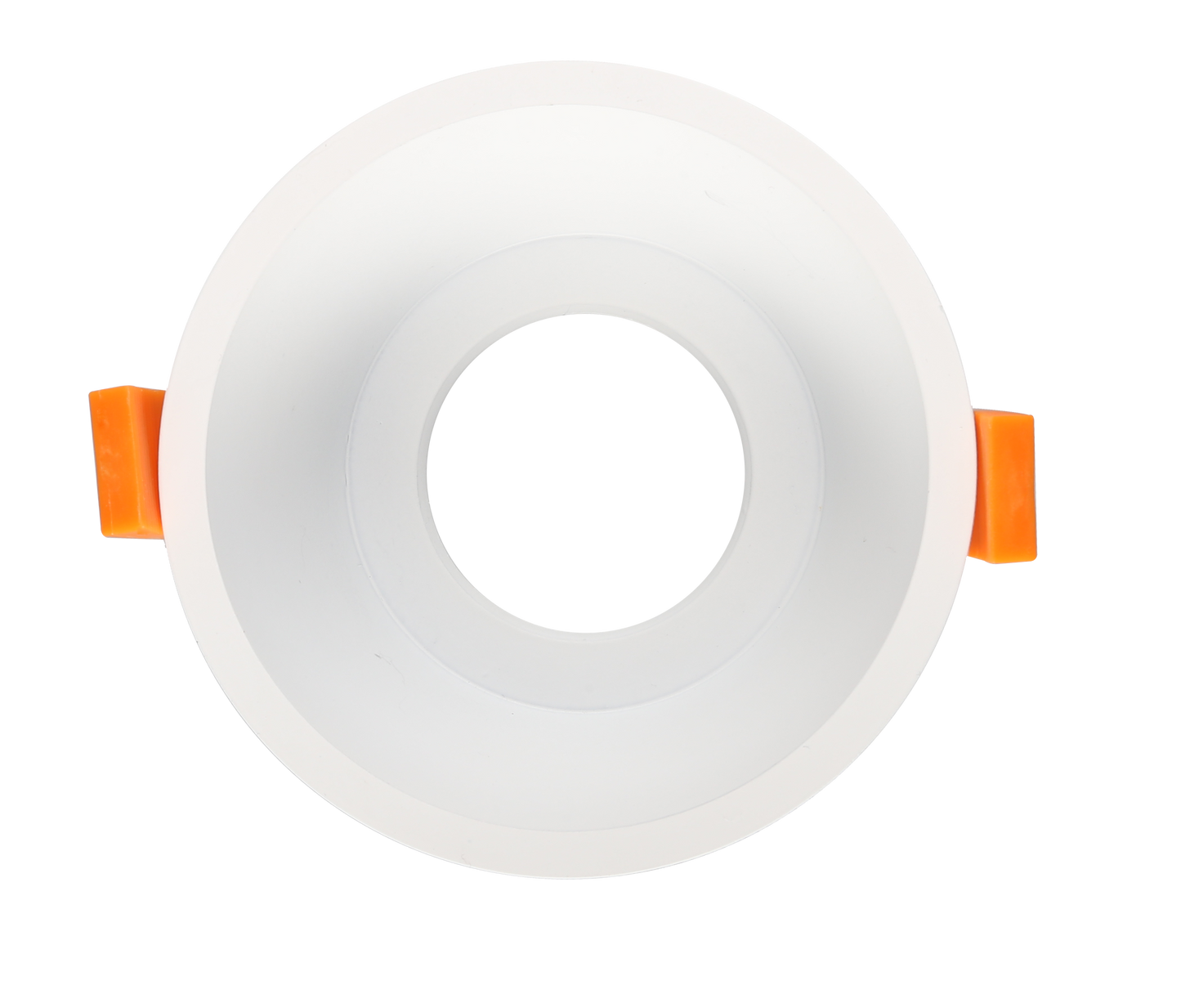

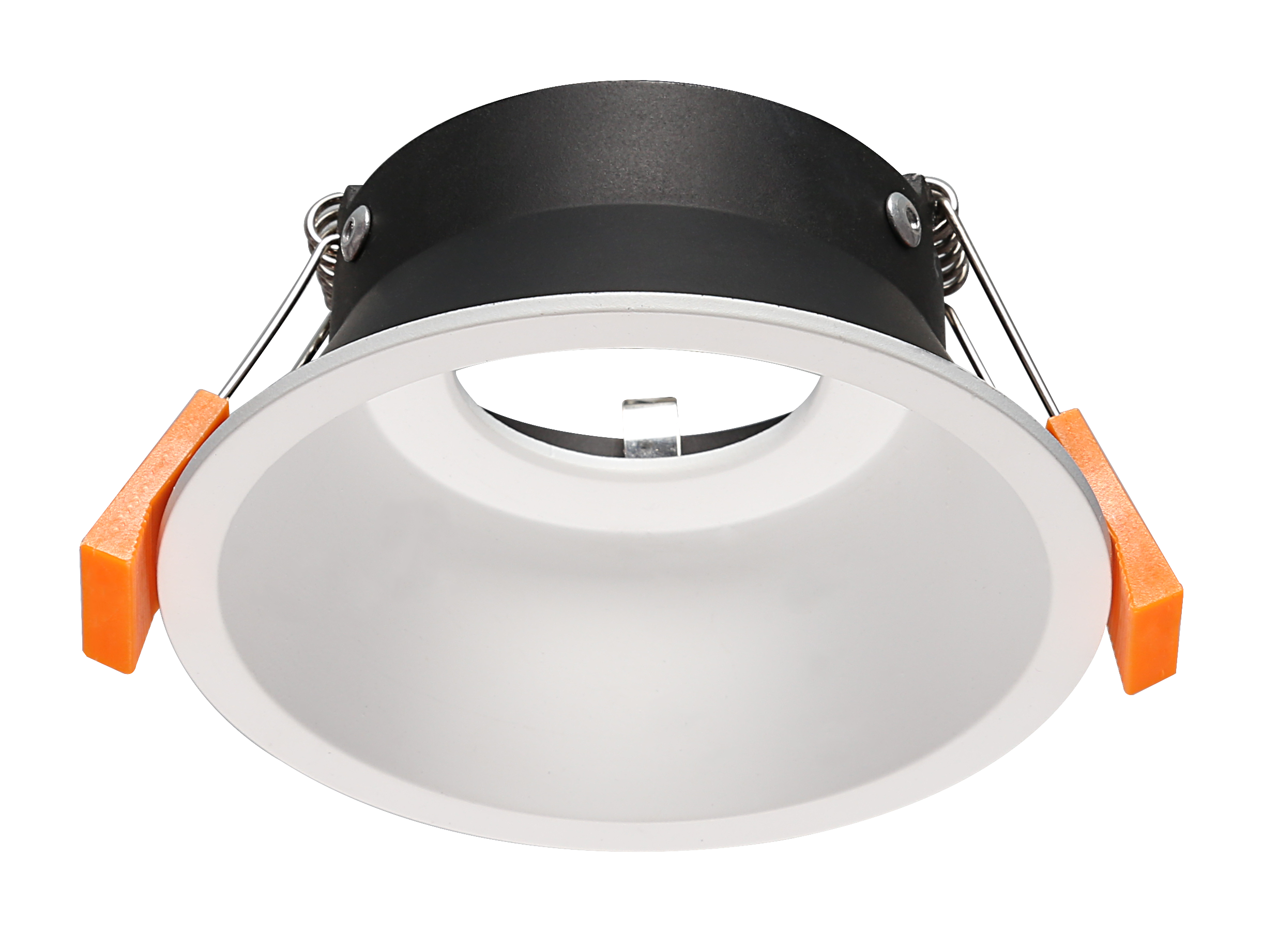

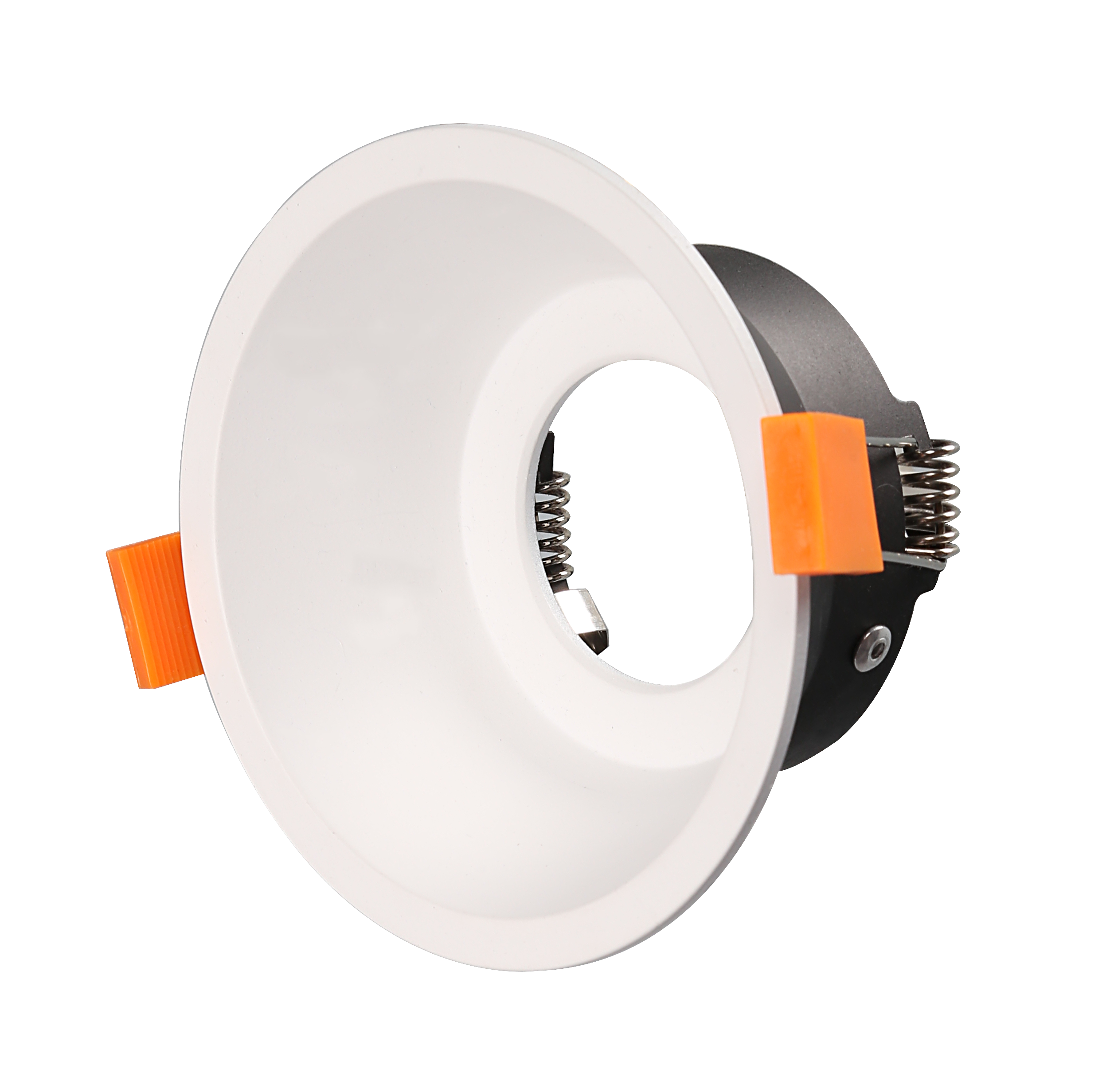

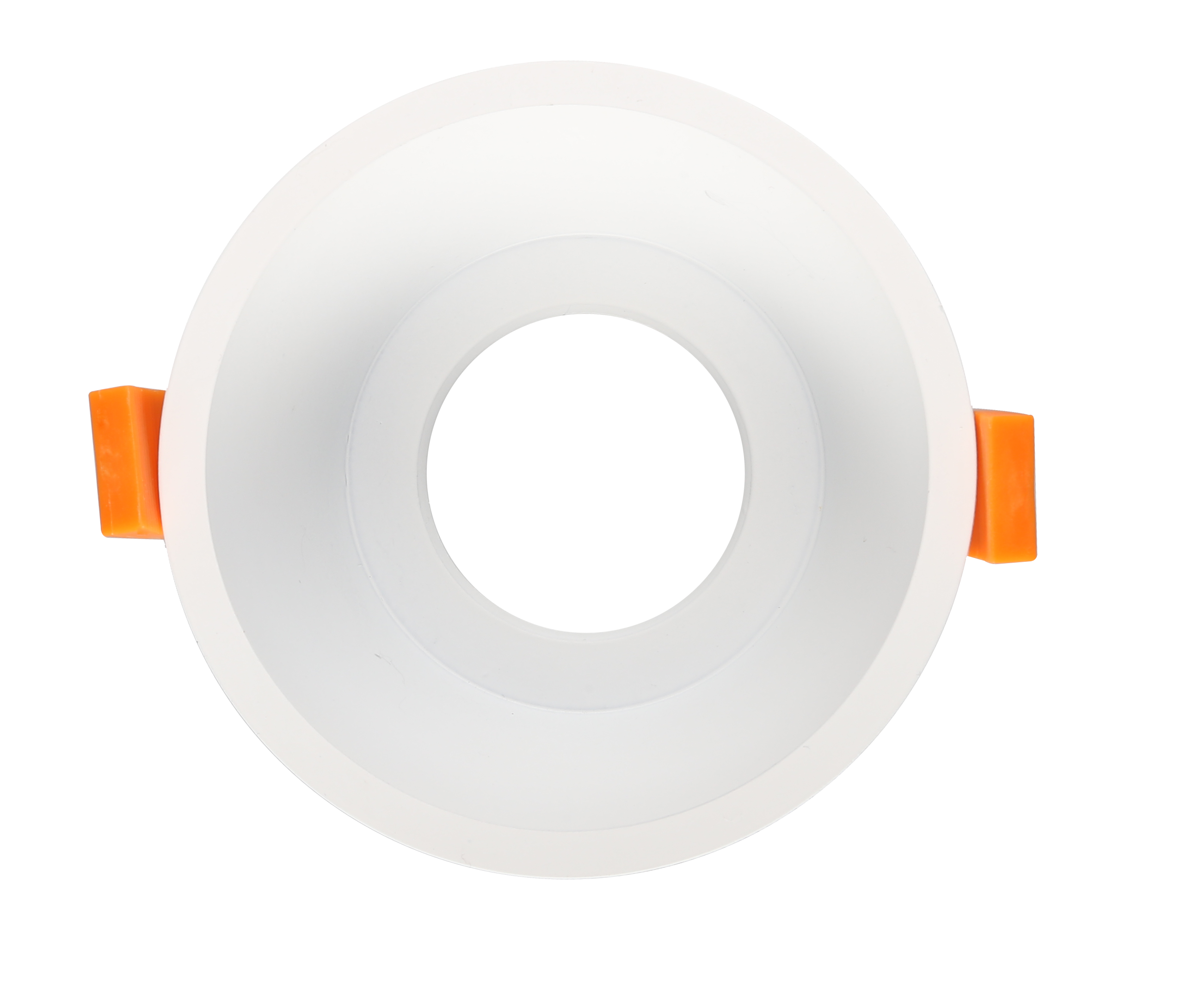

RF2 White-Round fixed IP20 surface mount trim for X Series COB Light modules
LUMI-FI
89 Collie Street
Fyshwick ACT 2609
Australia
Choose options
DETAILS
Product Information

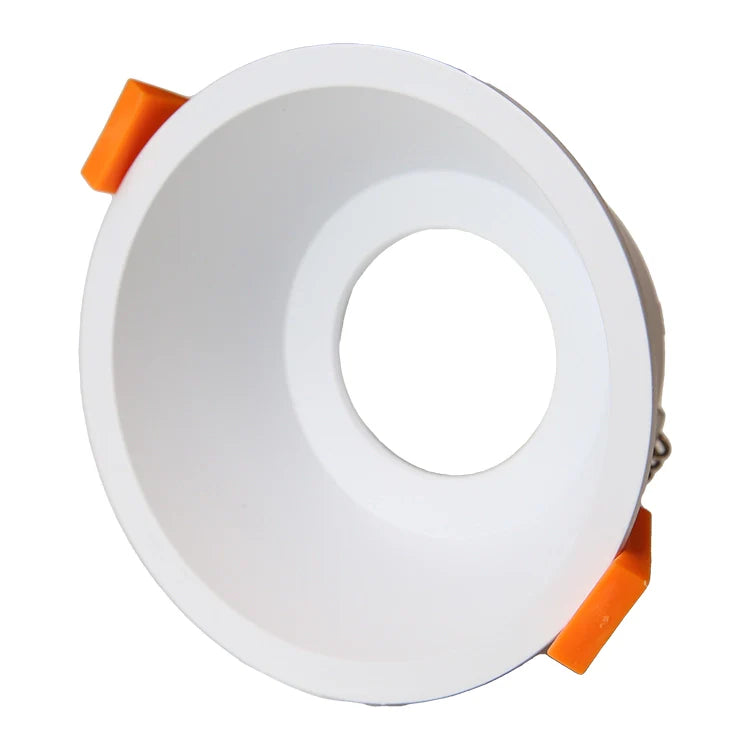

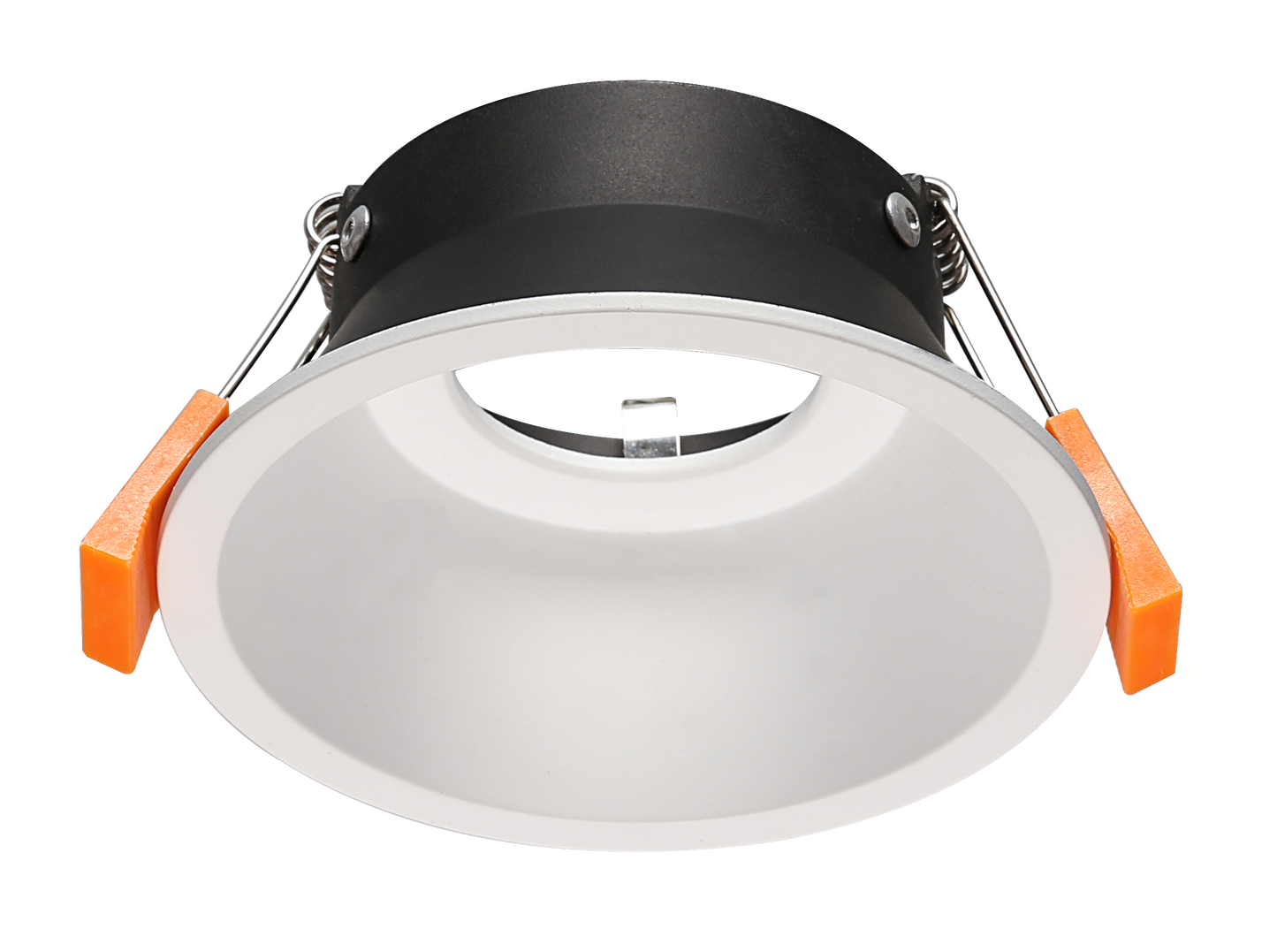

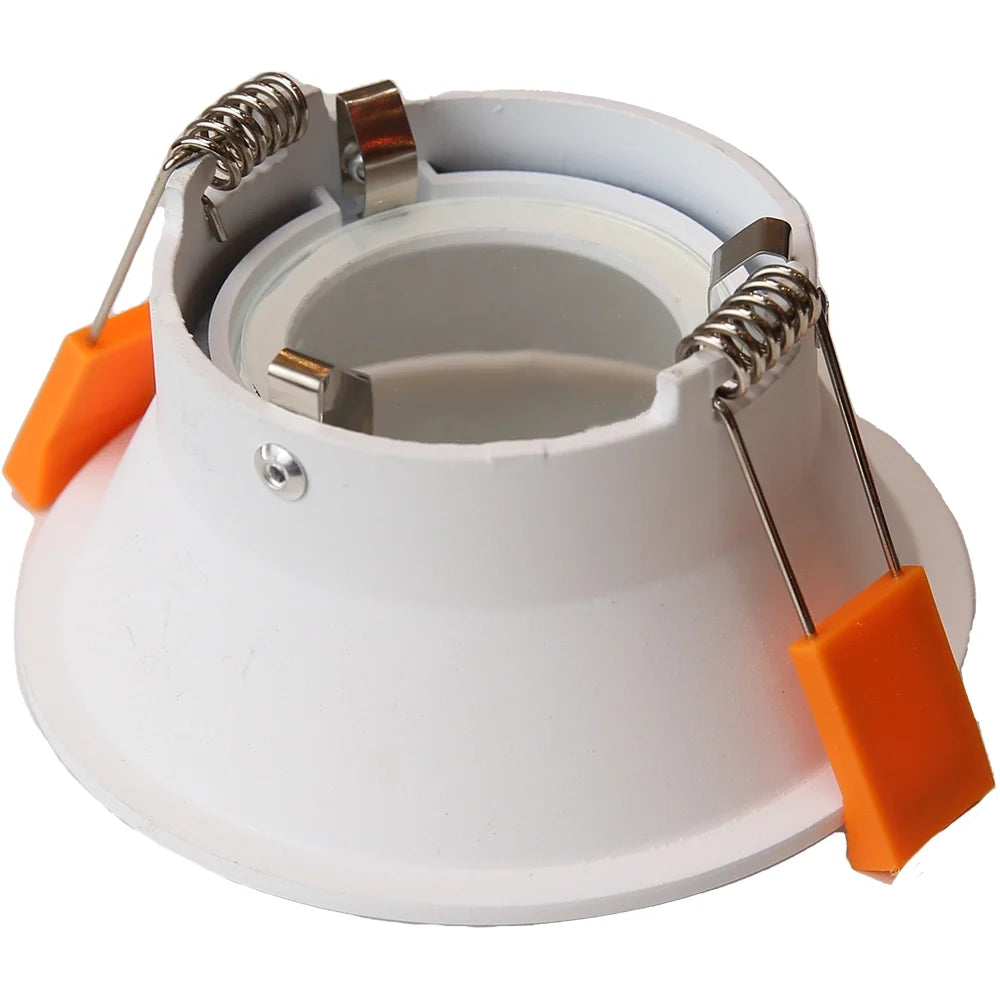

IP44, Surface mount ring for X3A, X15A,X20A, XRGBW and XCCT COB downlight module
Choose this trim if
a. the desired outcome is an architecturally attractive low profile 5 mm bezel.
b. Low glare as the light module sits a fair distance in the ceiling.
c. Very neutral look that everyone will like.
d. if you require your light to be IP44. The glass cover in this trim will block moisture getting into the light module.
Do not choose this trim if
a. You are replacing existing lights and the cut out size is larger than 90 mm. Yes, it will not work very well with 92 mm cut out.
|

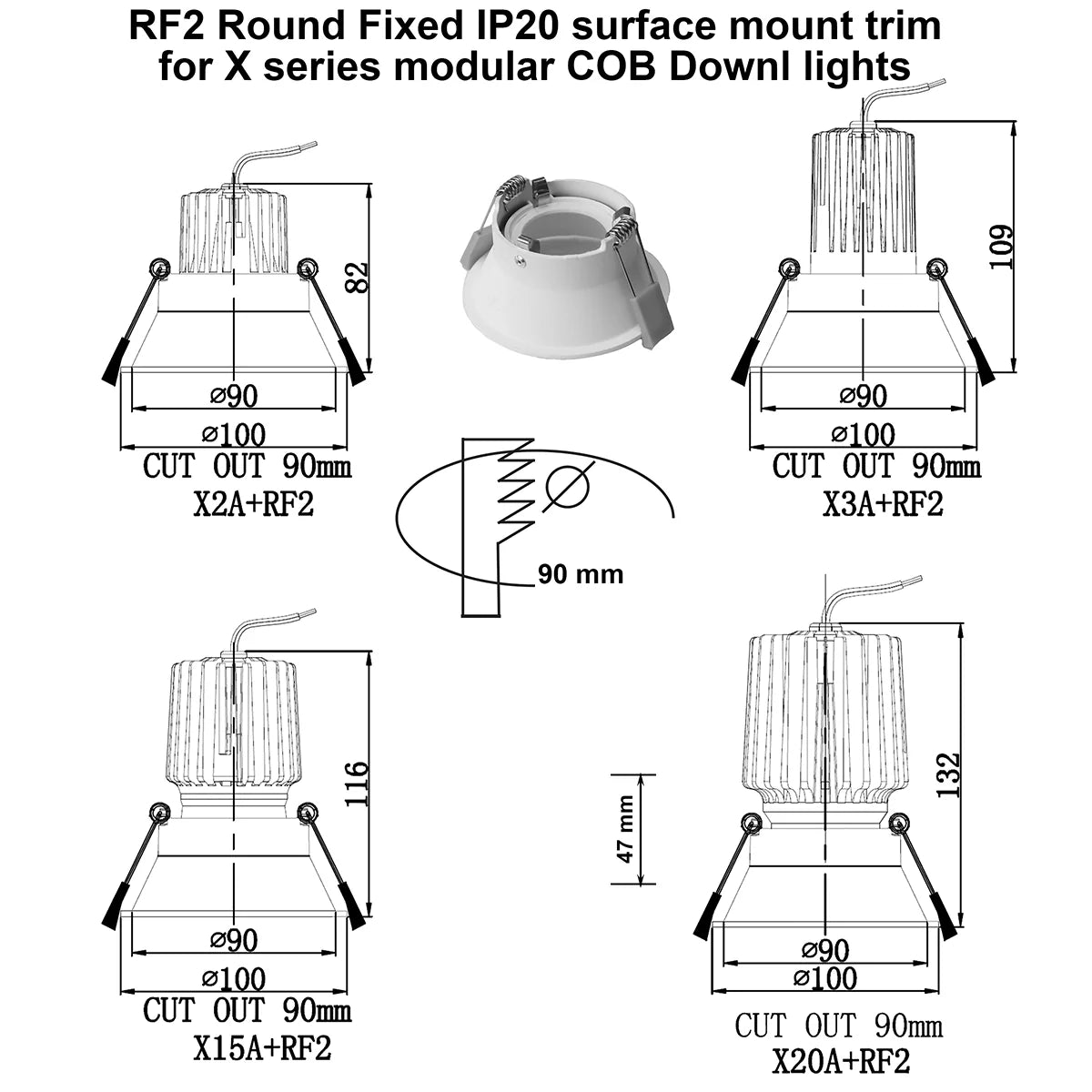

Cut out |
89-90 mm |
|
Diameter of face |
100 mm |
|
Total height of fitting |
47 mm |
|
Mounting depth with X3A |
103 mm |
|
Mounting depth with X15A |
111 mm |
|
Mounting depth with X20A |
129 mm |
|
Mounting depth with XRGBW |
103 mm |
|
Mounting depth with XCCT |
88 mm |
Click here to download a pdf spec sheet for RF2 trim.

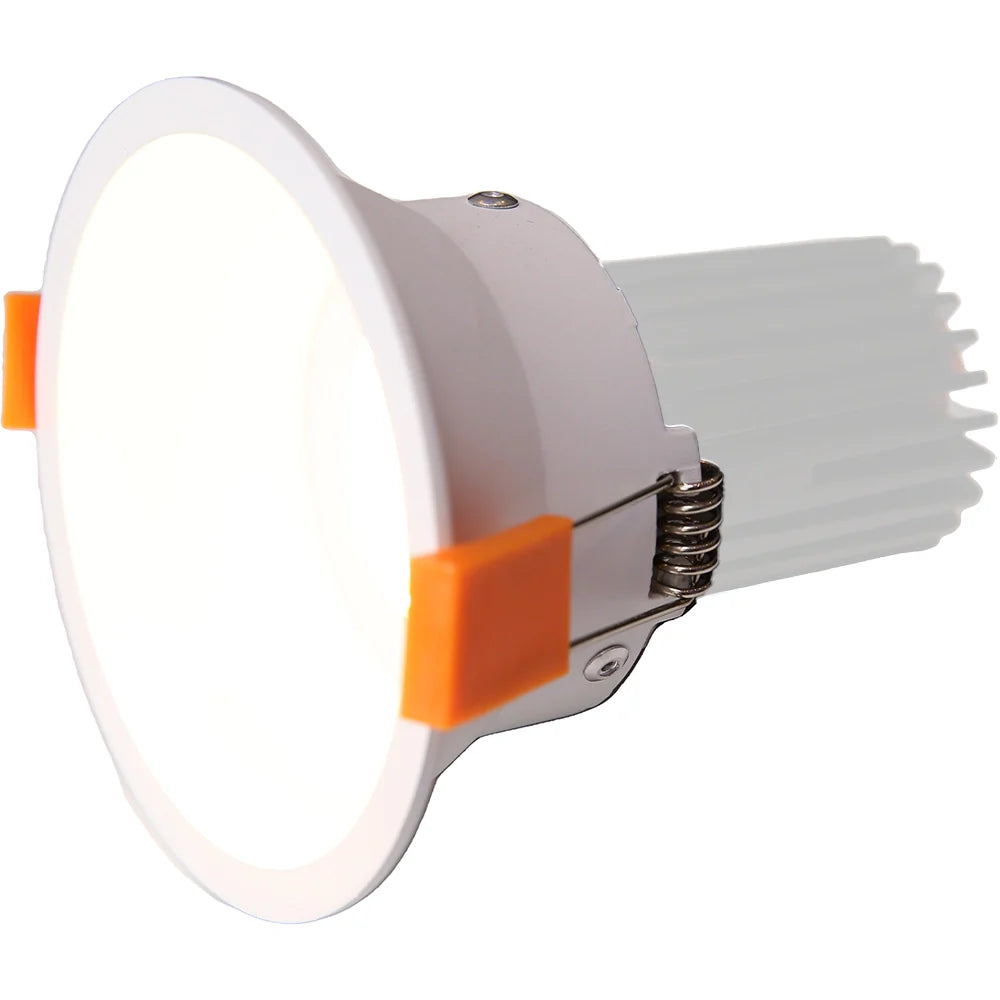

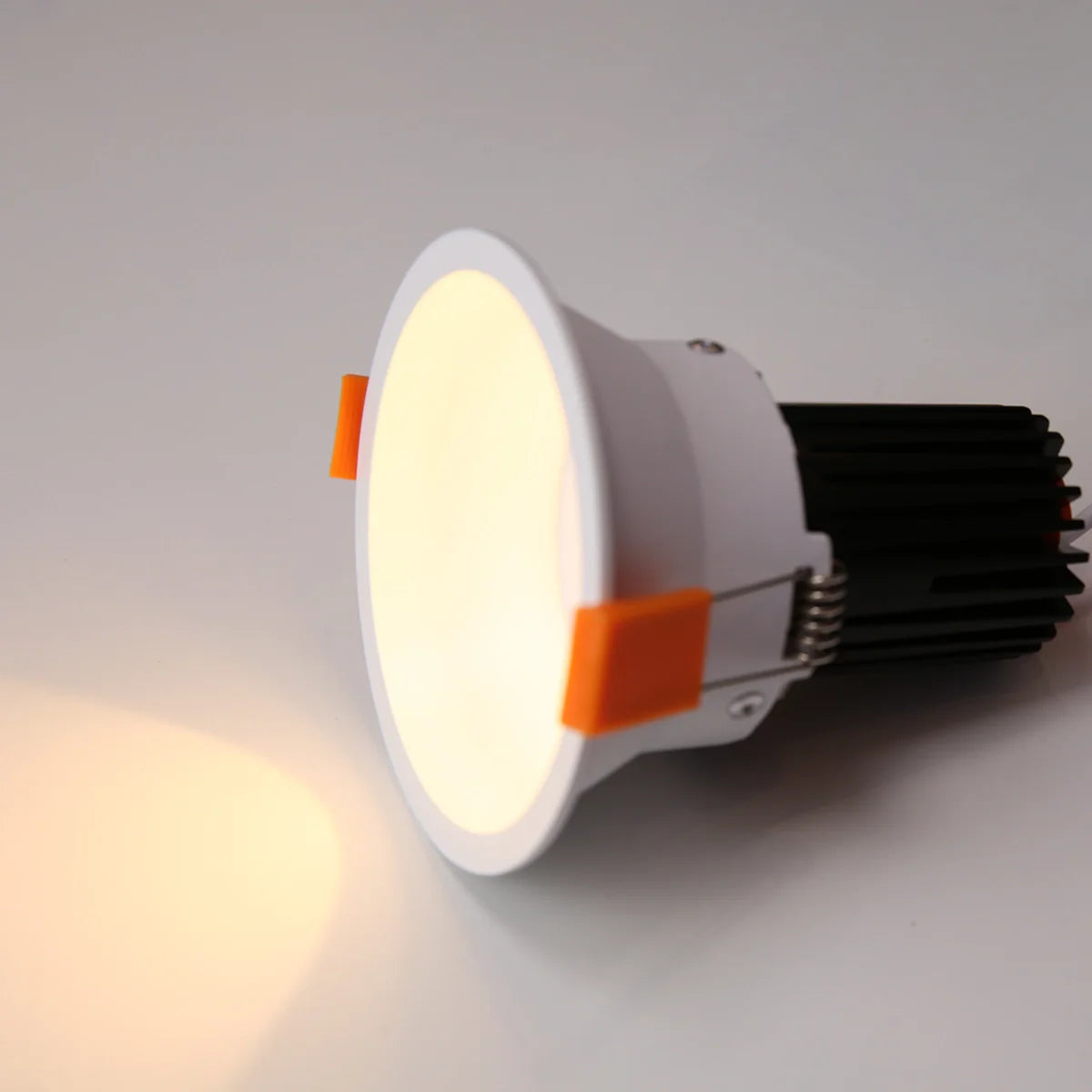

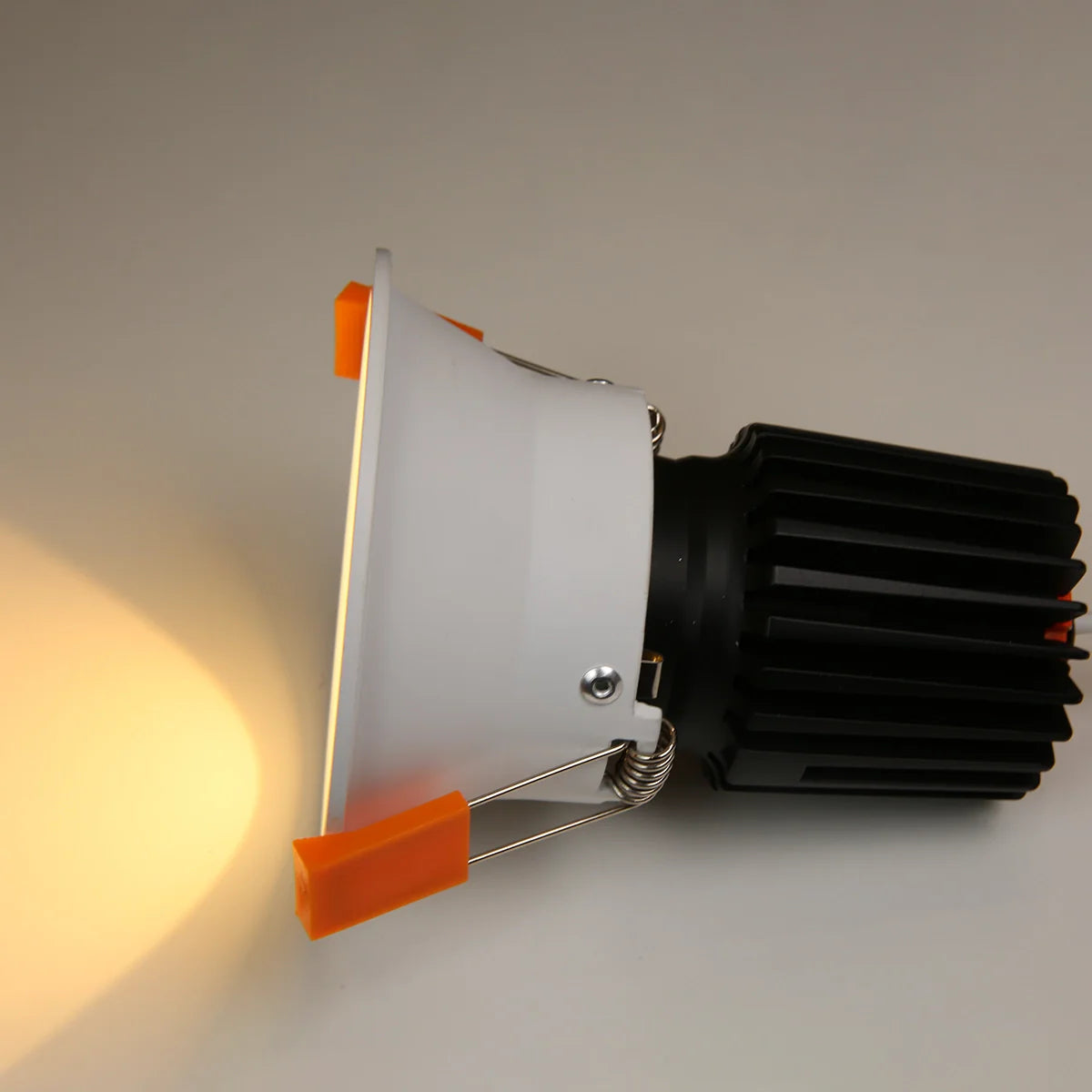

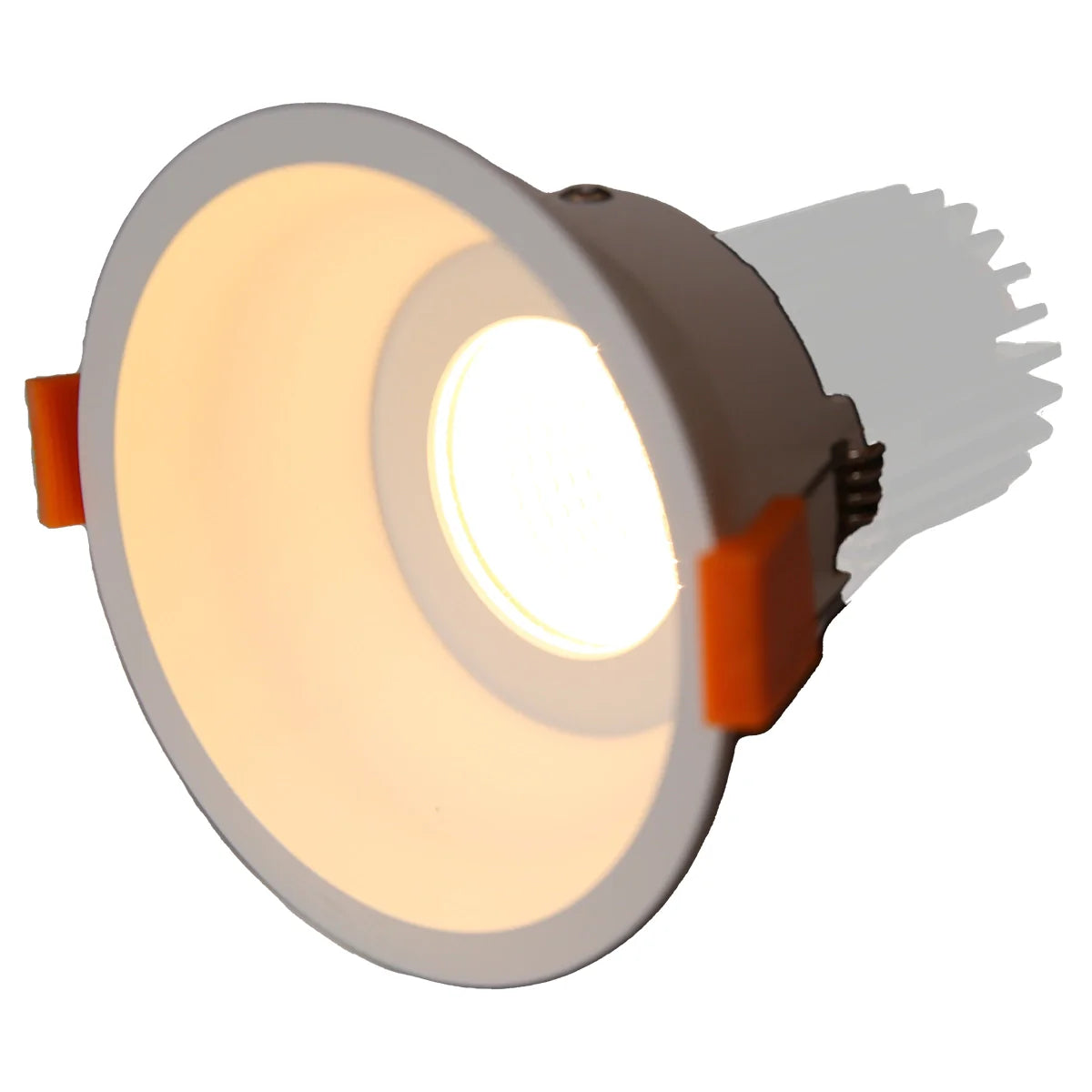

The price is for the surface mount trim only. The light is shown for illustration purposes only.
