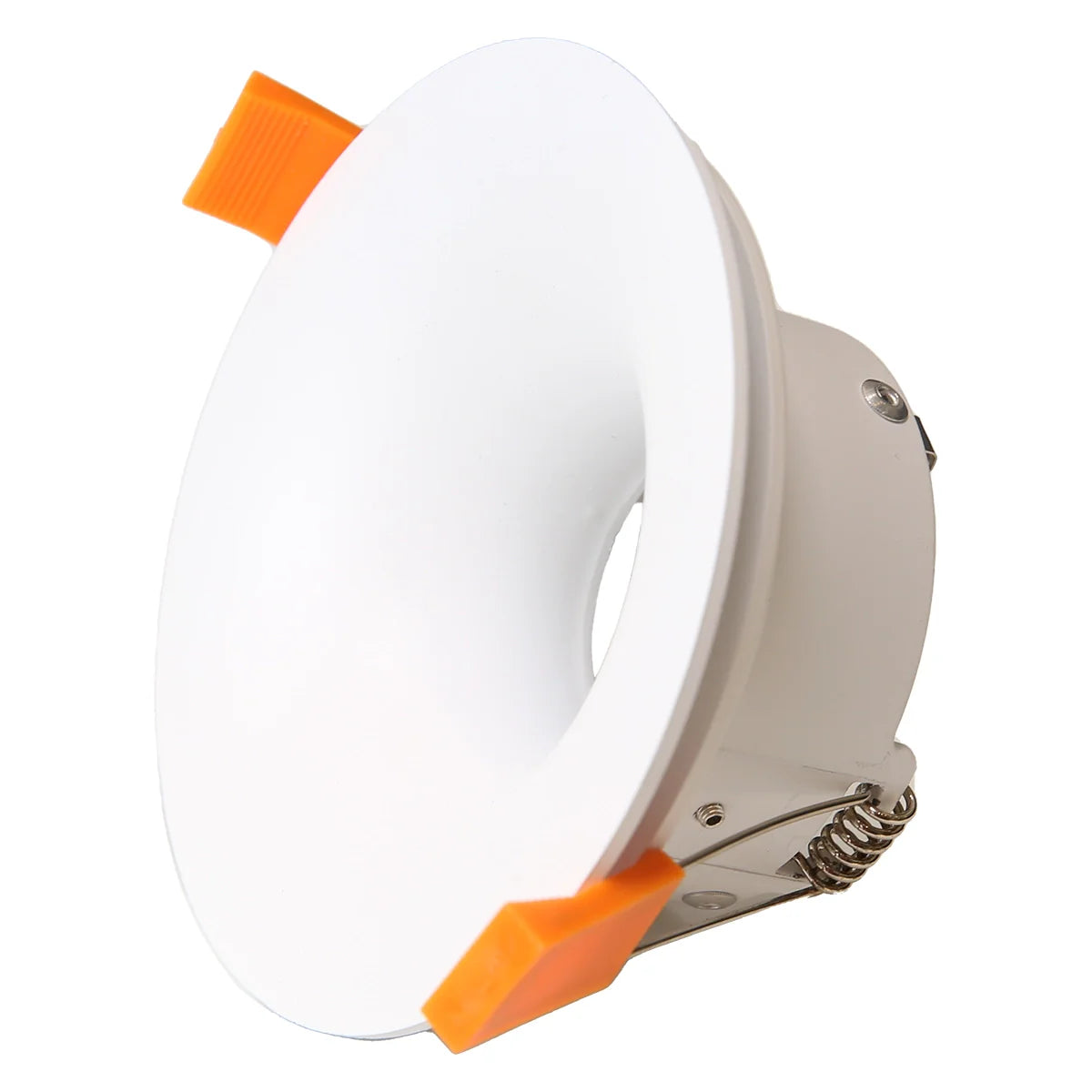

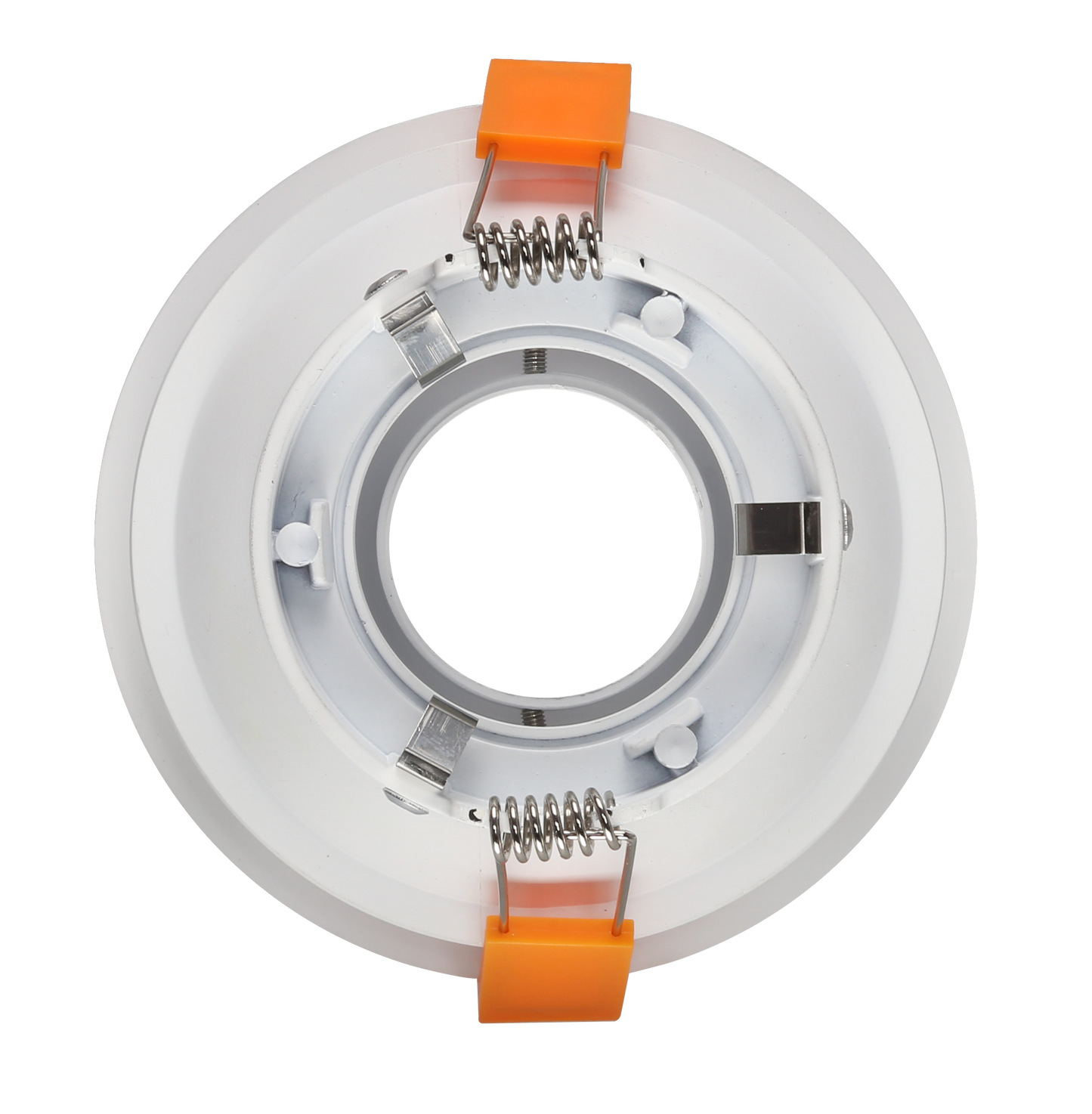

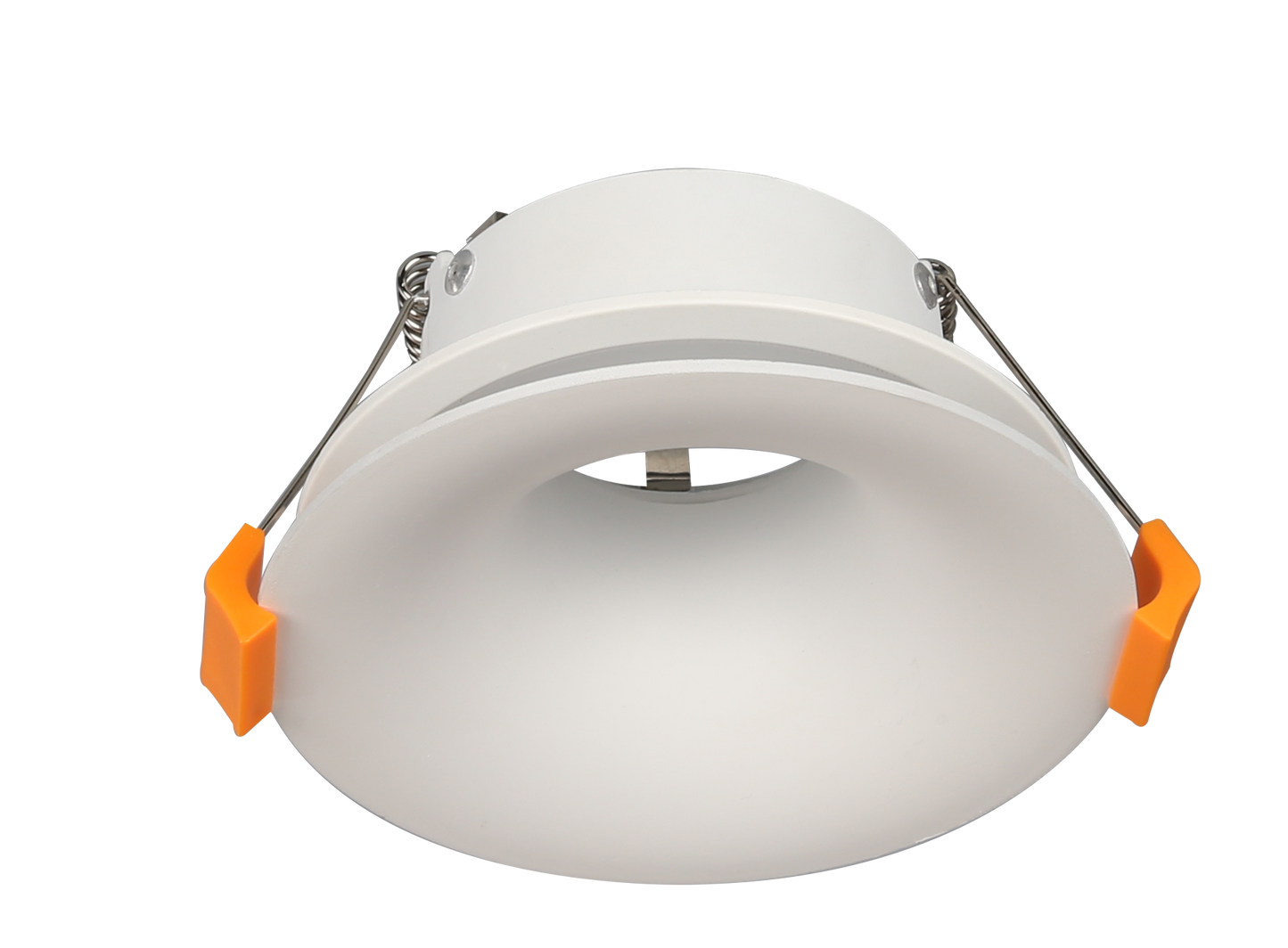

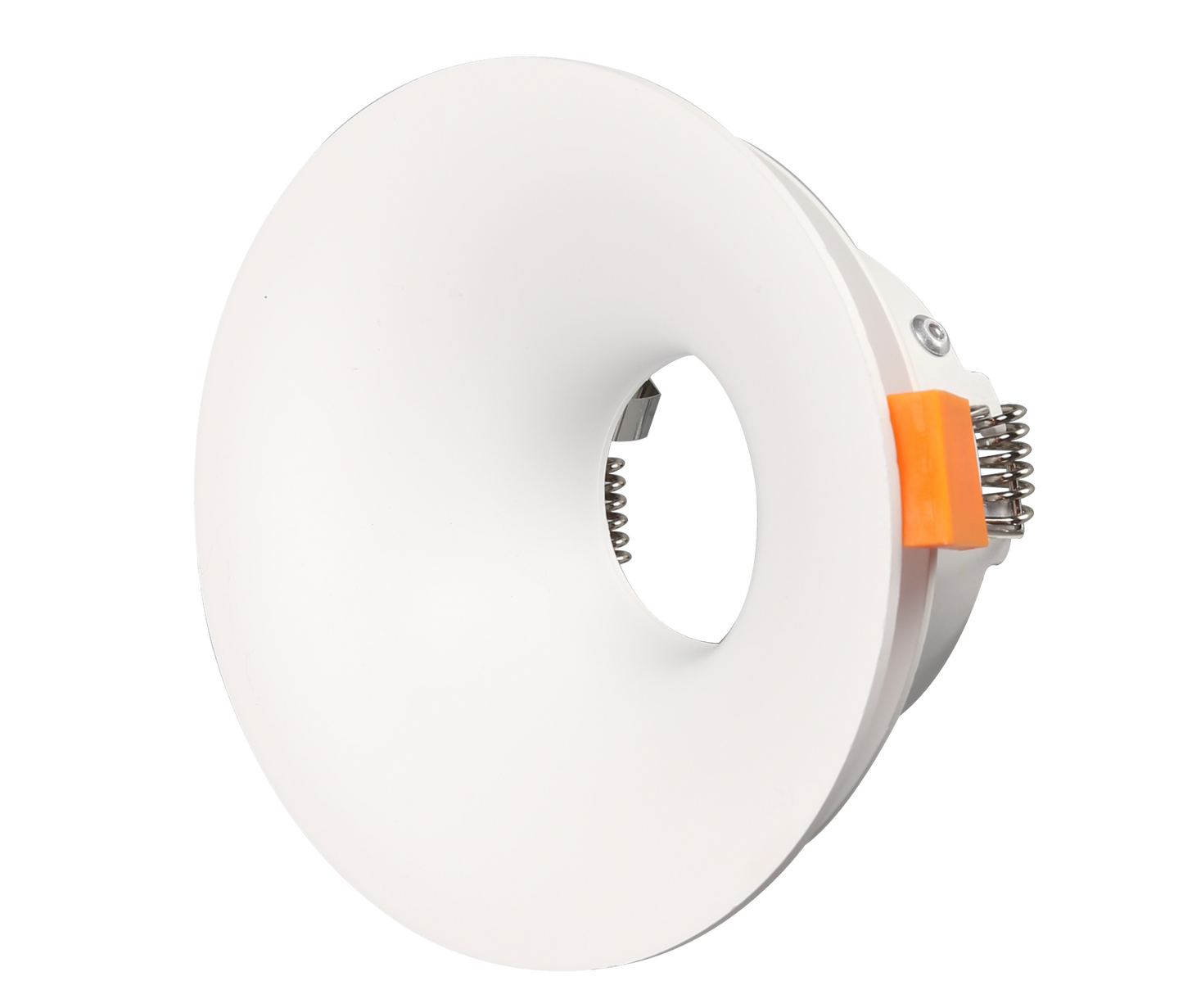

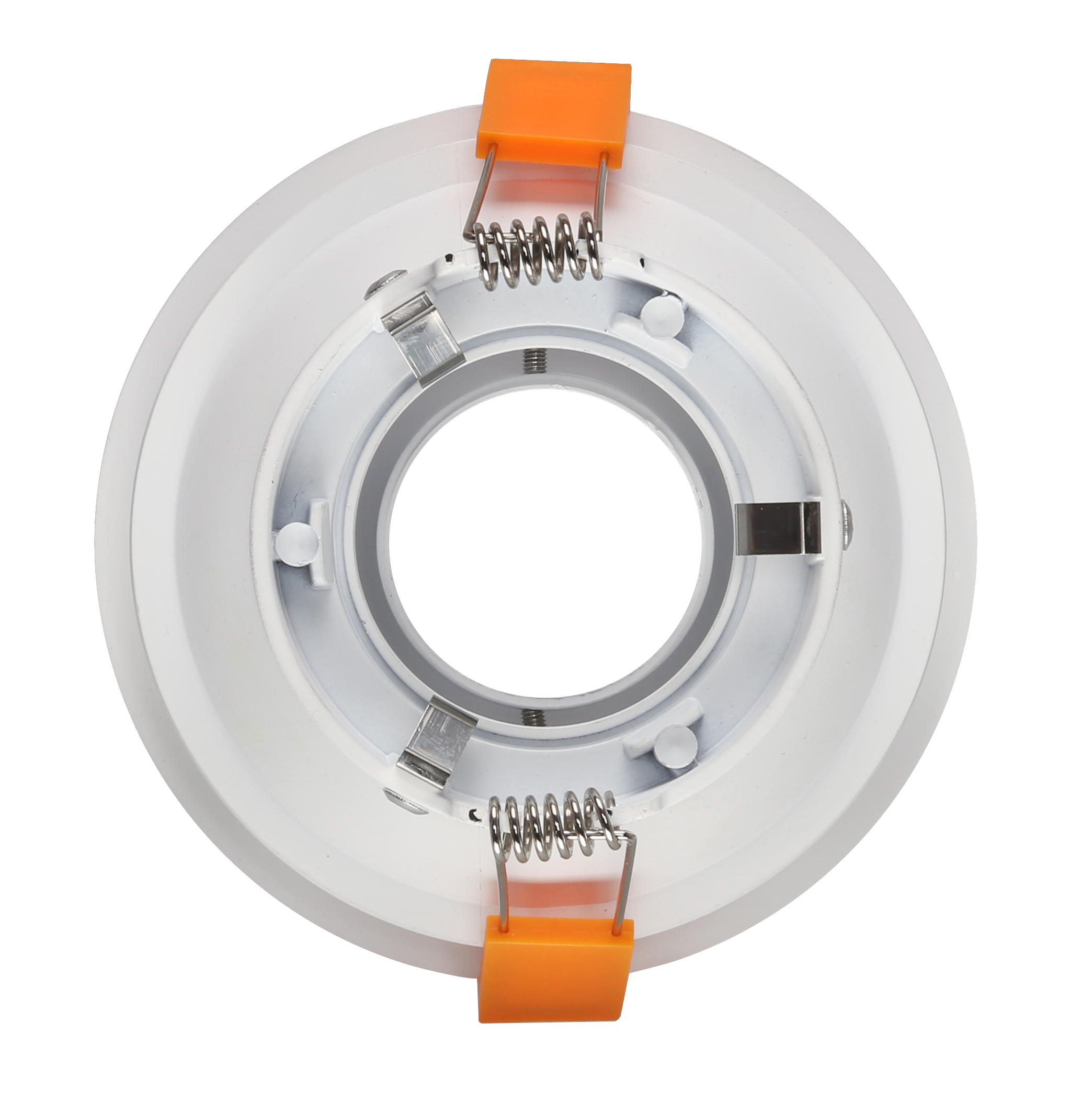

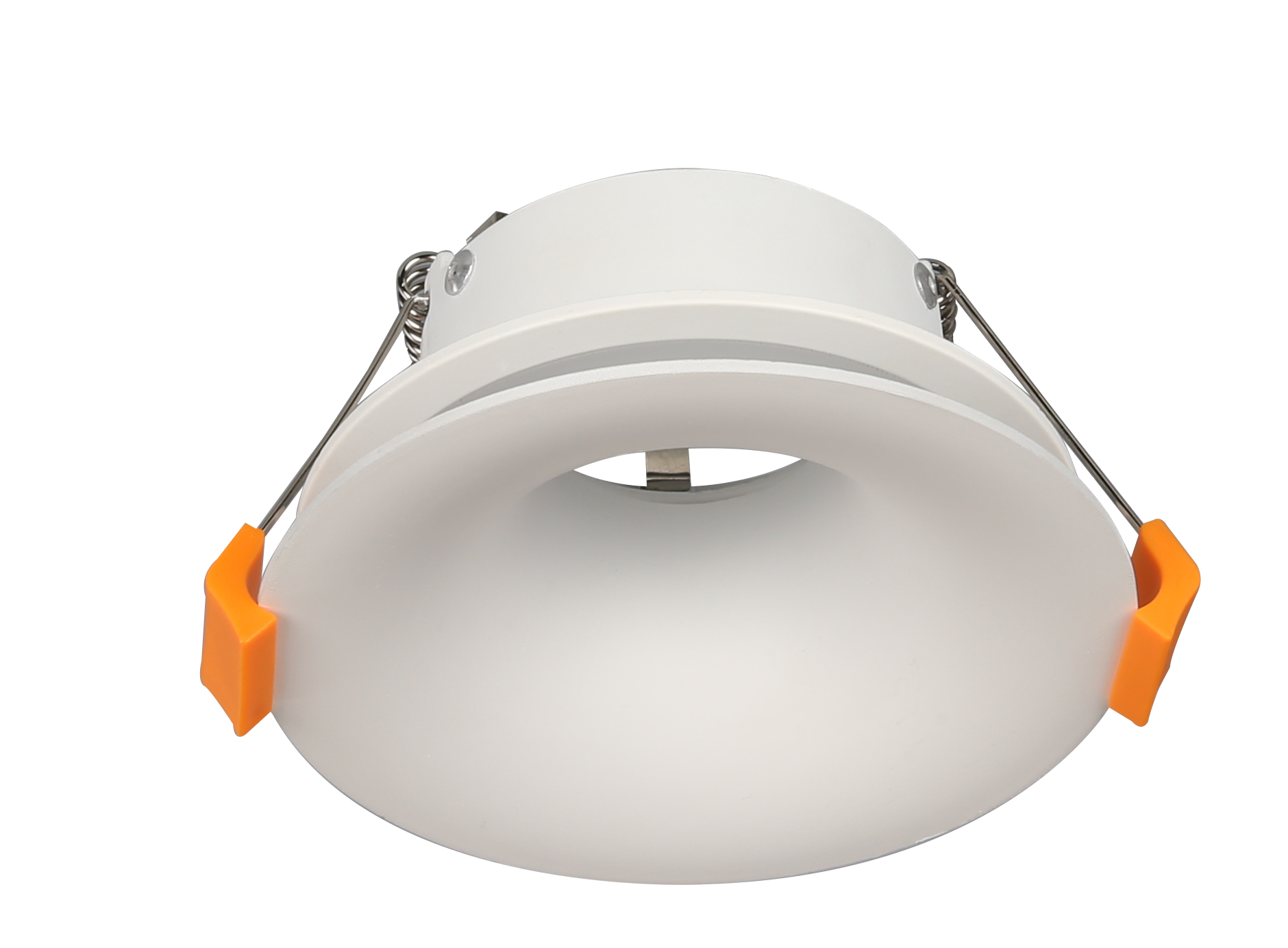

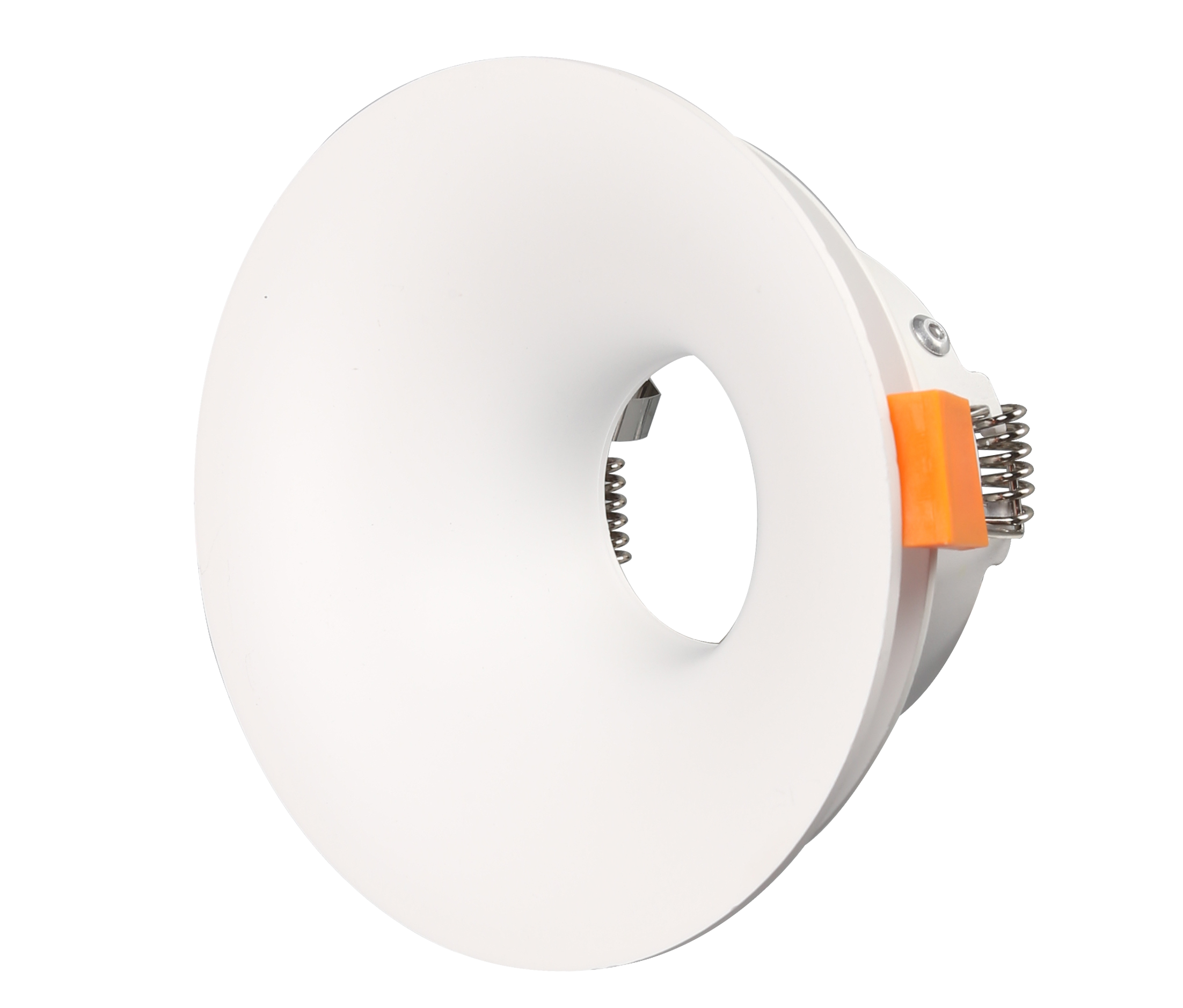

IP20, Surface mount ring for XRGBW, X3A, X15A, X20A, XRGBW and XCCT modular COB down lights.
IP20, Surface mount ring for X3A, X15A, X20A, XRGBW and XCCT modular COB down lights
Choose this trim if
a. Very unique double fluted and rare finish on your down lights.
b. Low glare as the light module sits a fair distance in the ceiling.
Do not choose this trim if
a. You are replacing existing lights and the cut out size is large than 90 mm
b. you are using this fitting in high moisture areas i.e. external eves or shower rooms. This fitting does not have glass to increase the moisture protection of the light module from IP20 to IP44. Using this fitting in high moisture areas will expose the light module to moisture which will result in light failure.

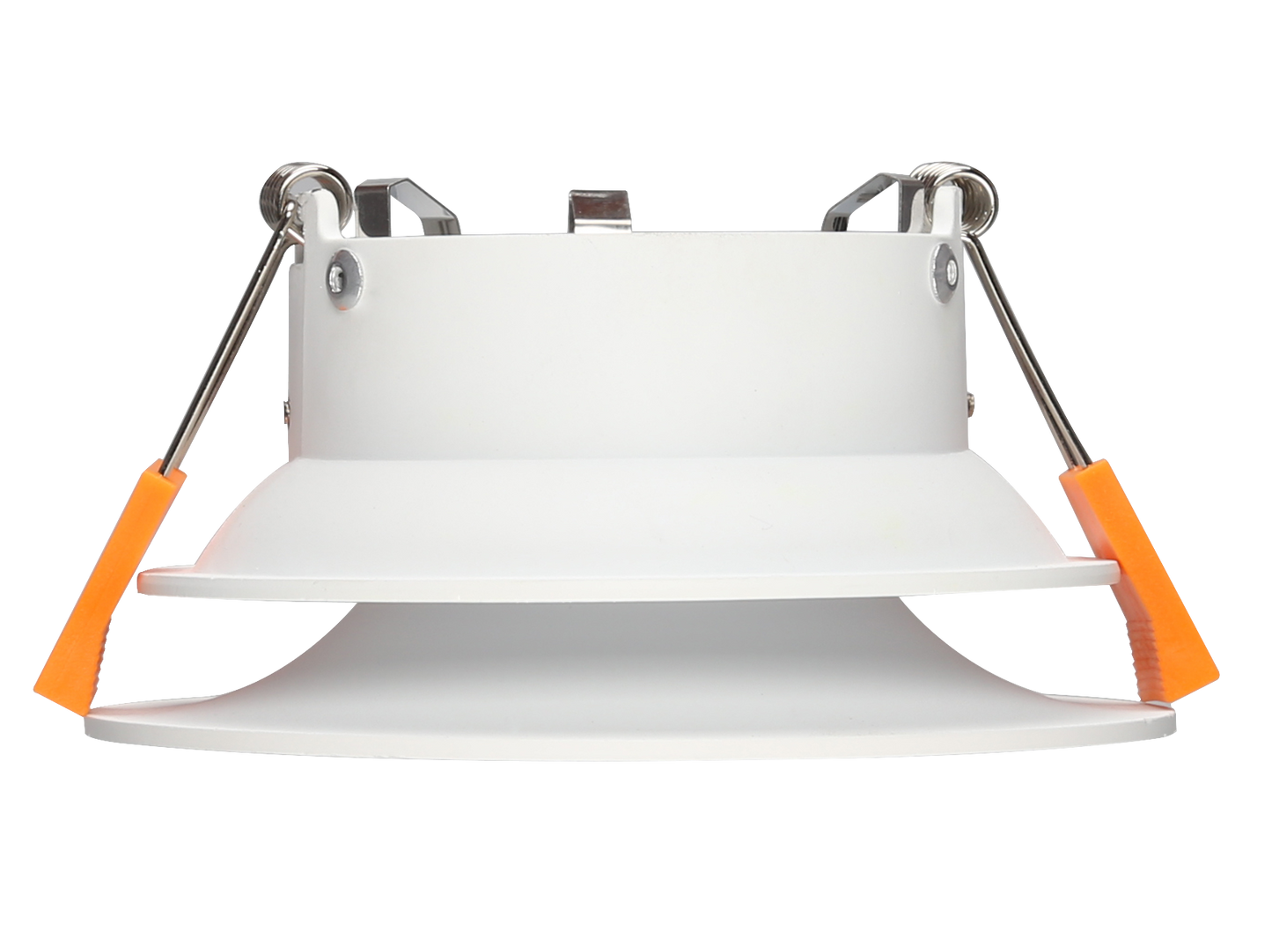

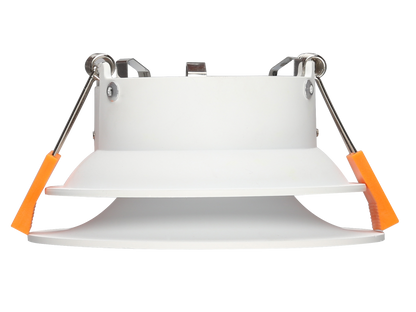

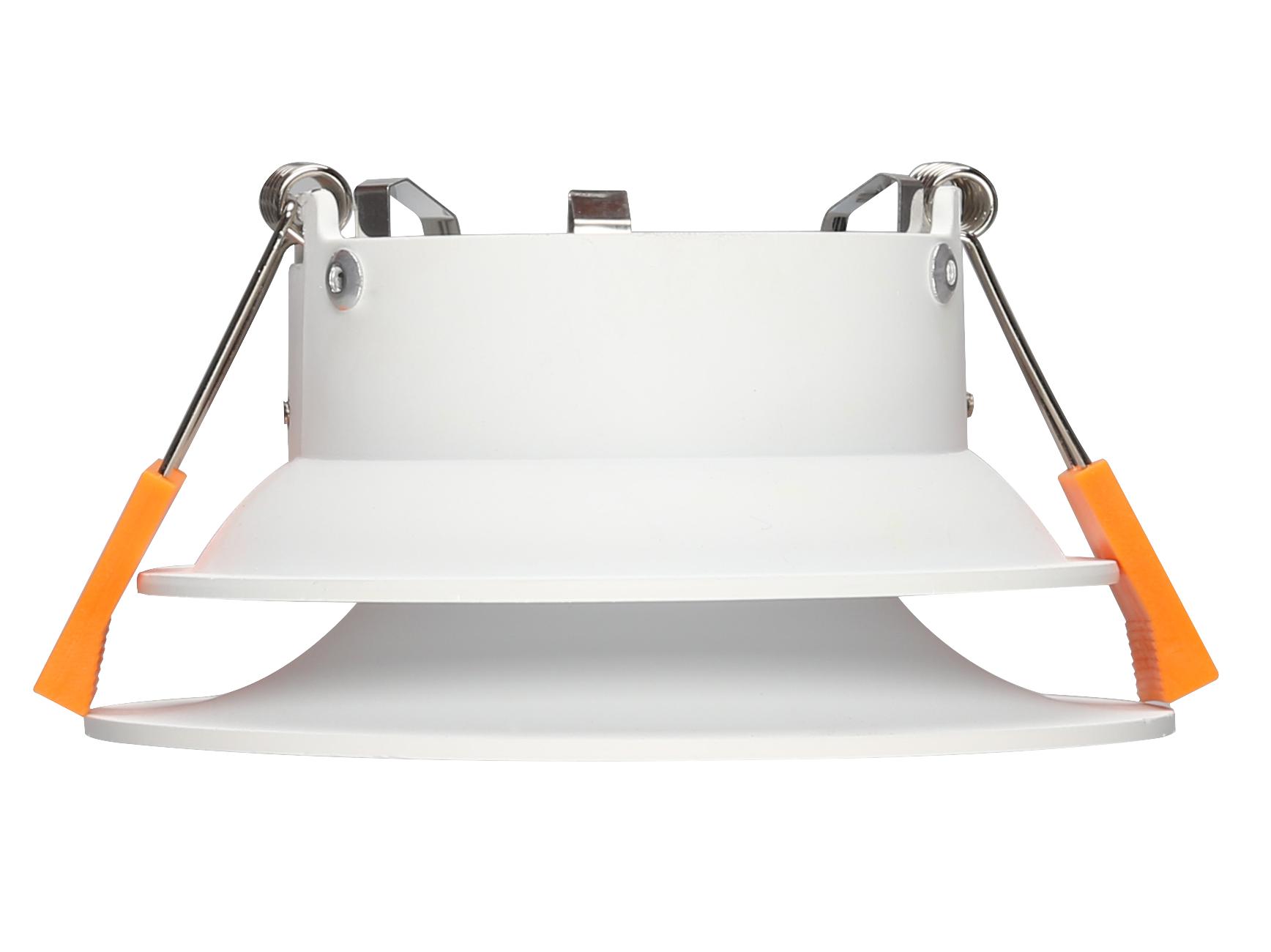

c. Although we love this trim, it may not be everyone's cup of tea. Also note, that this trim does not finish flush with the ceiling and second fluted ring sits proud of the ceiling.
d. you have poorly filled and finished ceiling, as it will show all the imperfections.
|

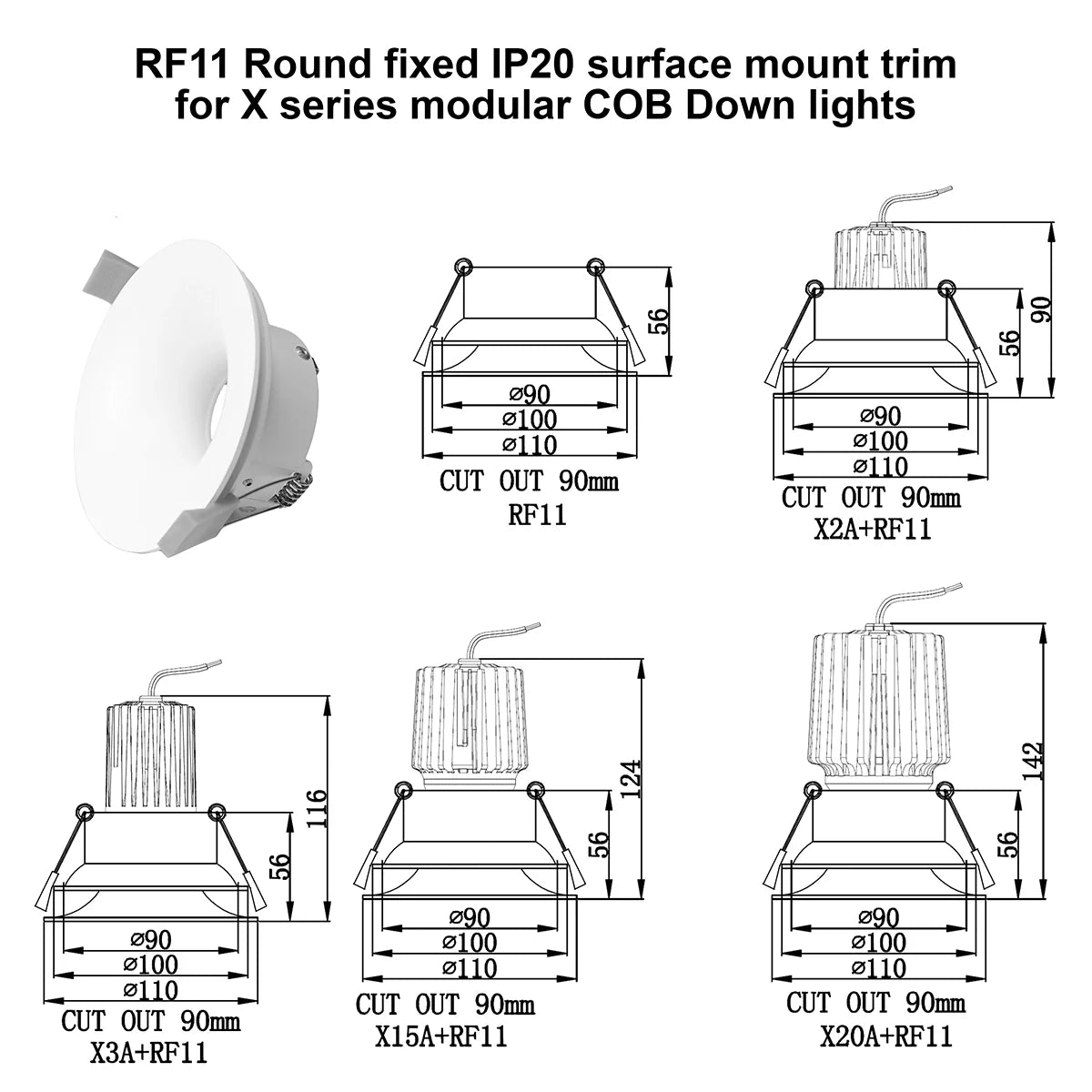

Cut out
|
89-90 mm
|
|
Diameter of face
|
110 mm
|
|
Total height of fitting
|
56 mm
|
|
Mounting depth with X3A
|
116 mm
|
|
Mounting depth with X15A
|
124 mm |
|
Mounting depth with X20A
|
142 mm
|
|
Mounting depth with XRGBW
|
116mm |
|
Mounting depth with XCCT
|
101 mm |
Click here to download a pdf spec sheet for RF11 round fixed IP20 trim.

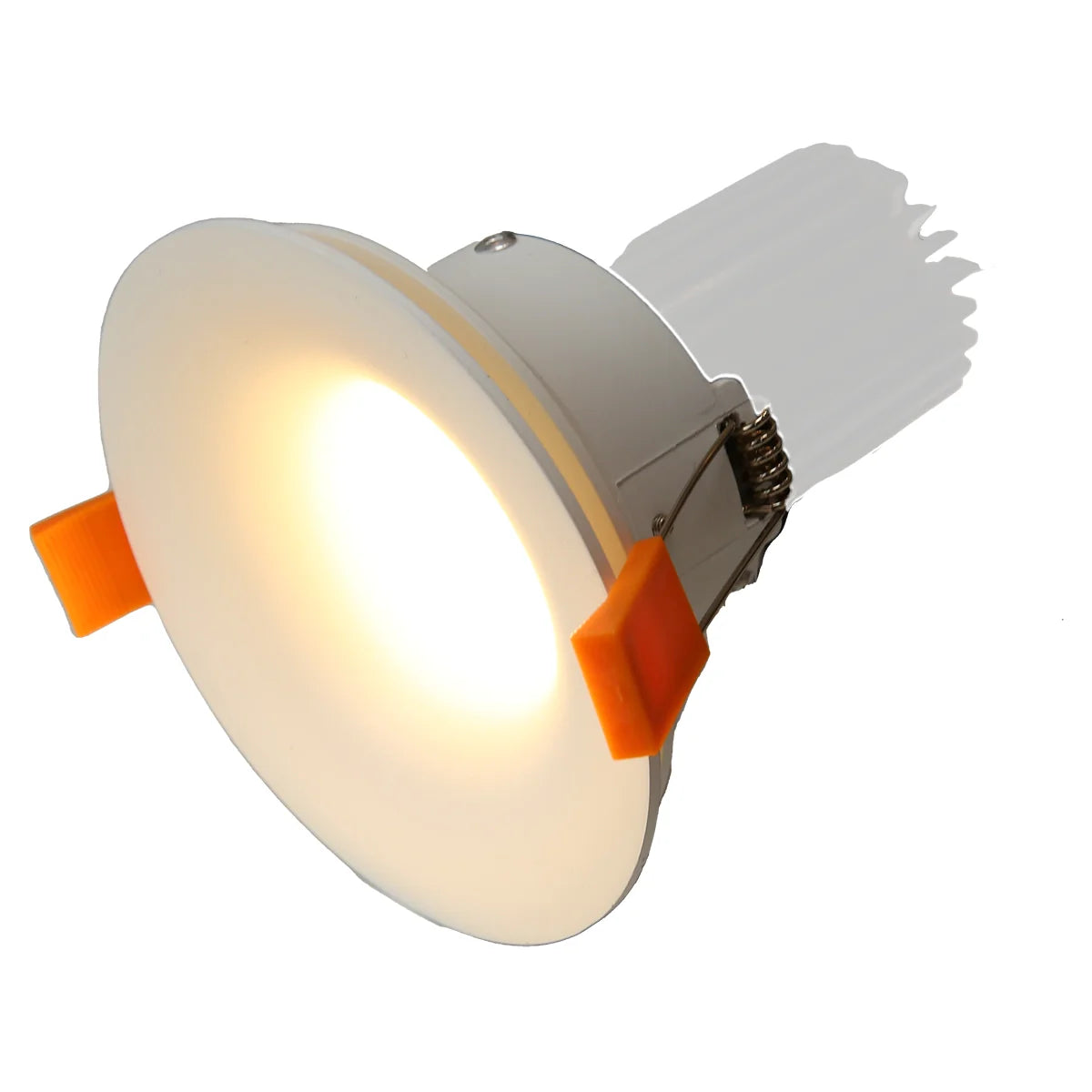

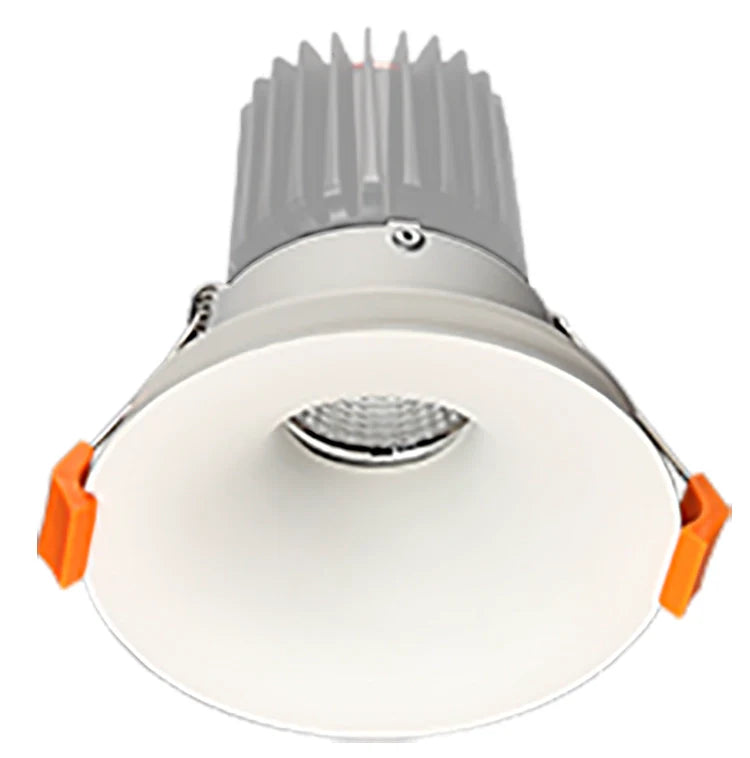

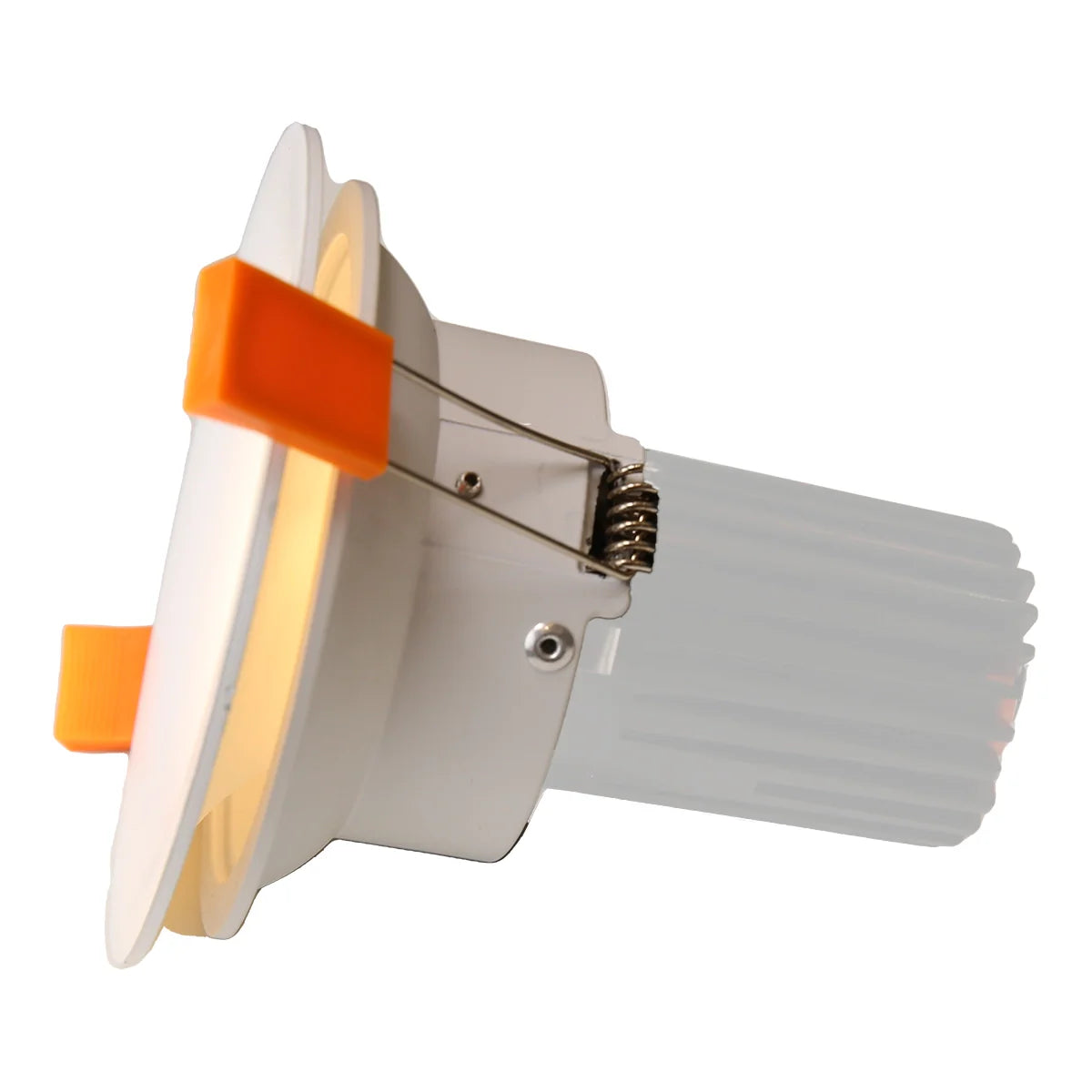

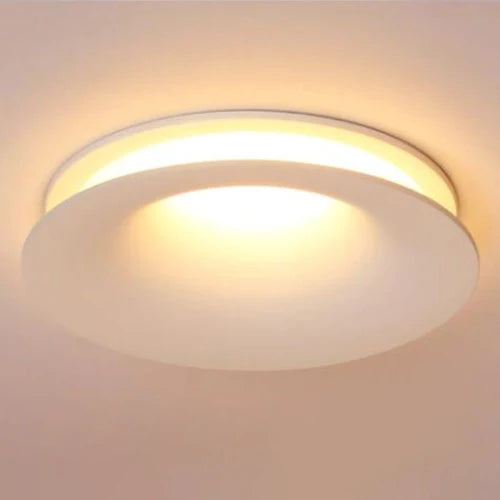

The price is for the surface mount trim only. The light is shown for illustration purposes only.
