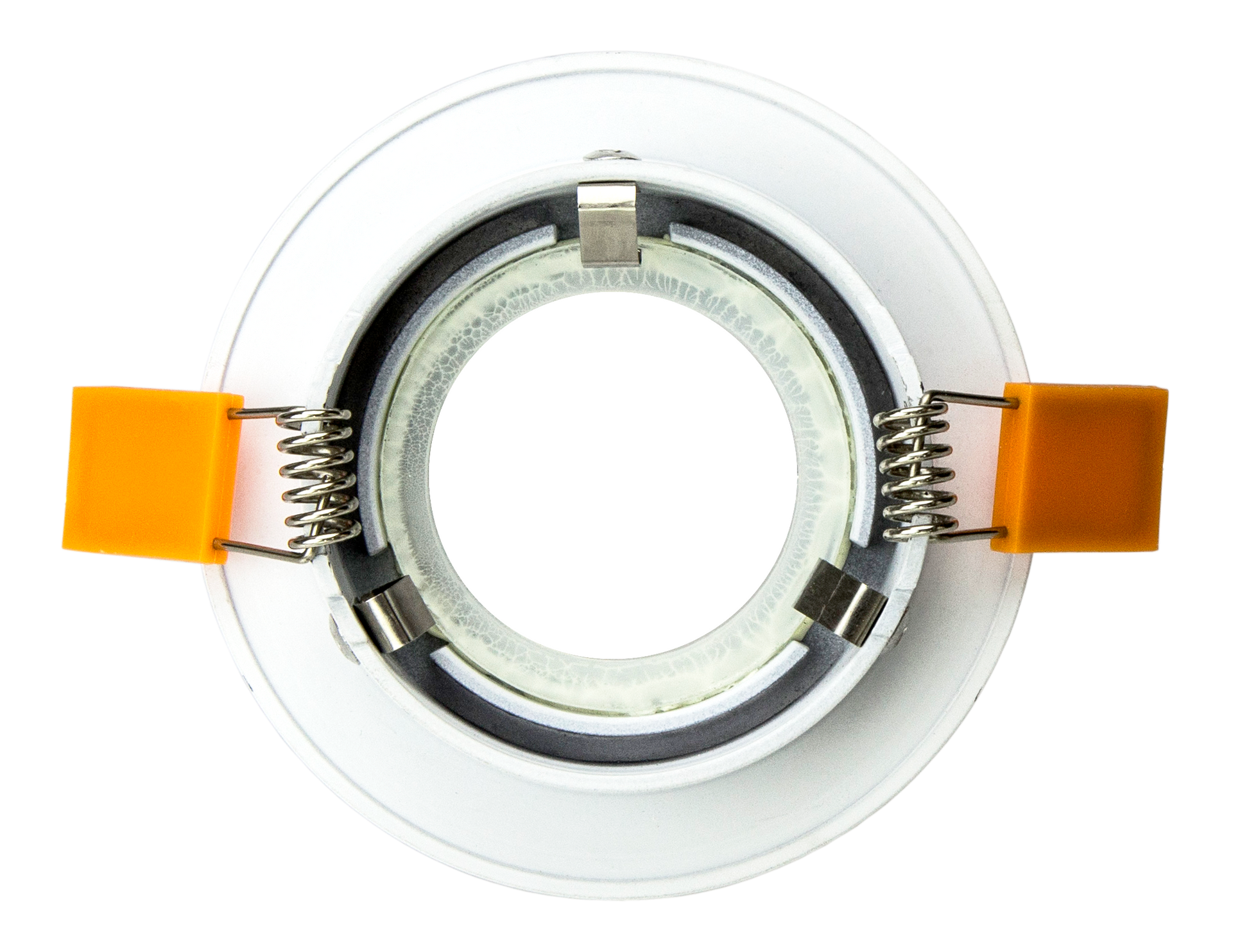

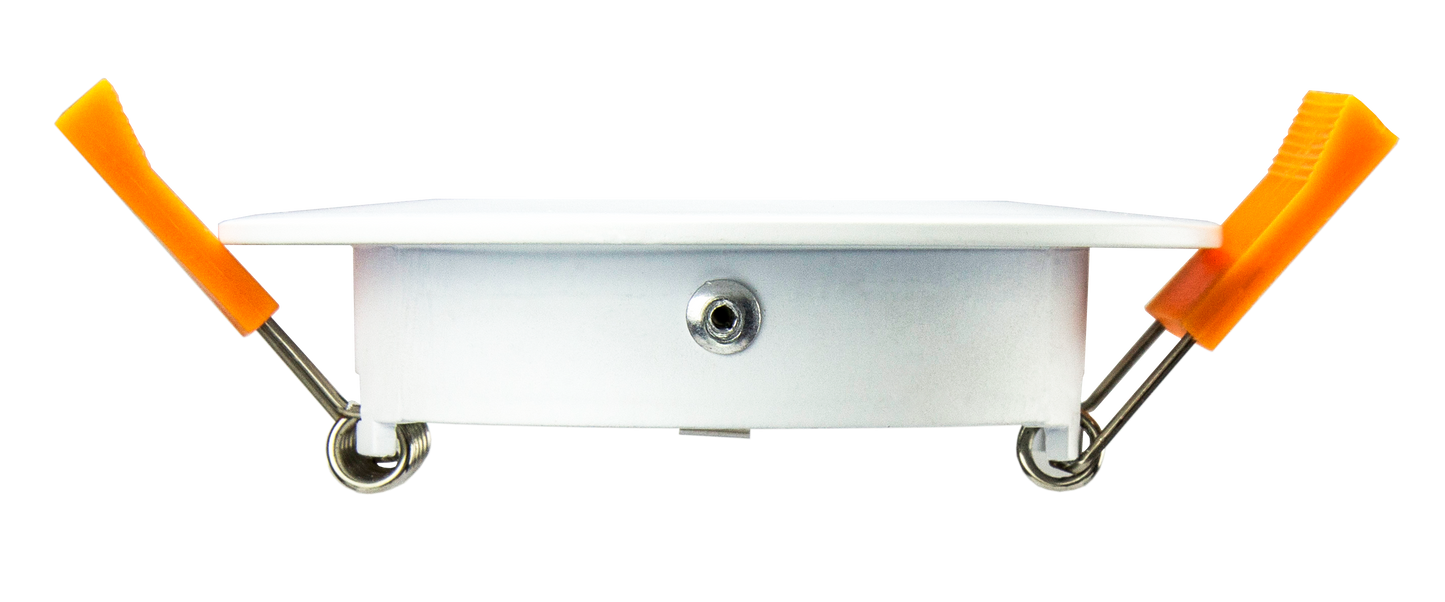

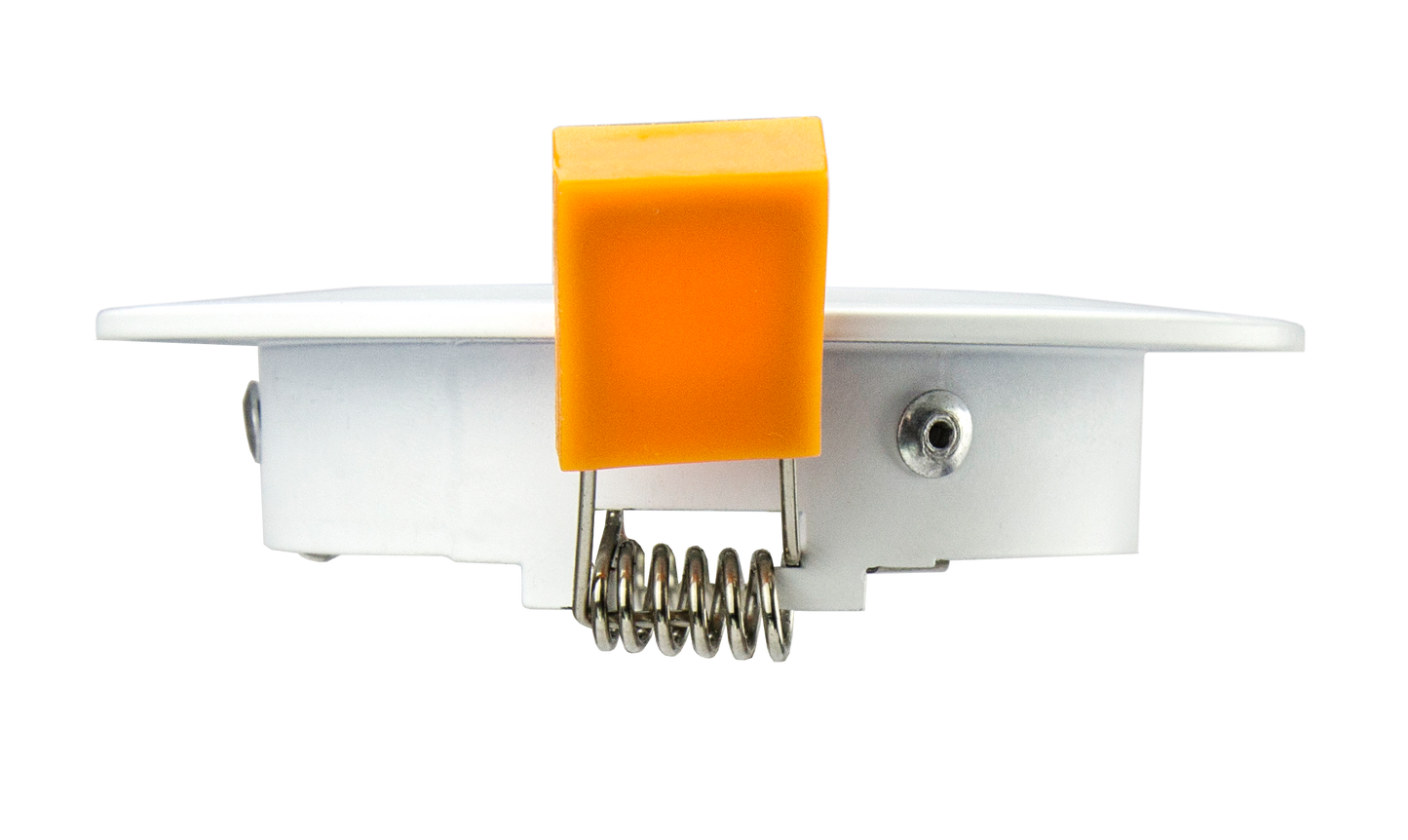

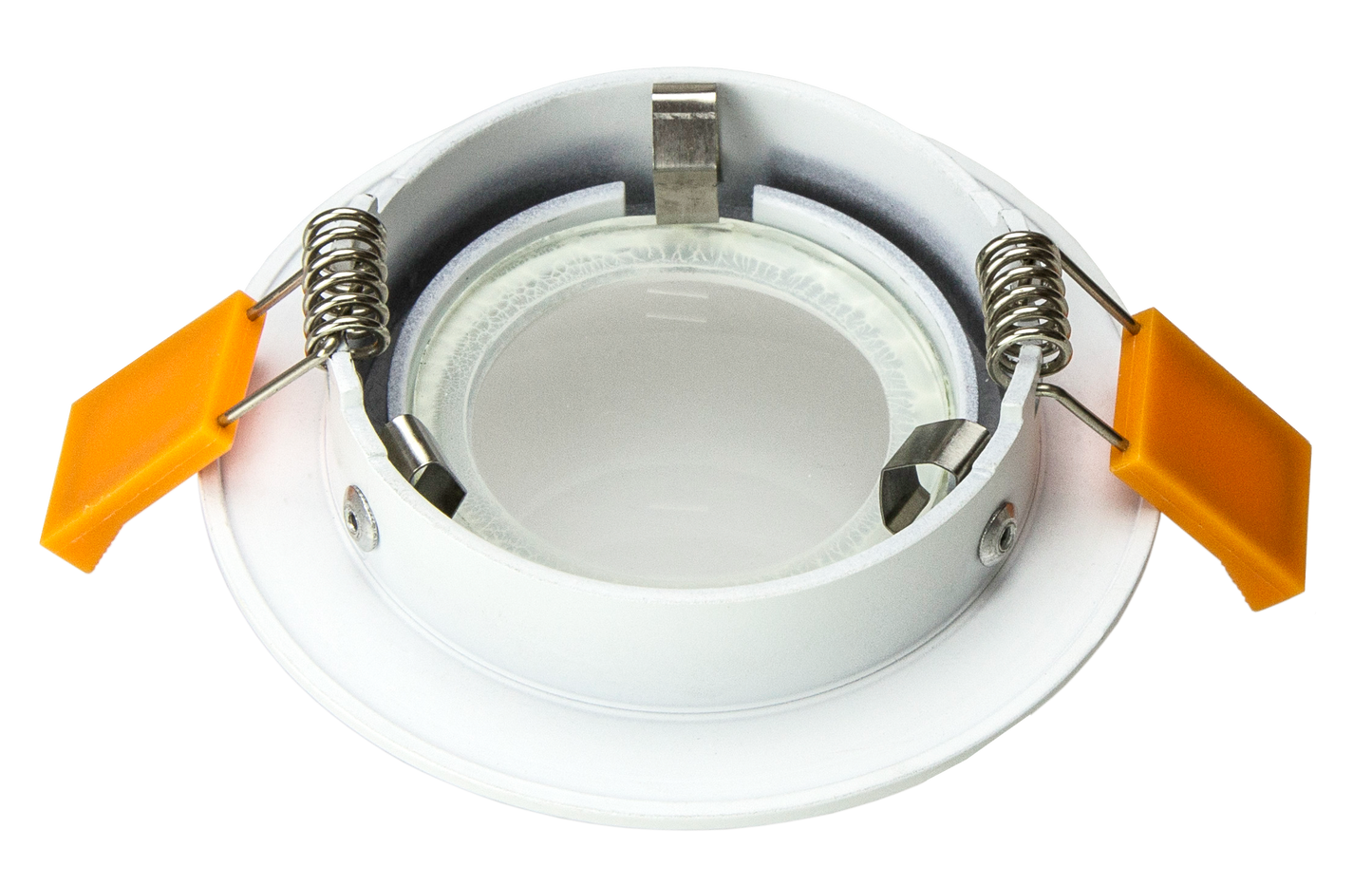

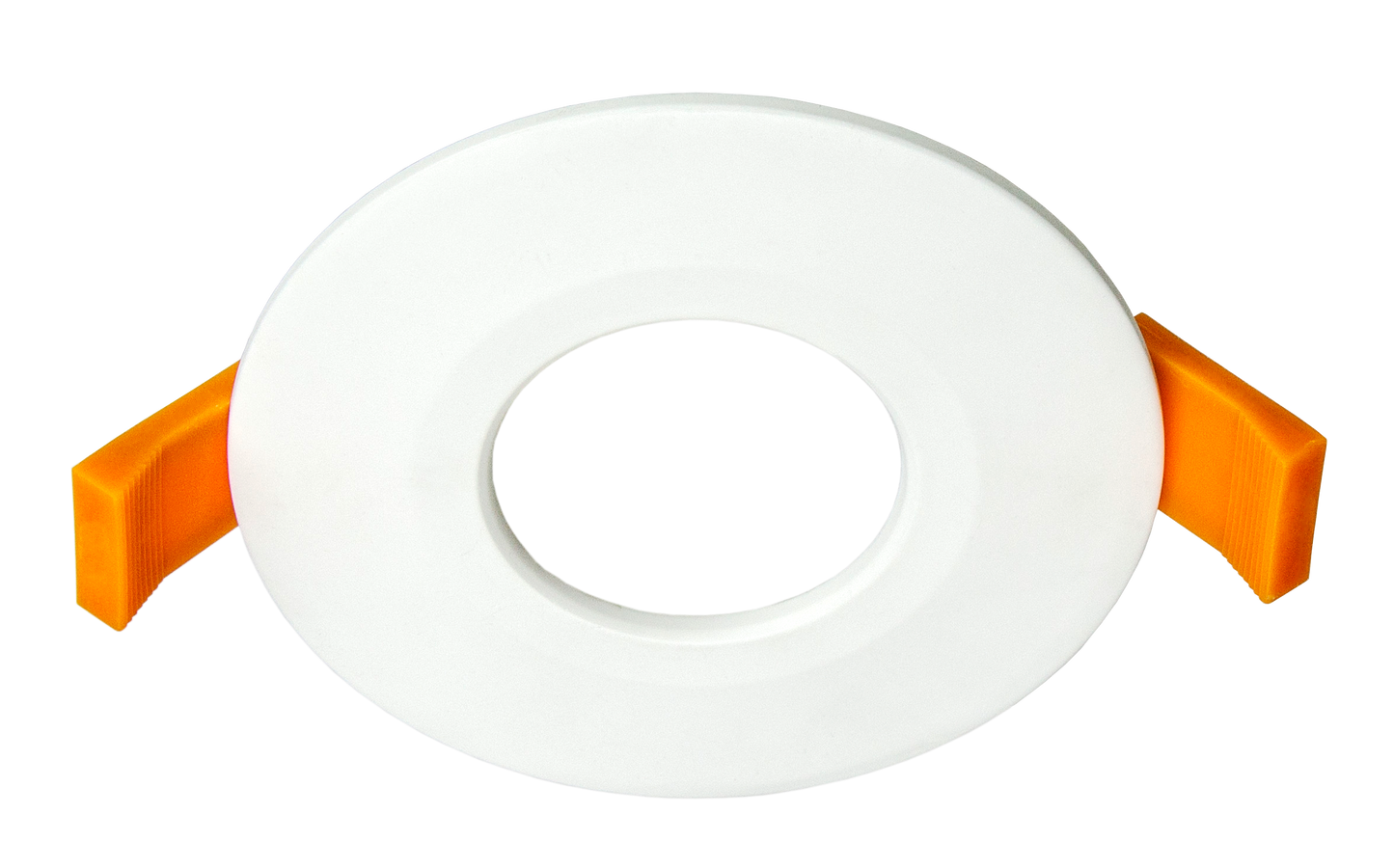

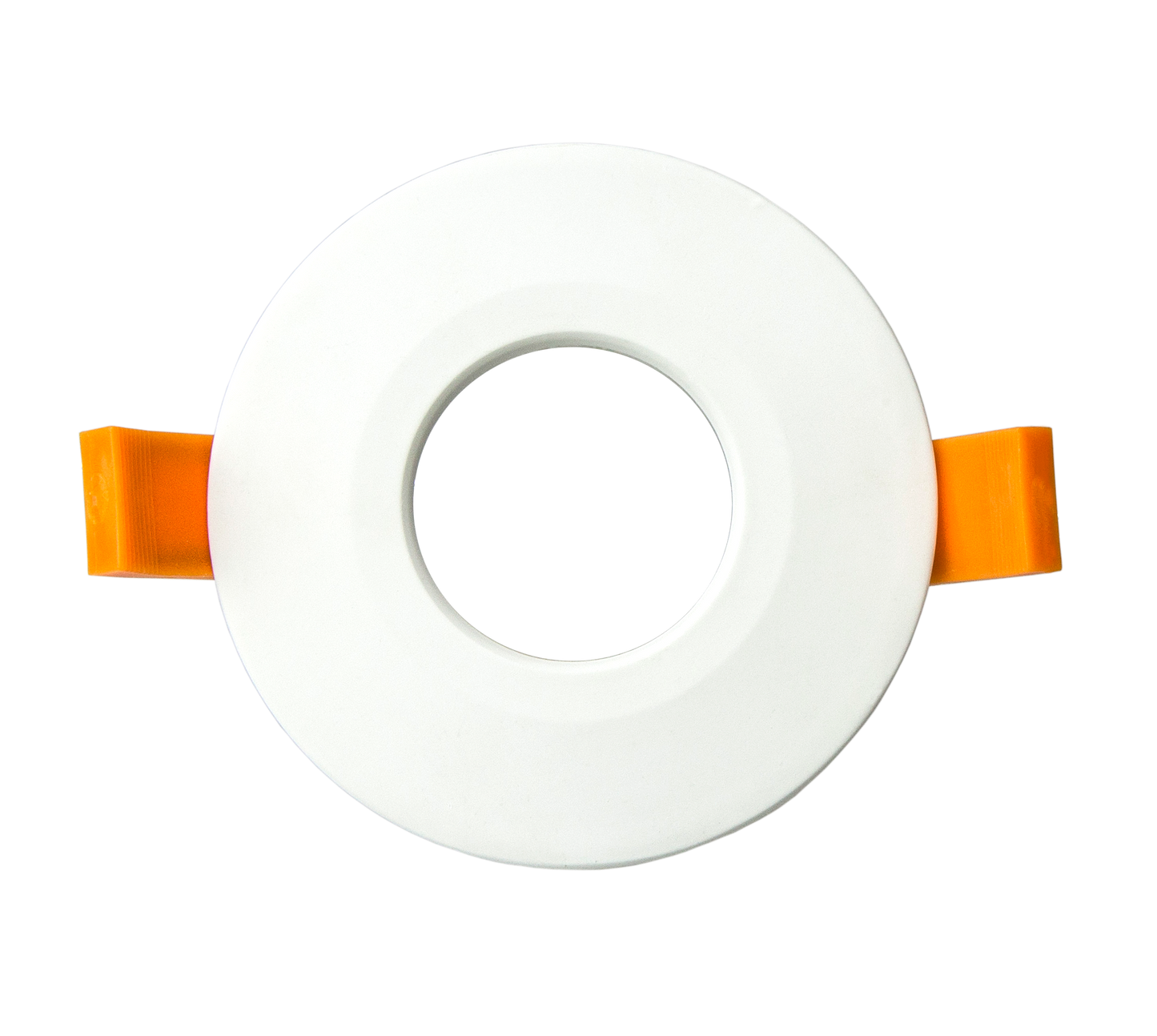

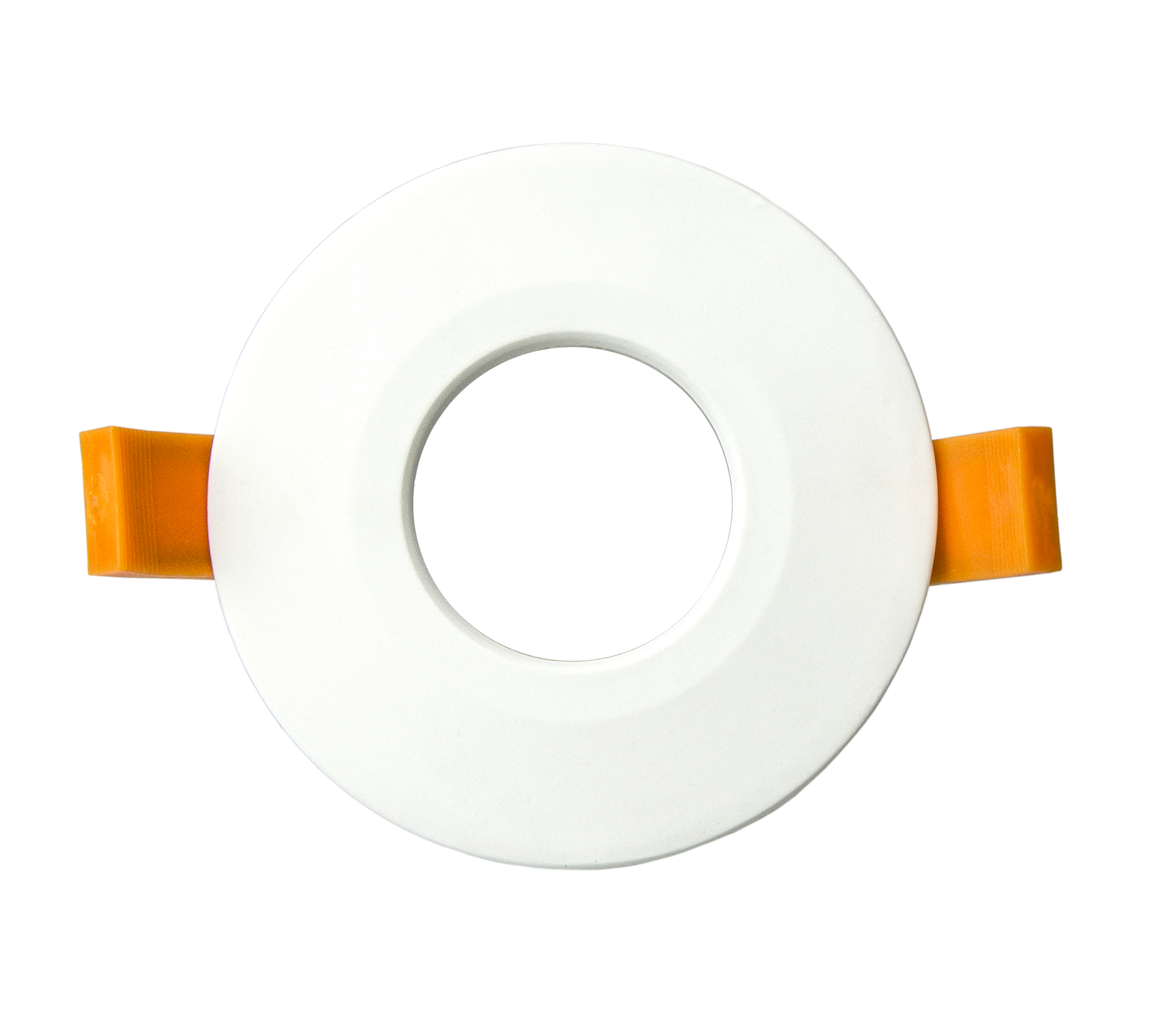

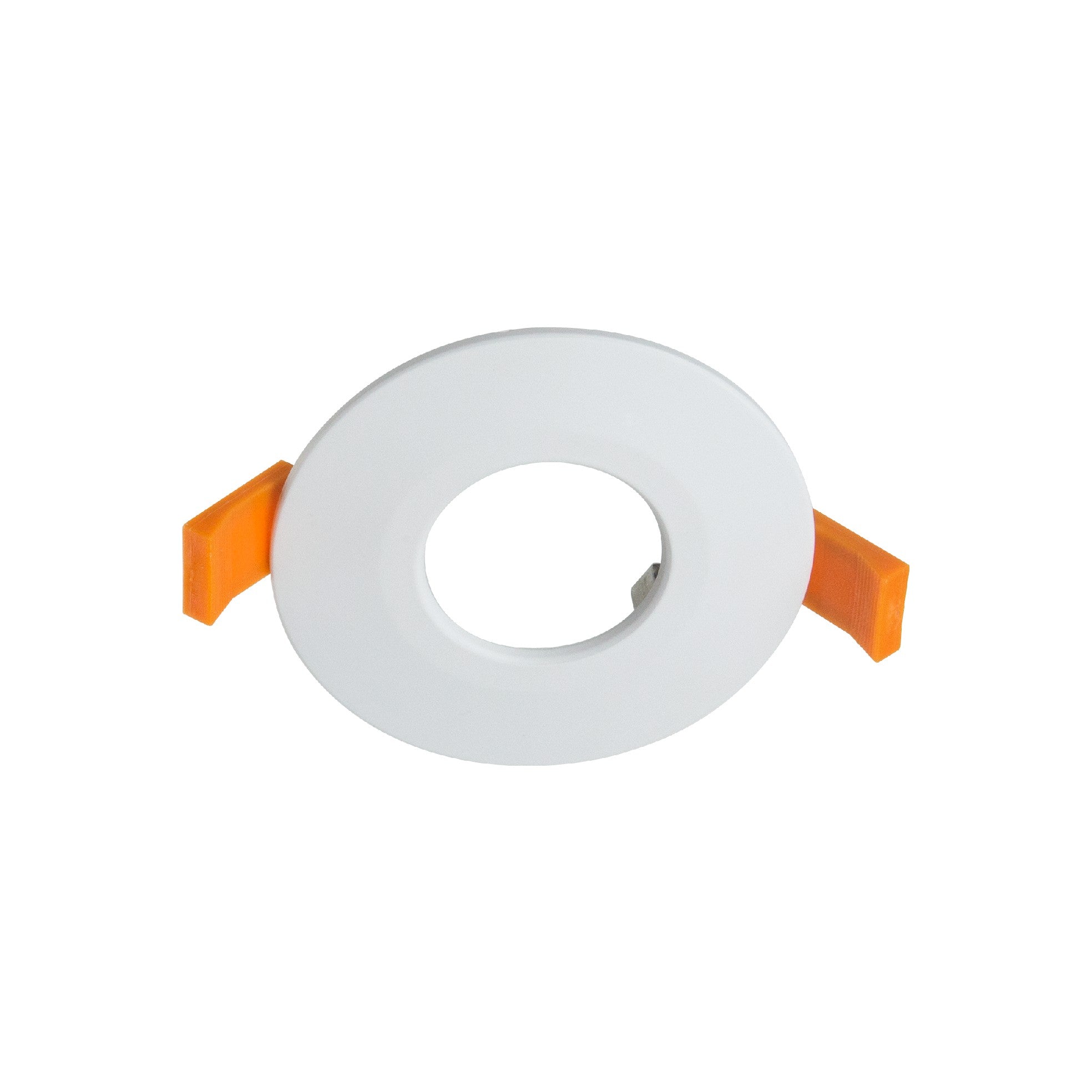

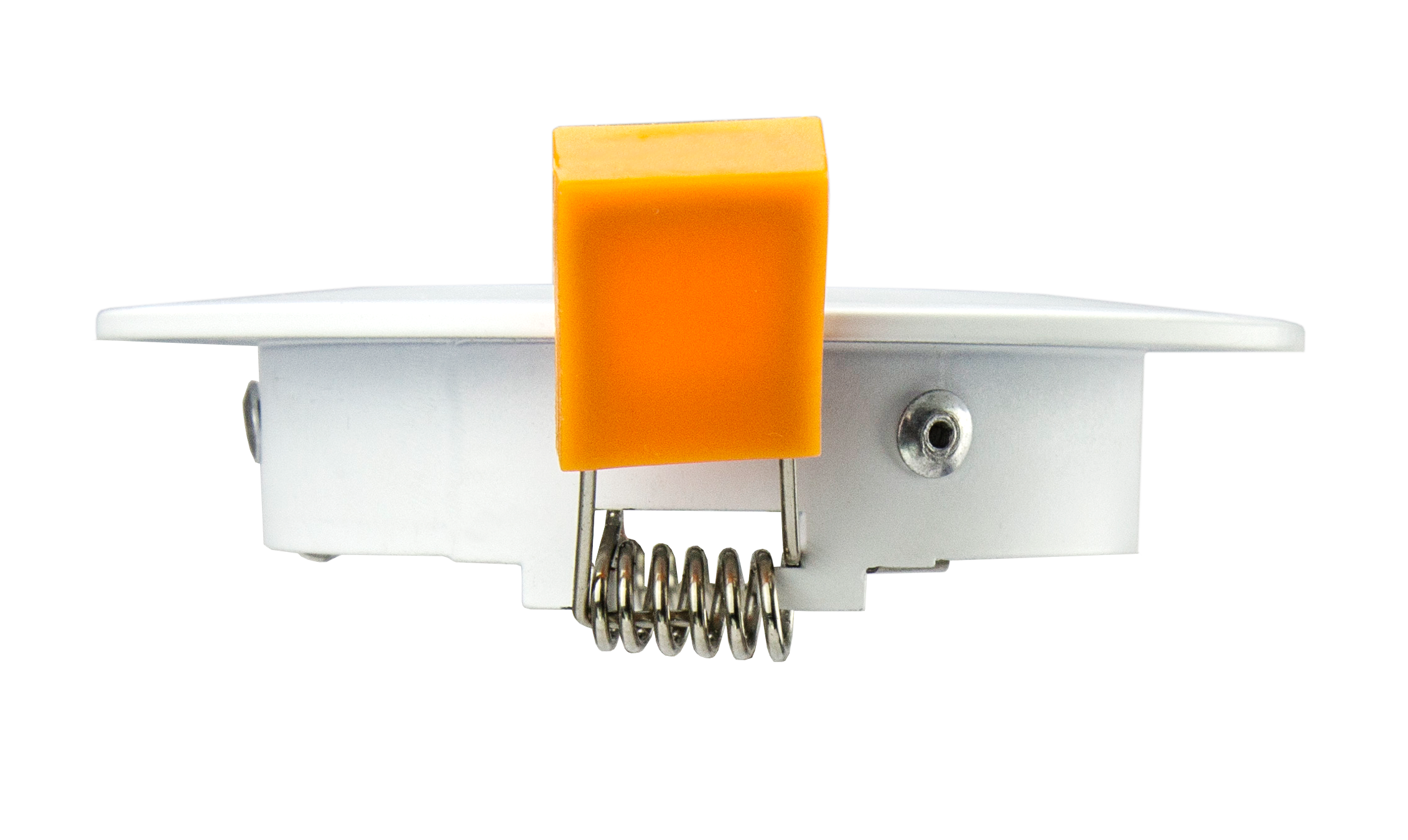

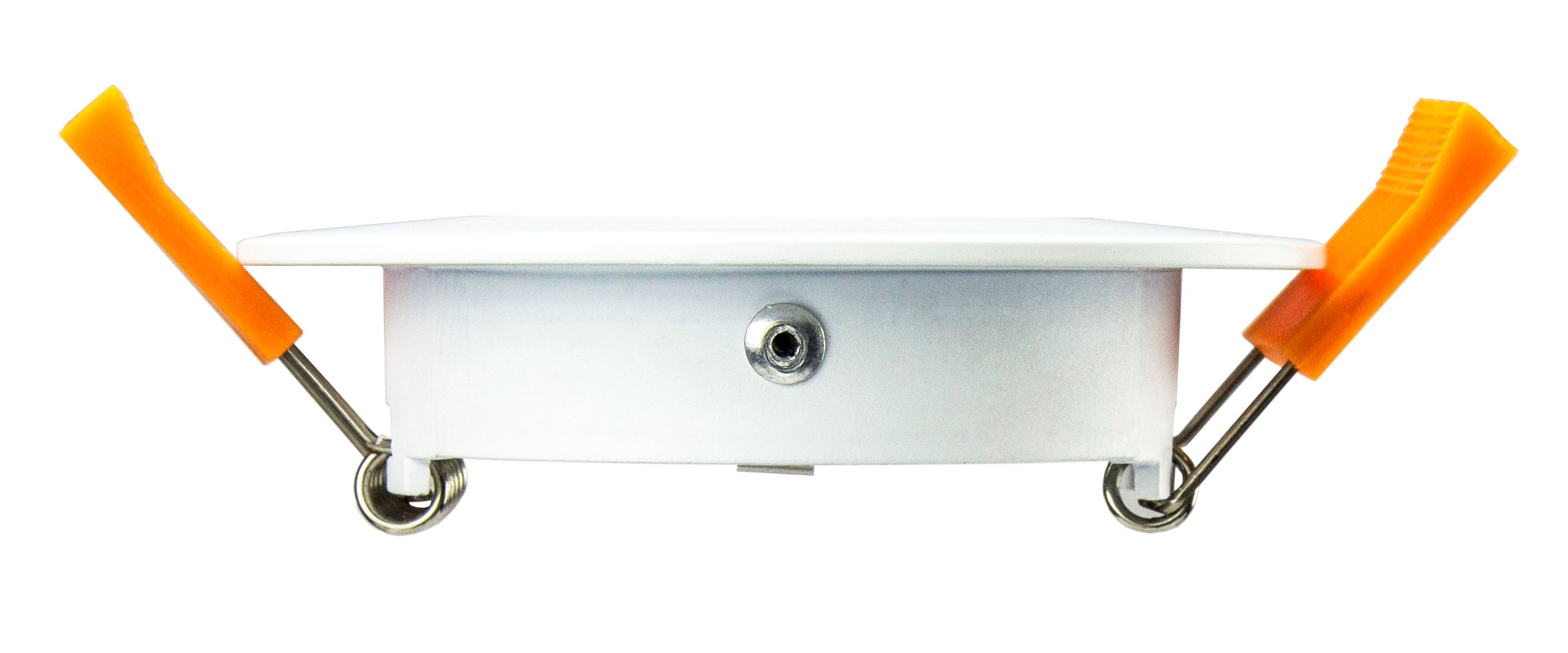

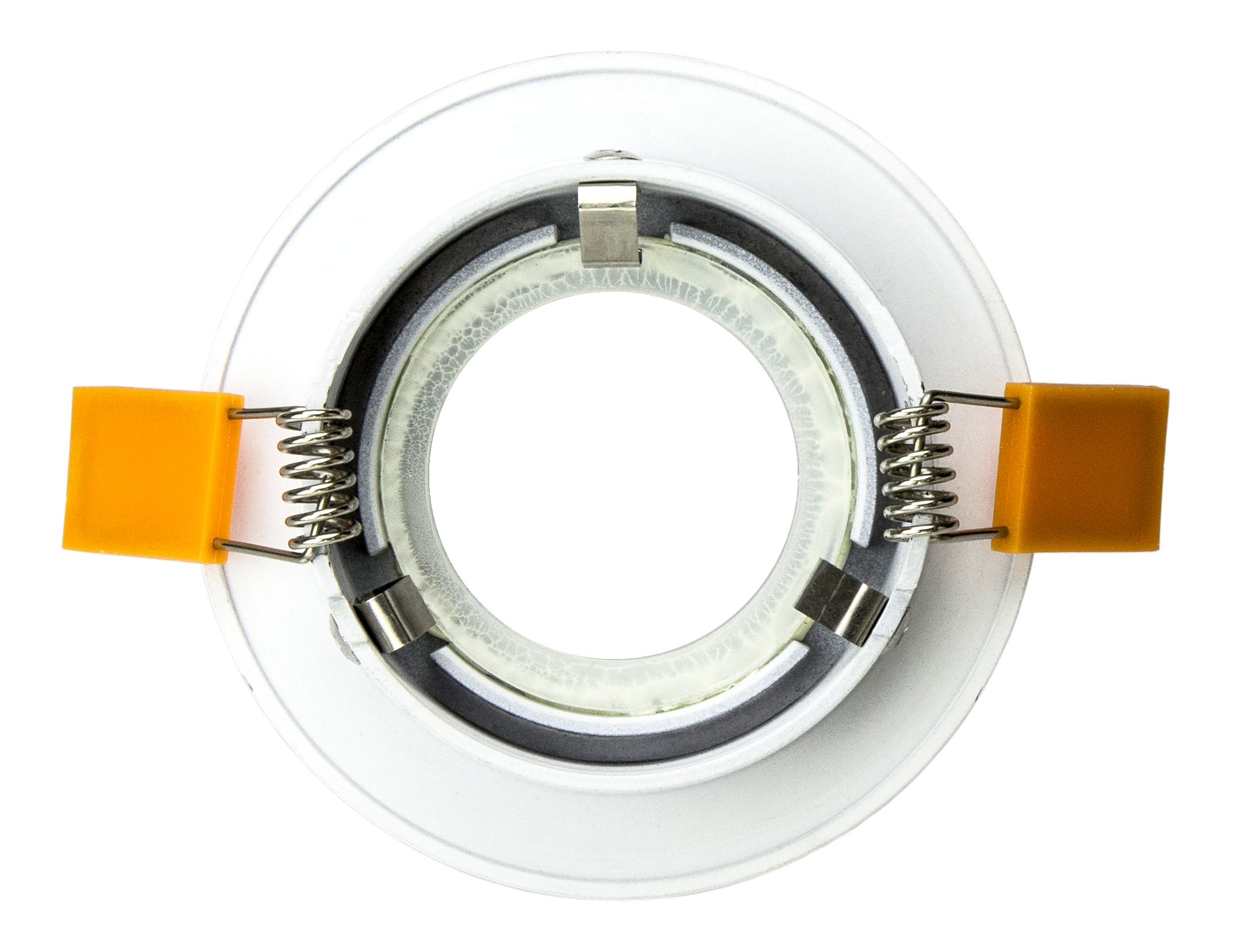

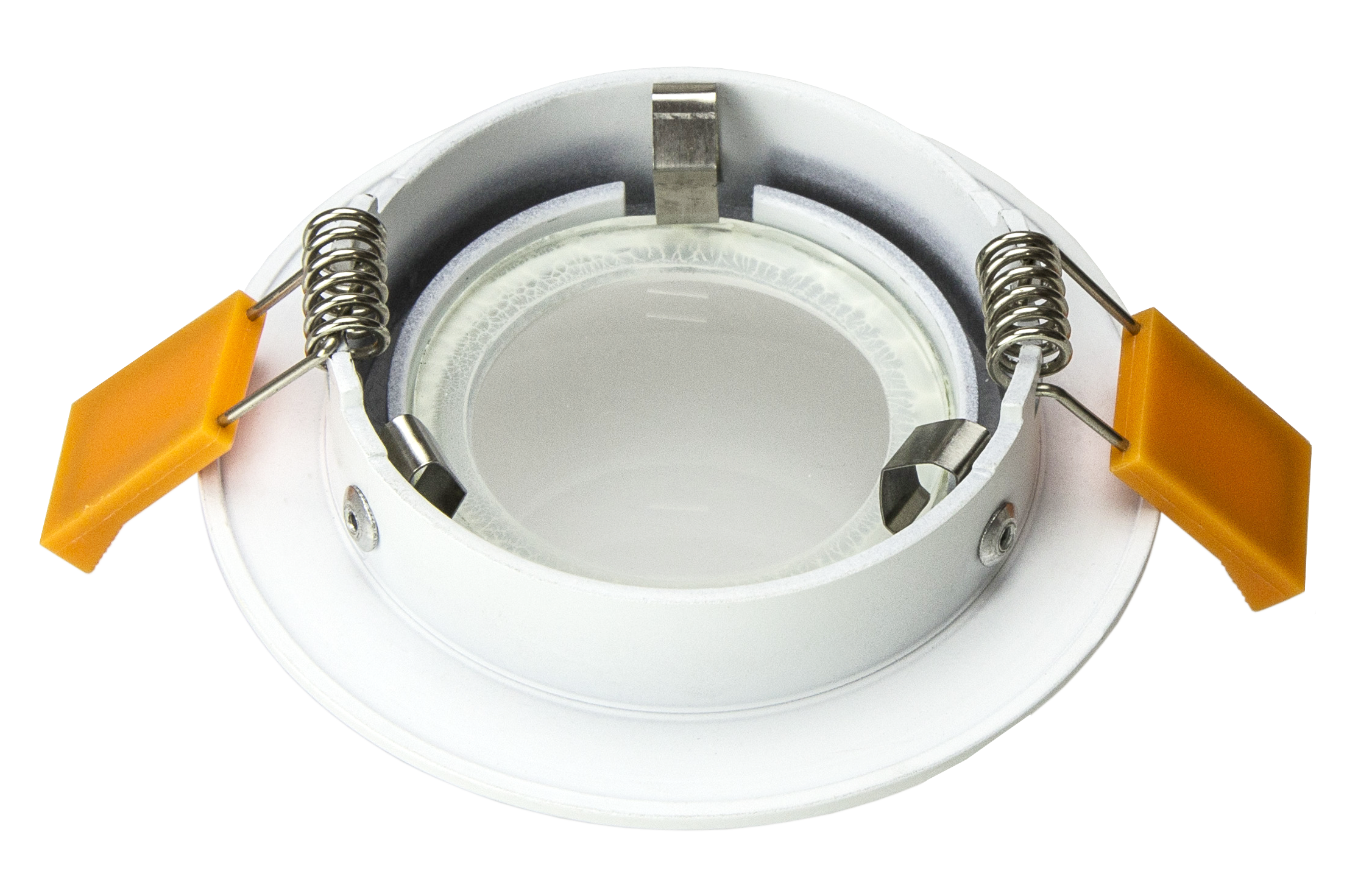

RF1 White- Round fixed IP44 surface mount trim for X Series COB Modules
RF1 White- Round fixed IP44 surface mount trim for X Series COB Modules
SKU:RF1 White
78 in stock
We will match any competitor's advertised price
Couldn't load pickup availability
Bulk discounts is a genuine discount for customers who are actually looking for more value. Please note that the below conditions will apply to items that were purchased on bulk discount. Returns on bulk buy discounts will be processed at the adjusted price disallowing for bulk discounts. A further deduction of delivery cost for the returned items will also be deducted from the refund amount.

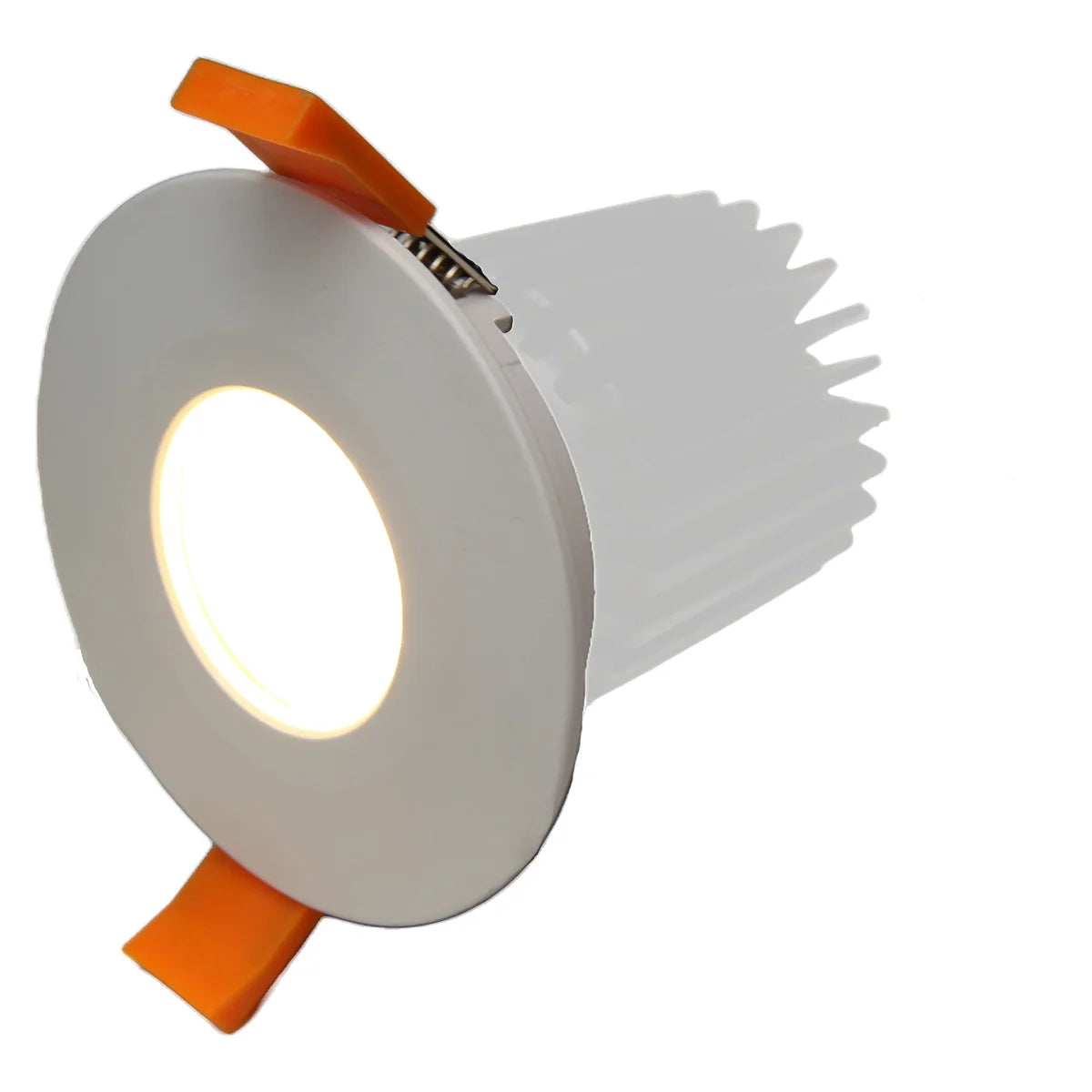

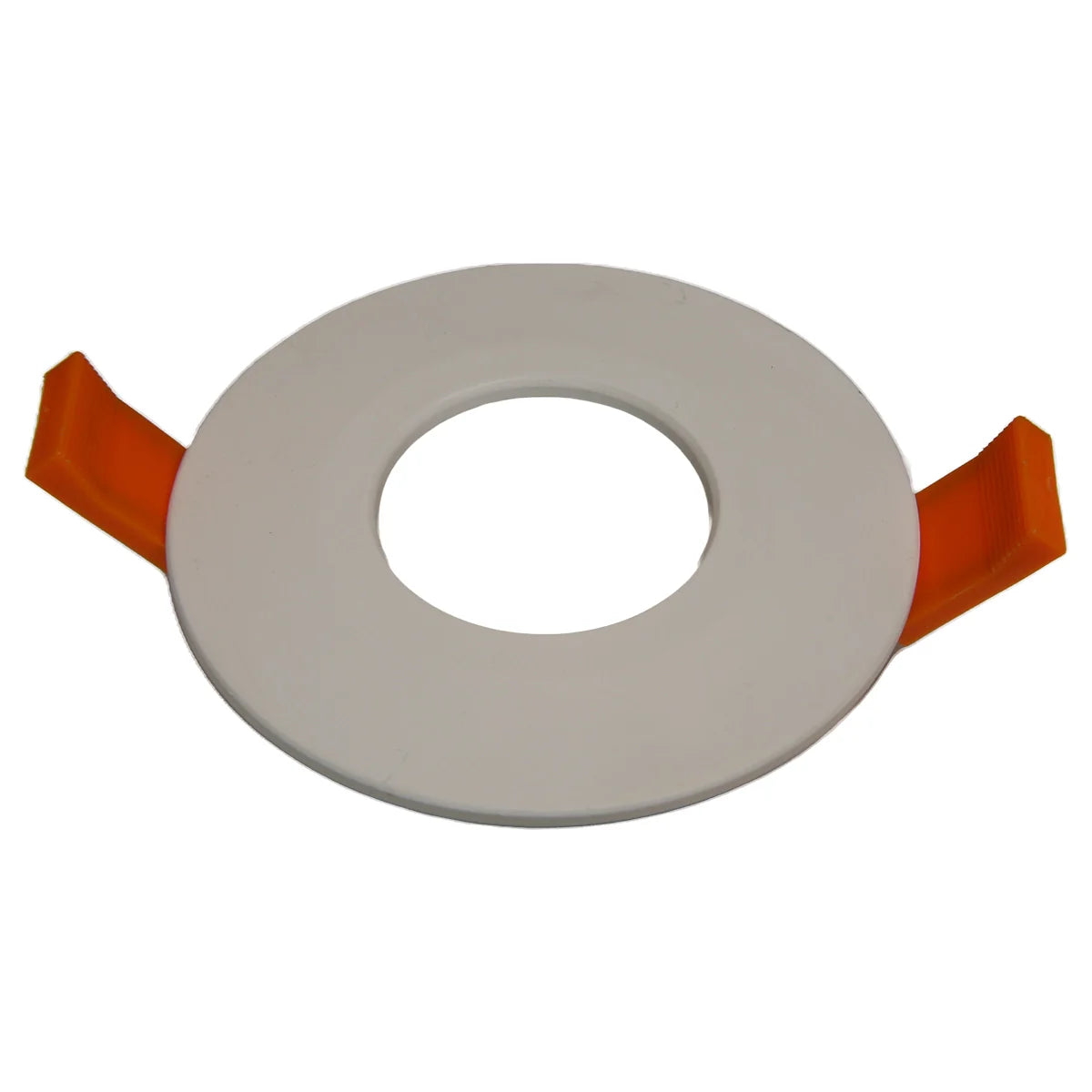

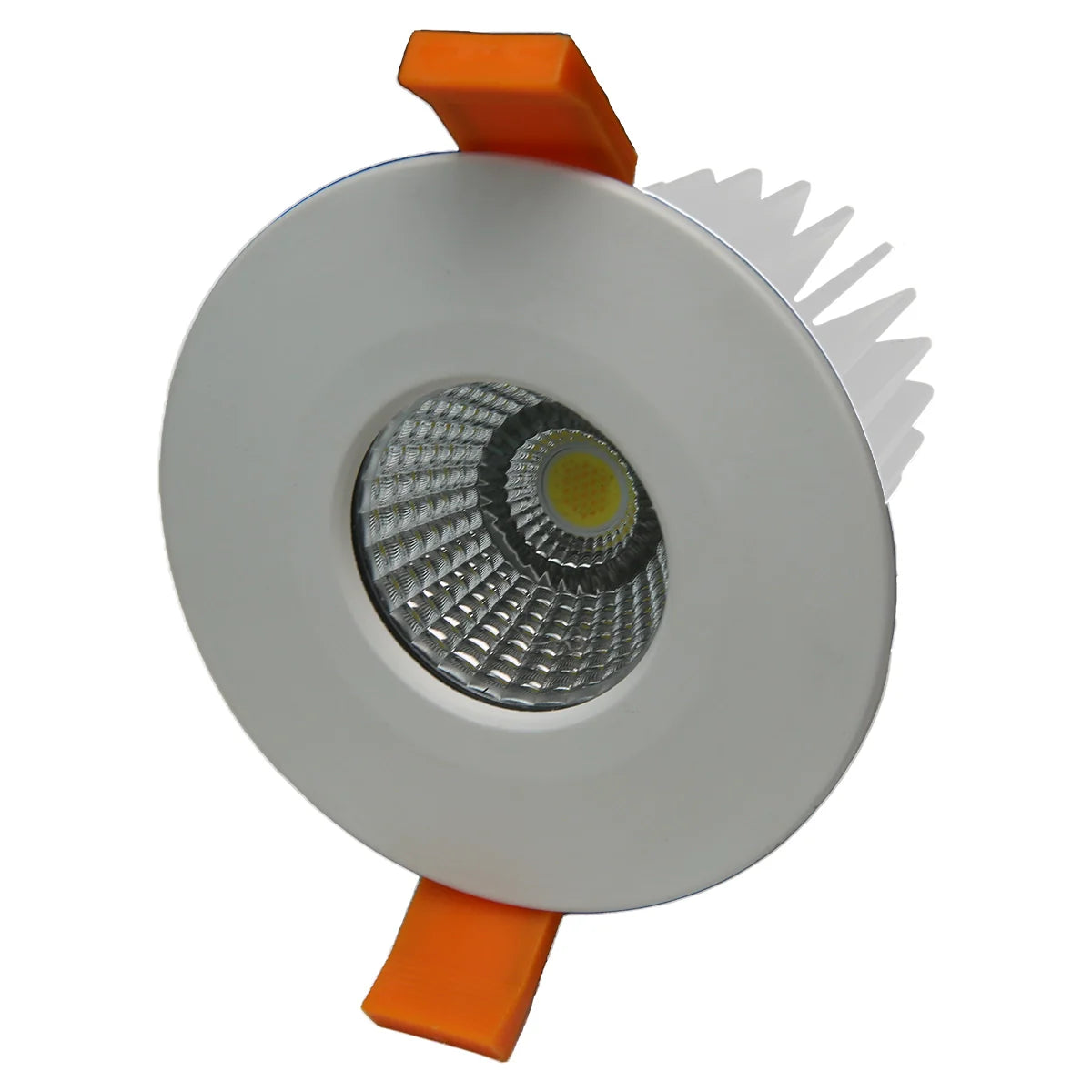

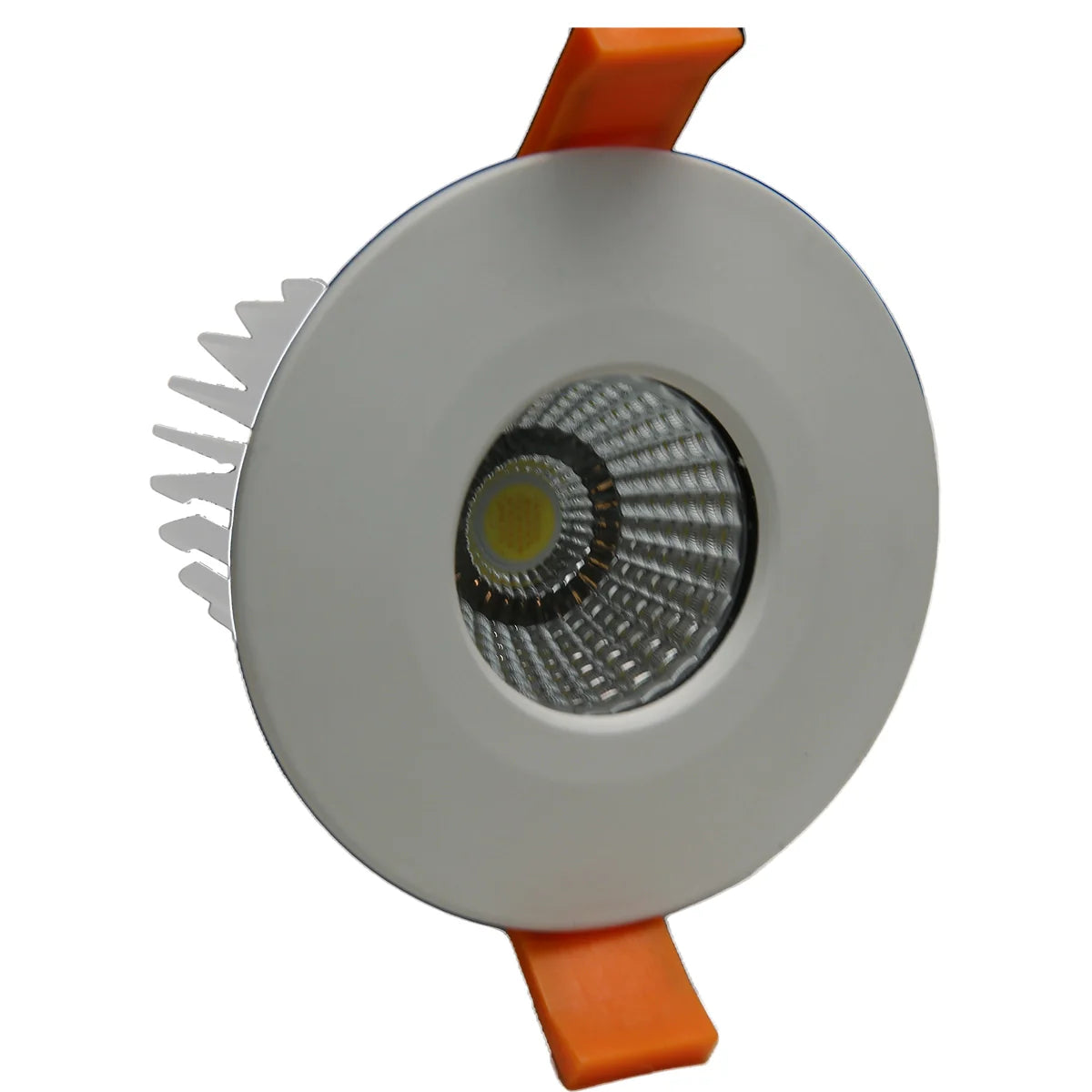

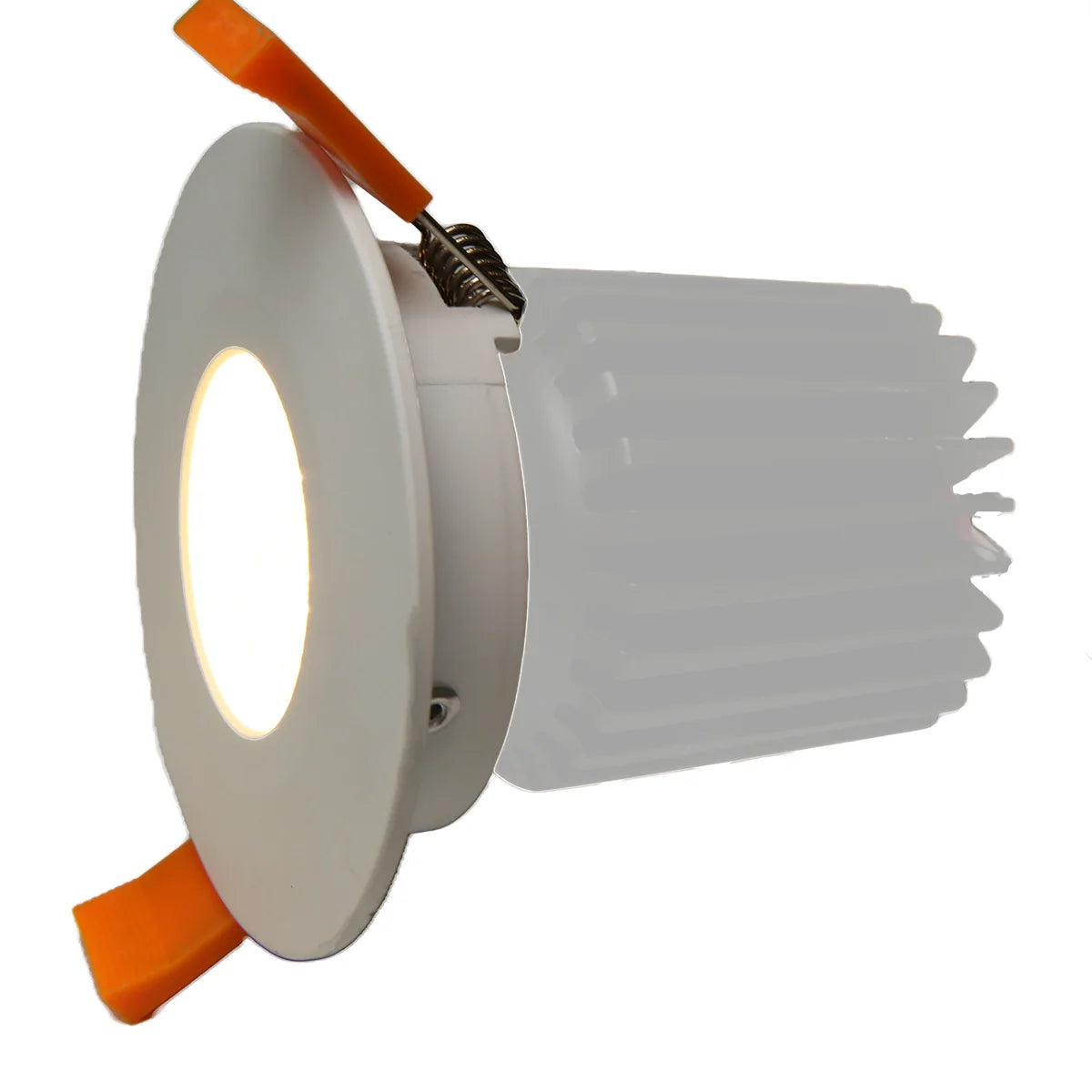

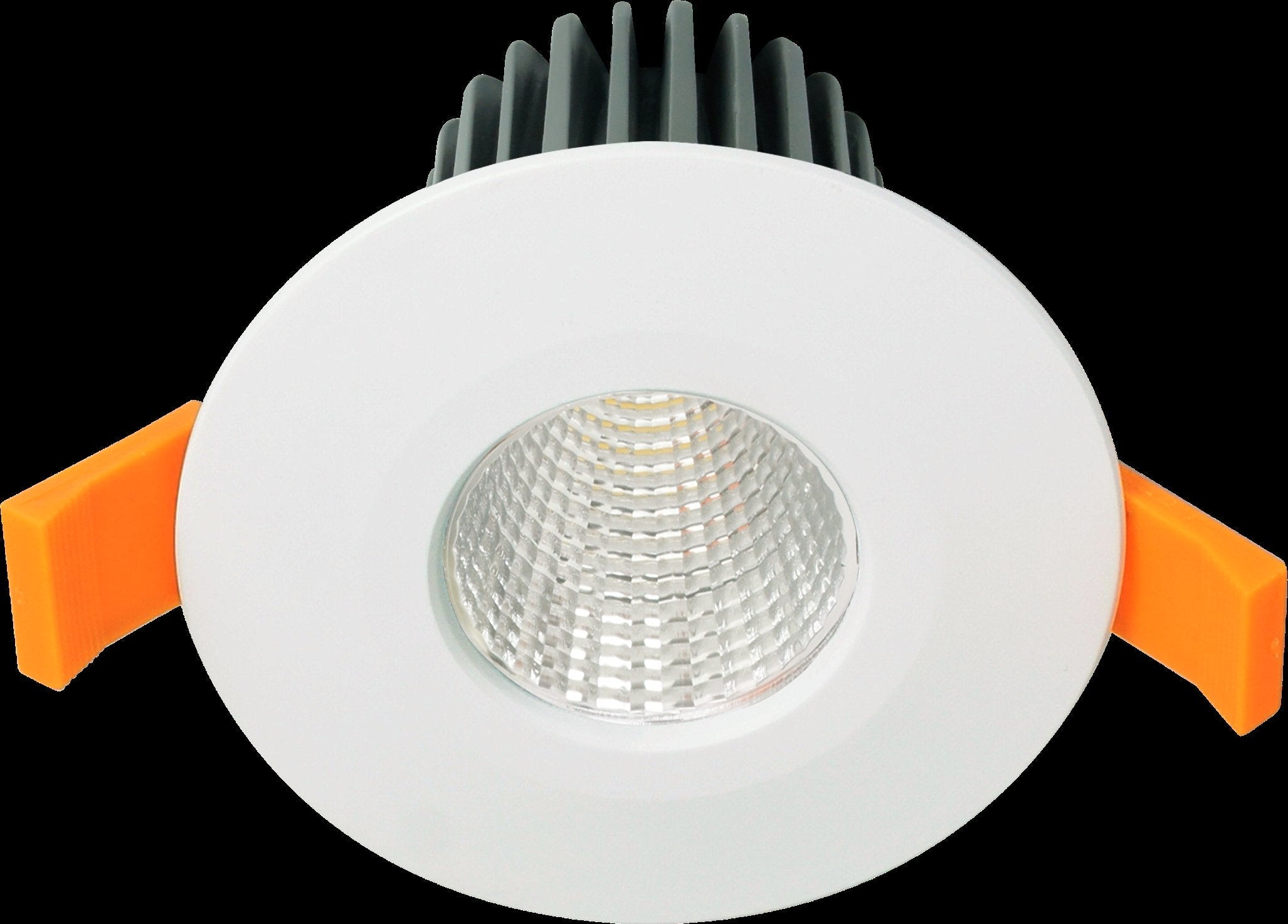

IP44, Surface mount ring for X3A, X15A, XRGBW and XCCT COB down light modules.
Choose this trim if
a. very neutral look that is liked by most.
b. when replacing old lights that are installed with a 70-75 mm cut out.
c. suitable for use in high moisture areas and under the eves.
d. when relatively shallower mounting depth is available.
Do not choose this trim if
a. You are replacing existing lights and the cut out size is large than 90 mm
b. If you are a much lower glare rating. This has a moderate glare rating.
c. if you have chosen X20A (18W) module. The cooling radiator diameter of the X20A module is larger than 75 mm.
|

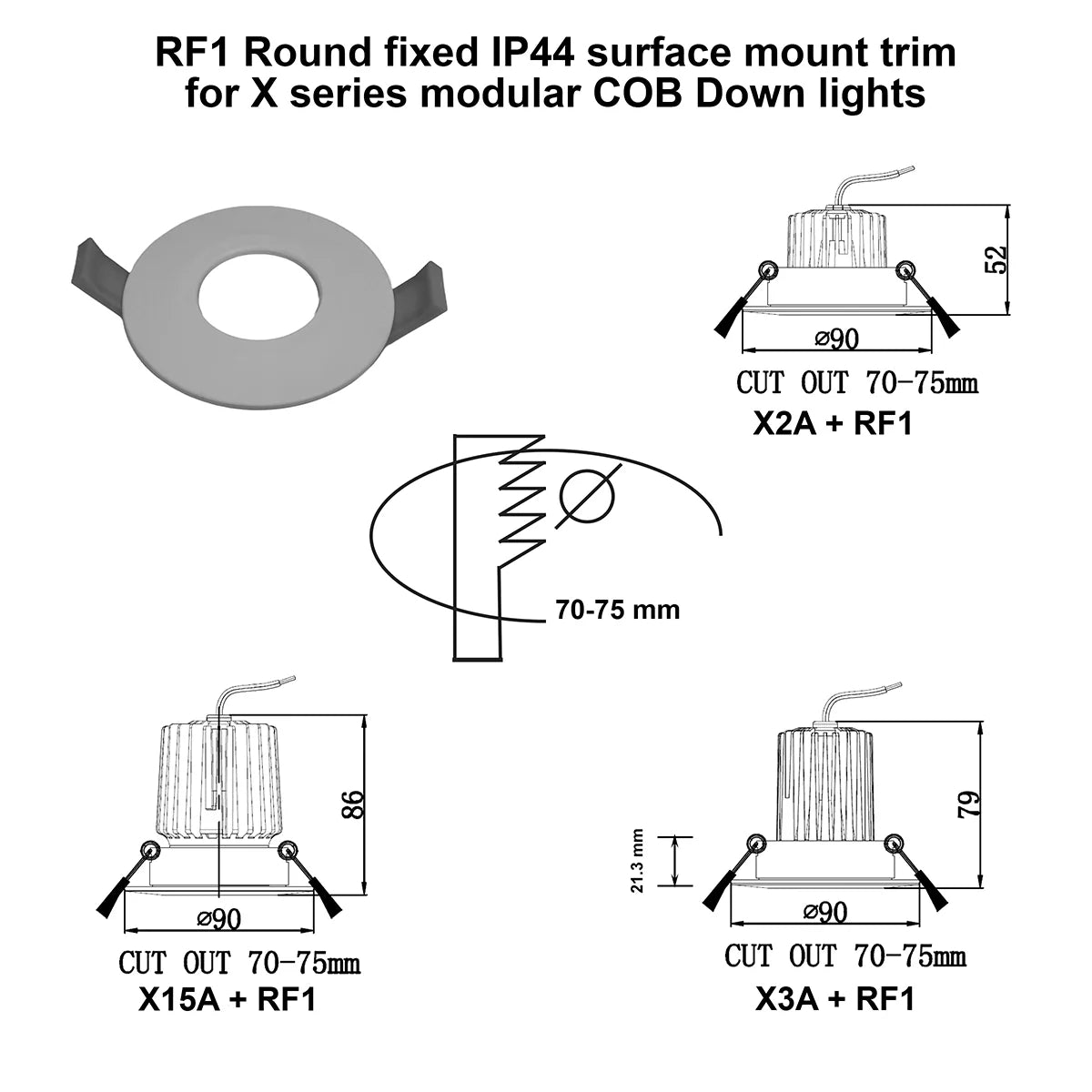

Cut out |
70-75 mm |
|
Diameter of face |
90 mm |
|
Total height of fitting |
22 mm |
|
Mounting depth with X3A |
79 mm |
|
Mounting depth with X15A |
86 mm |
|
Mounting depth with X20A |
Not suitable |
|
Mounting depth with XRGBW |
79 mm |
|
Mounting depth with XCCT |
64 mm |
Click here to download a pdf spec sheet for RF1 round fixed IP44 trim.
