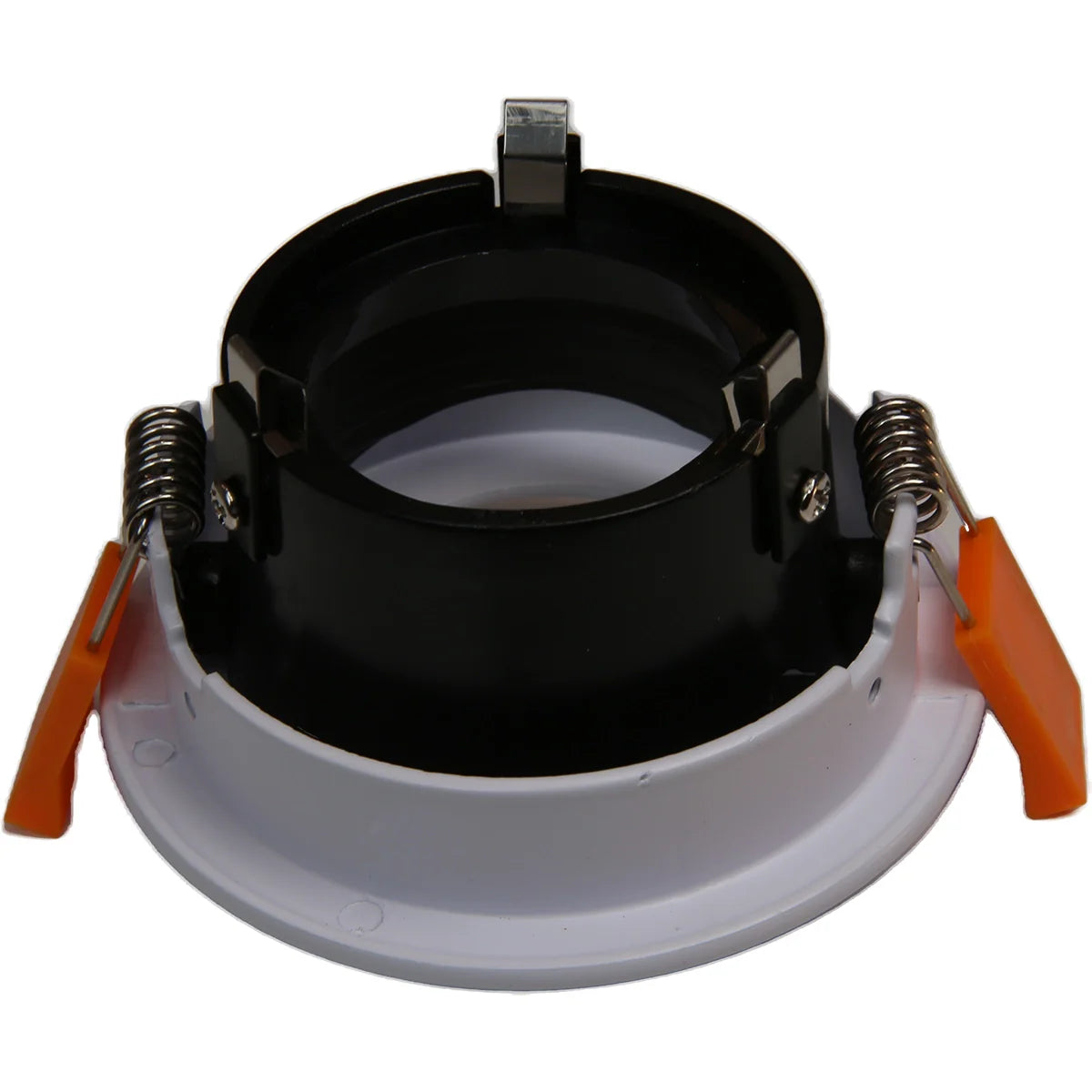

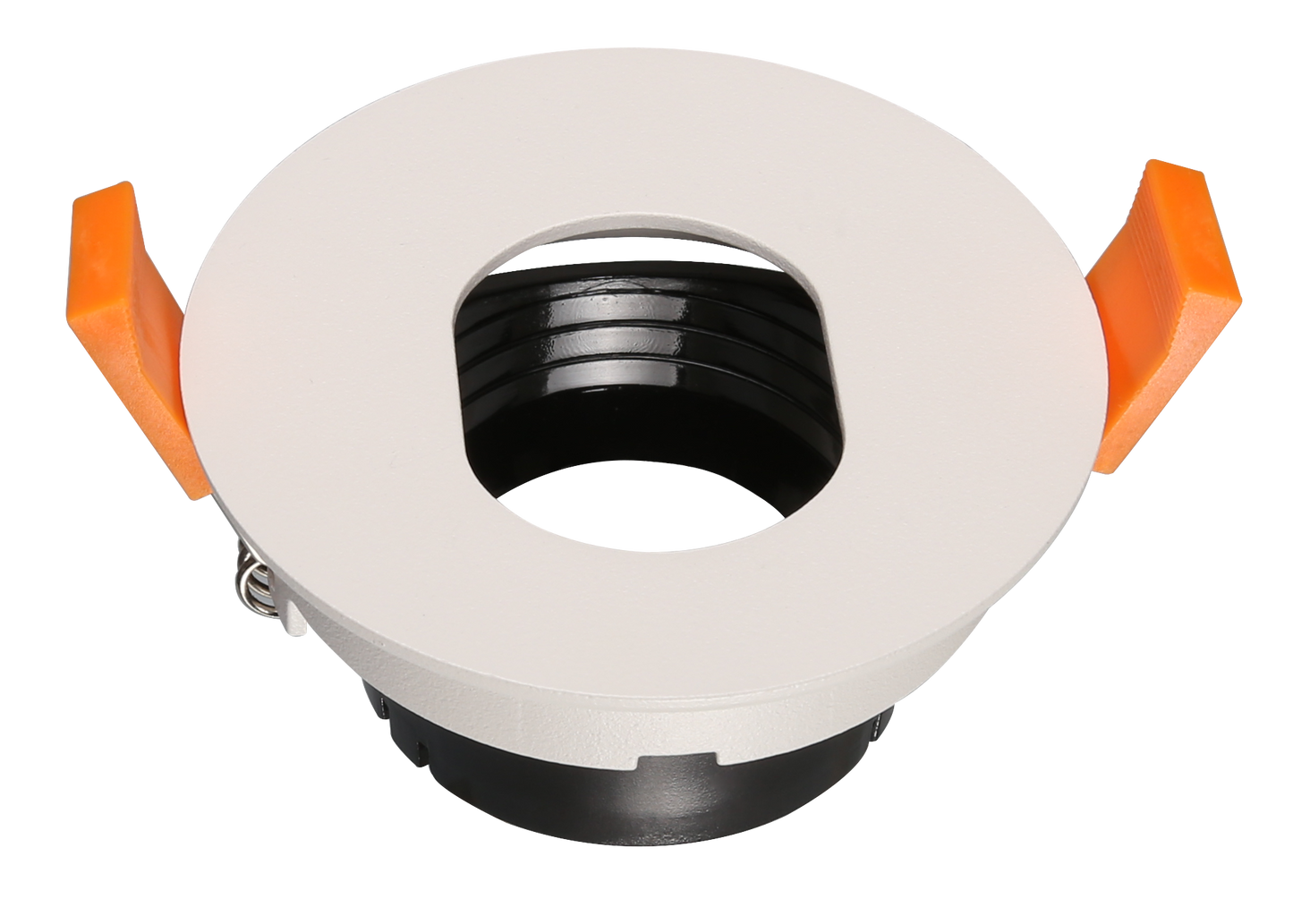

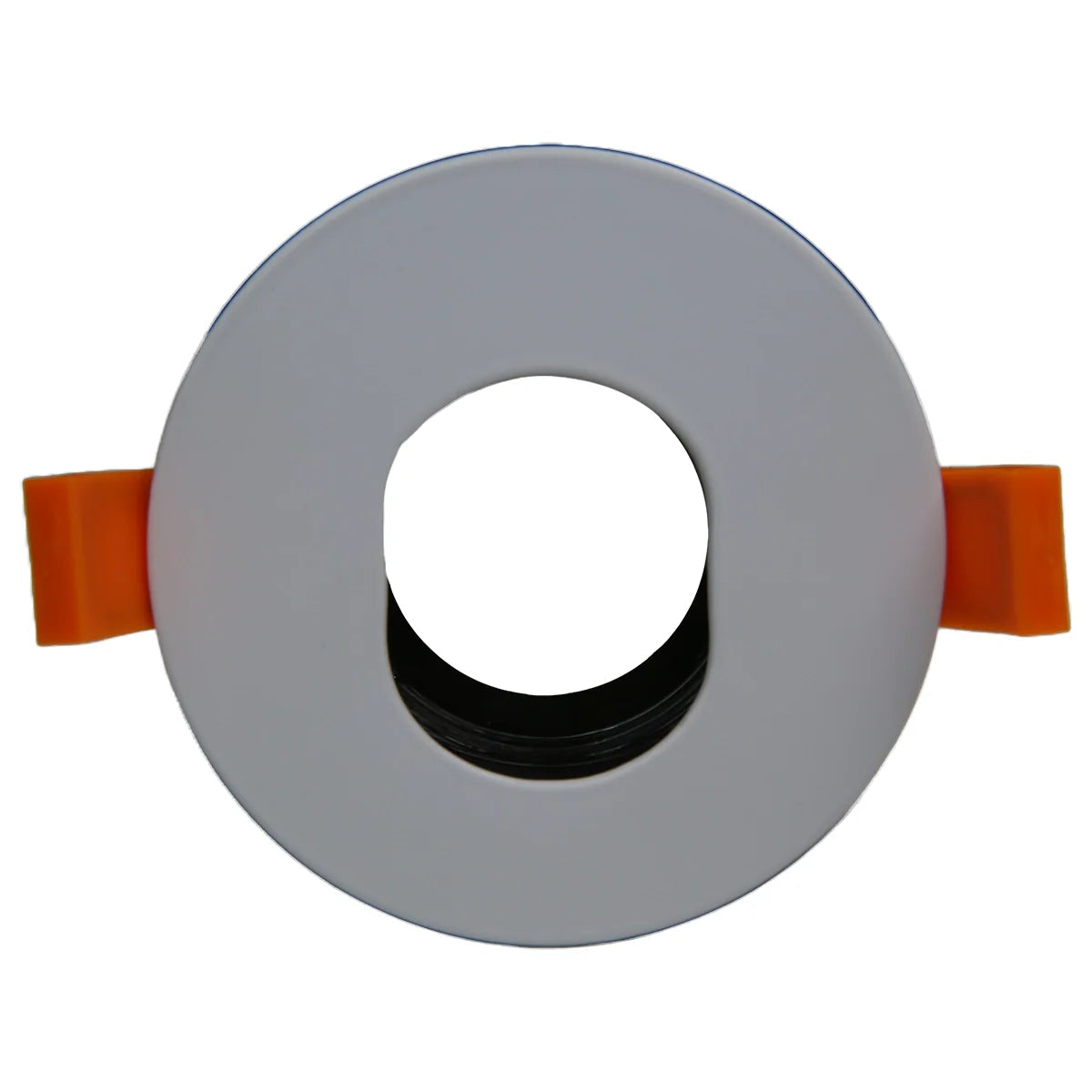

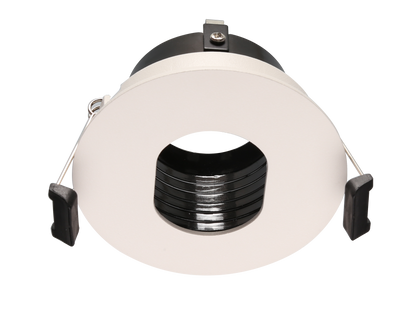

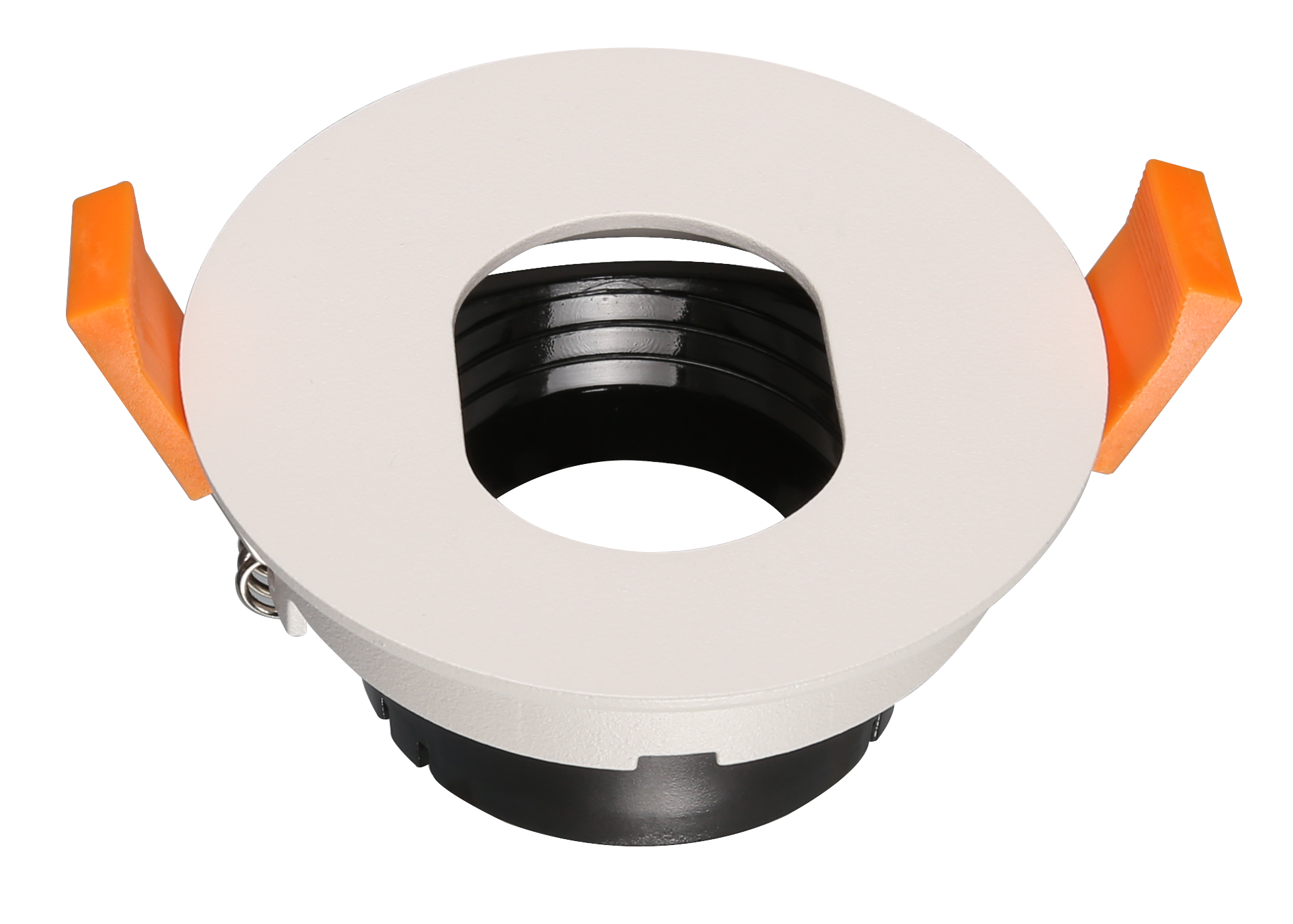

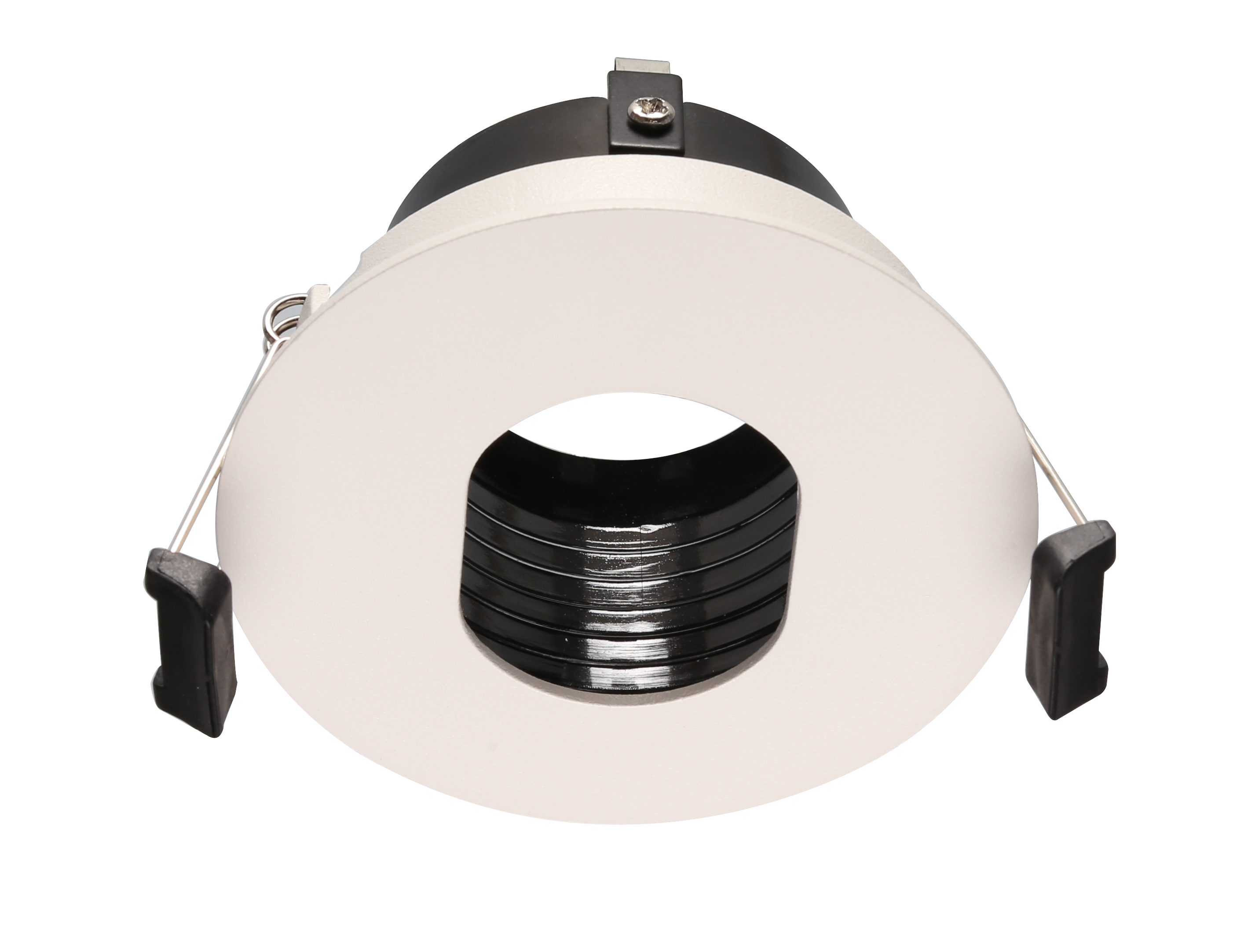

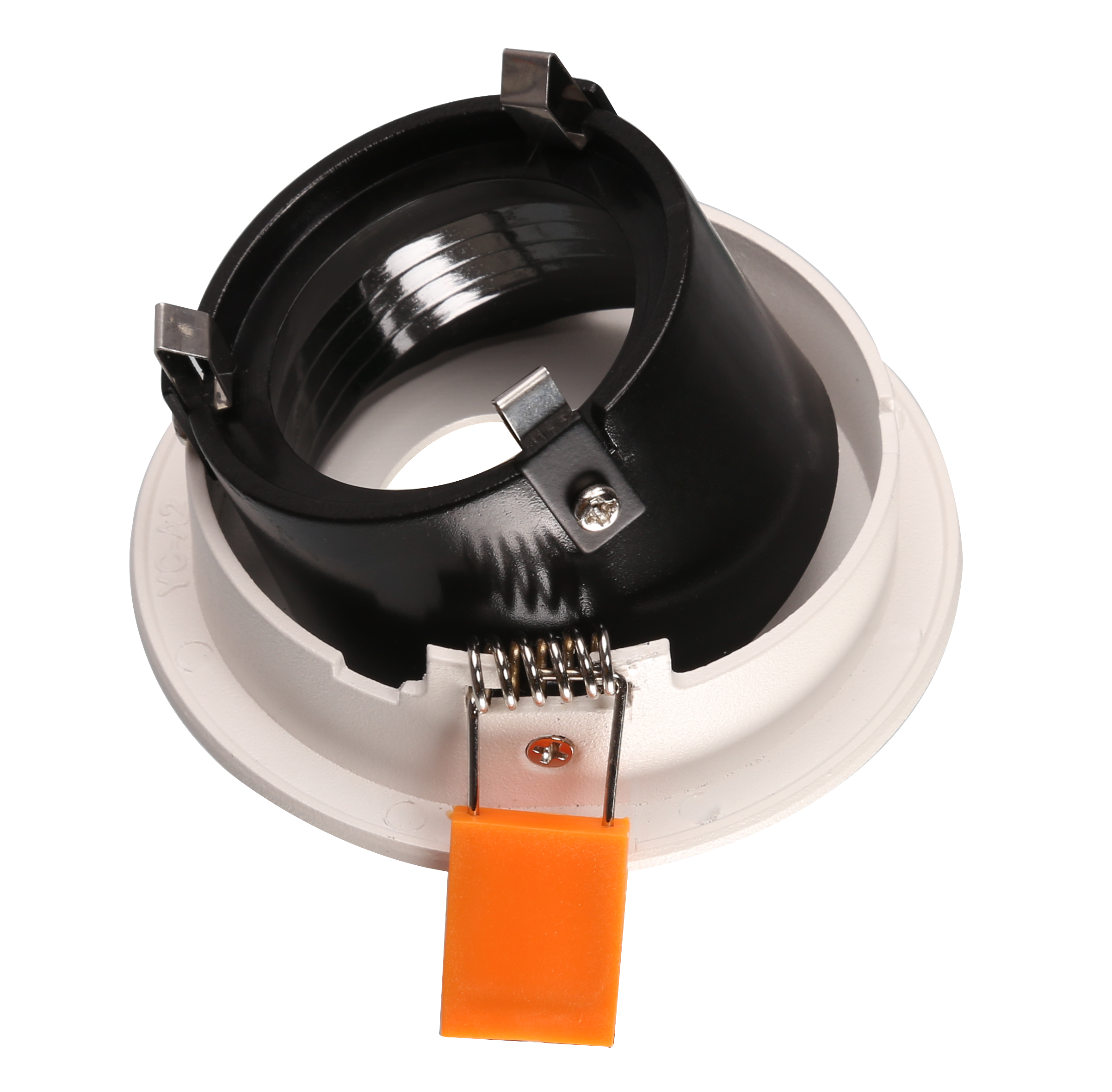

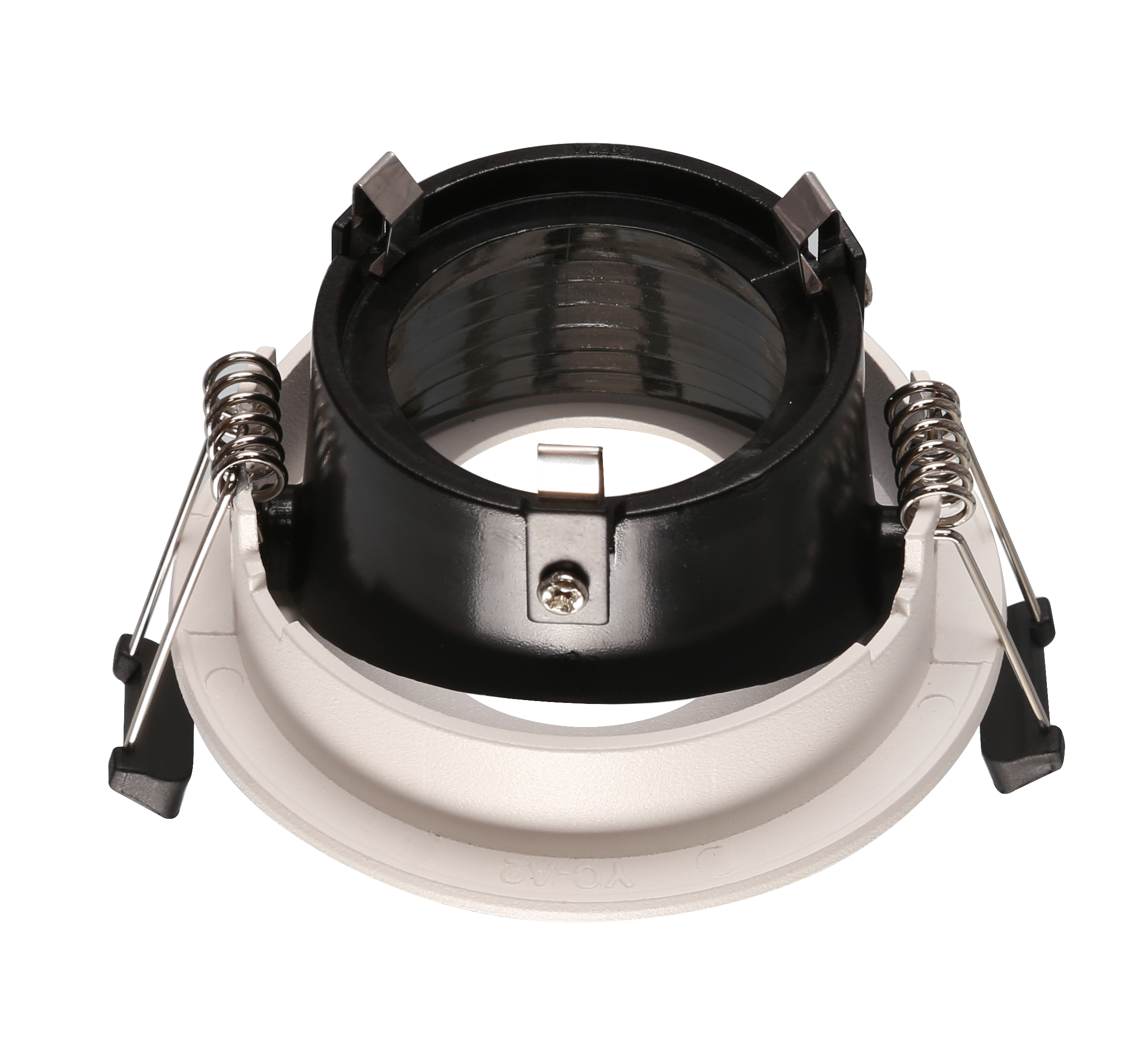

RA8 White- Round gimbal IP20 surface mount trim for X Series COB Modules
LUMI-FI
89 Collie Street
Fyshwick ACT 2609
Australia
Choose options
DETAILS
Product Information

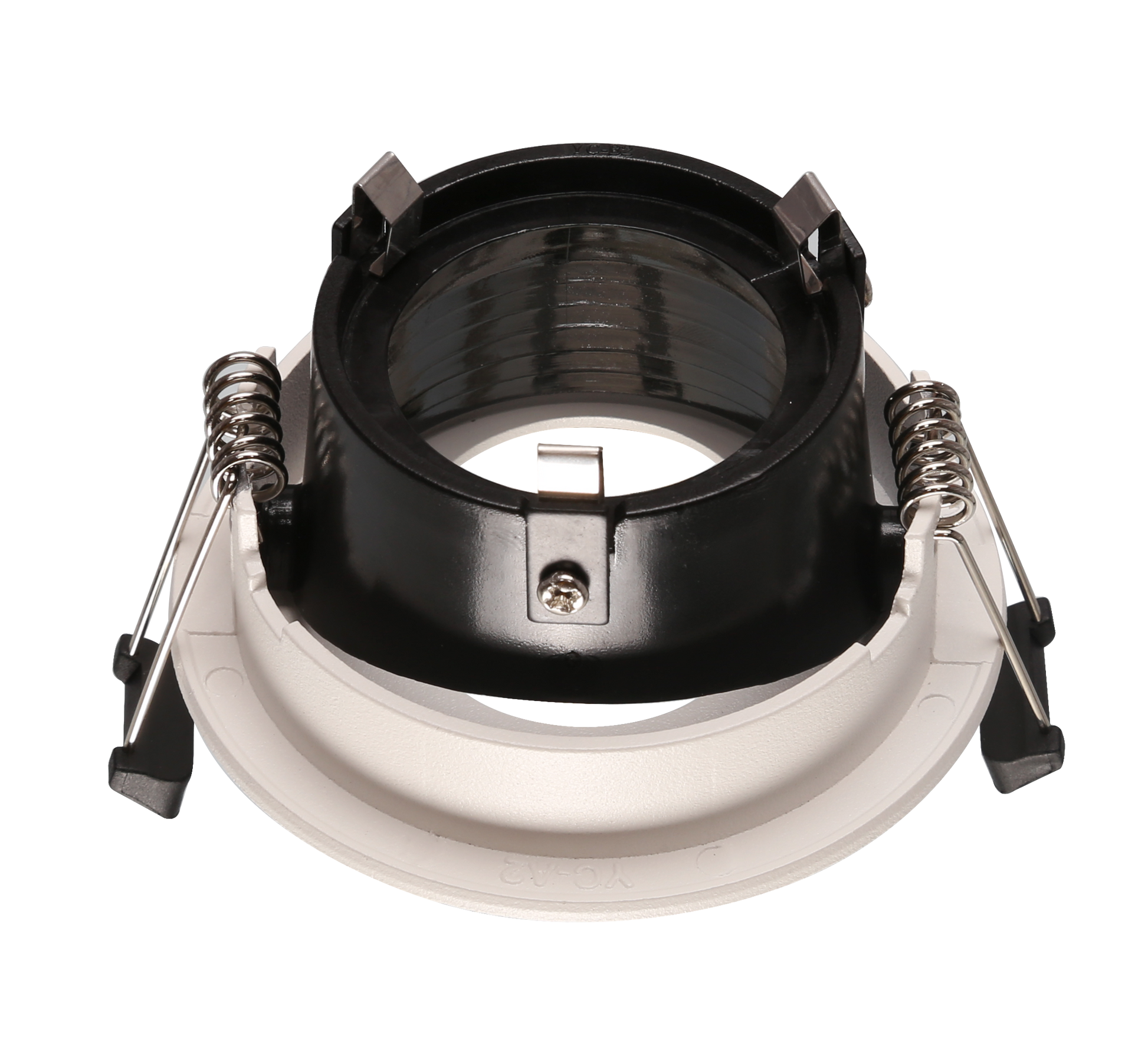

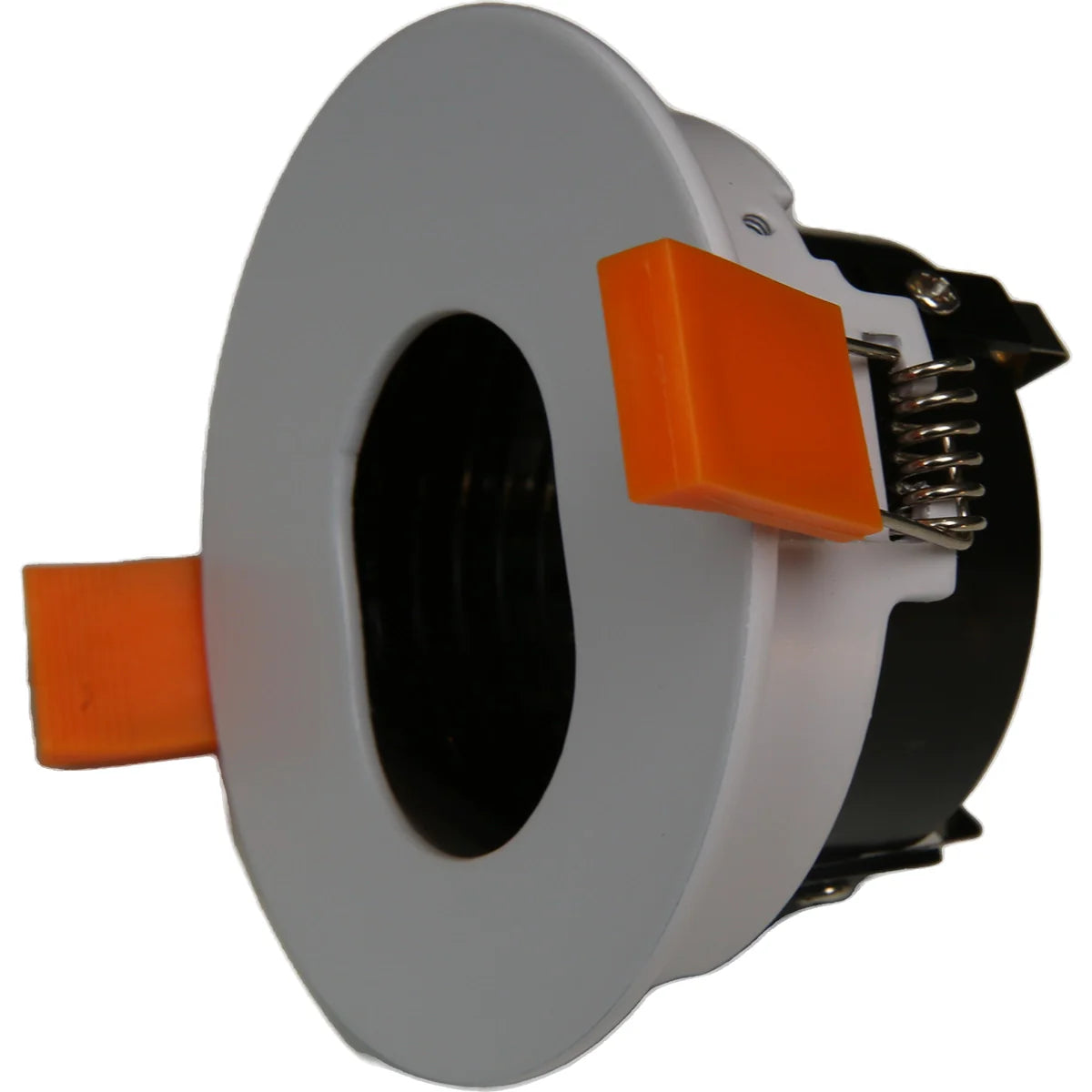

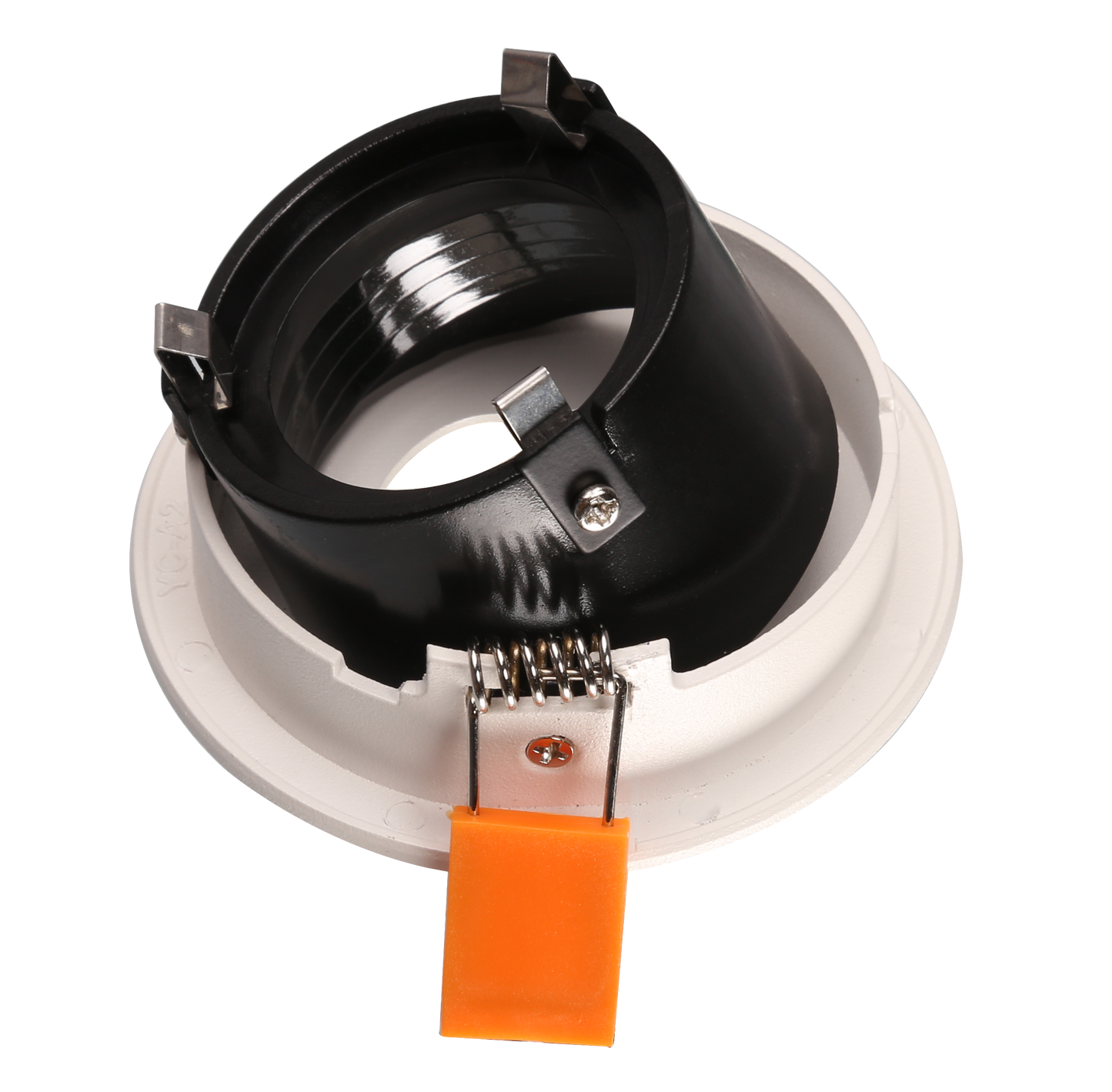

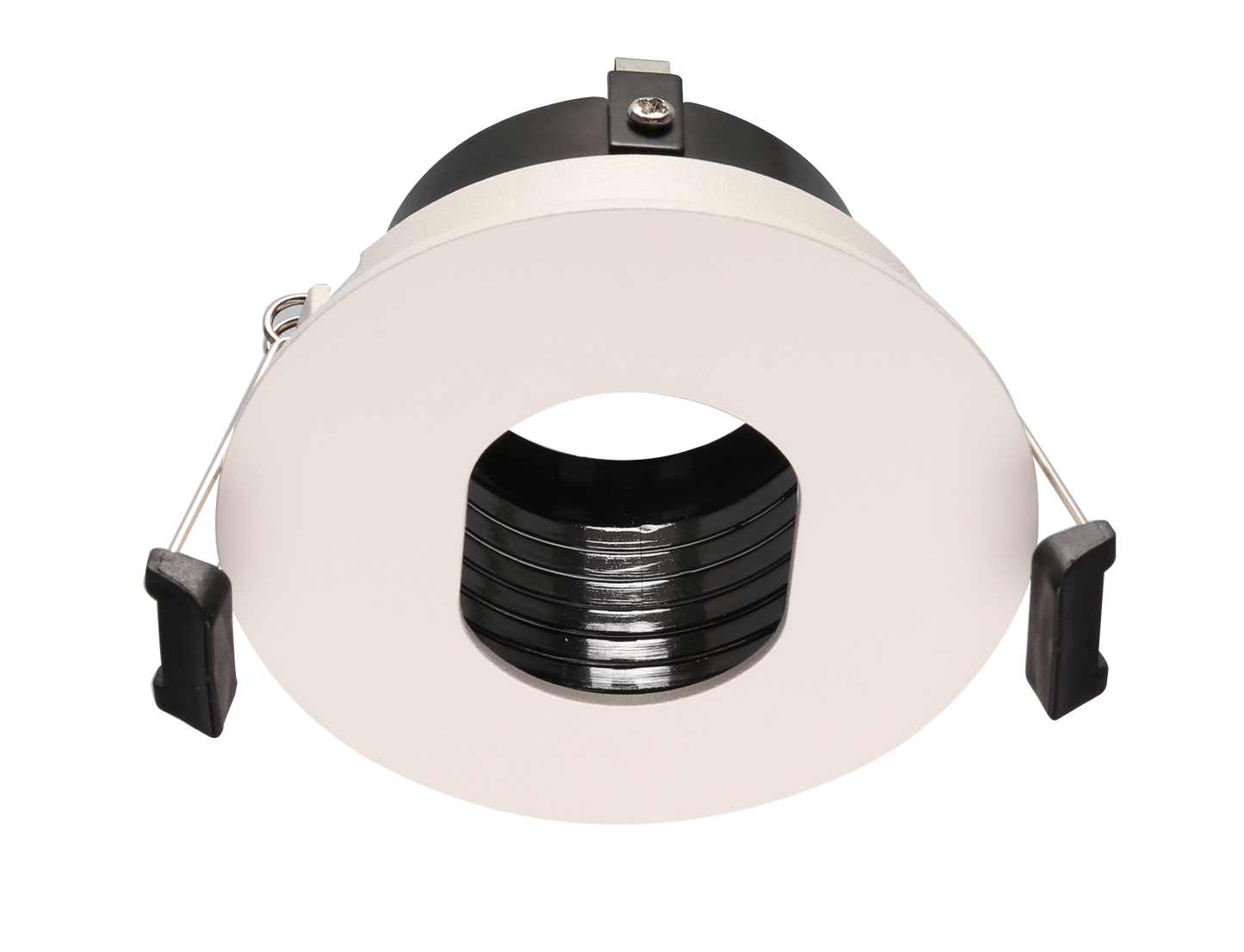

IP20, Adjustable Surface mount ring for X3A, X15A, XRGBW and XCCT COB down light modules.
Choose this trim if
a. when you desire to replace a fixed light fitting with a gimbal light fitting.
b. when you desire a low glare rating as the light sits far back in the ceiling.
c. This trim can be used as a wall washer. The light can be directed closer to the wall because of special face design.
Do not choose this trim if
a. You are replacing existing lights and the cut out size is large than 80 mm
b. you are planning to use it in high moisture areas like external eves and shower rooms as its IP20 rated.
|

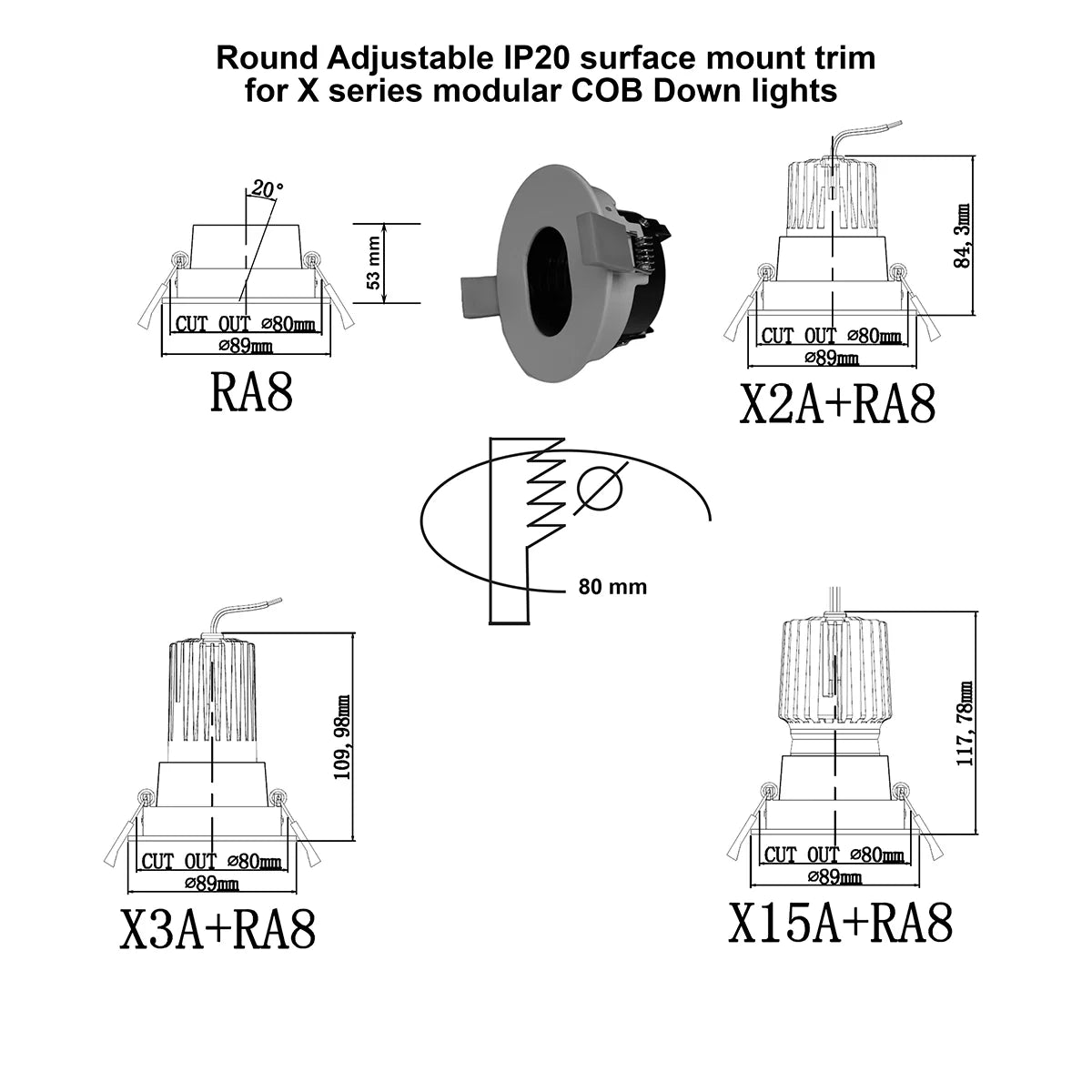

Cut out |
80 mm |
|
Diameter of face |
89 mm |
|
Total height of fitting |
53 mm |
|
Mounting depth with X3A |
110 mm |
|
Mounting depth with X15A |
118 mm |
|
Mounting depth with X20A |
Not suitable |
|
Mounting depth with XRGBW |
110 mm |
|
Mounting depth with XCCT |
95 mm |
Click here to download a pdf spec sheet for RA8 round adjustable IP20 wall washer trim.

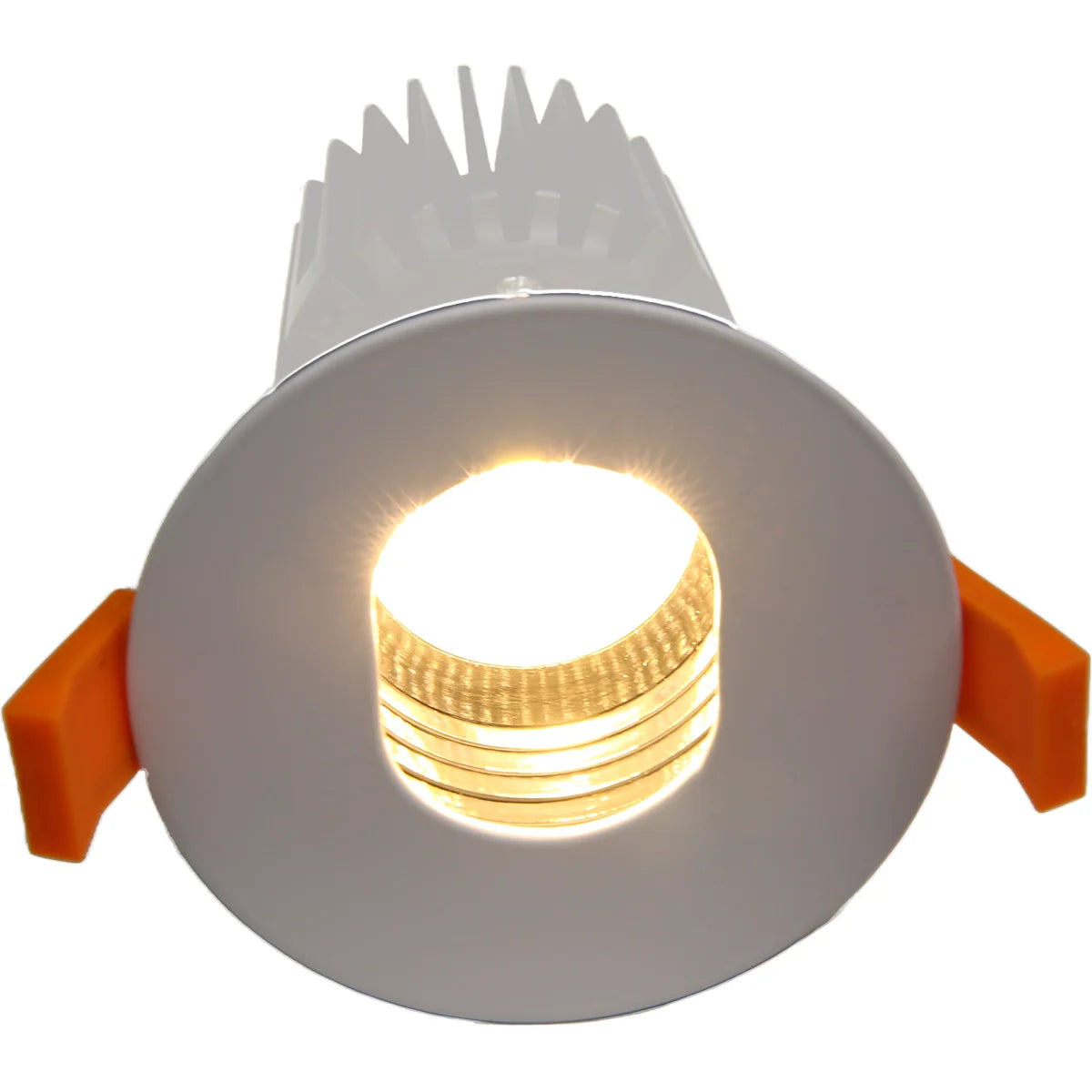

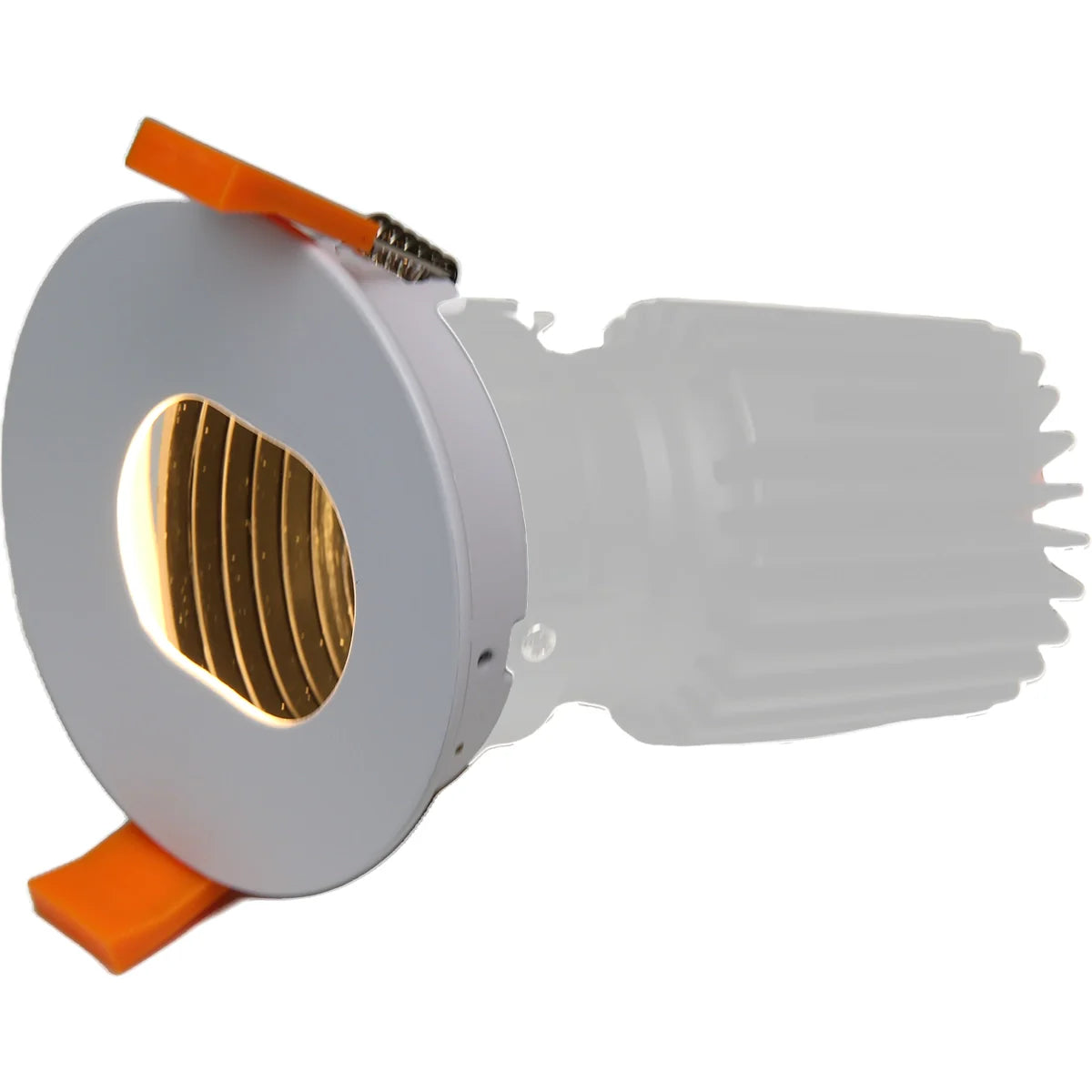

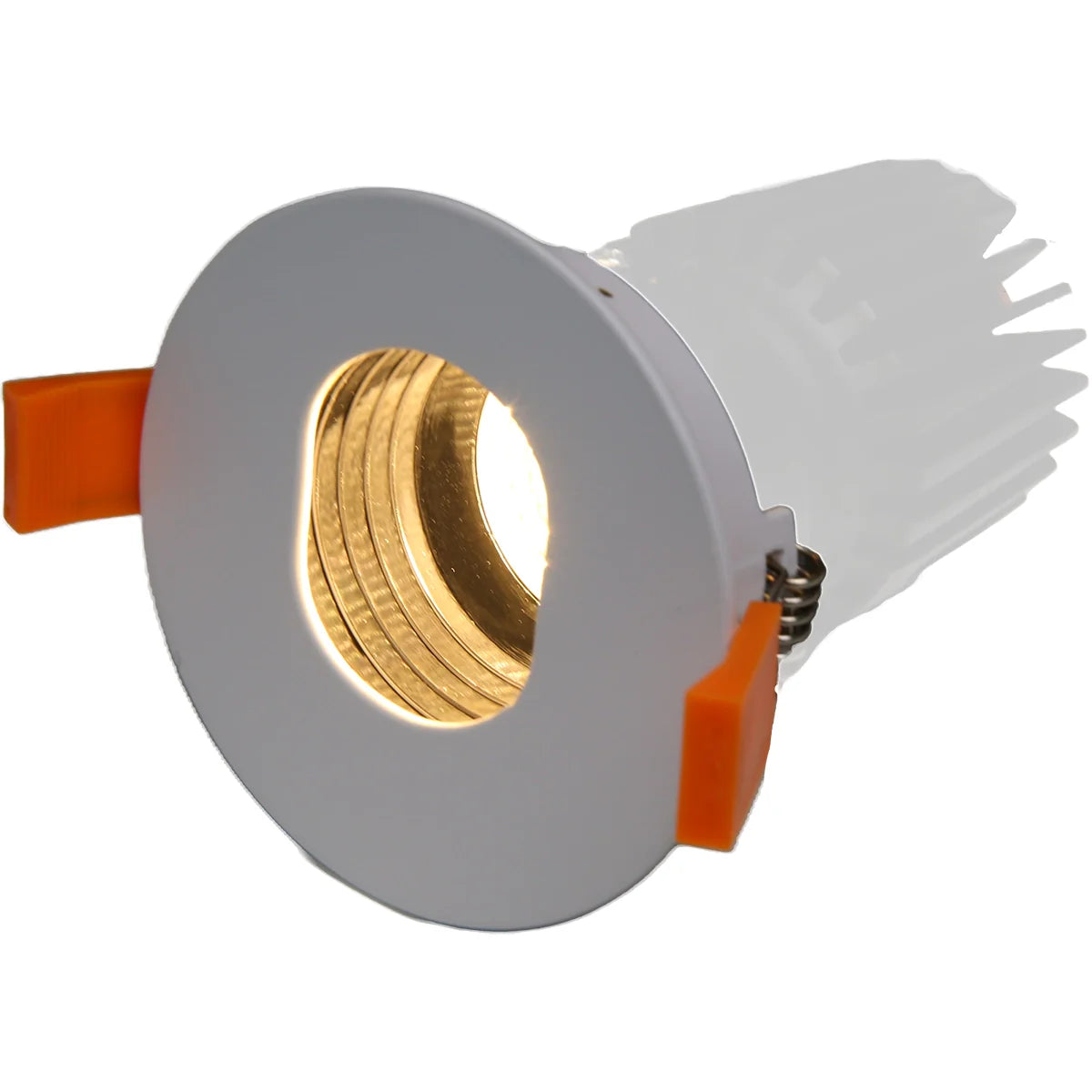

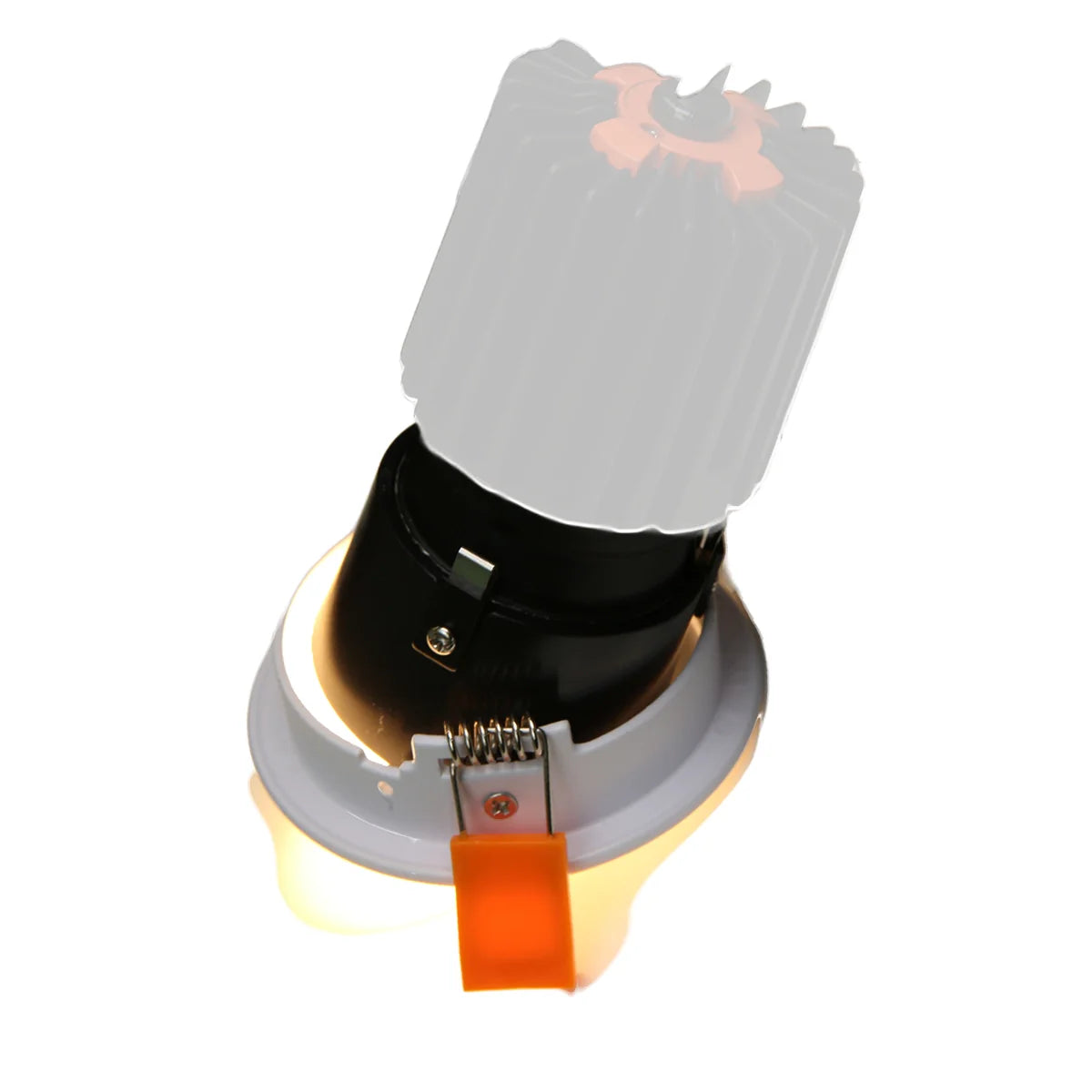

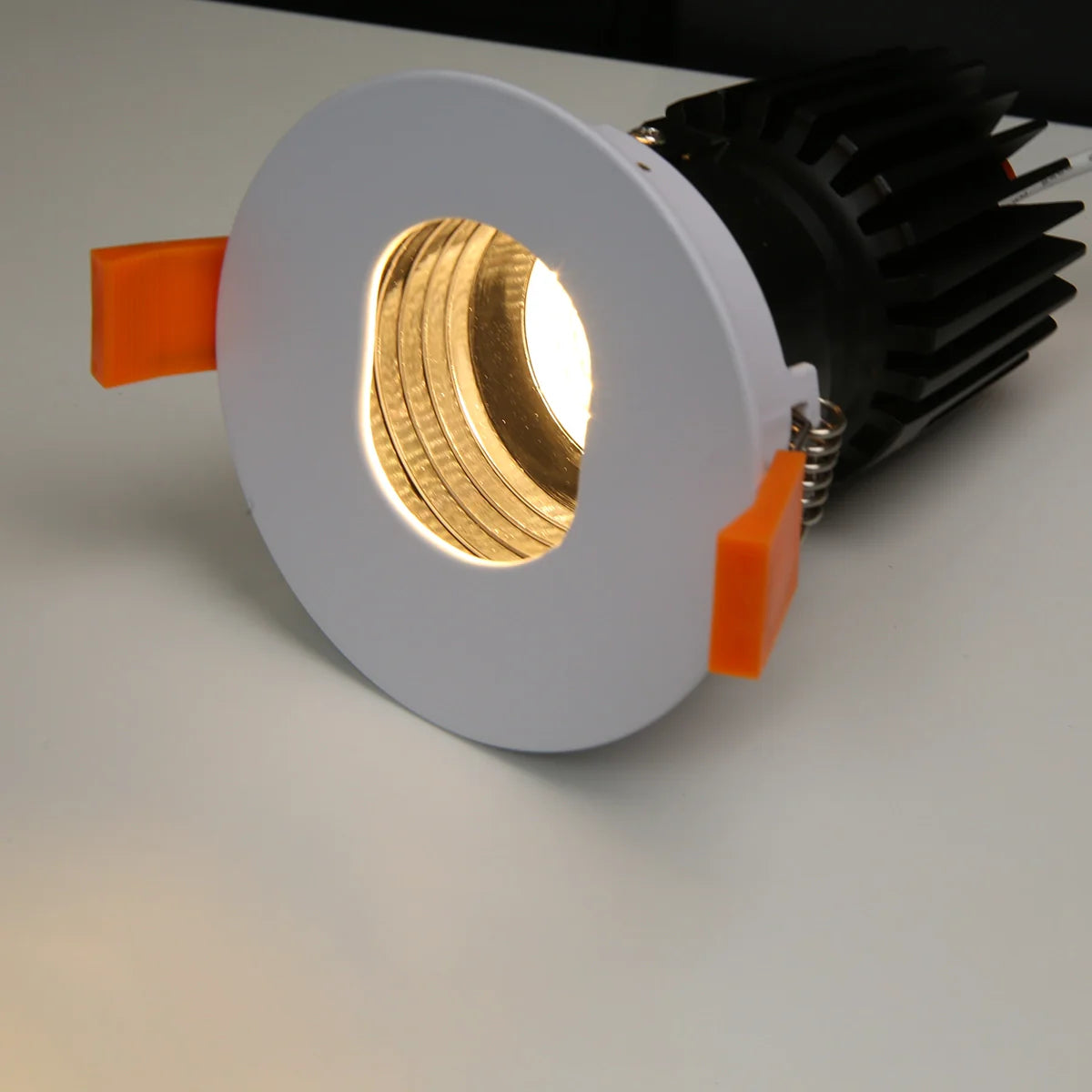

The price is for the surface mount trim only. The light is shown for illustration purposes only.
