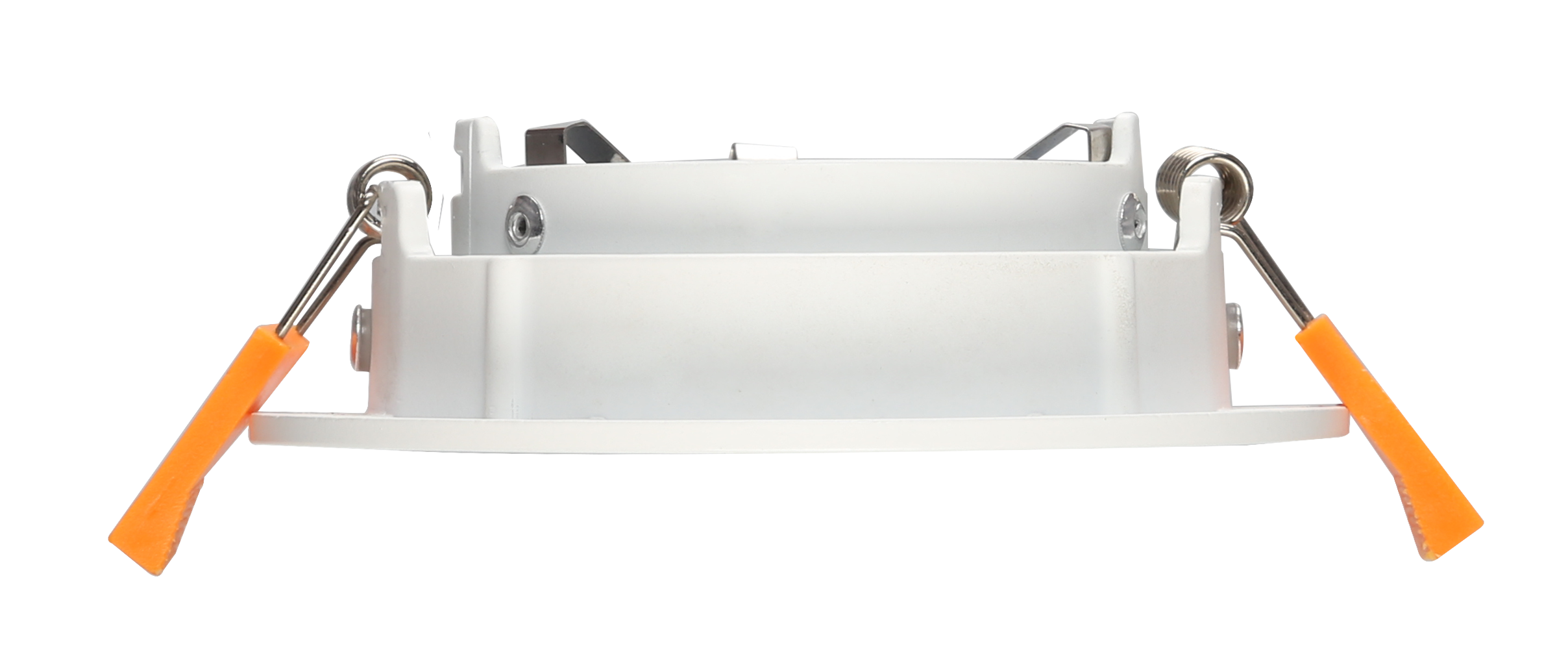

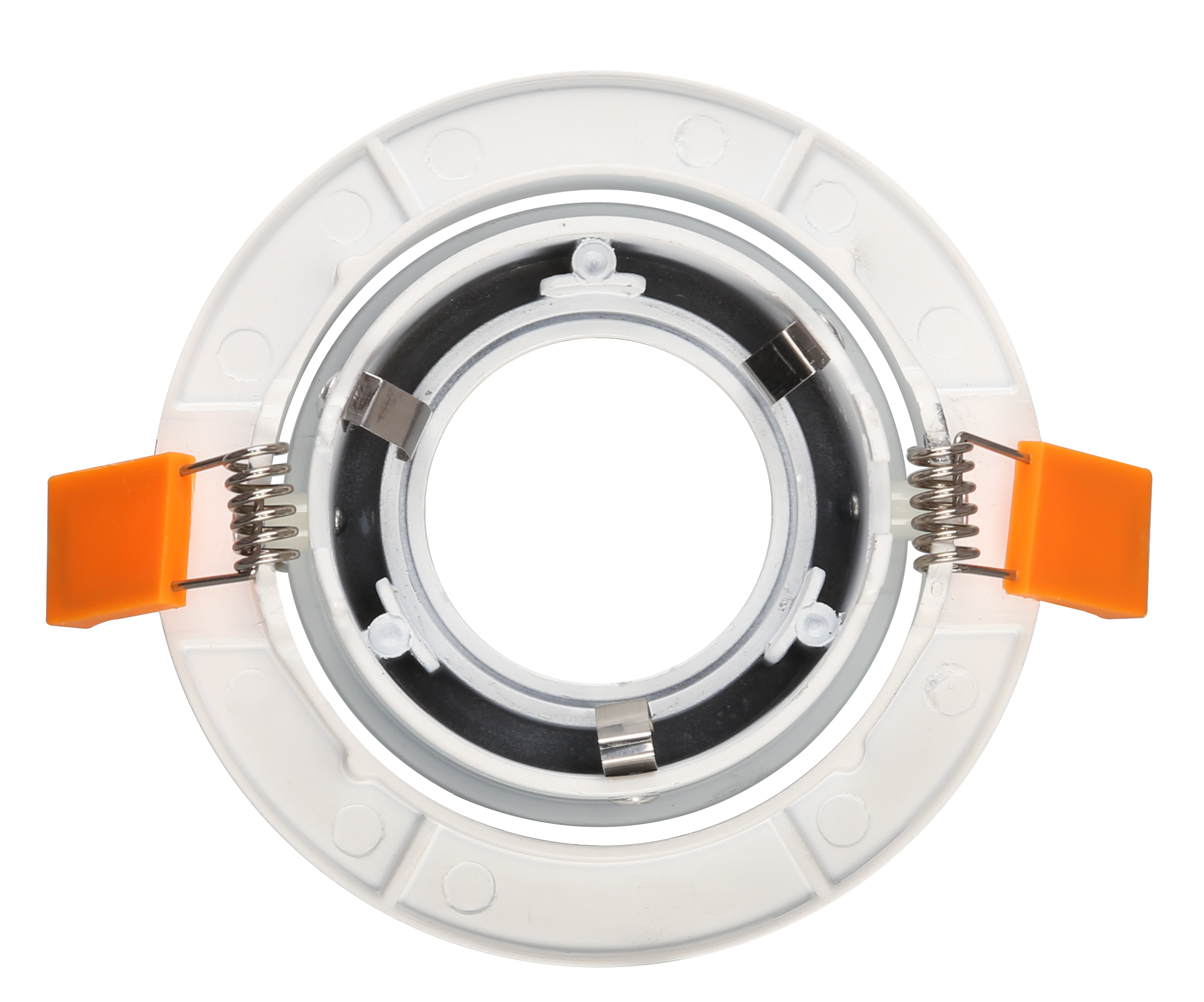

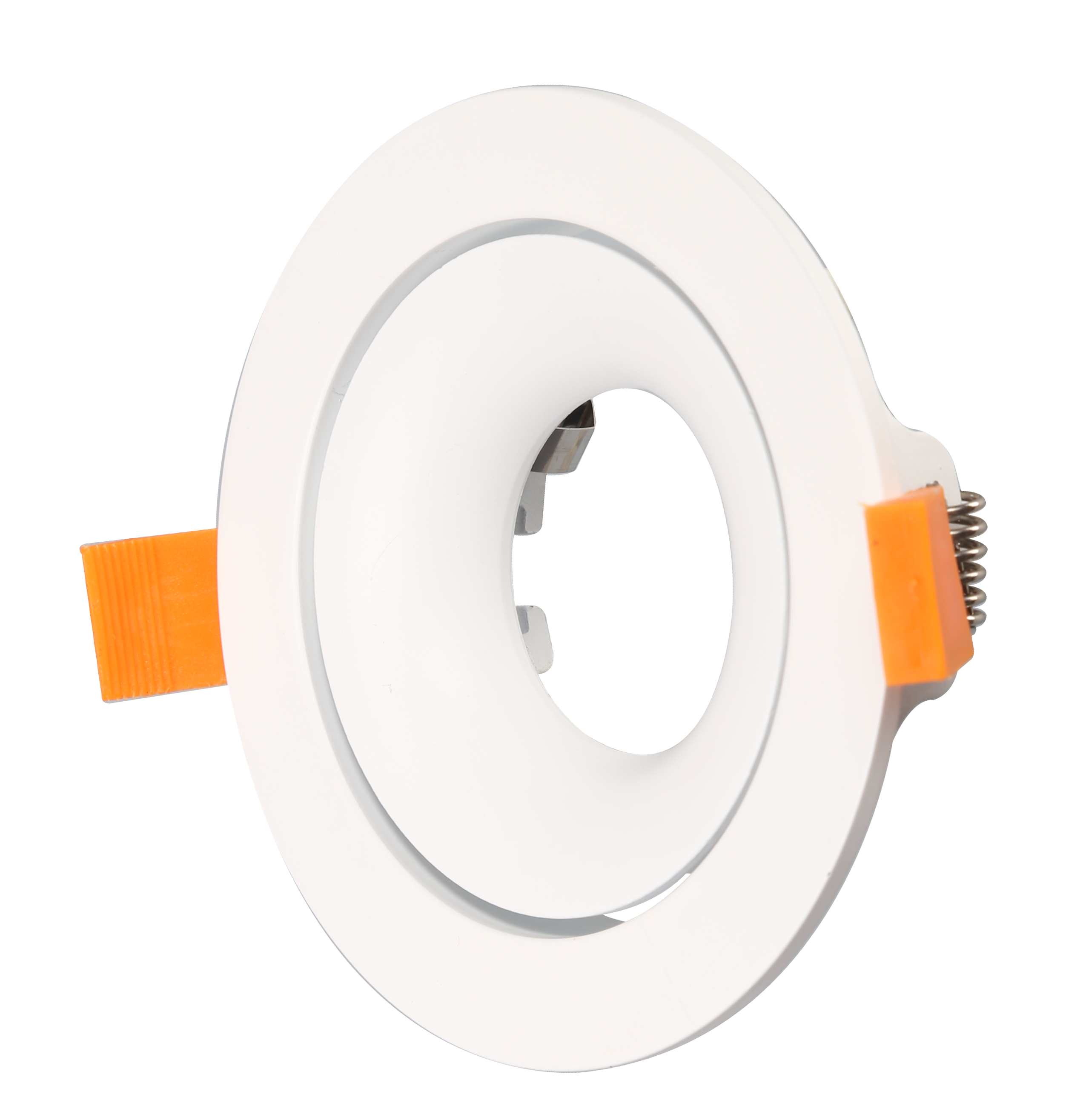

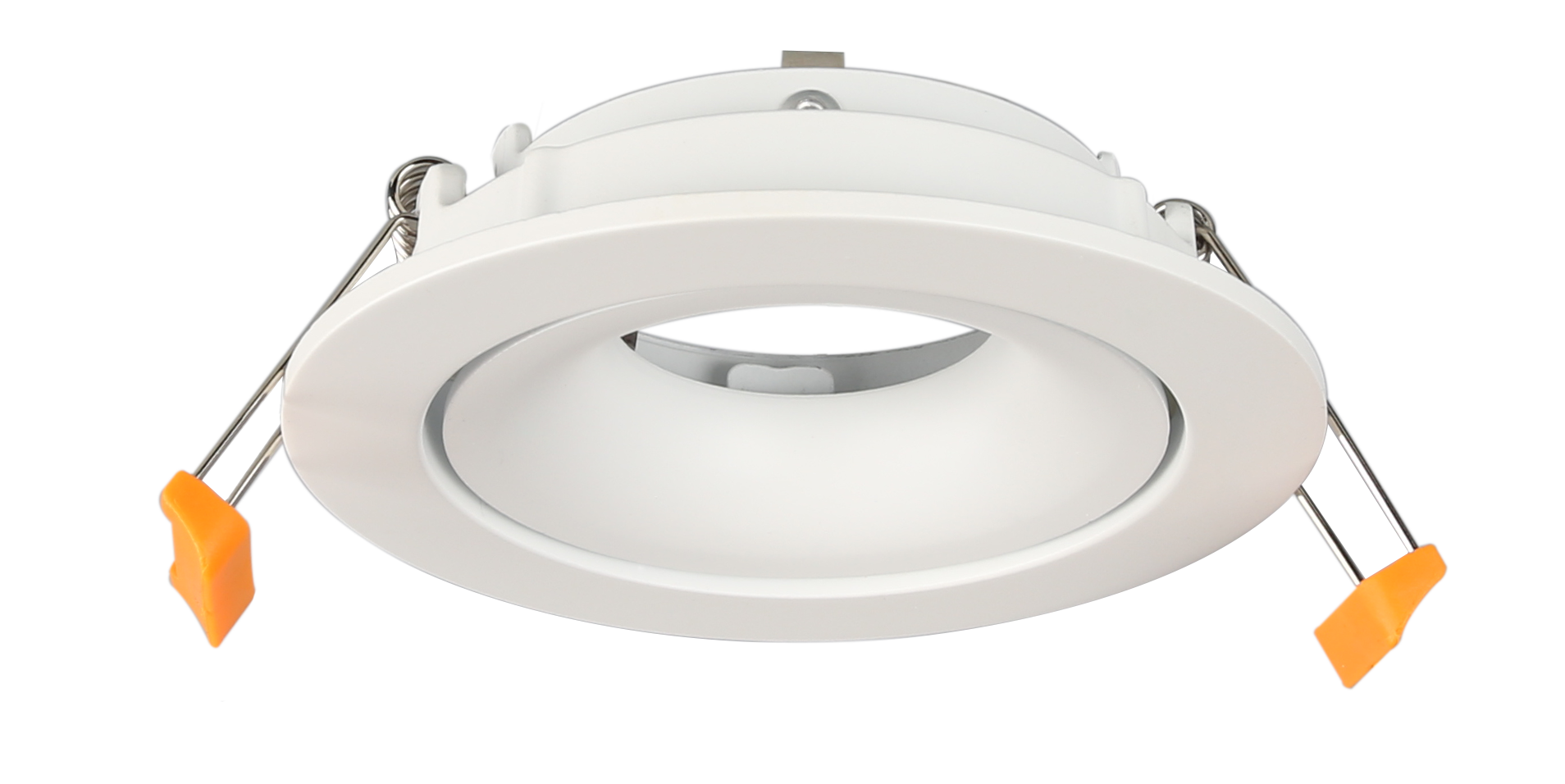

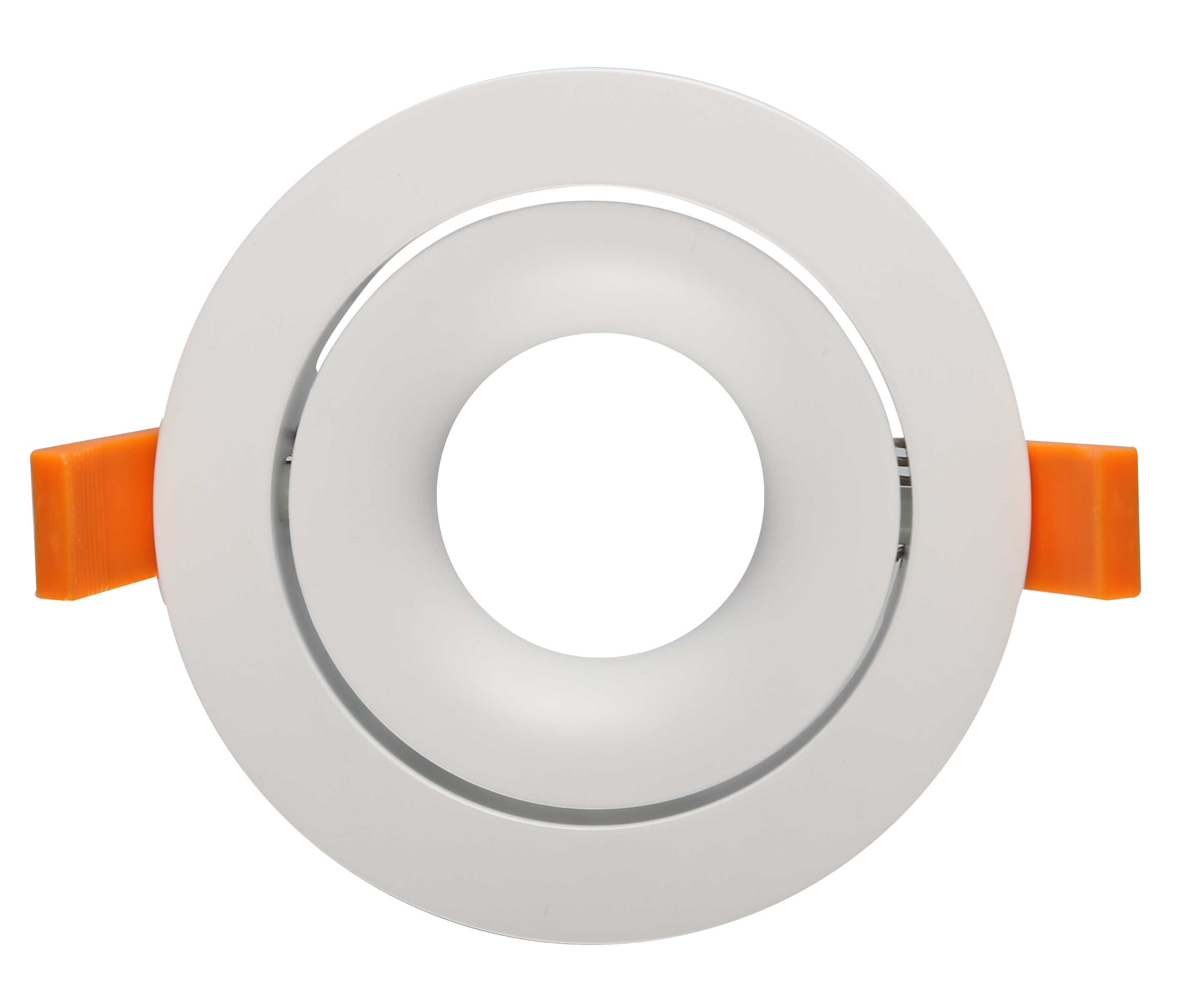

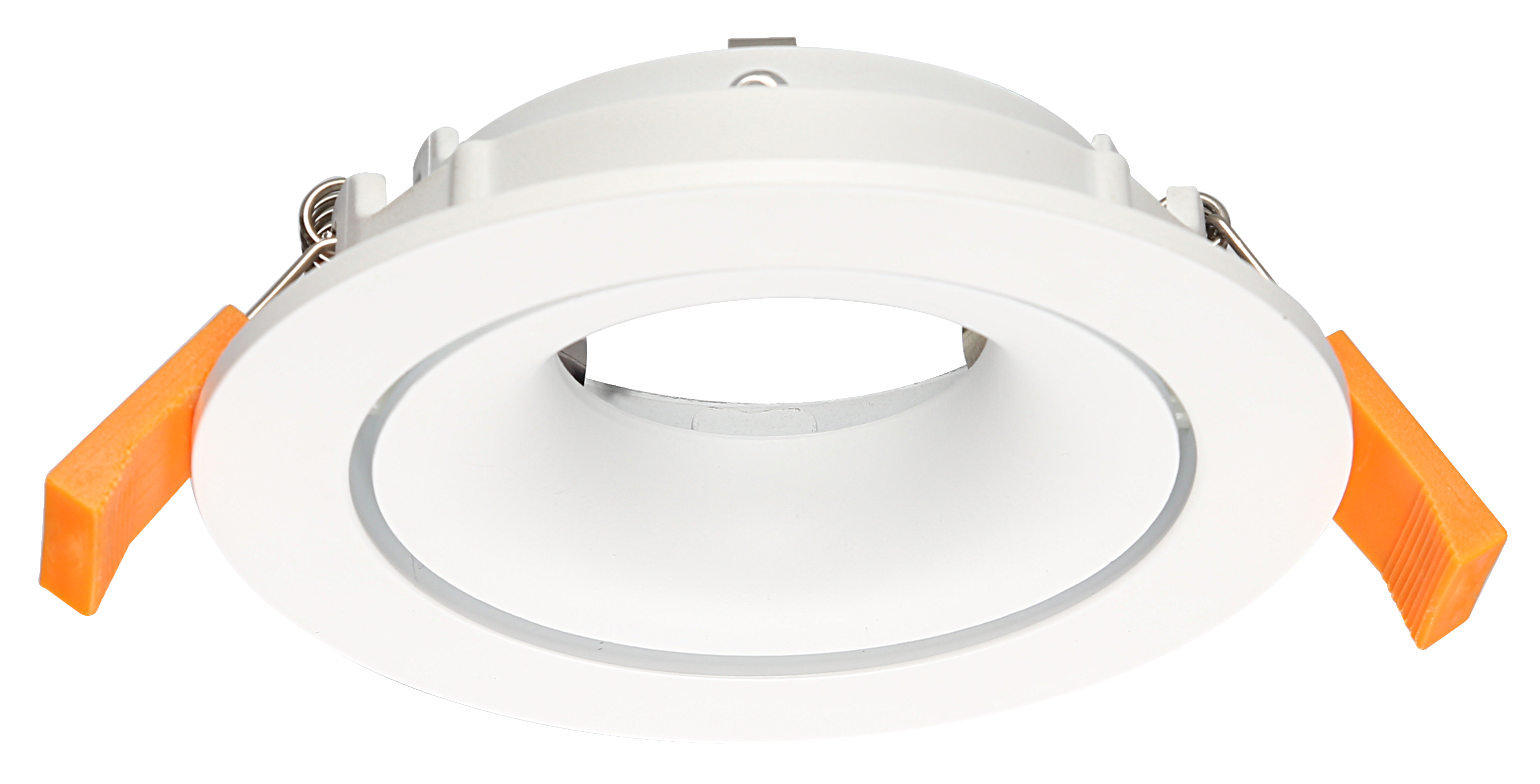

RA6 White- Round adjustable IP20 surface mount trim for X Series COB Modules
LUMI-FI
89 Collie Street
Fyshwick ACT 2609
Australia
Choose options
DETAILS
Product Information

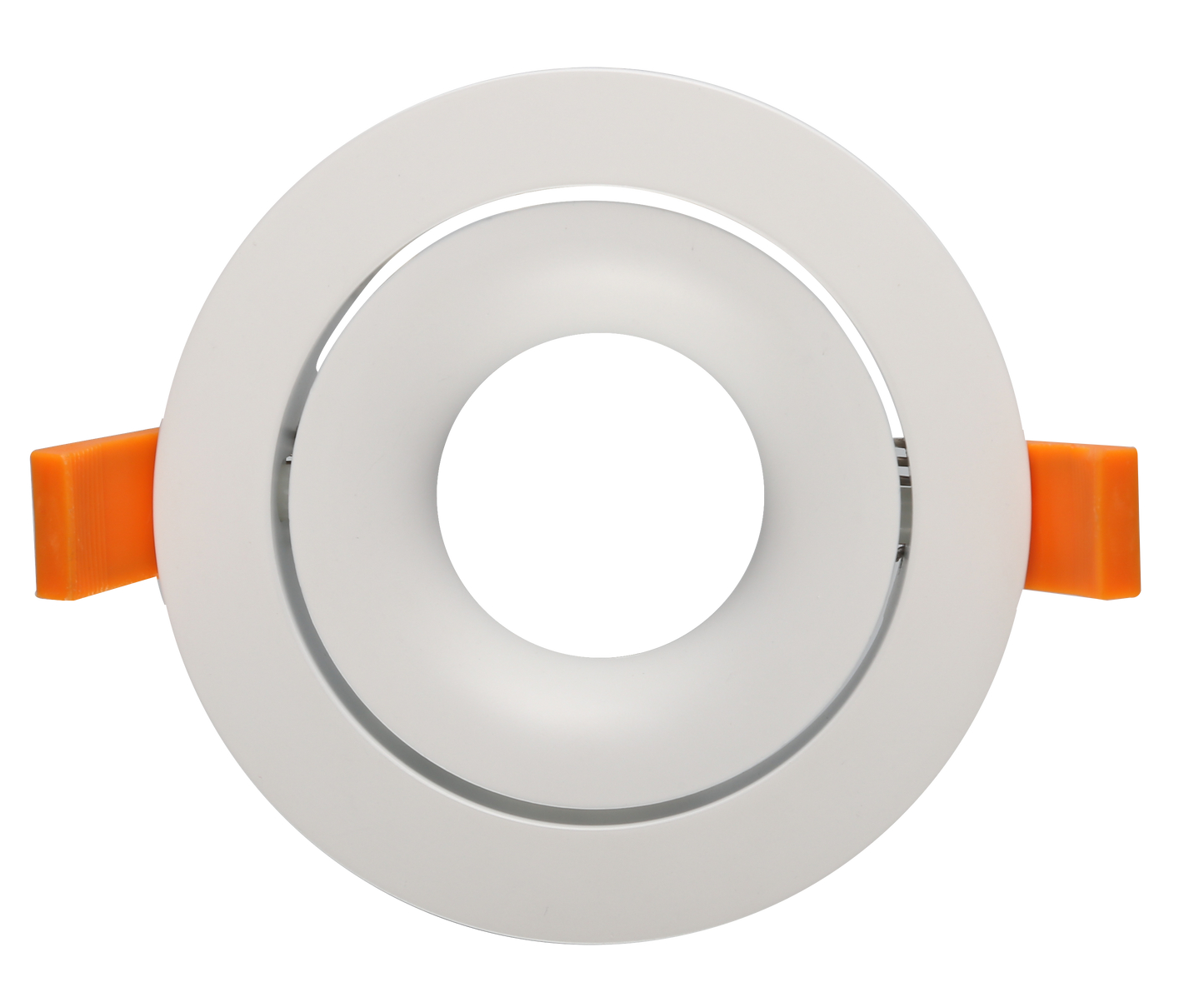

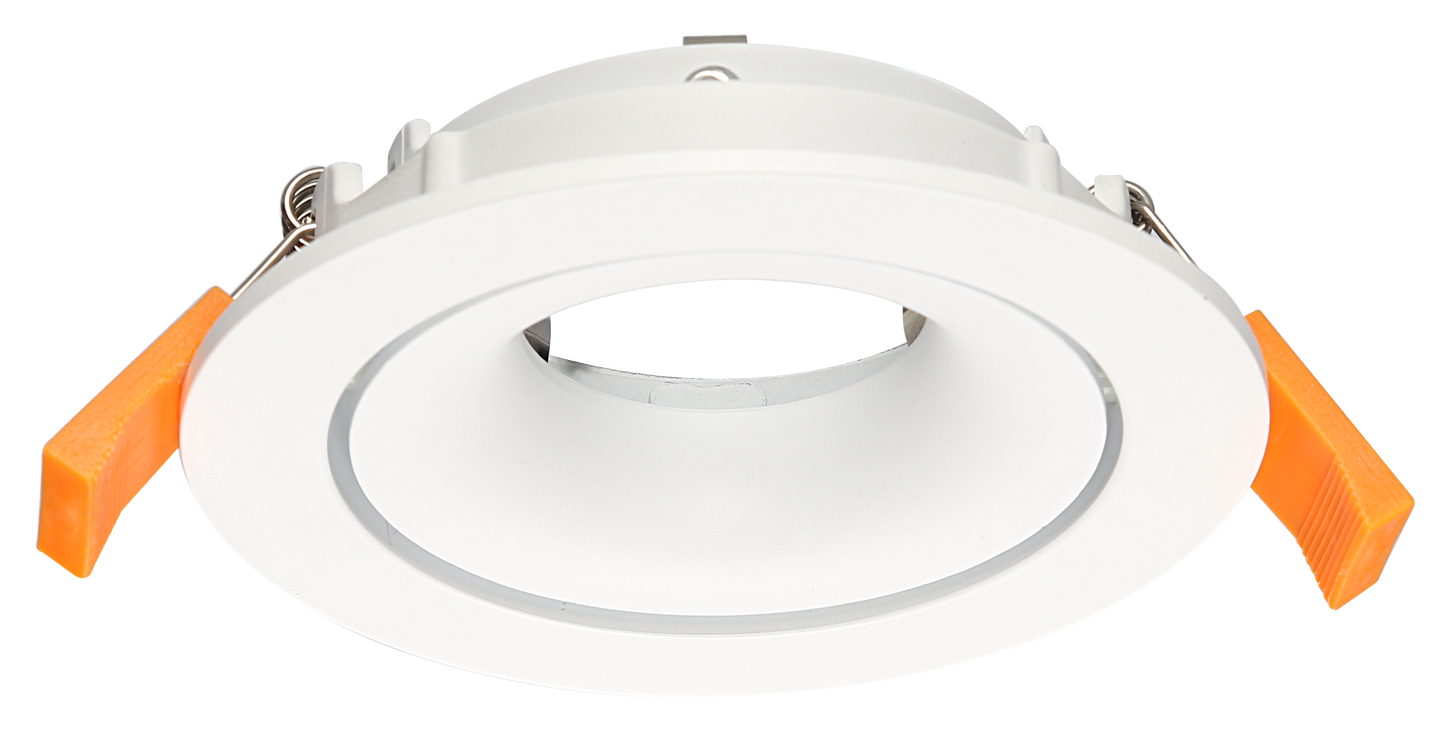

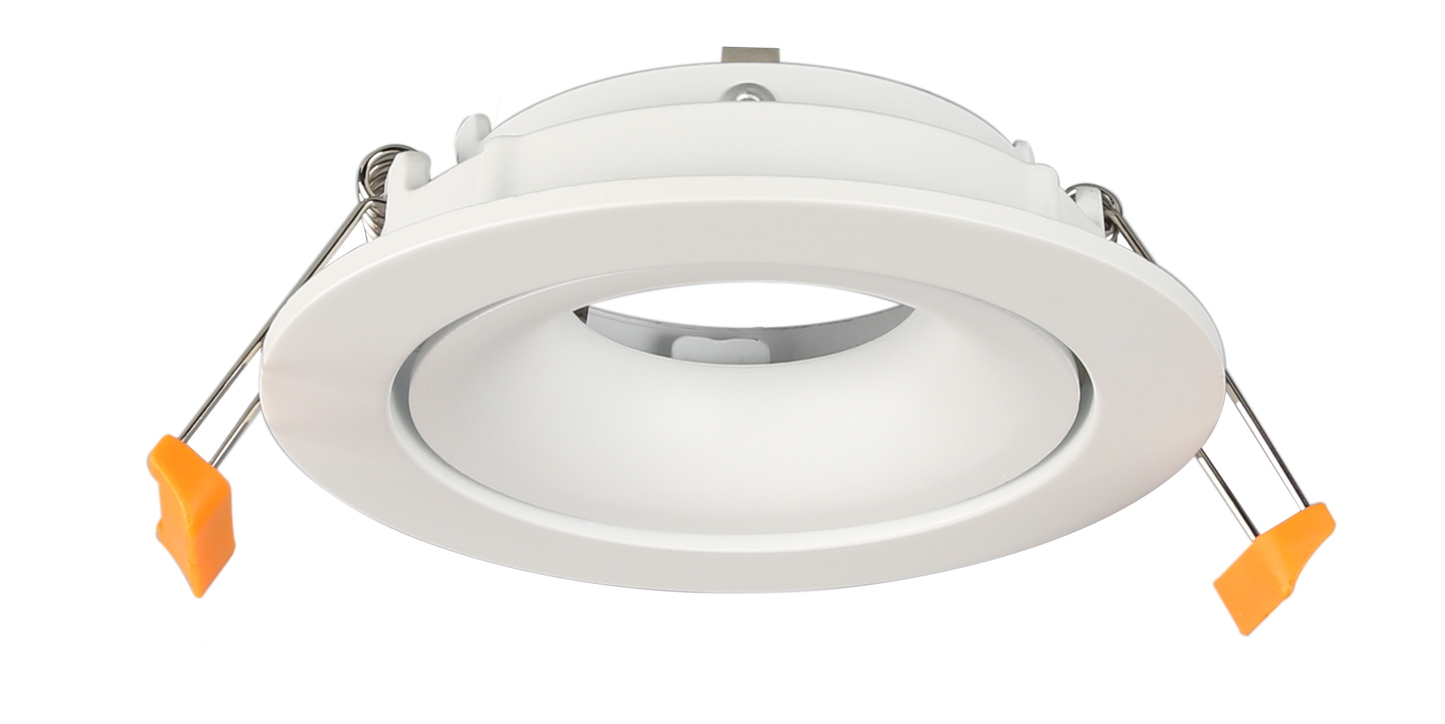

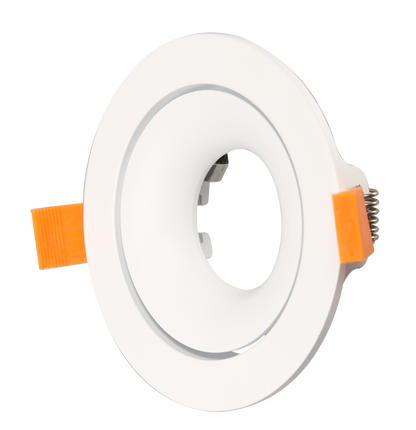

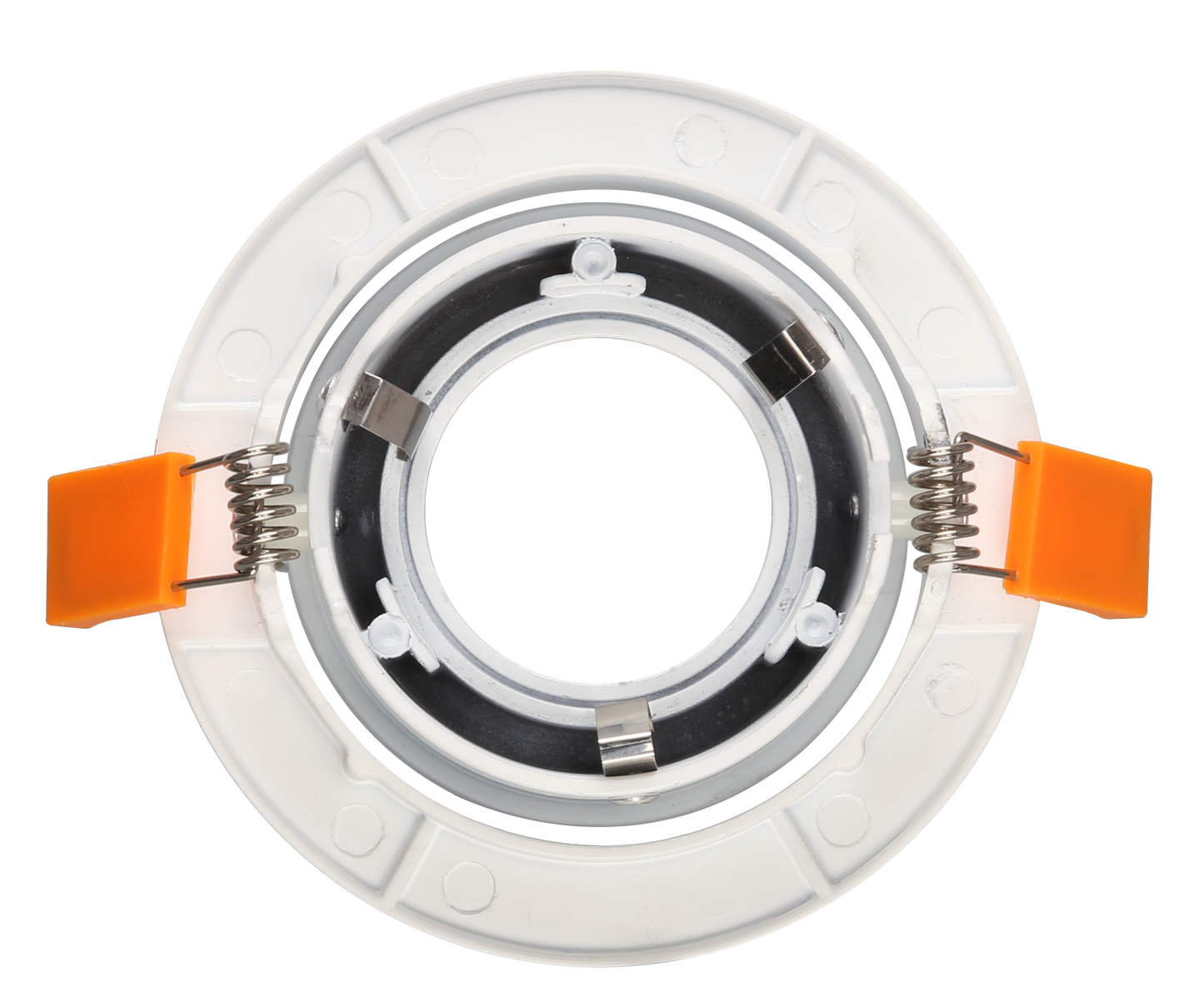

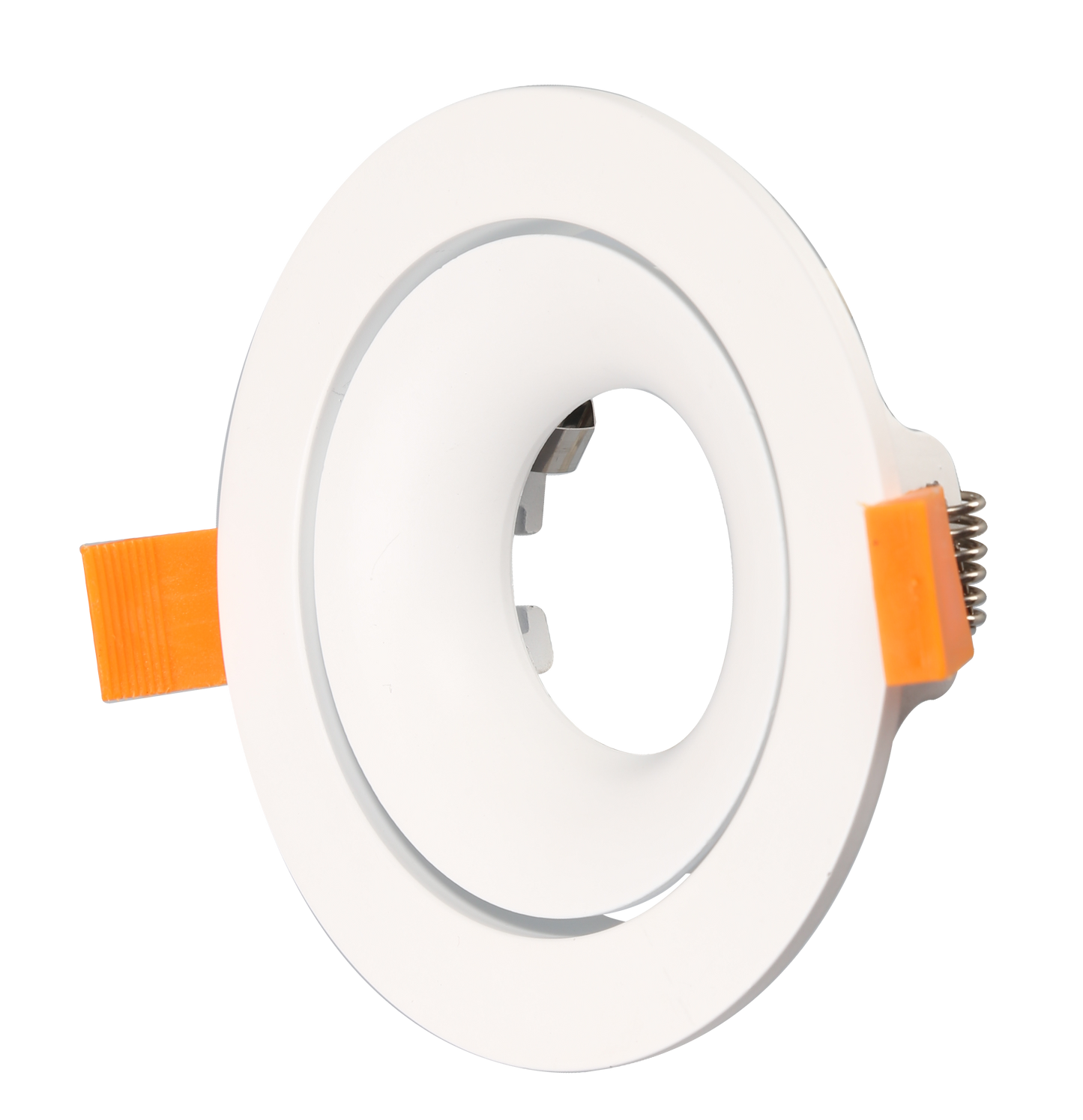

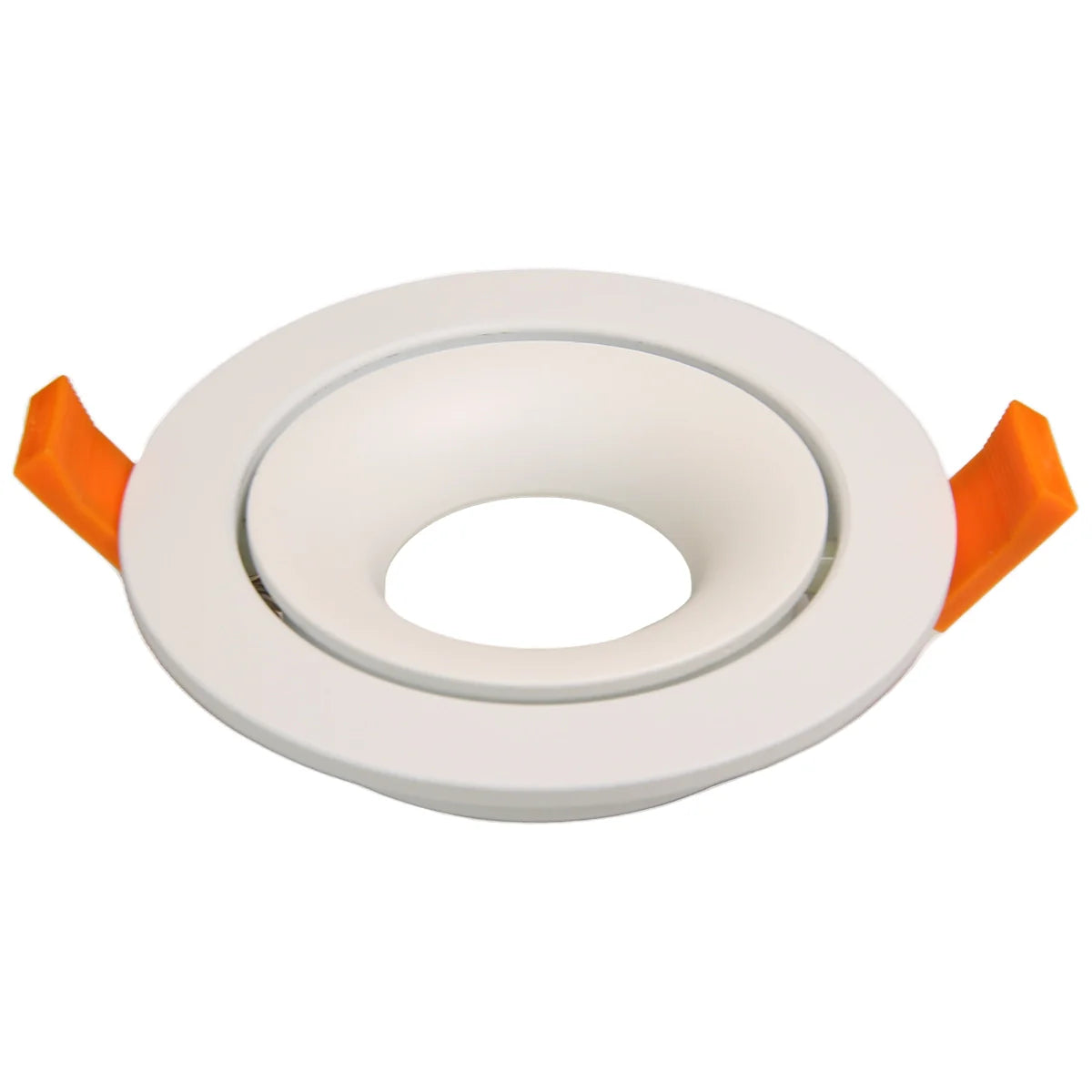

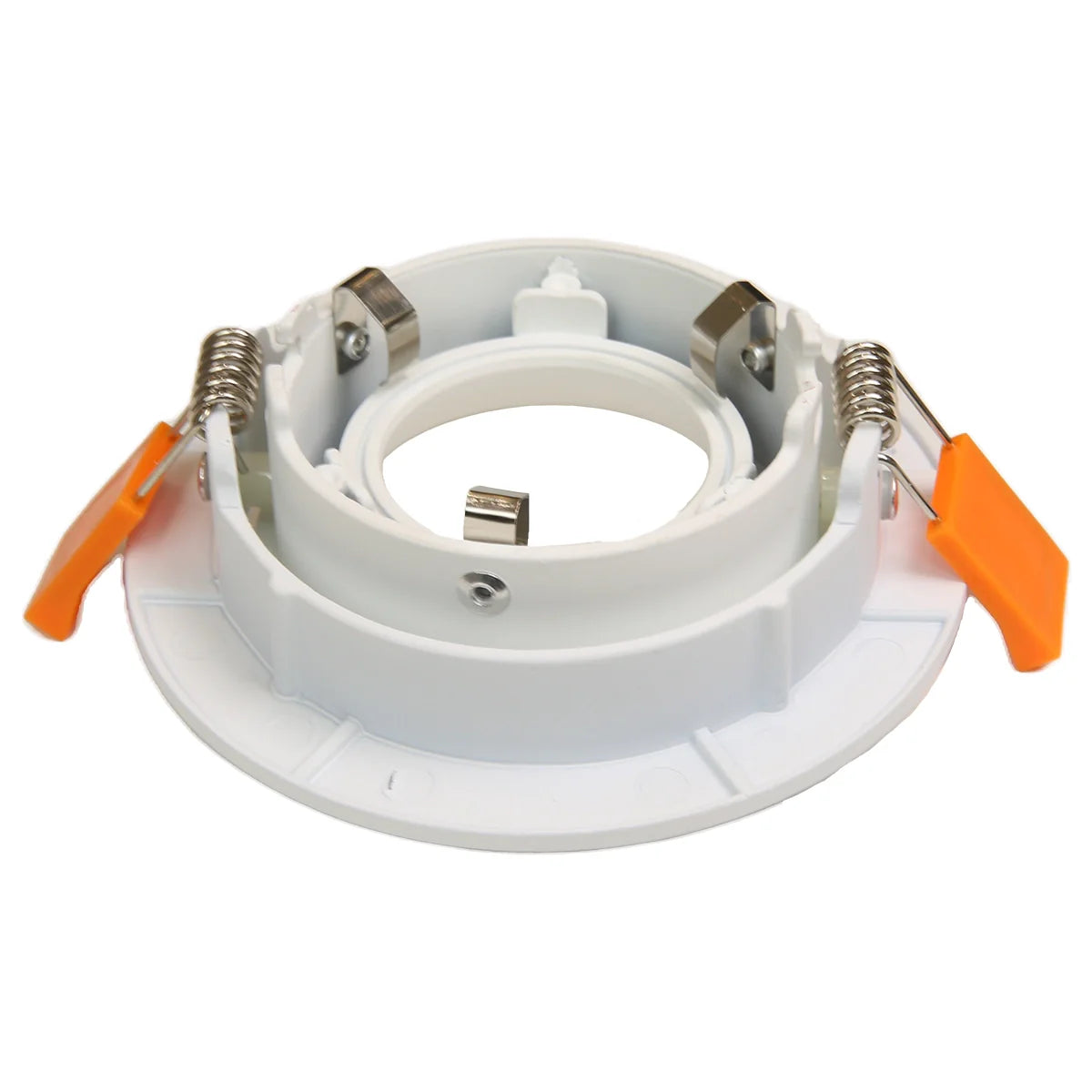

IP20, Adjustable Surface mount ring for X3A, X15A, X20A, XRGBW and XCCT COB down light modules.
Choose this trim if
a. when you desire to have replace a fixed light fitting with a gimbal light fitting.
b. when you desire a low glare rating as the light sits far back in the ceiling.
c. highly recommended when using RF8 in the rest of the project. This ring looks like RF8 is sitting in the middle of an outer gimbal ring.
d. The face size of 105 mm will enable it to cover hole sizes of 92 mm as well.
e. It has the shallowest mounting depth out of all the adjustable mounting trims in our range.
Do not choose this trim if
a. You are replacing existing lights and the cut out size is large than 90 mm
b. you are planning to use it in high moisture areas like external eves and shower rooms as its IP20 rated.
|

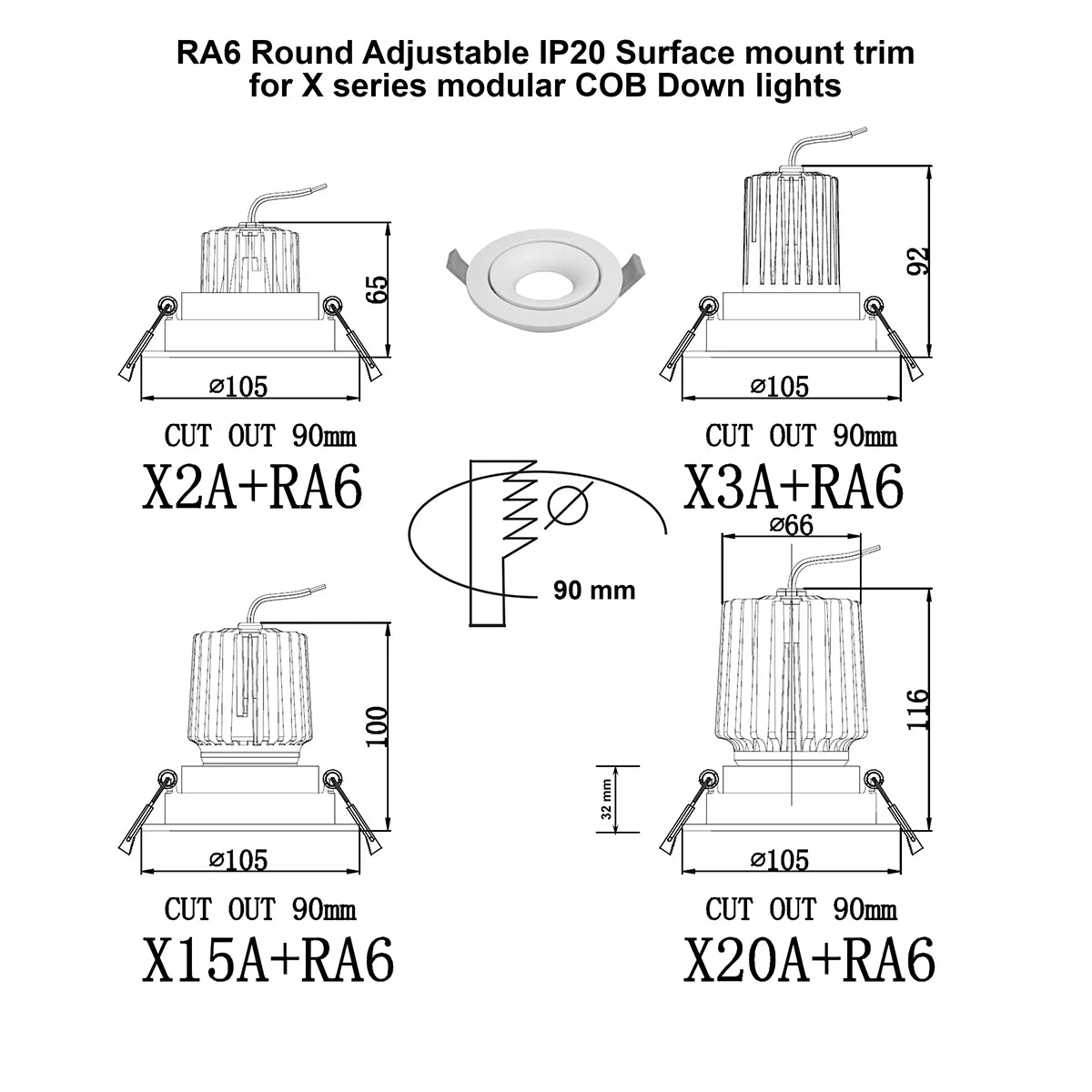

Cut out |
89-92 mm |
|
Diameter of face |
105 mm |
|

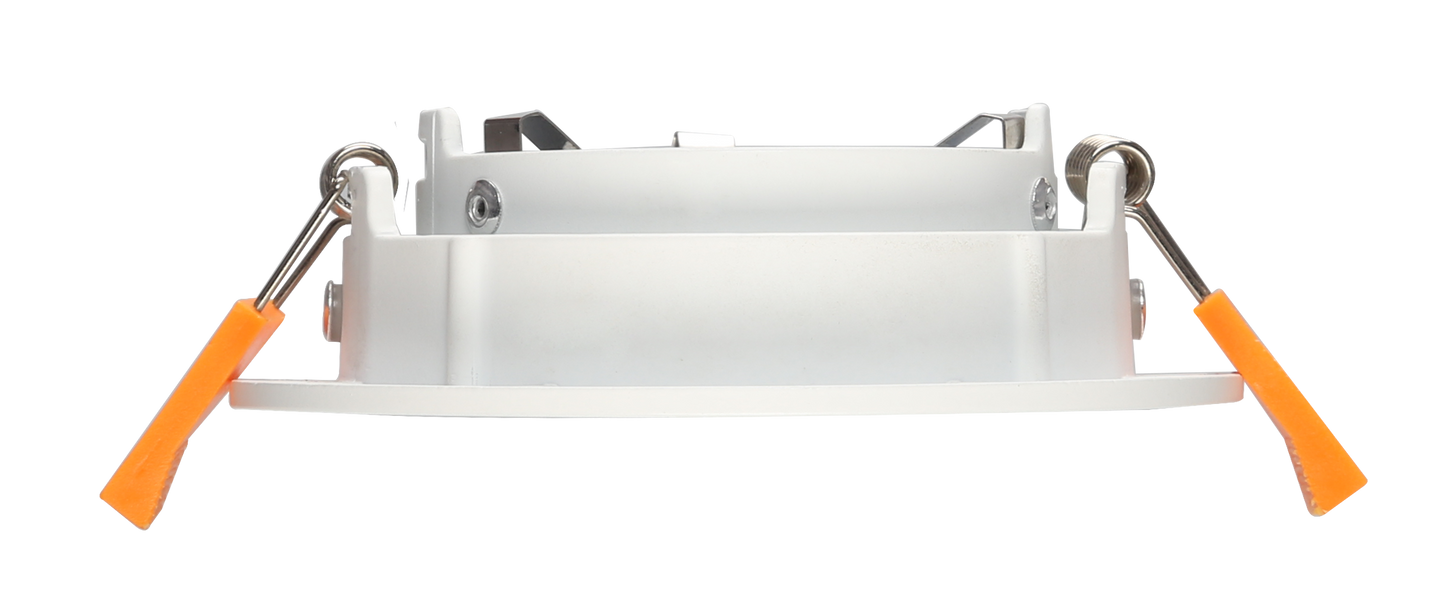

Total height of fitting |
32 mm |
|
Mounting depth with X3A |
92 mm |
|
Mounting depth with X15A |
100 mm |
|
Mounting depth with X20A |
116 mm |
|
Mounting depth with XRGBW |
92 mm |
|
Mounting depth with XCCT |
77 mm |
Click here to download a pdf spec sheet for RA6 round adjustable IP20 trim.

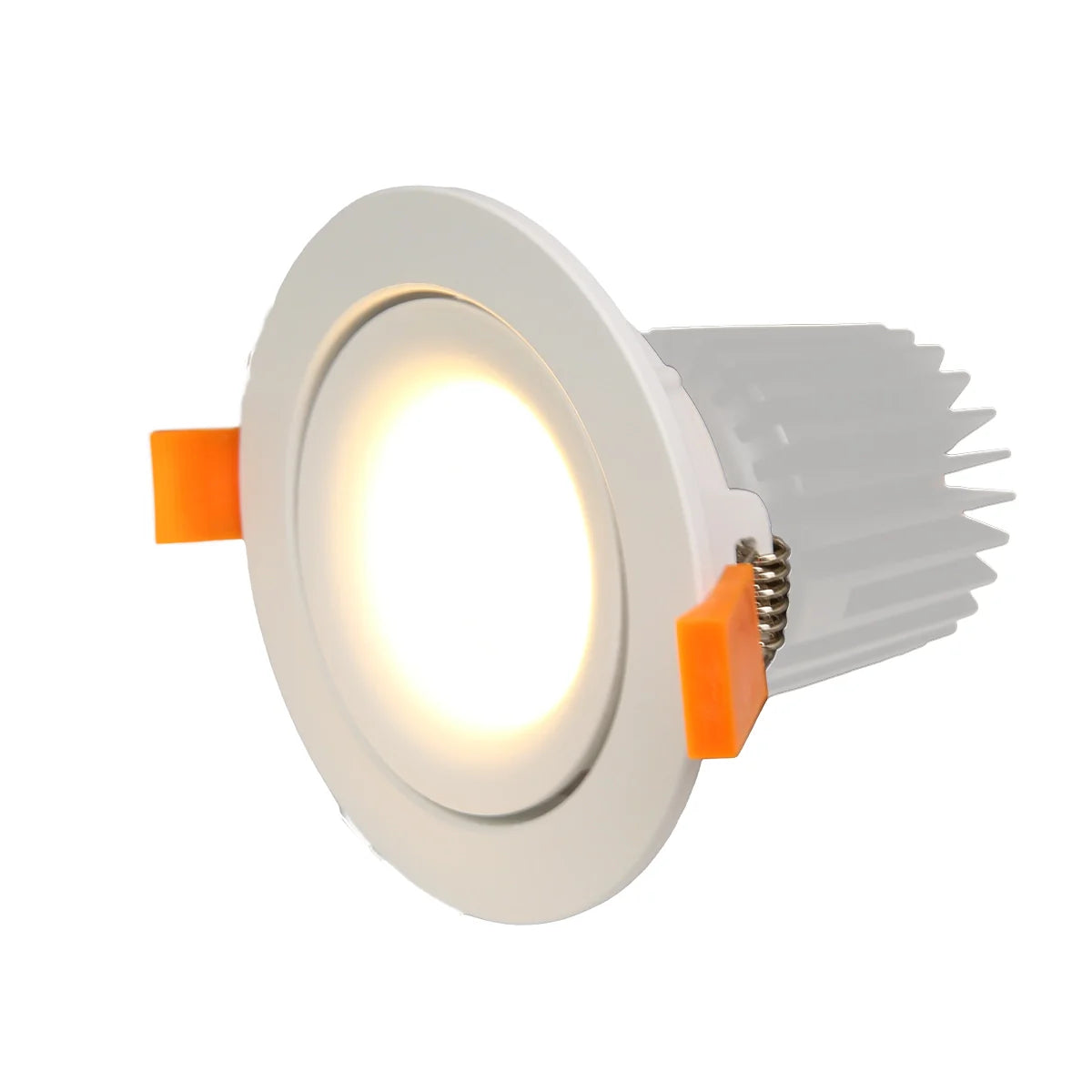

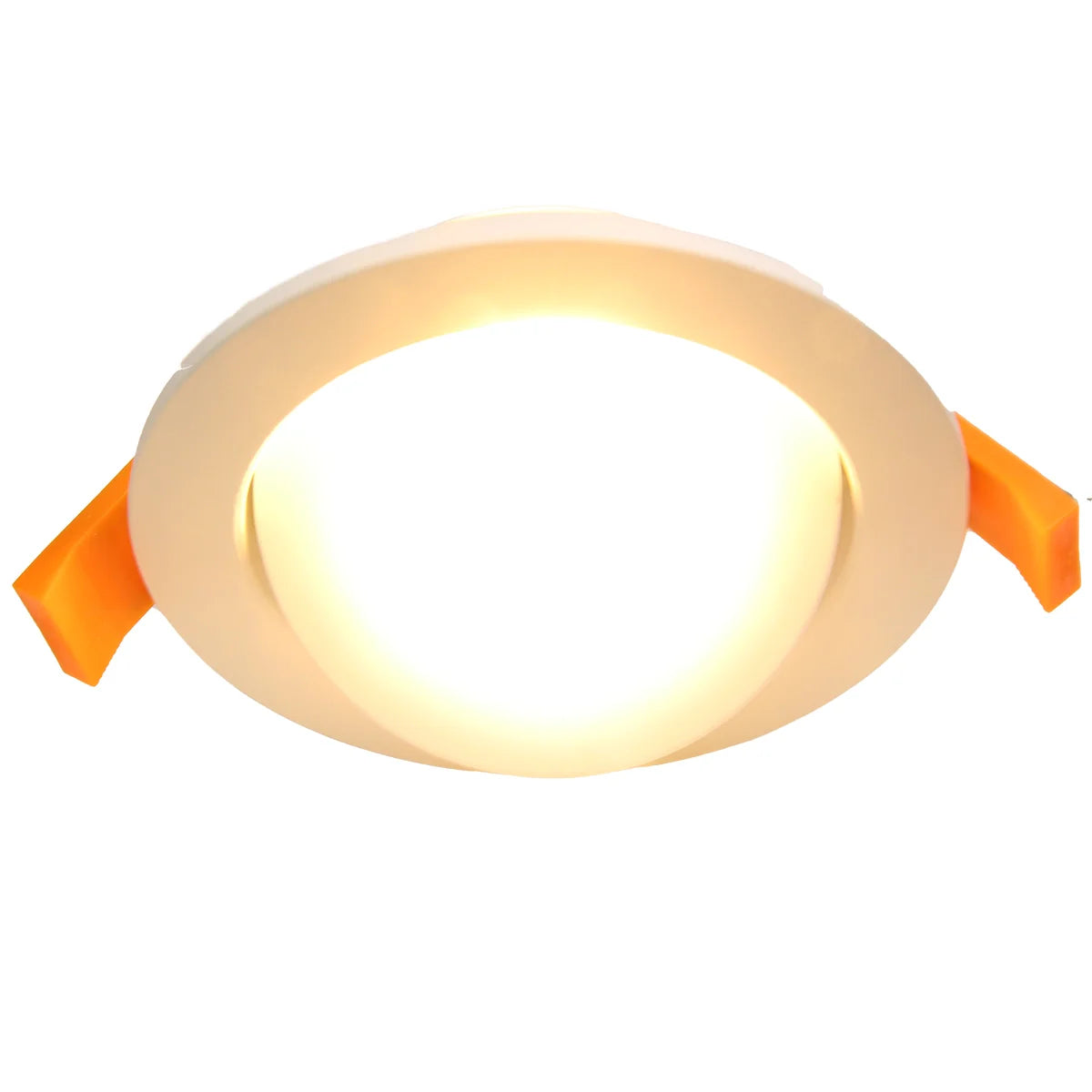

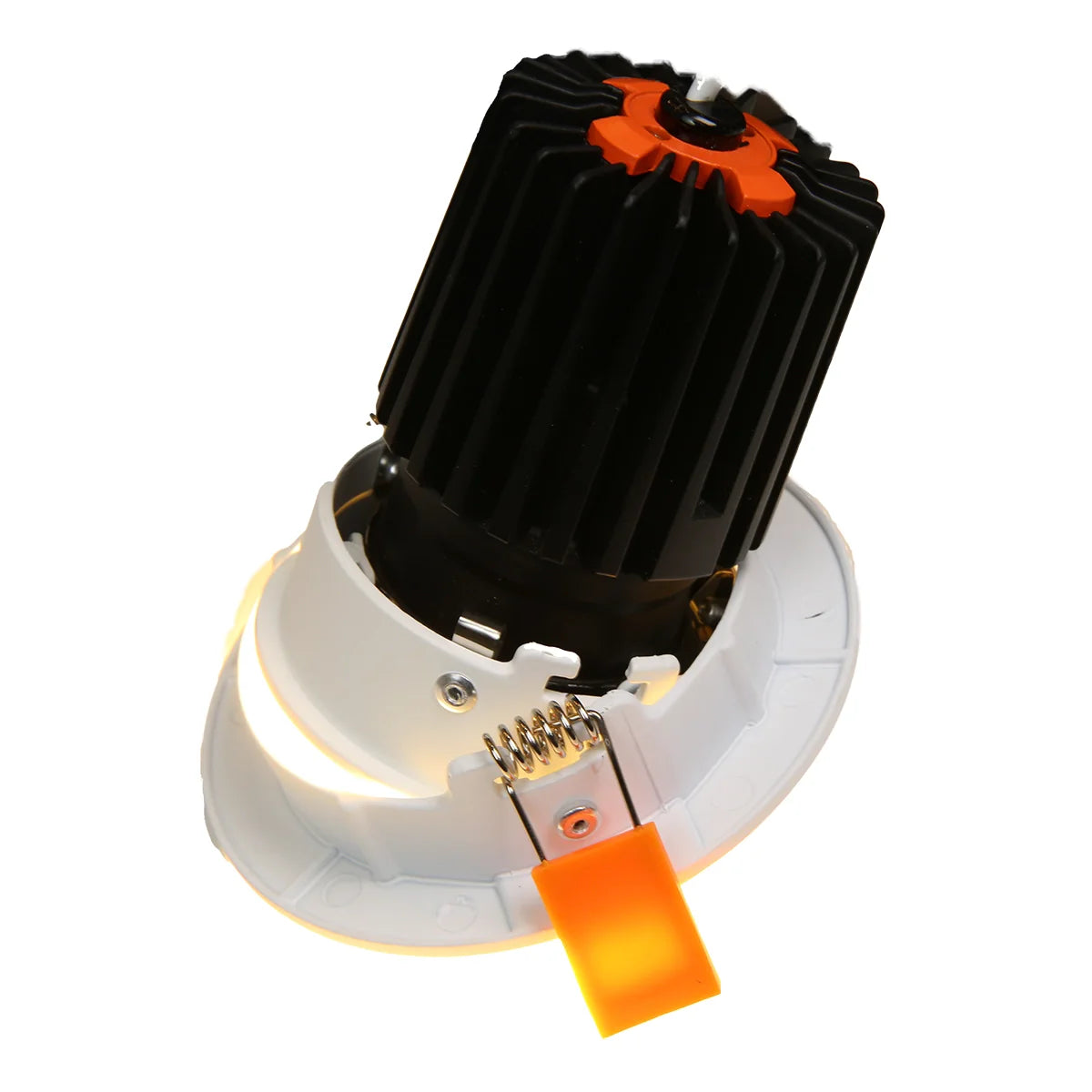

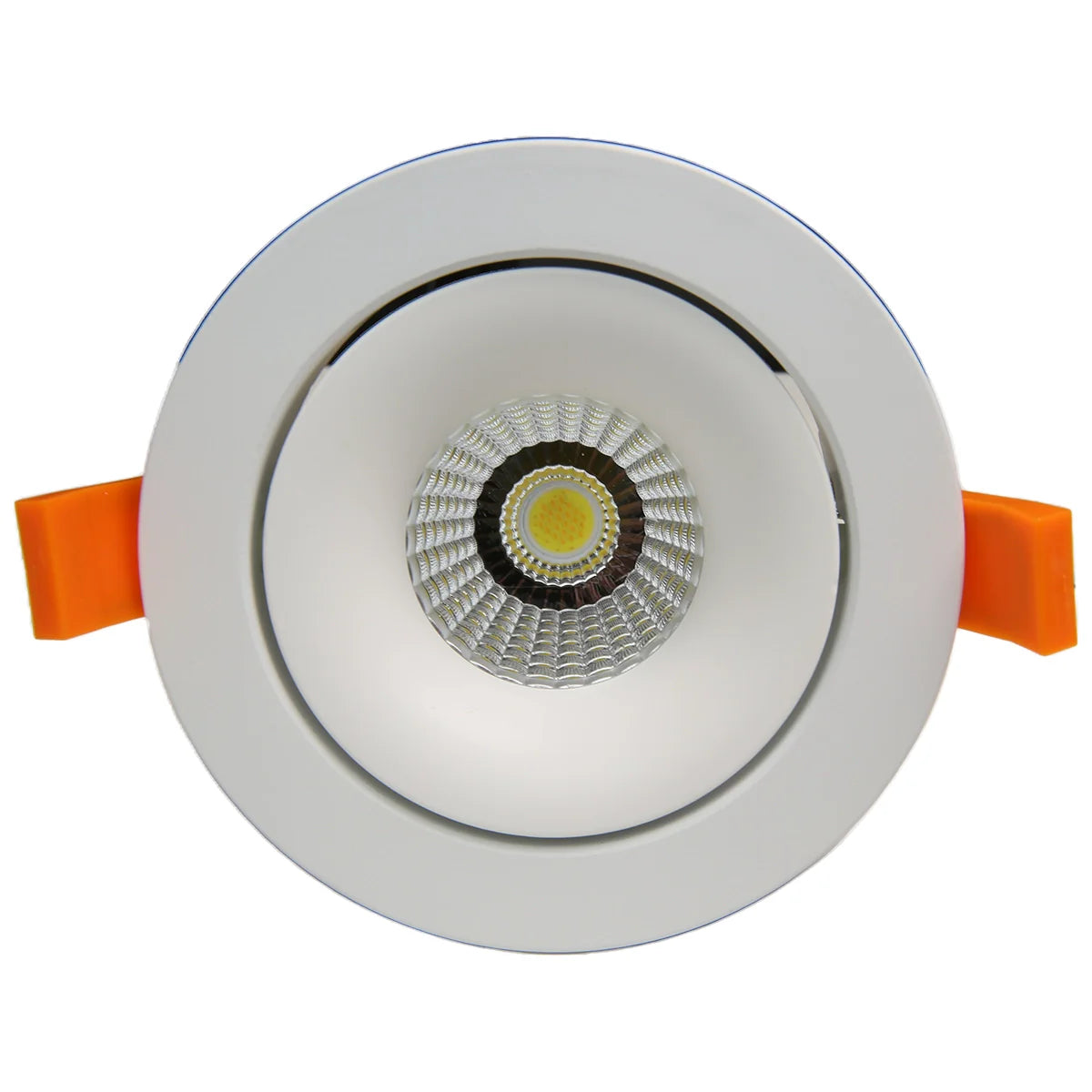

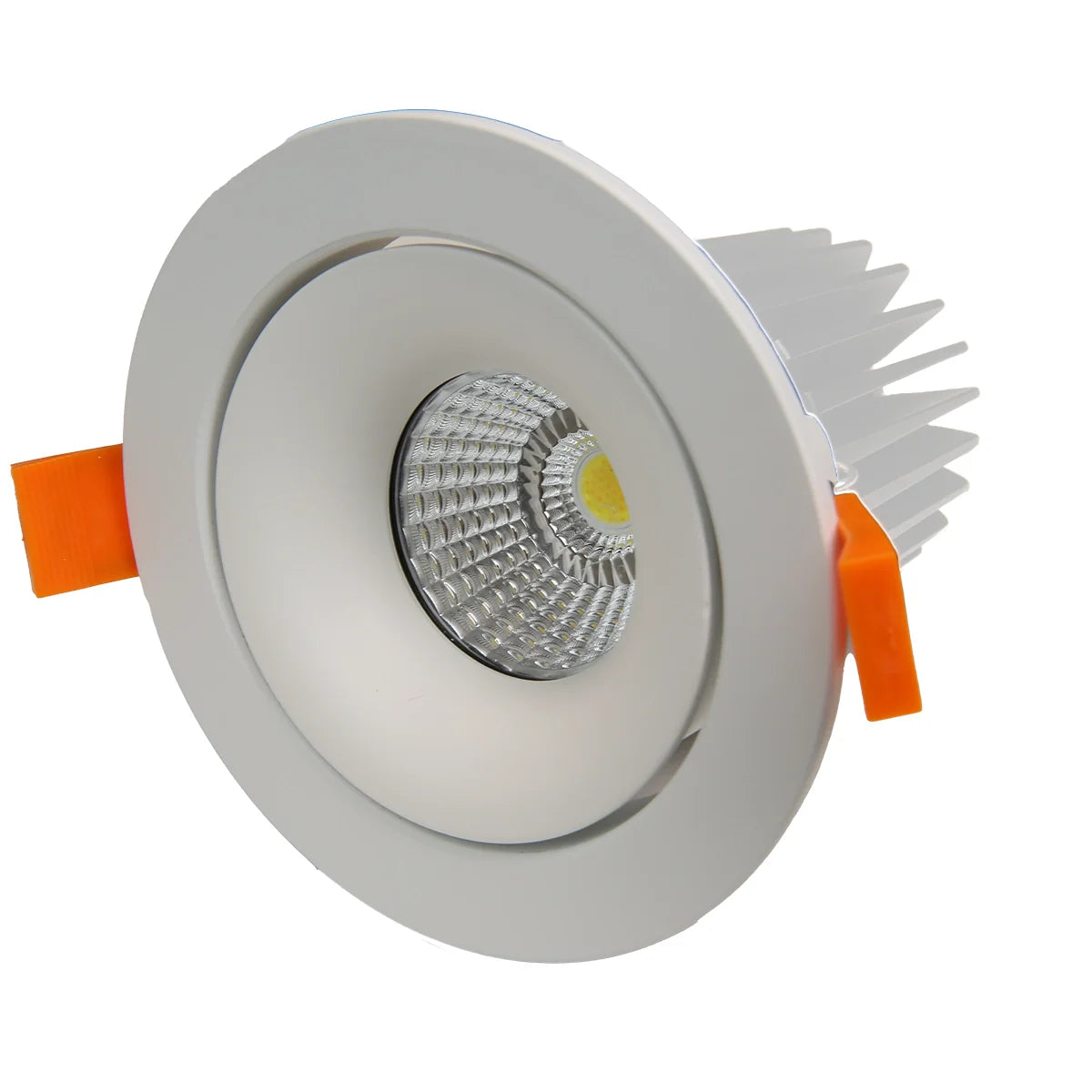

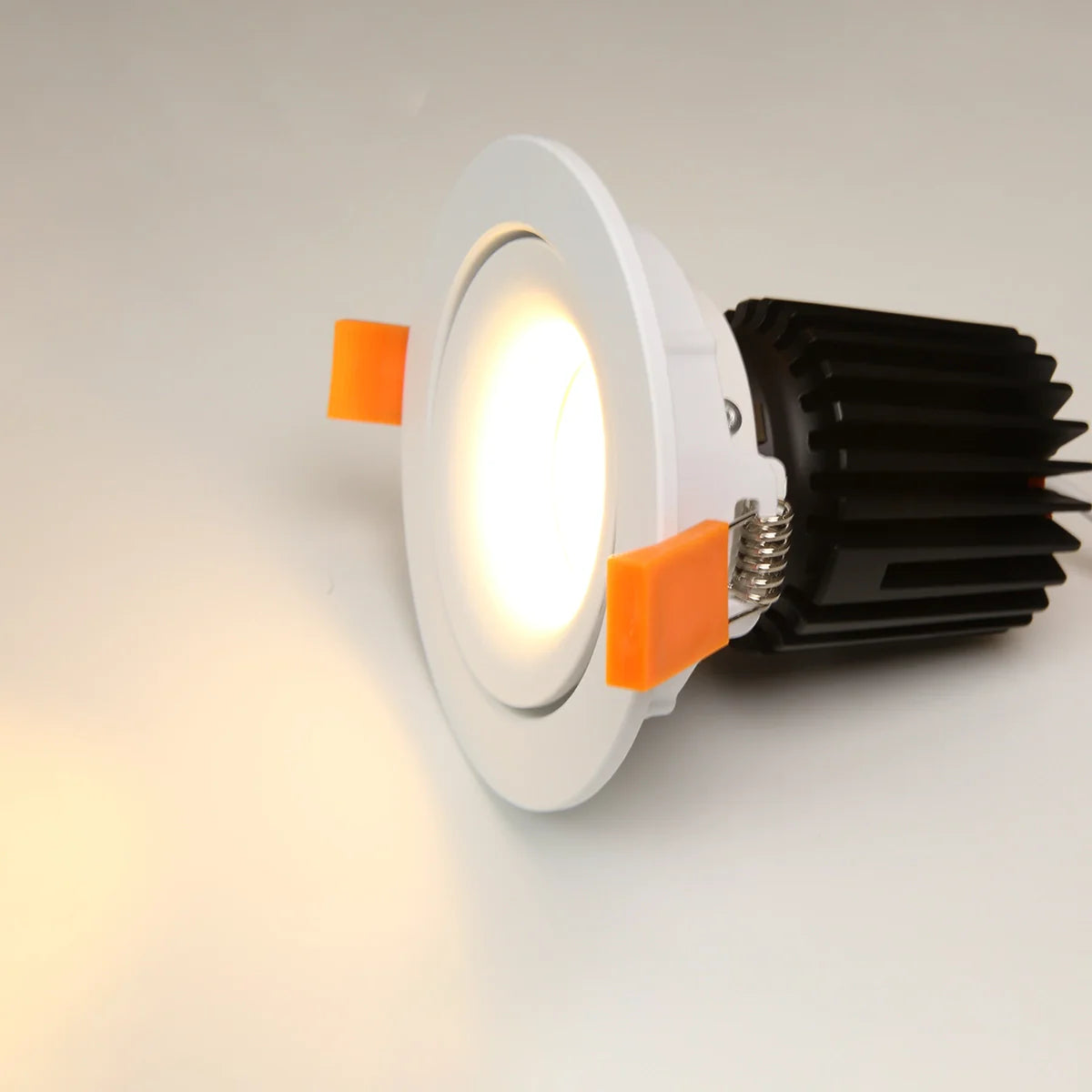

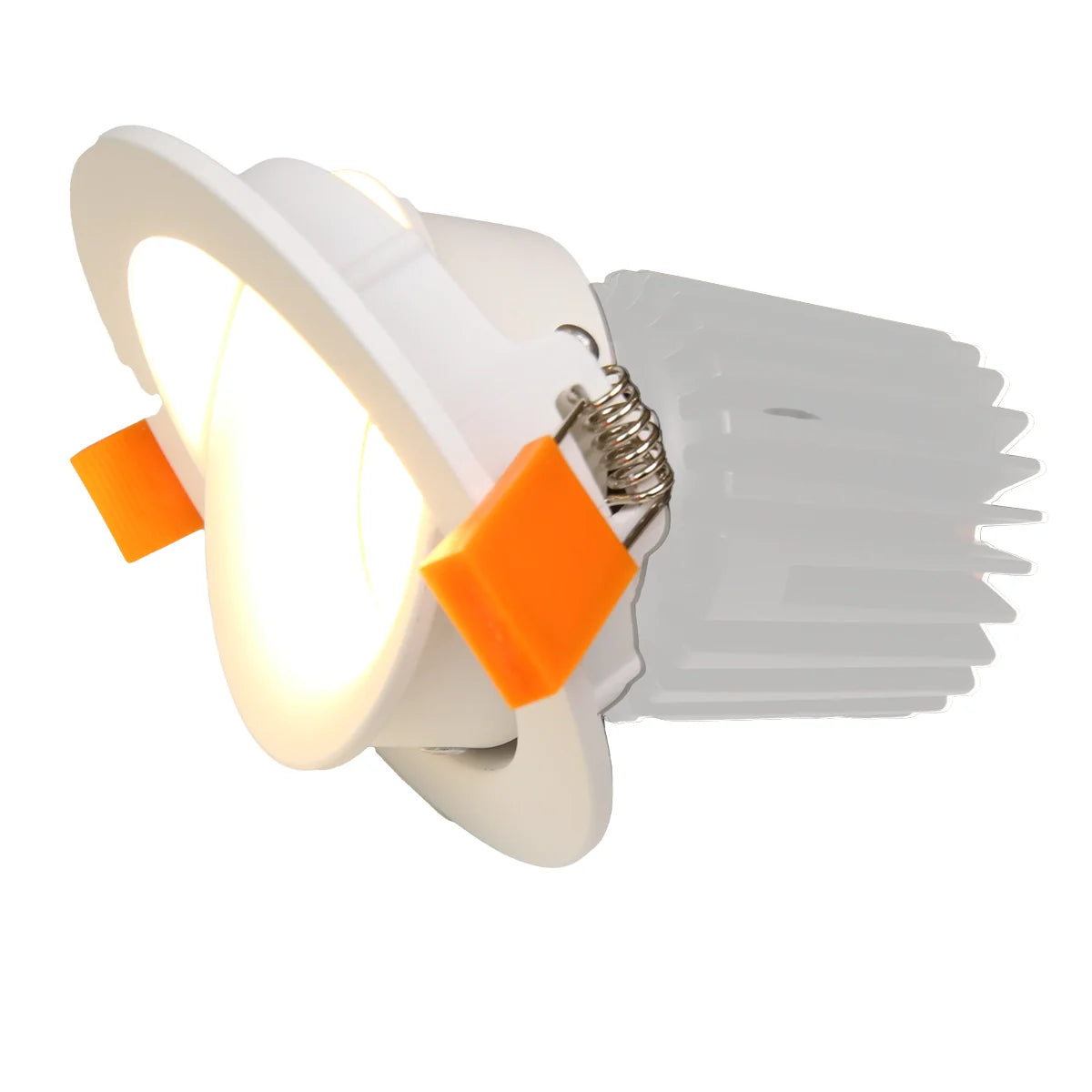

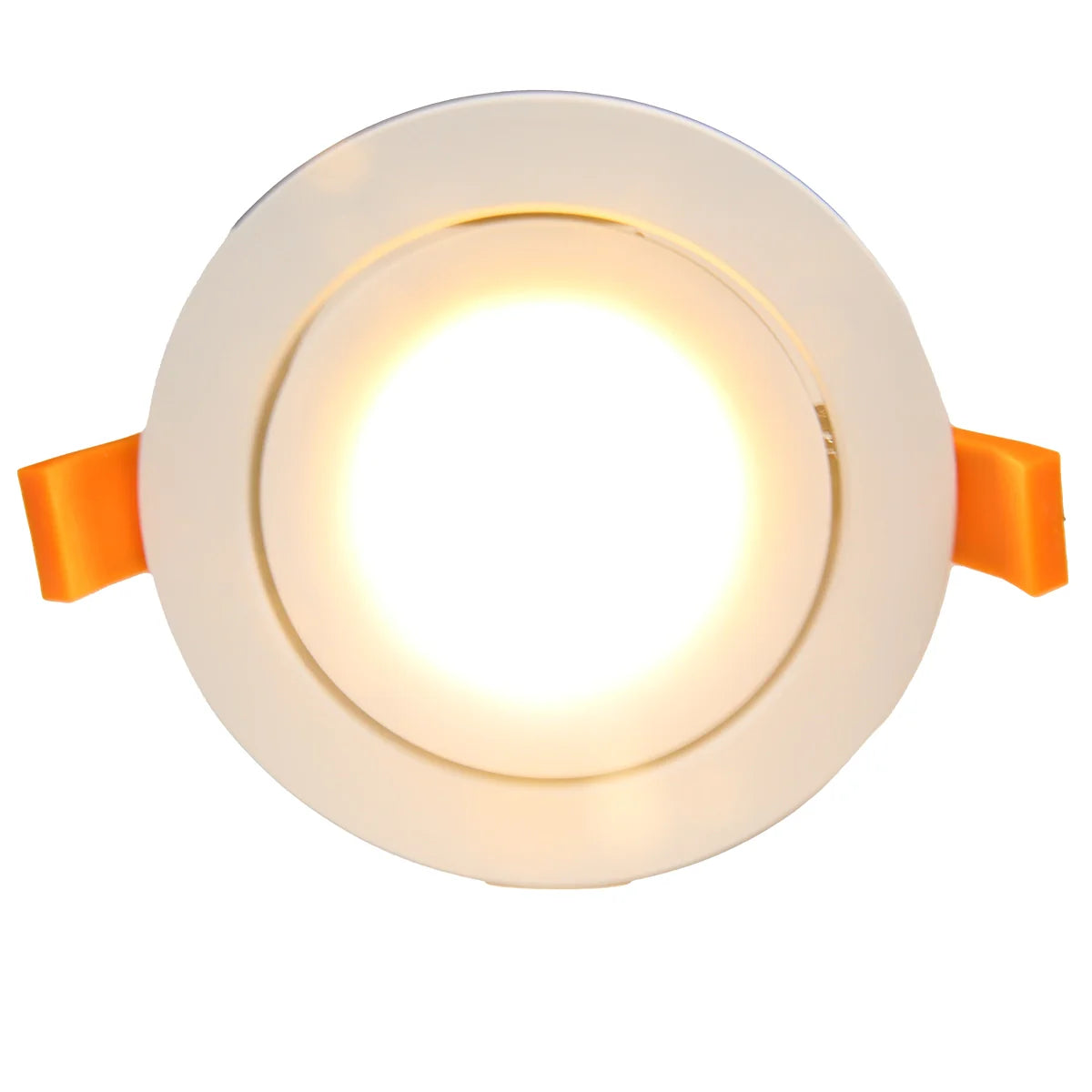

The price is for the surface mount trim only. The light is shown for illustration purposes only.
