RA4 White- Round gimbal IP44 surface mount trim for X Series COB Modules
RA4 White- Round gimbal IP44 surface mount trim for X Series COB Modules
SKU:RA4 White
97 in stock
We will match any competitor's advertised price
Couldn't load pickup availability
Bulk discounts is a genuine discount for customers who are actually looking for more value. Please note that the below conditions will apply to items that were purchased on bulk discount. Returns on bulk buy discounts will be processed at the adjusted price disallowing for bulk discounts. A further deduction of delivery cost for the returned items will also be deducted from the refund amount.
IP20, Adjustable Surface mount ring for X3A, X15A, X20A, XRGBW and XCCT COB down light modules.
Choose this trim if
a. when you desire to replace a fixed light fitting with a gimbal light fitting.
b. when you desire an ultra low glare rating as the light sits far back in the ceiling.
c. A very small bezel for that classy architectural finish.
d. When you need a gimbal light with a very low glare rating and intend to use in high moisture areas like eves and shower rooms.
Do not choose this trim if
a. You are replacing existing lights and the cut out size is large than 80 mm. It will not work very well even if the hole is 85 mm.
b. you are planning to use it in high moisture areas like external eves and shower rooms as its IP20 rated.
c. This is the trim that required the deepest mounting depth. Be mindful that you have enough depth available in the ceiling space.
|

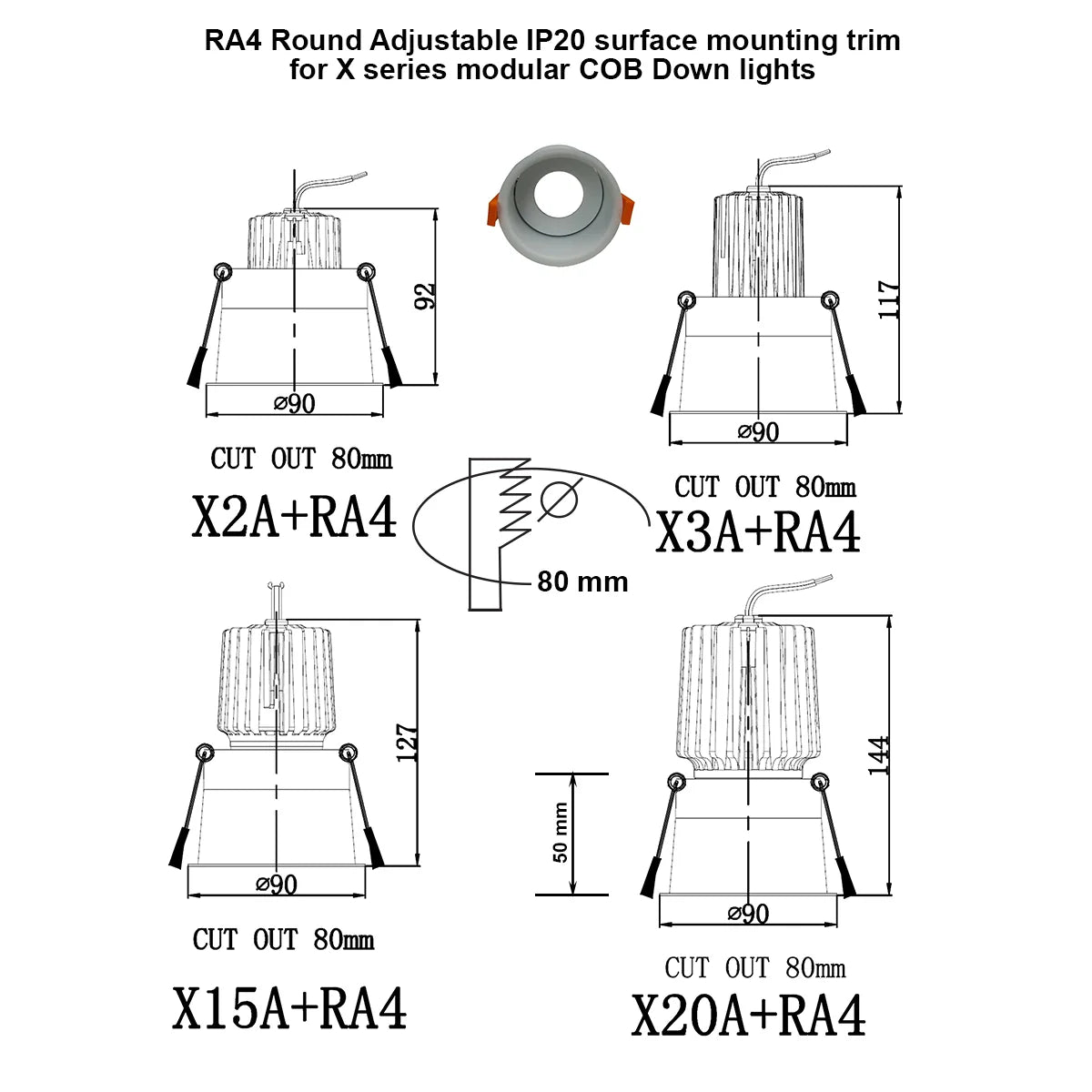

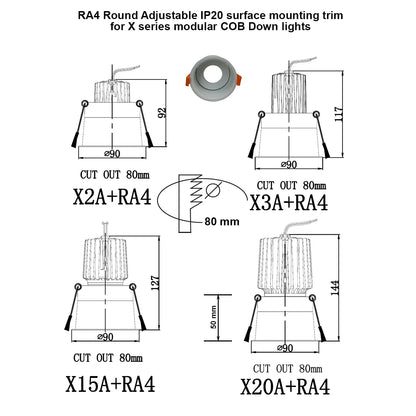

Cut out |
80 mm |
|
Diameter of face |
90 mm |
|
Total height of fitting |
50 mm |
|
Mounting depth with X3A |
117 mm |
|
Mounting depth with X15A |
127 mm |
|
Mounting depth with X20A |
144 mm |
|
Mounting depth with XRGBW |
117 mm |
|
Mounting depth with XCCT |
102 mm |
Please not that the this trim is designed so the light modules can be changed without pulling the trim out of the cut out. This is not a fault but a design feature.
Click here to download a pdf spec sheet for RA4 round adjustable IP44 trim.
