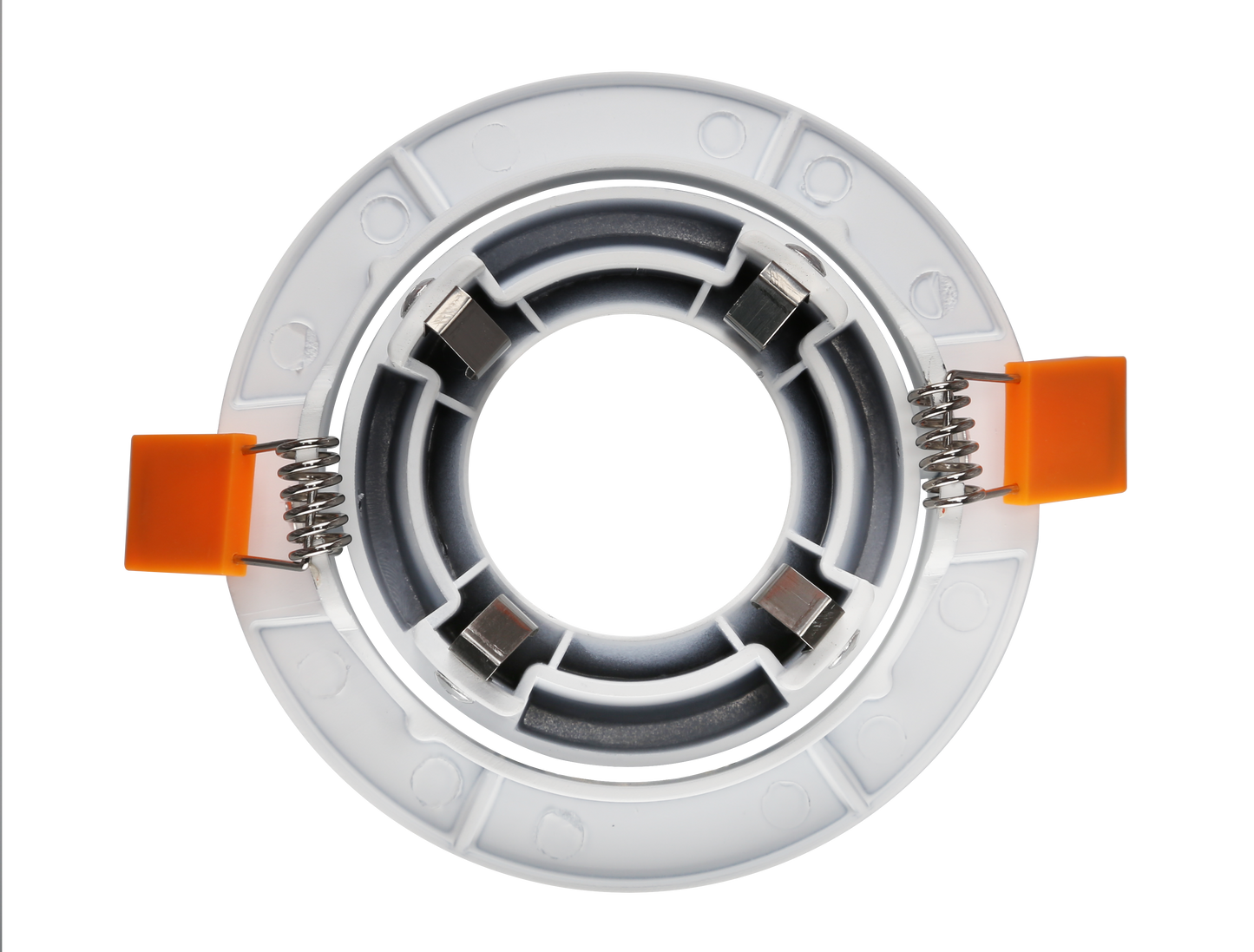

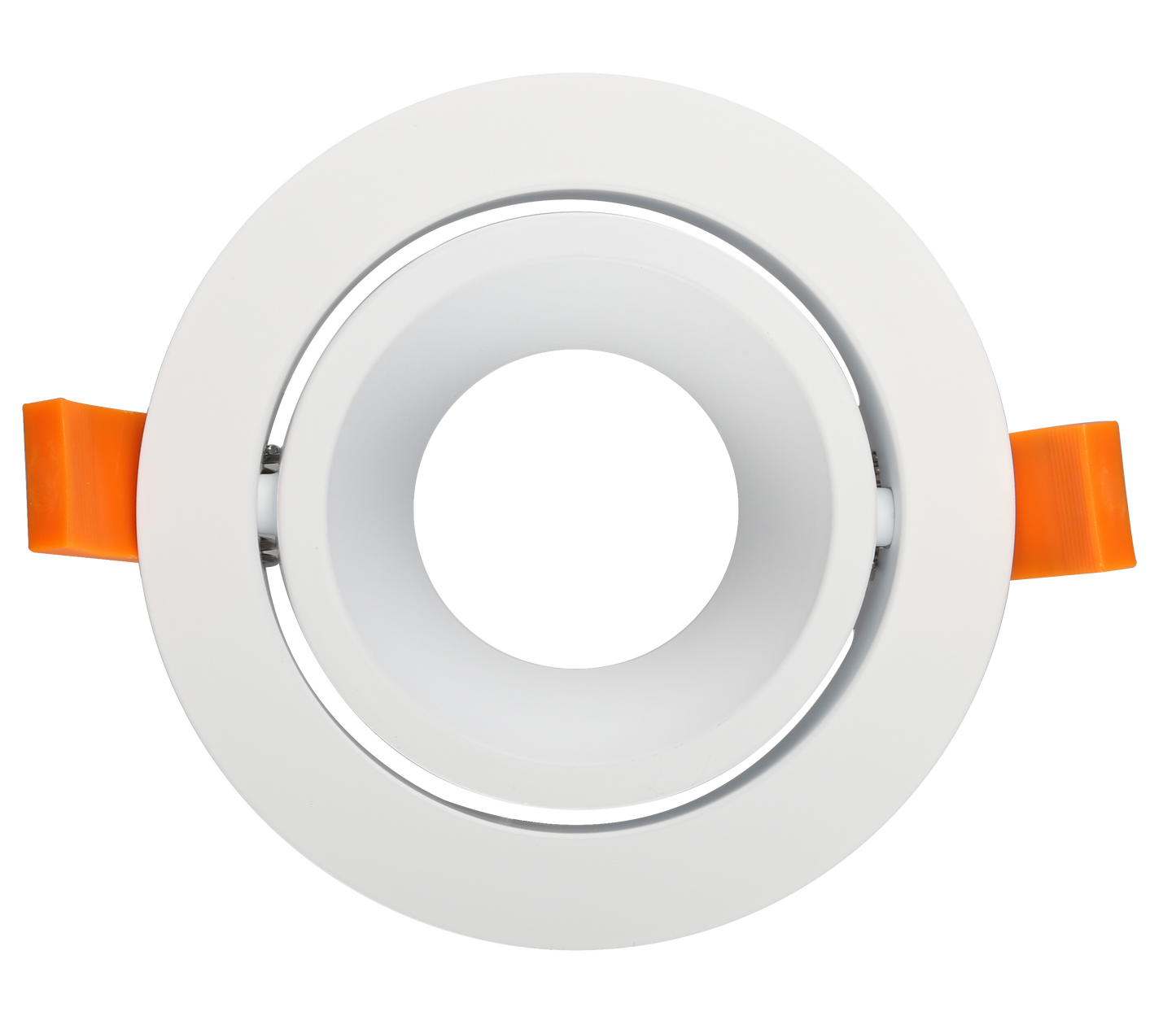

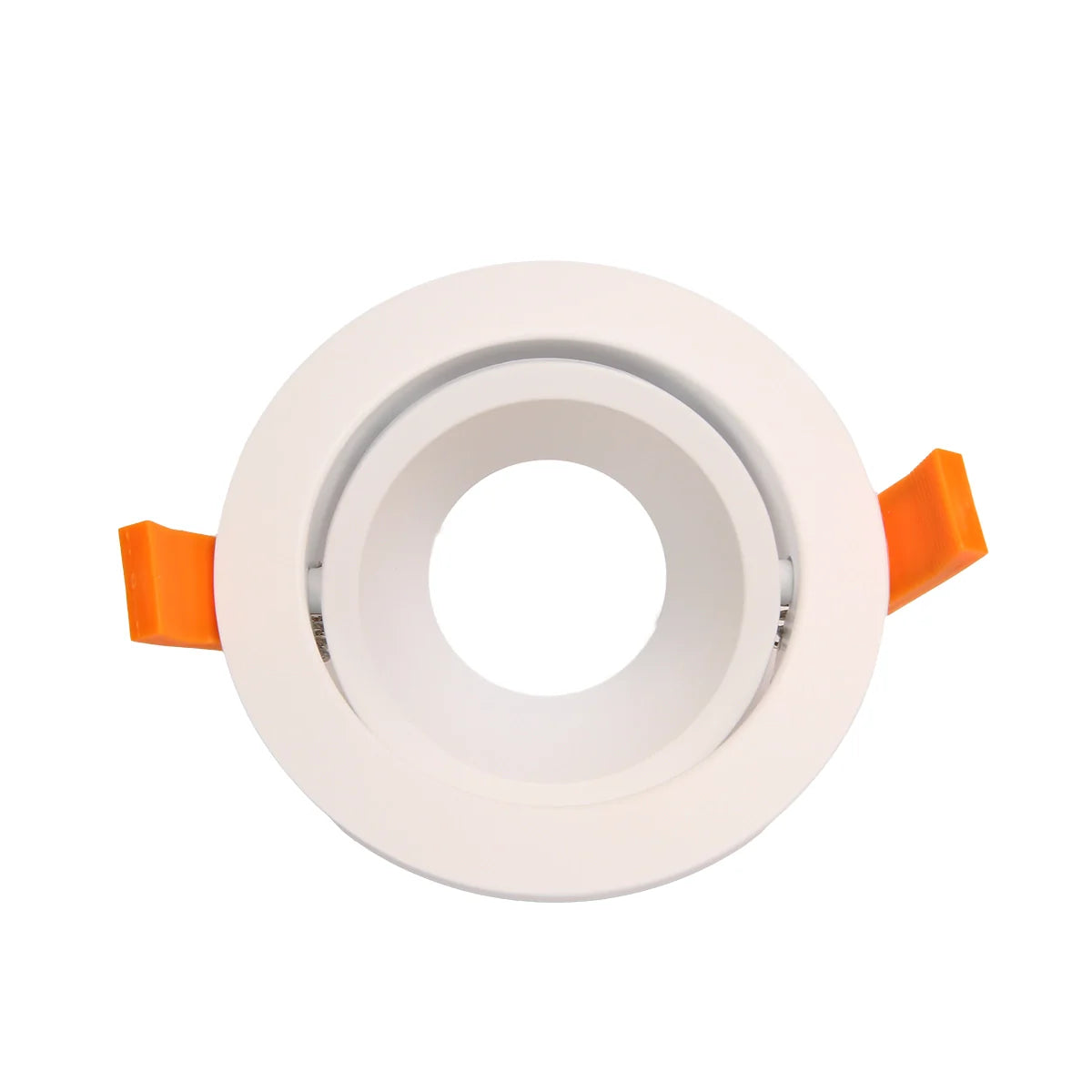

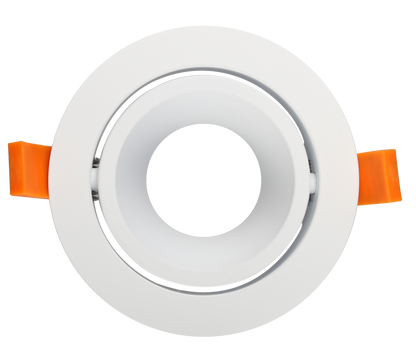

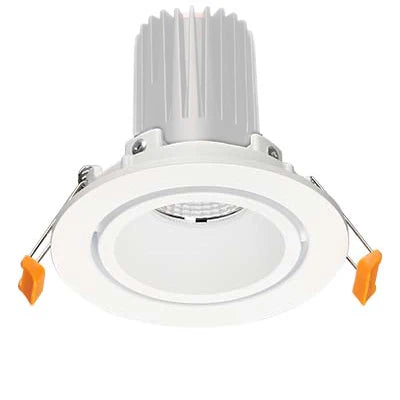

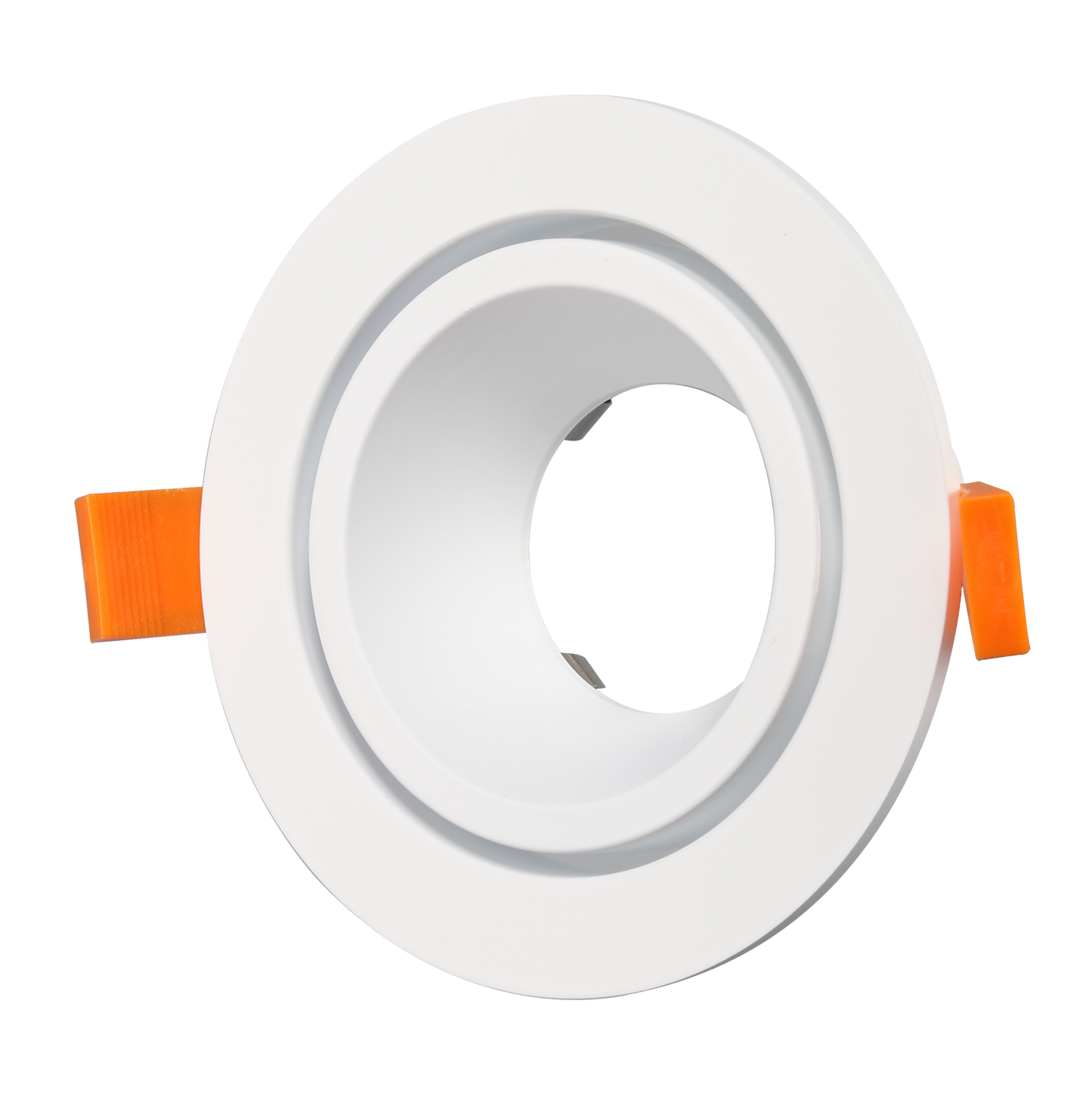

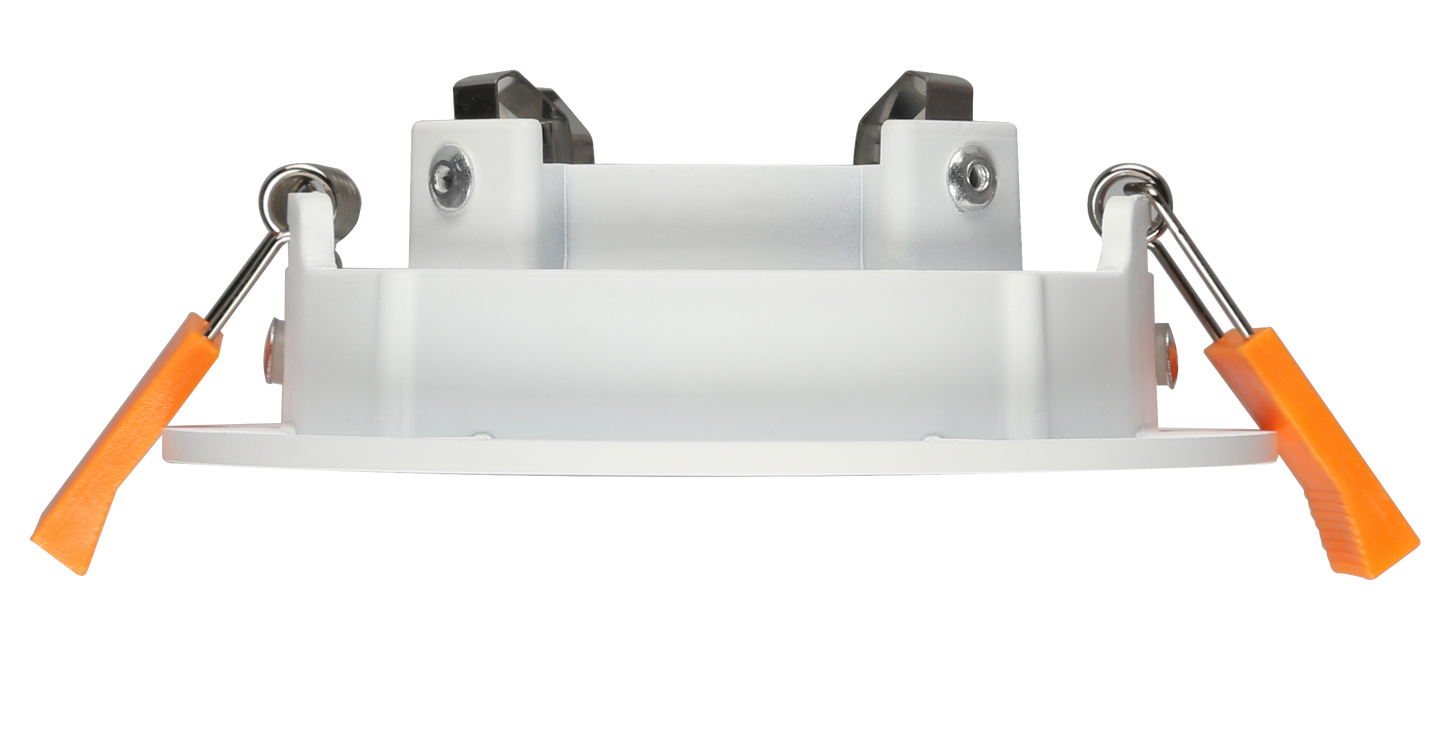

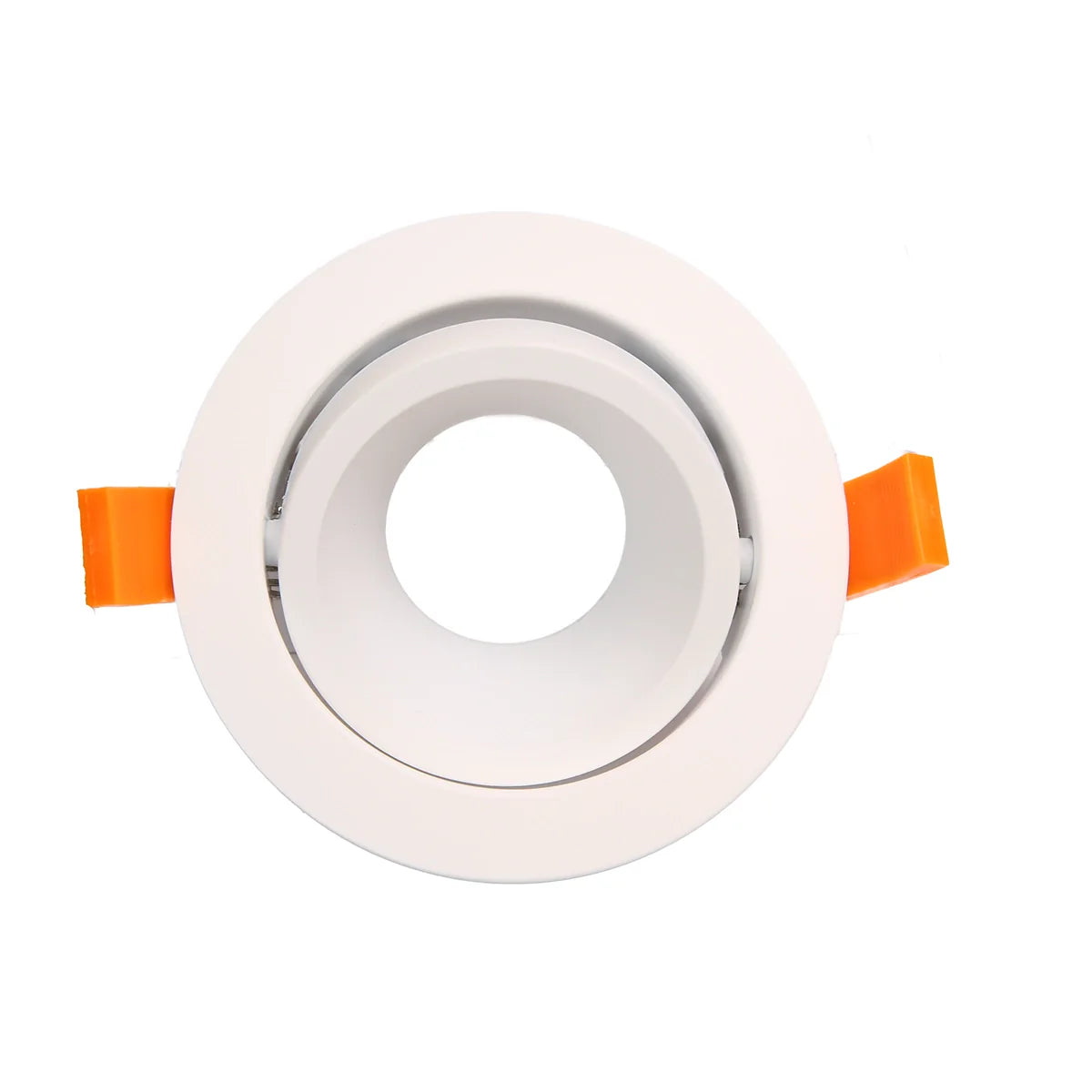

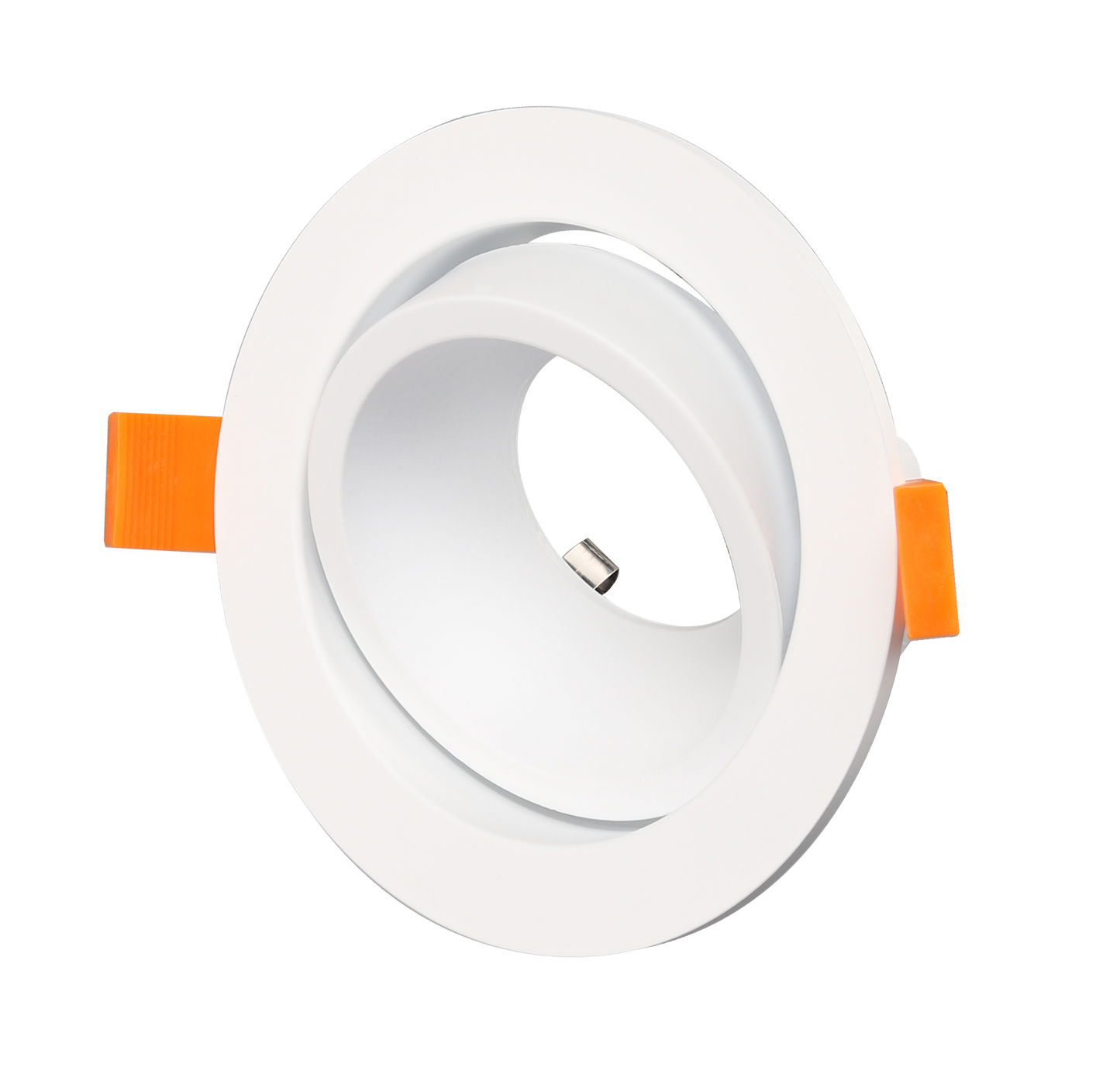

RA3 White- Round Gimbal IP20 surface mount trim for X Series COB Modules
Tax included. Shipping calculated at checkout
Shipping & Returns
- Free shipping on orders over $300 Australia-wide
- Flat $19 shipping on orders under $300
- Oversized items: flat $69 fee
- Returns accepted — see our returns policy
- Questions? Call (02) 6170 2923 or visit our Fyshwick showroom
Pickup available at LUMI-FI
Usually ready in 24 hours

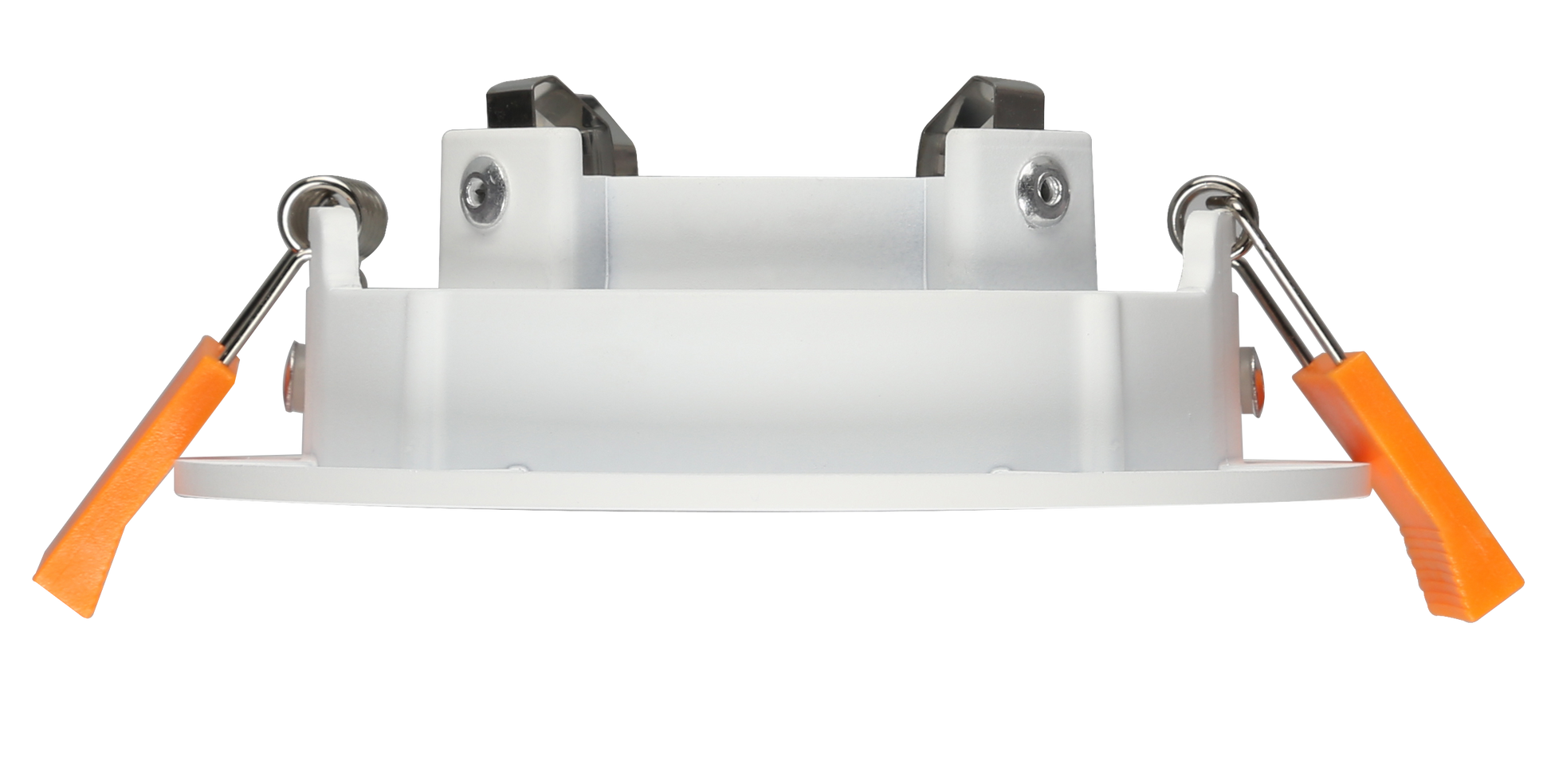

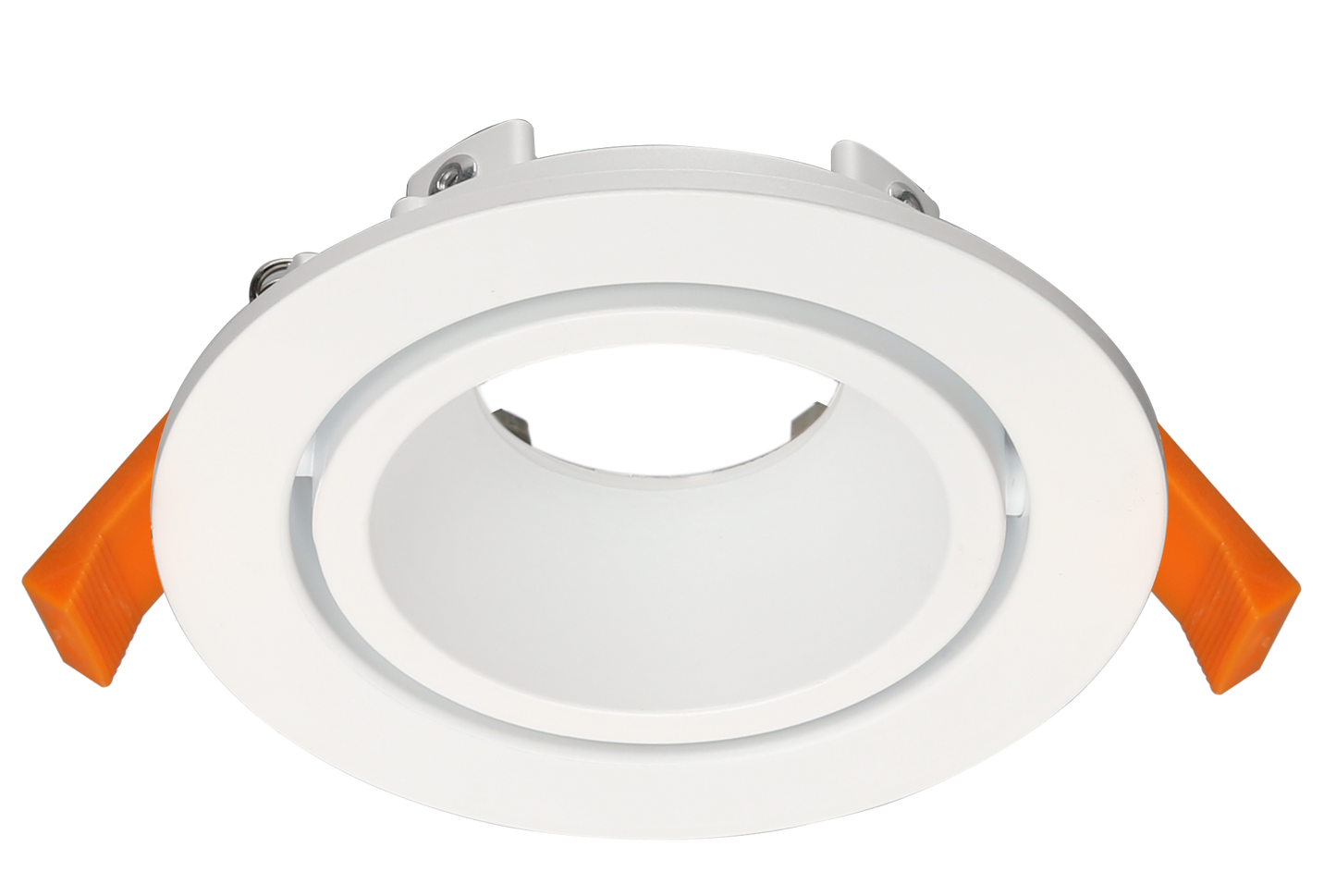

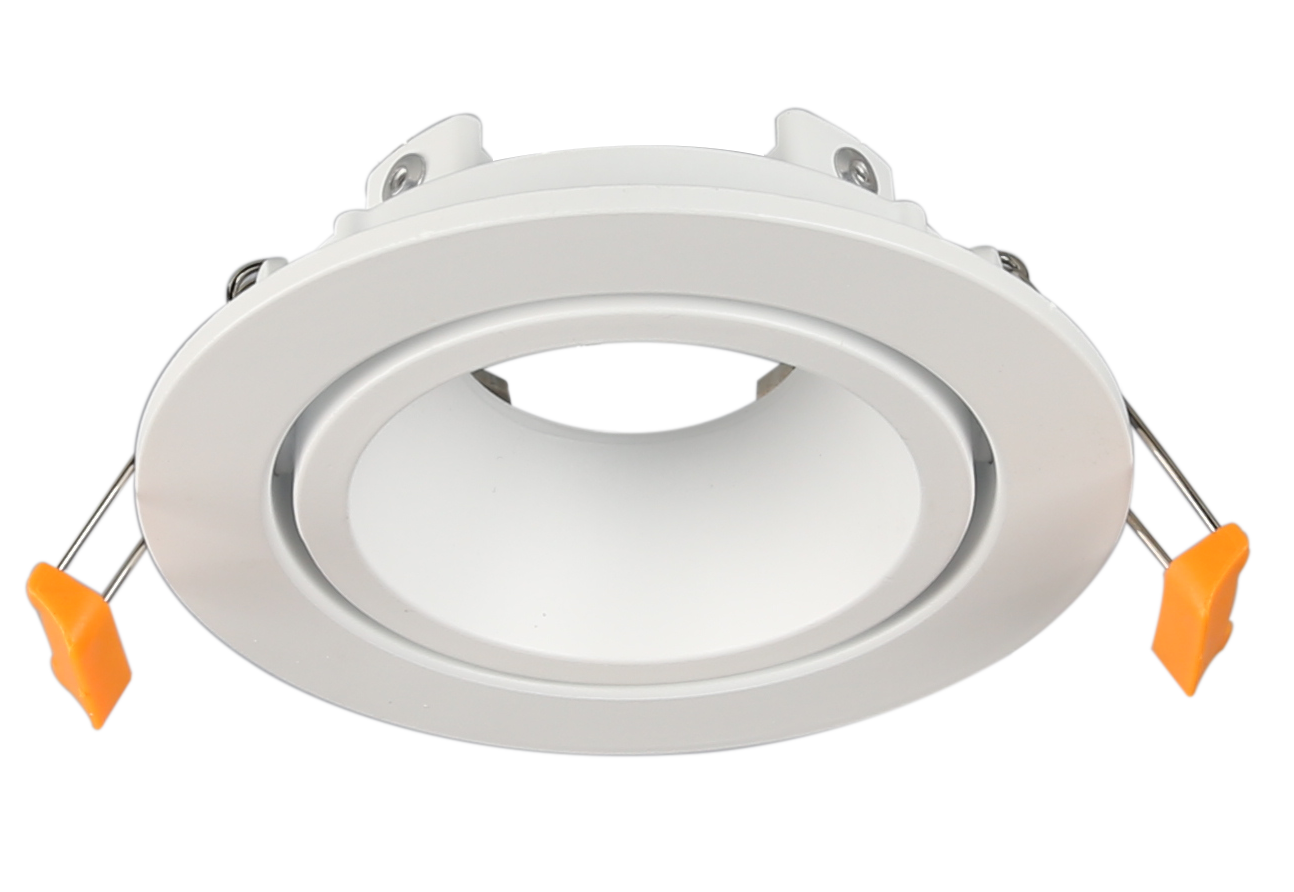

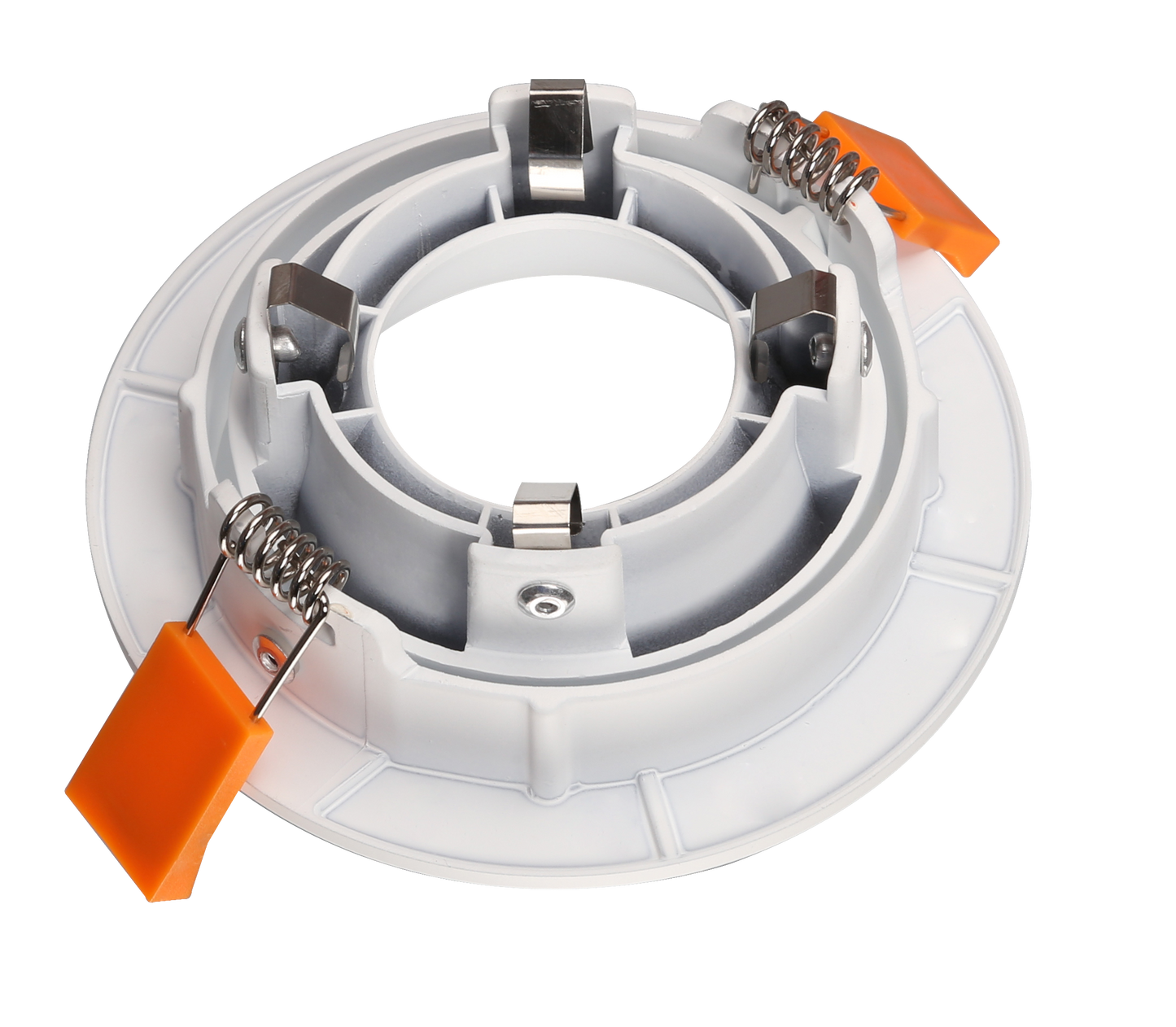

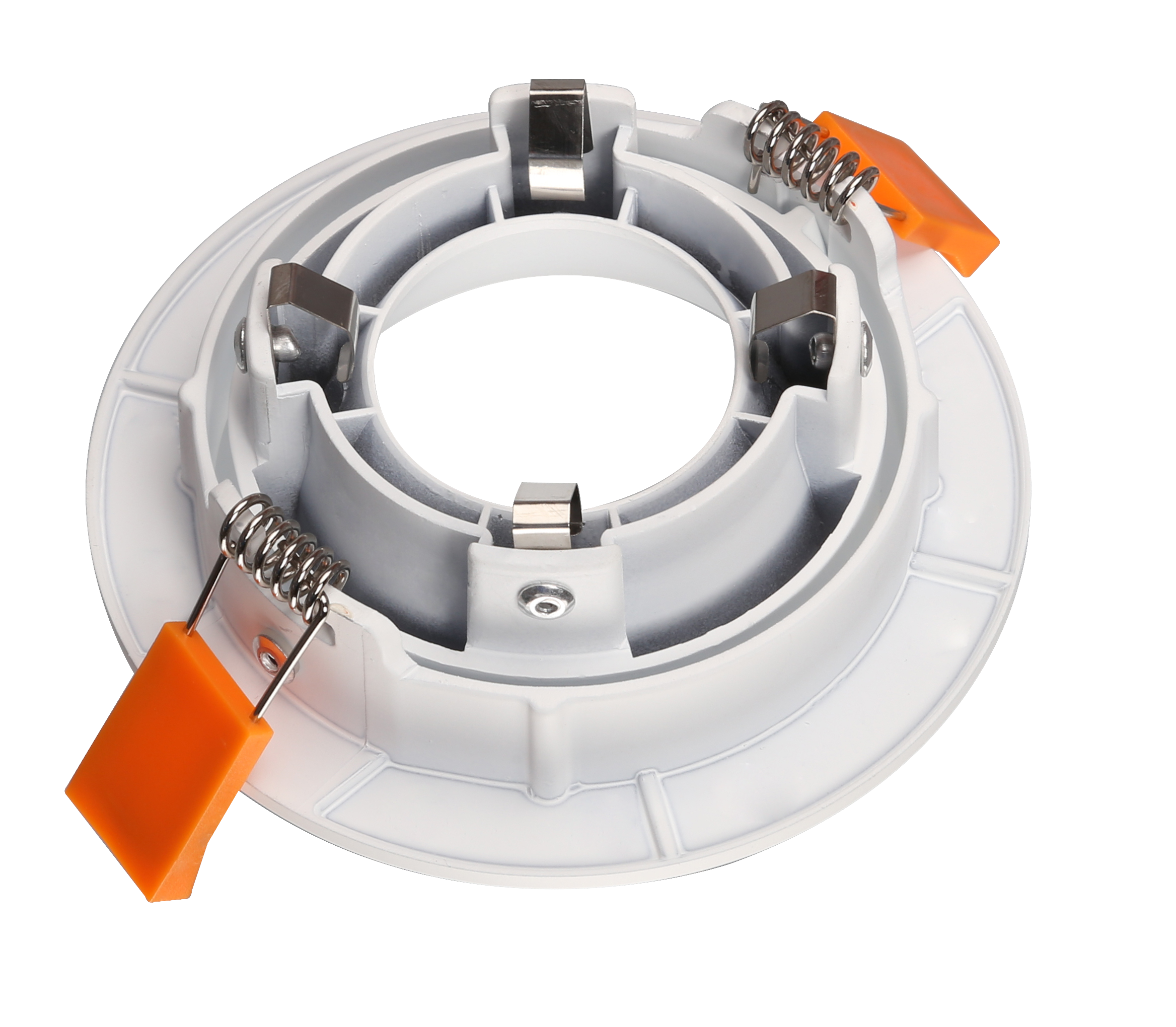

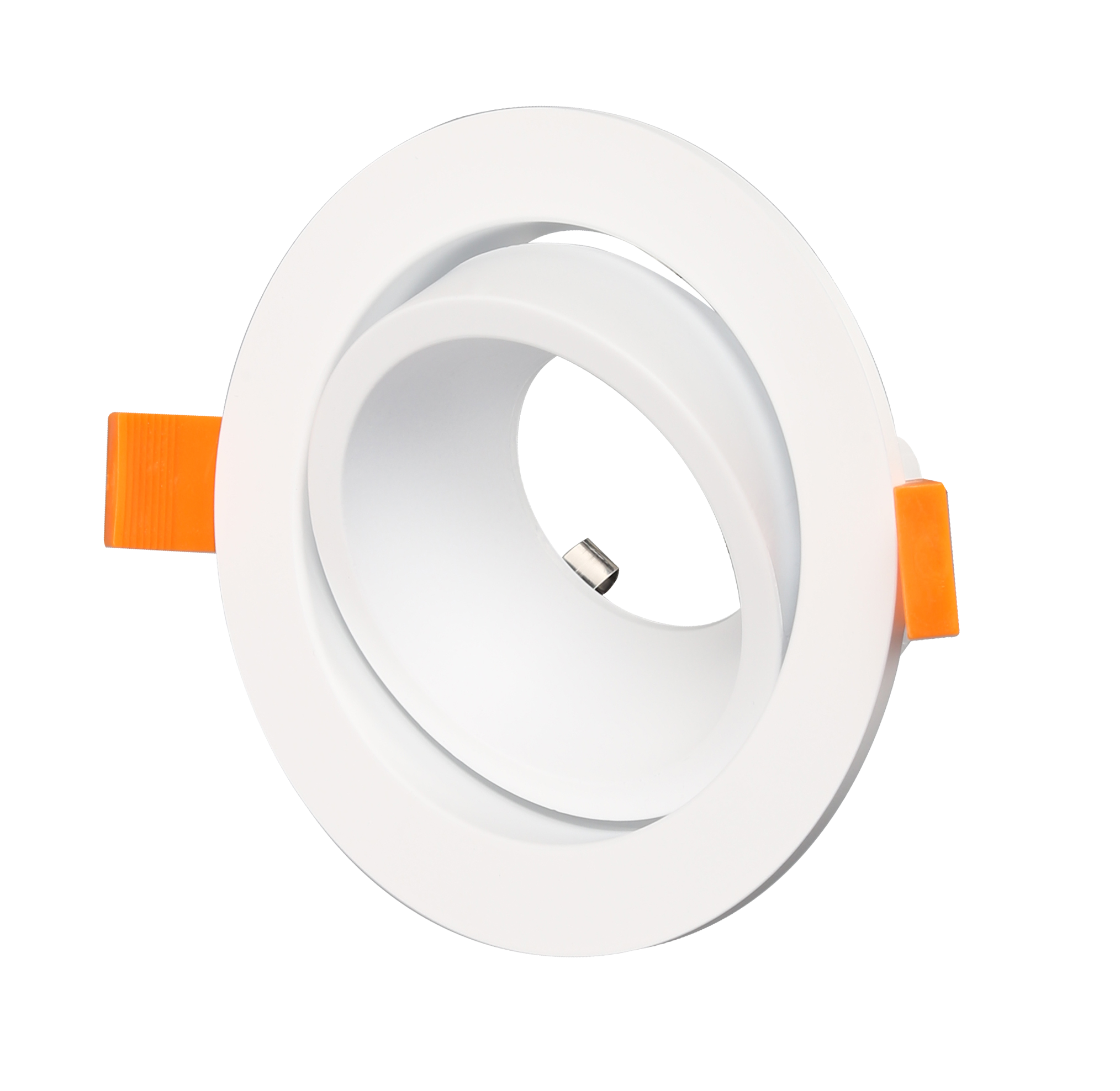

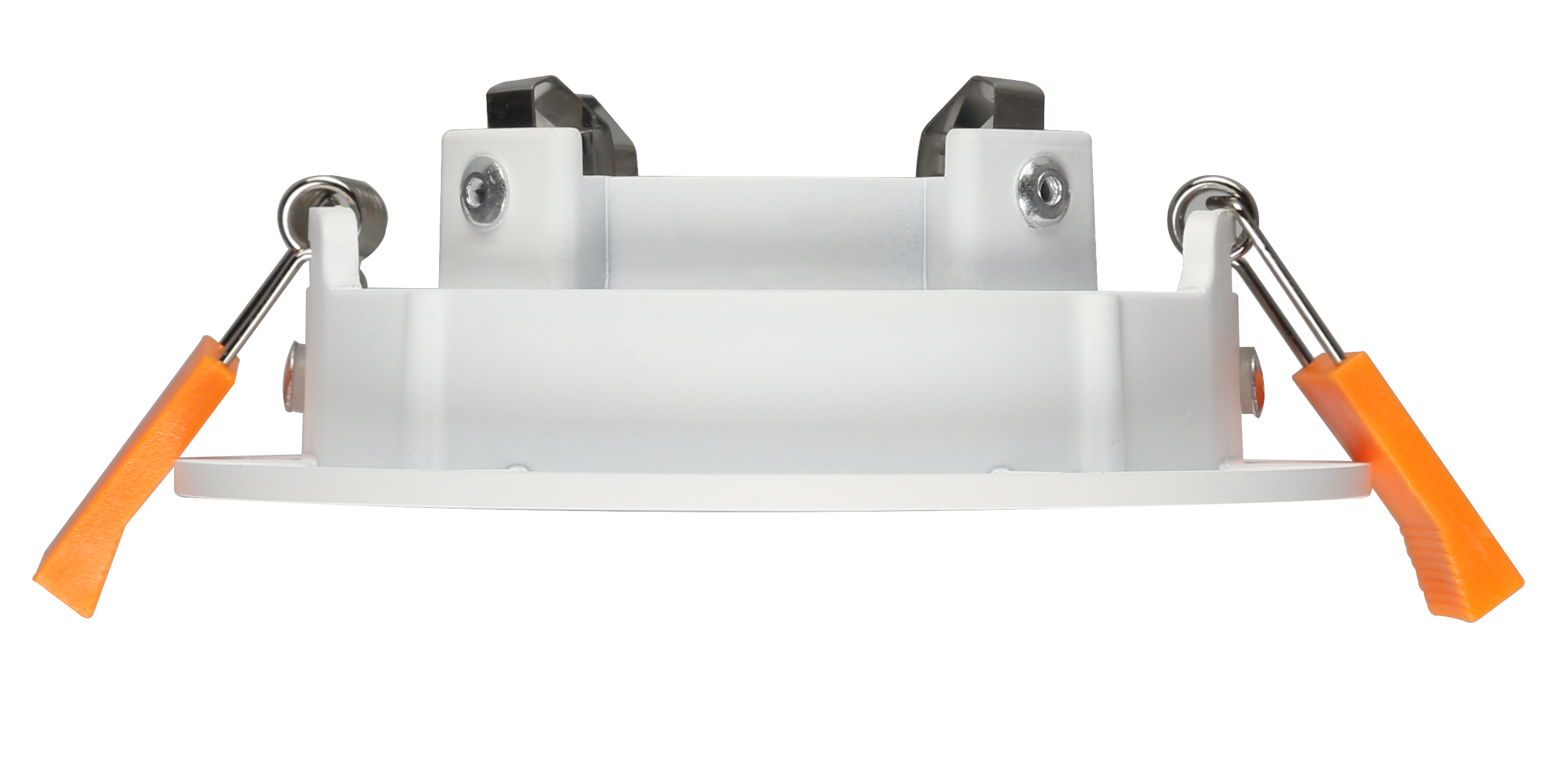

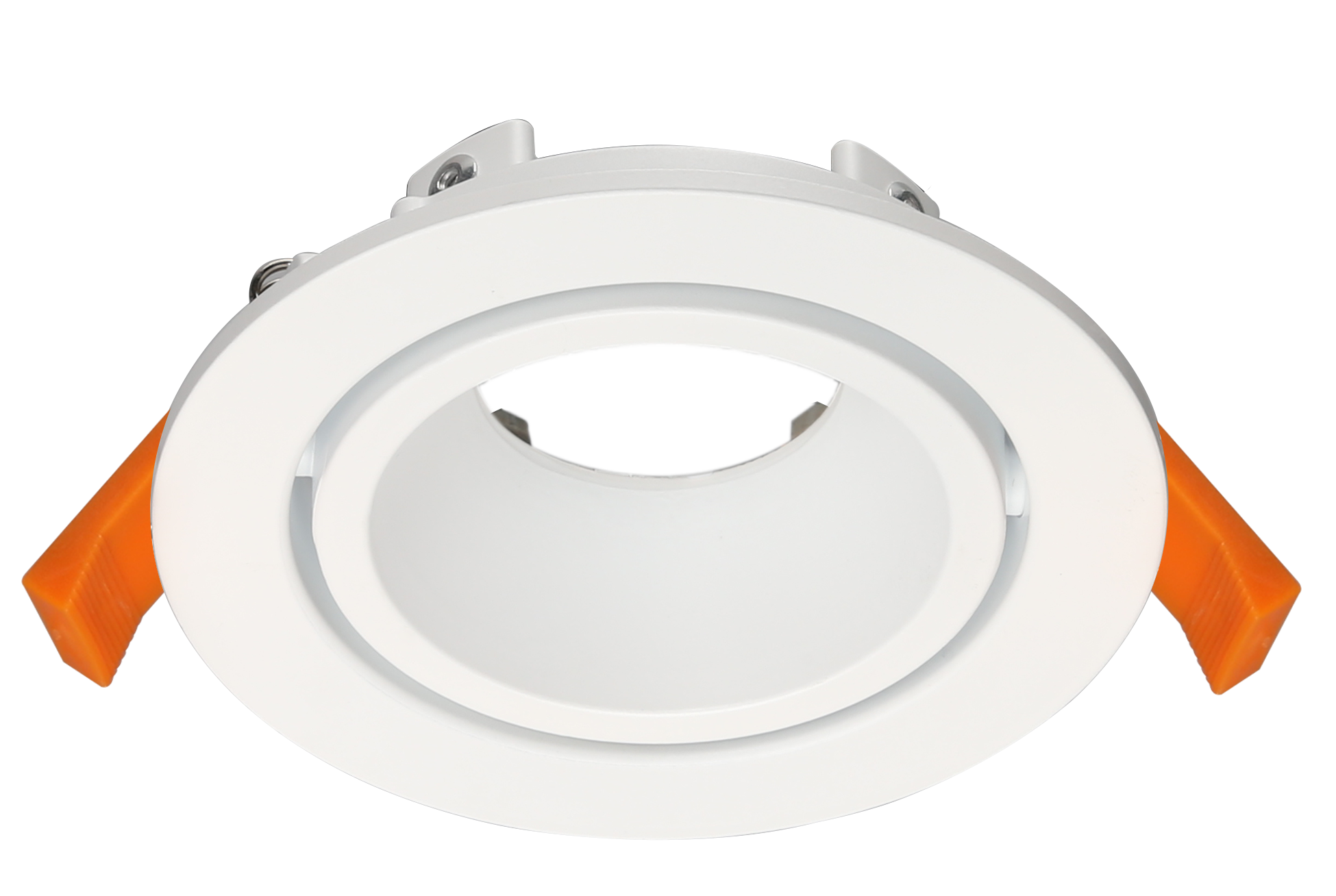

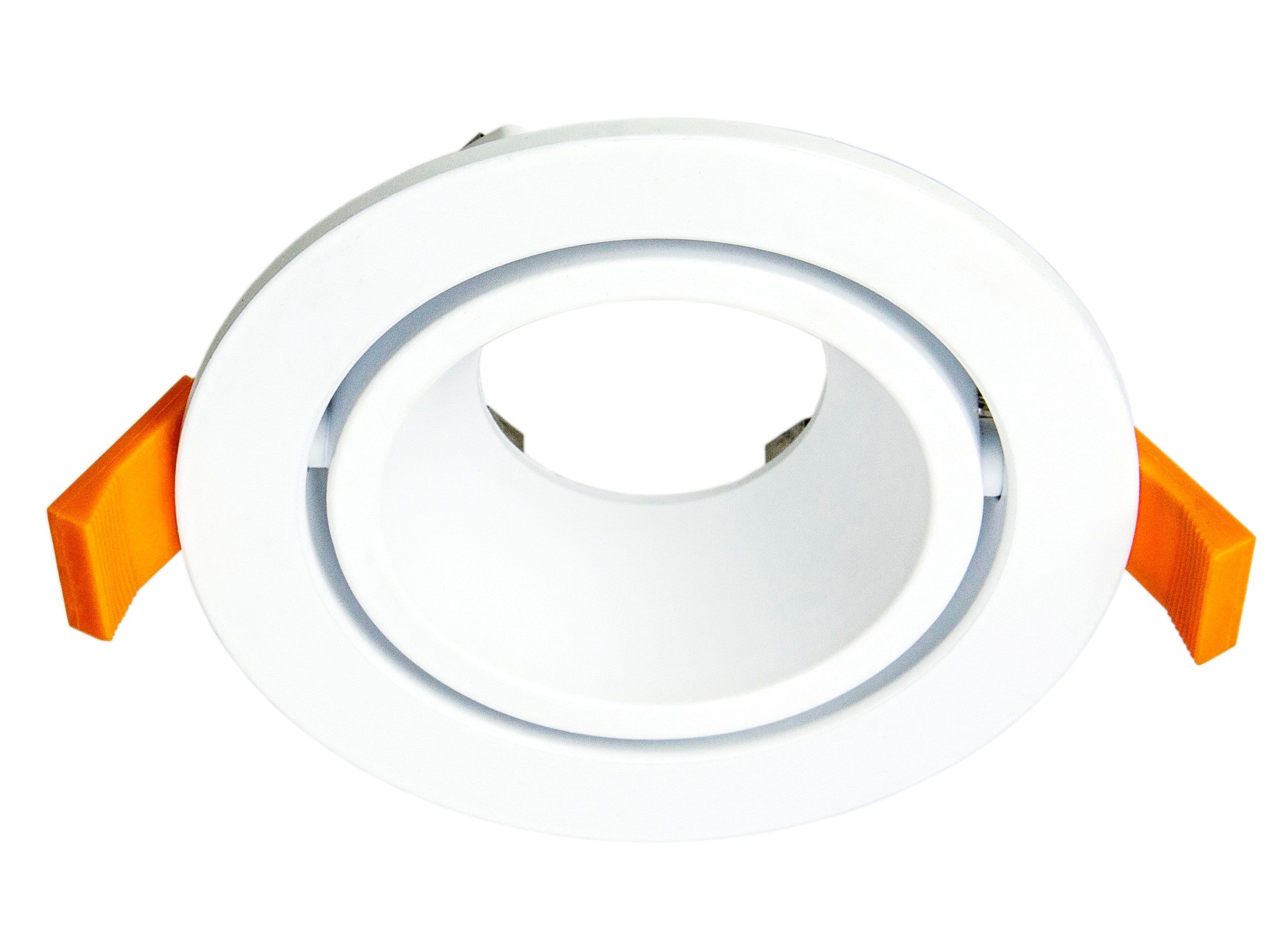

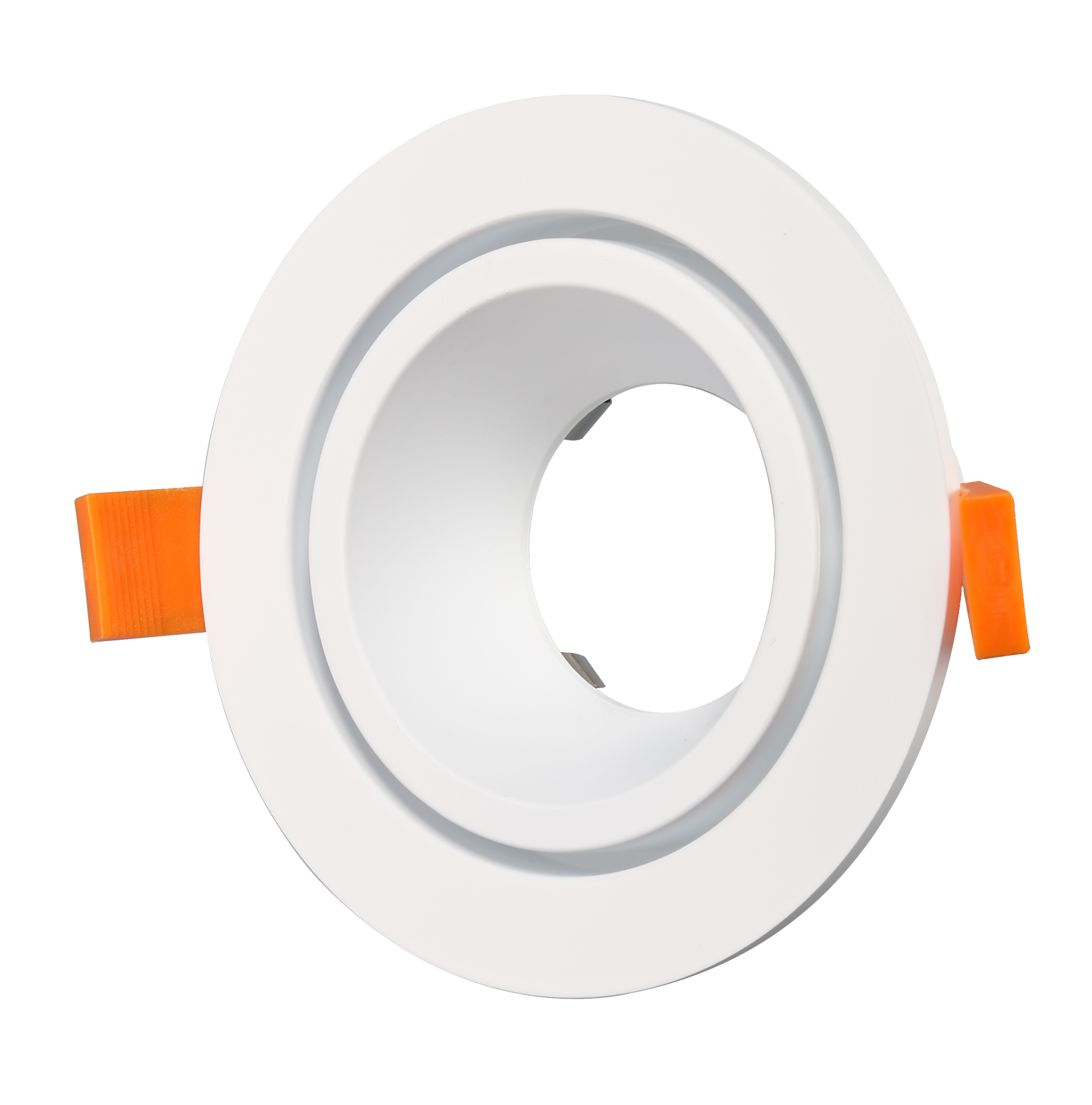

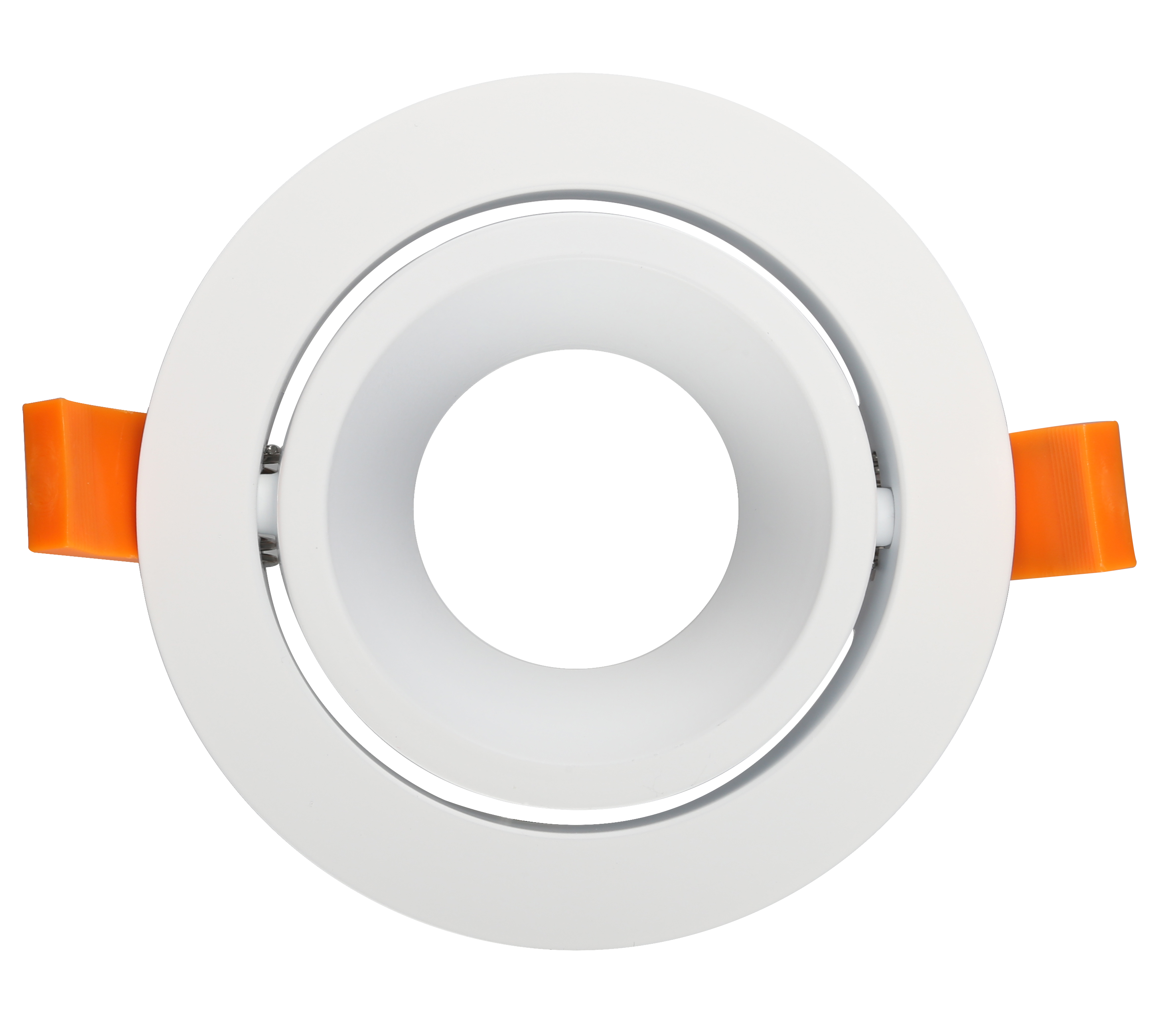

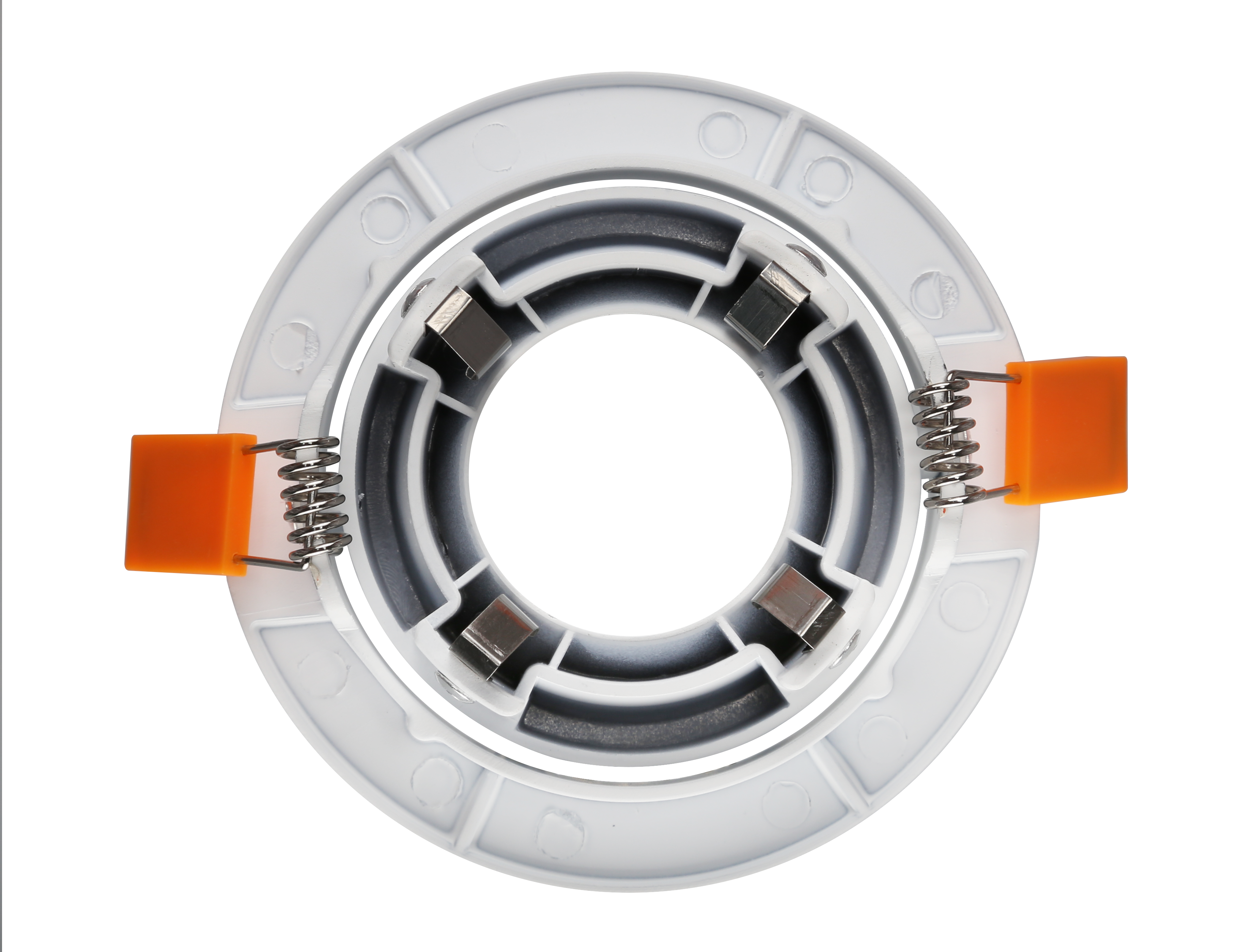

RA3 White- Round Gimbal IP20 surface mount trim for X Series COB Modules
LUMI-FI
89 Collie Street
Fyshwick ACT 2609
Australia
Choose options
DETAILS
Product Information
IP20, Adjustable Surface mount ring for X3A, X15A, X20A, XRGBW and XCCT COB down light modules.
Choose this trim if
a. when you desire to have replace a fixed light fitting with a gimbal light fitting.
b. when you desire a low glare rating as the light sits far back in the ceiling.
c. The face size of 105 mm will enable it to cover hole sizes of 92mm as well.
Do not choose this trim if
a. You are replacing existing lights and the cut out size is large than 90 mm
b. you are planning to use it in high moisture areas like external eves and shower rooms as its IP20 rated.
|

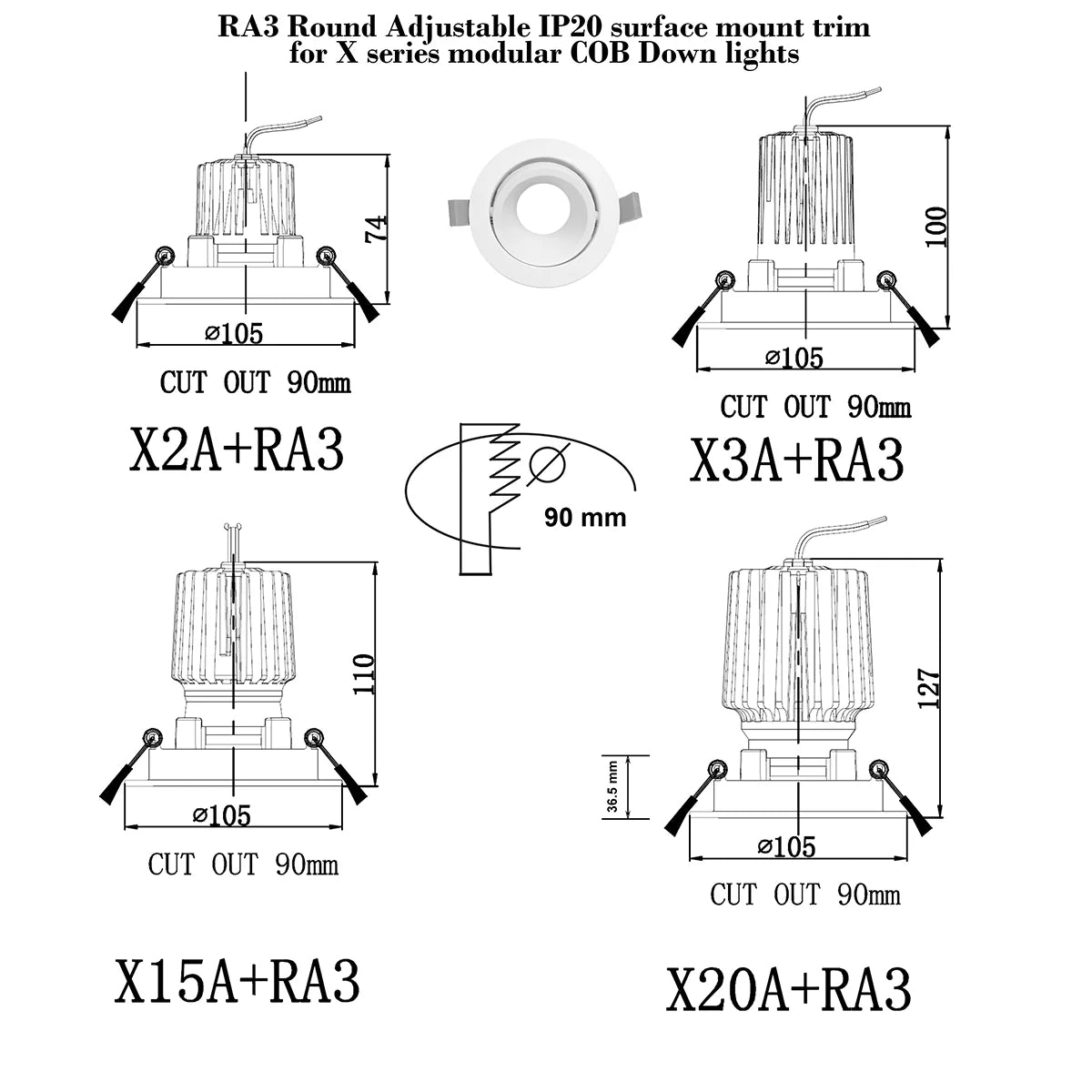

Cut out |
89-92 mm |
|
Diameter of face |
105 mm |
|

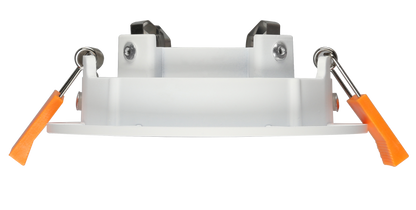

Total height of fitting |
37 mm |
|
Mounting depth with X3A |
100 mm |
|

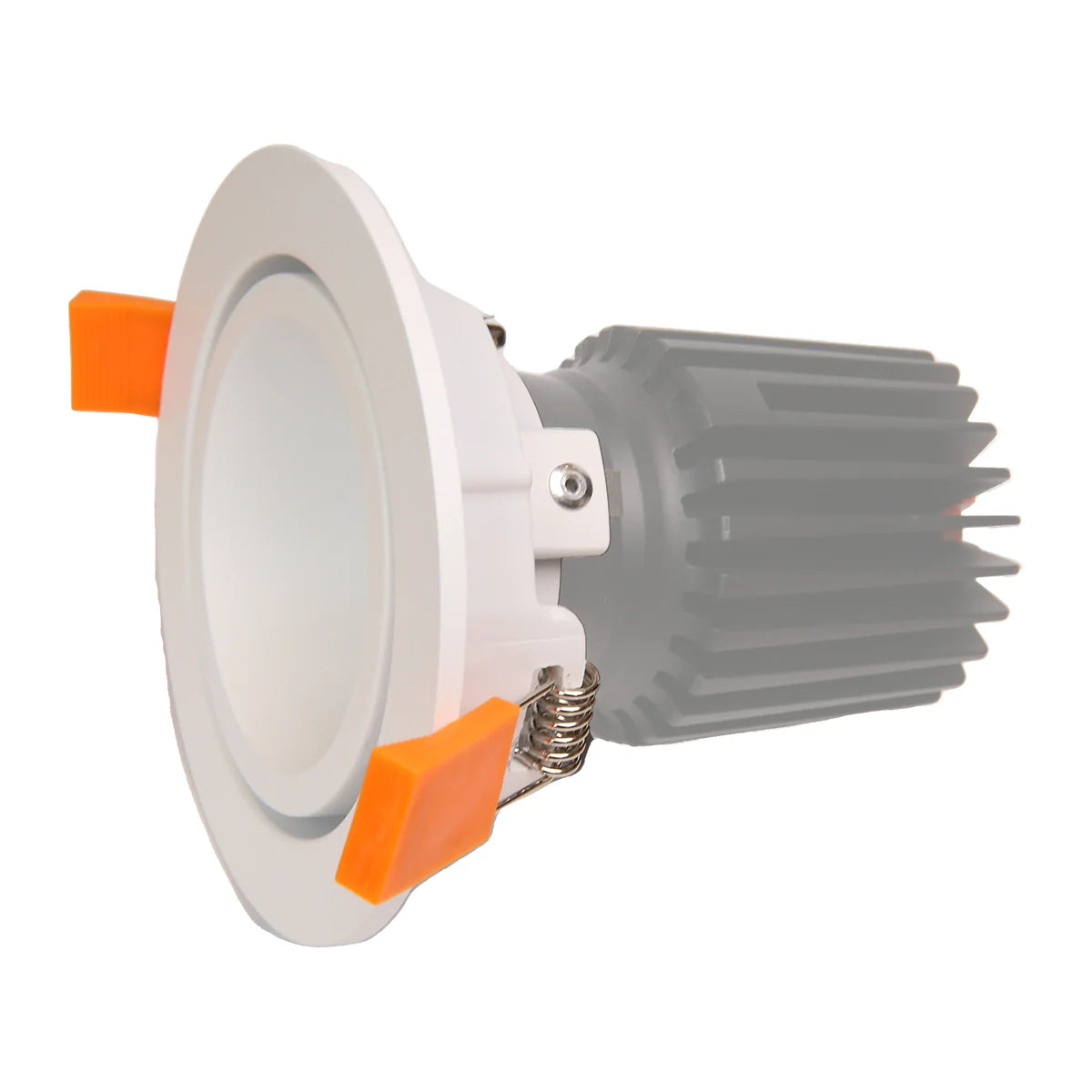

Mounting depth with X15A |
110 mm |
|
Mounting depth with X20A |
127 mm |
|
Mounting depth with XRGBW |
100 mm |
|
Mounting depth with XCCT |
85 mm |
Click here to download a pdf spec sheet for RA3 round adjustable IP20 trim.

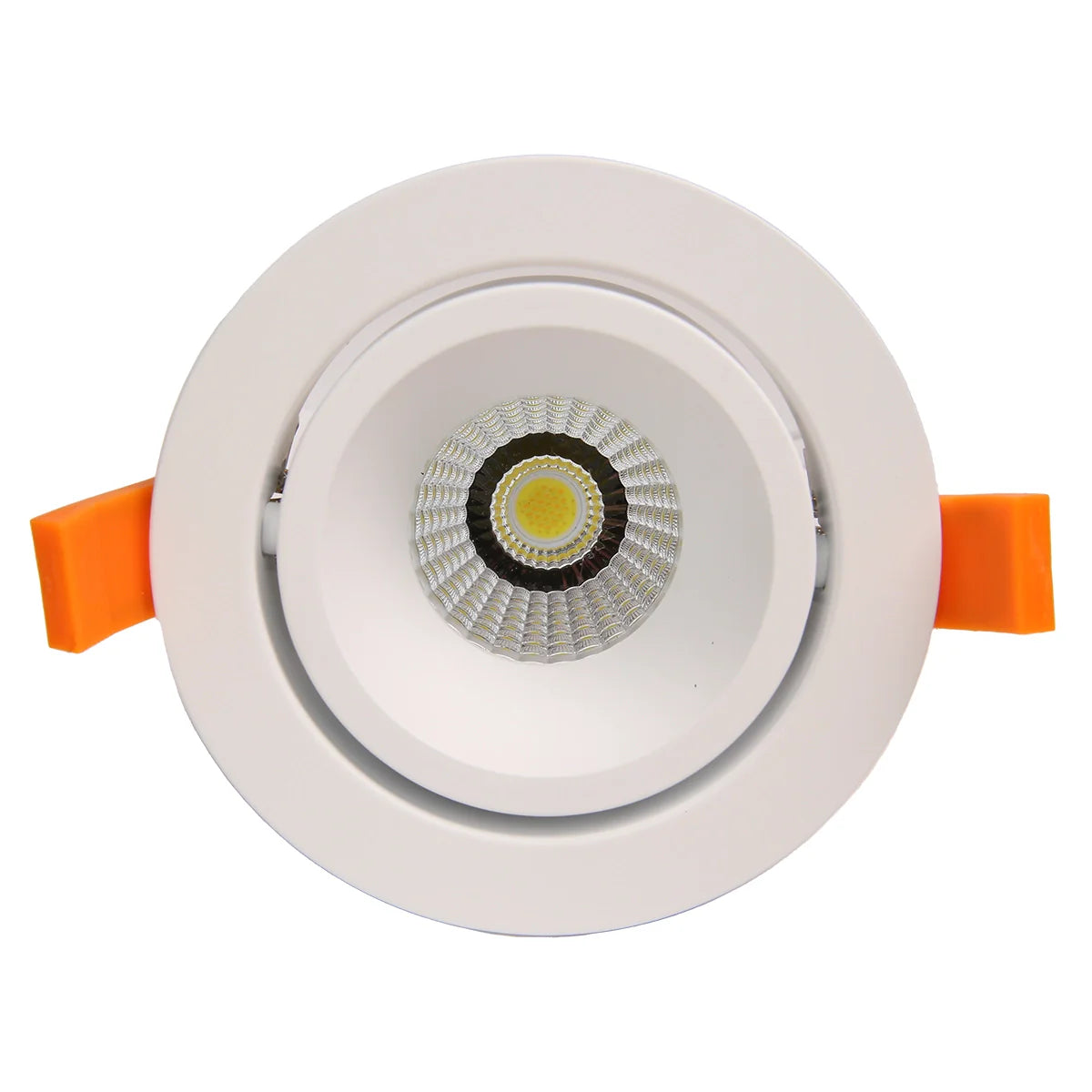

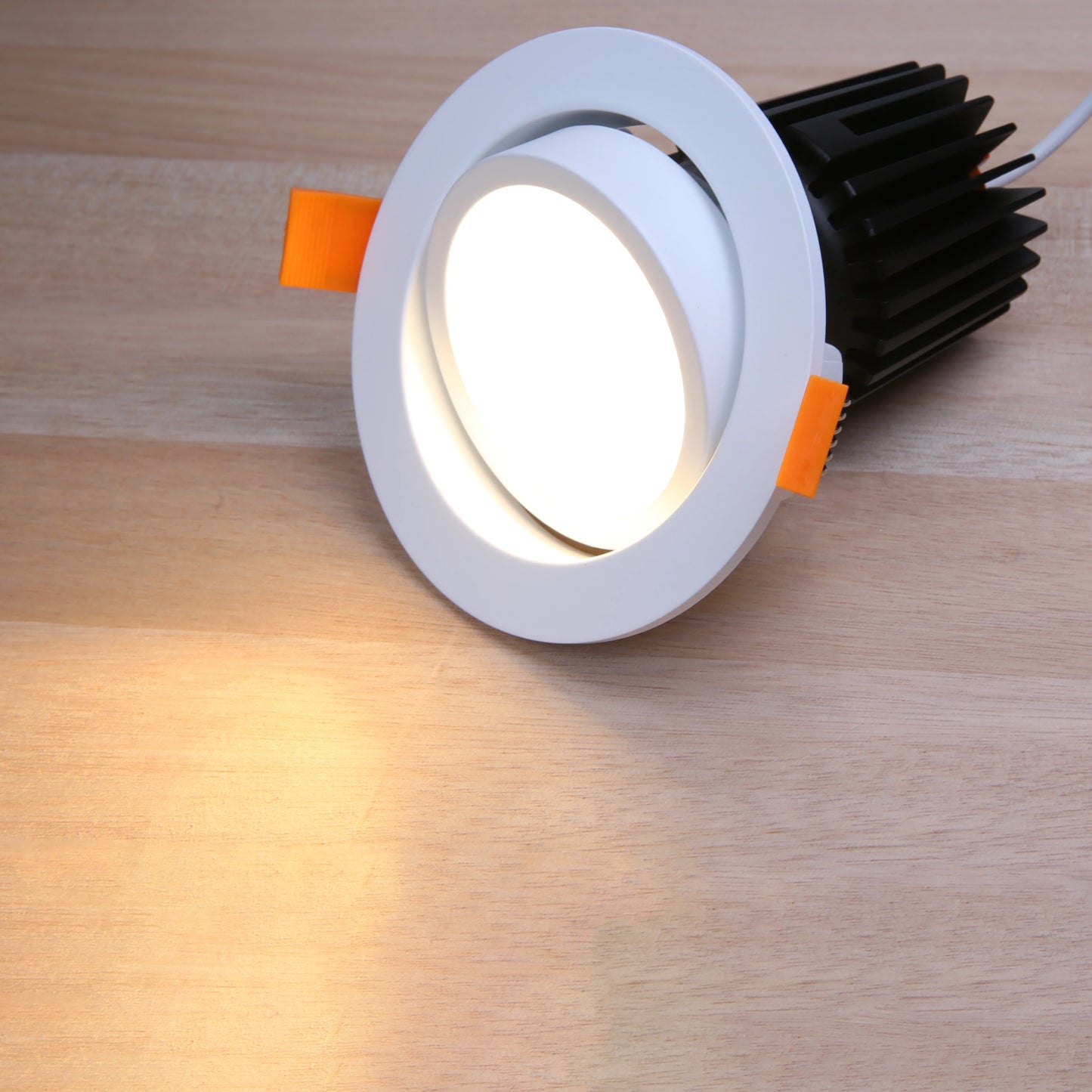

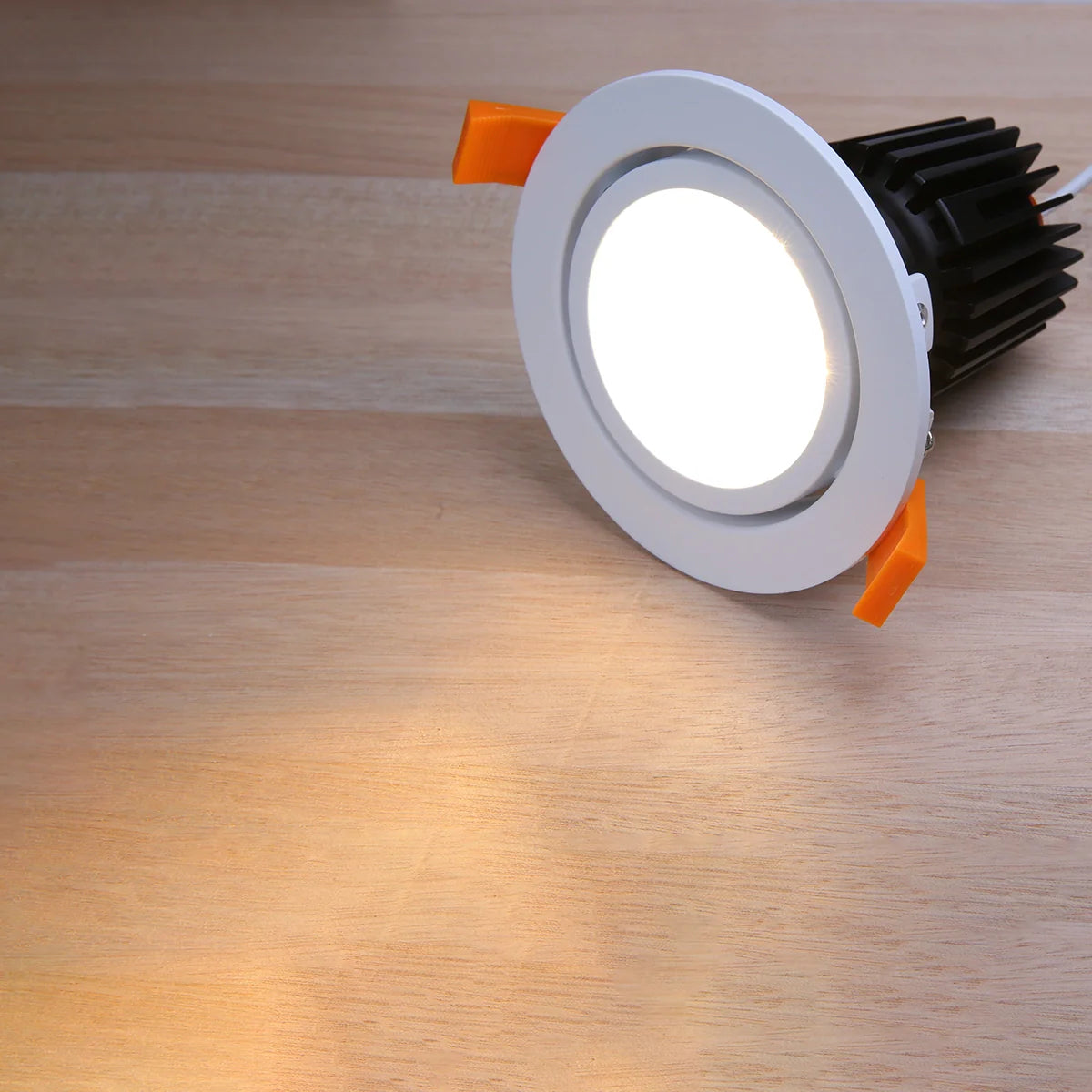

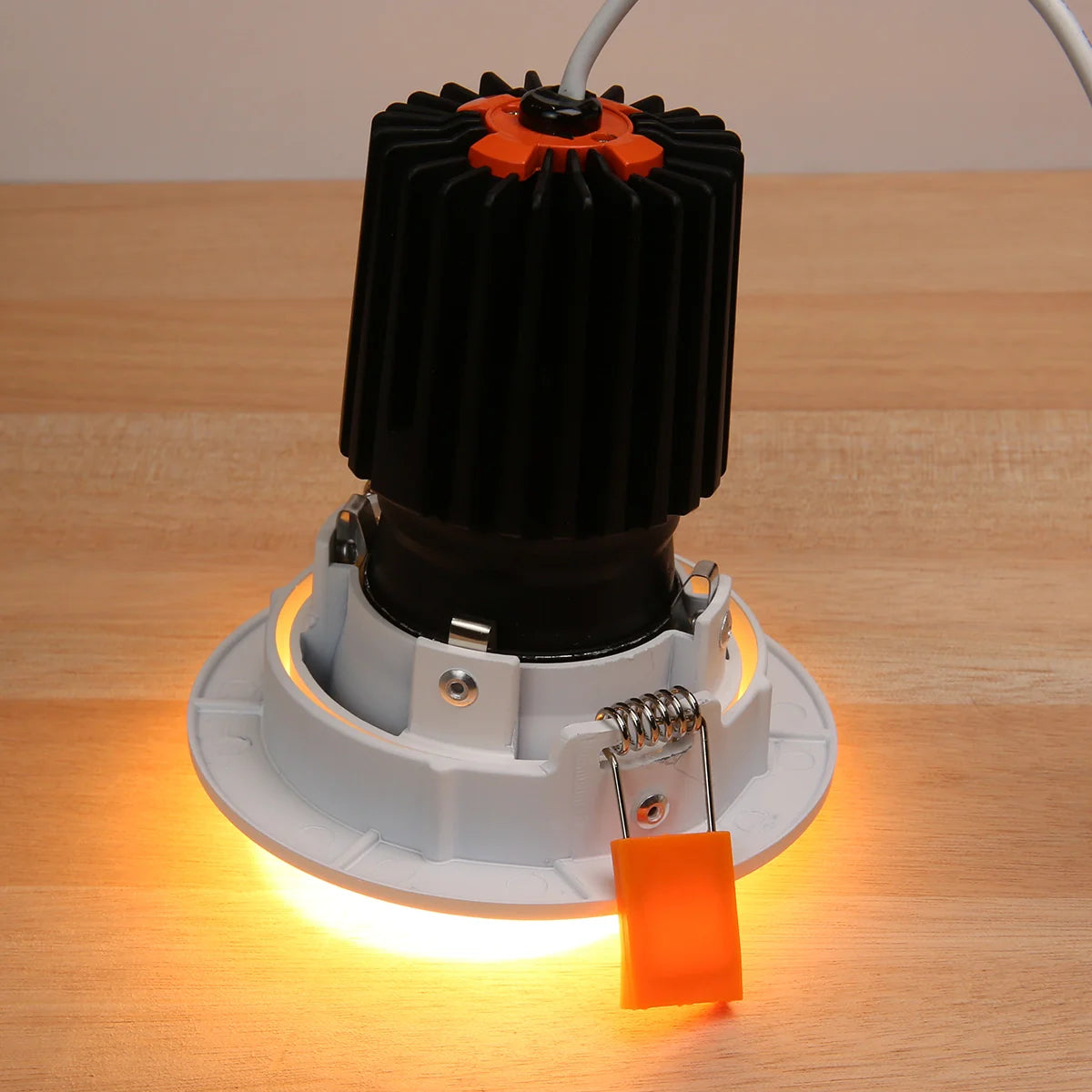

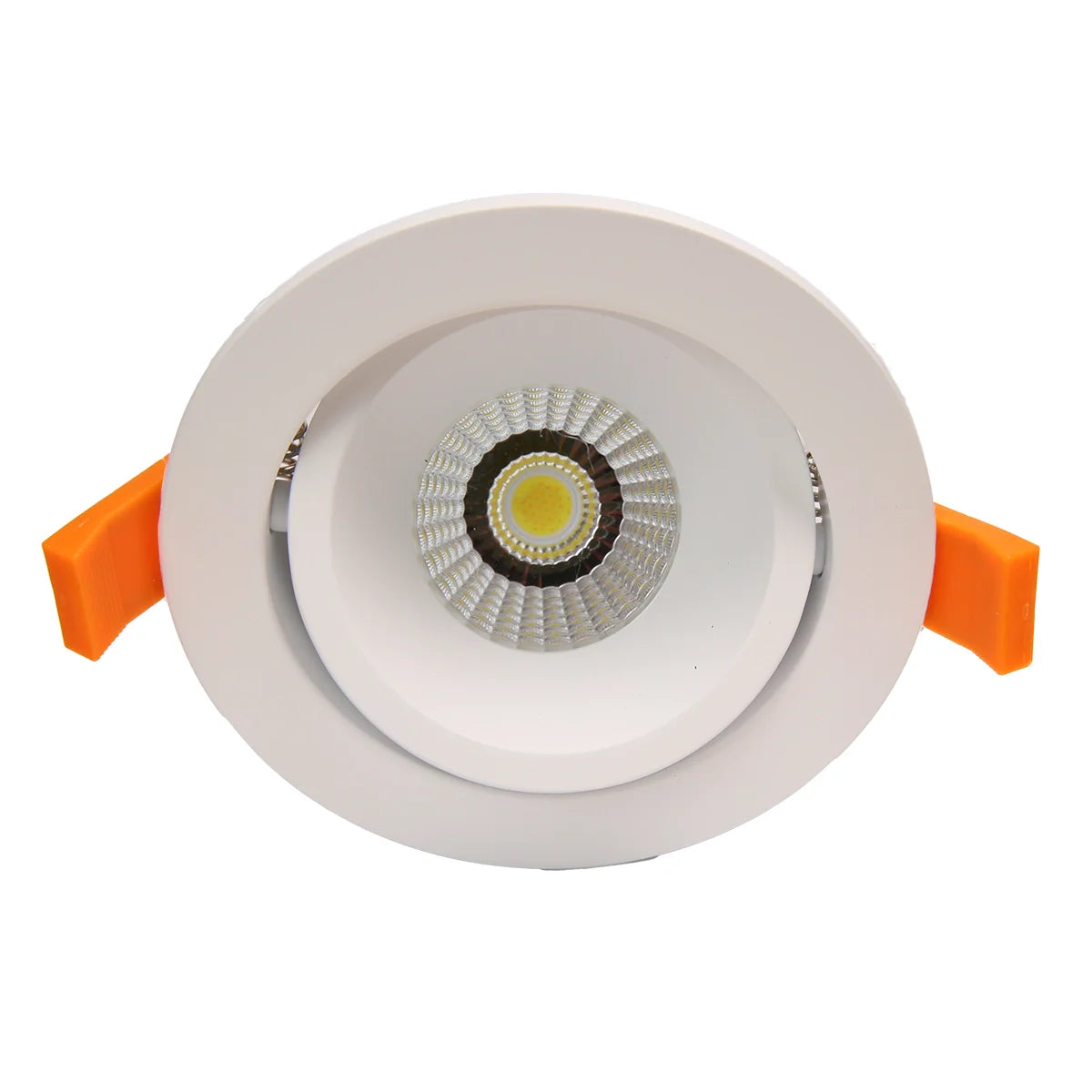

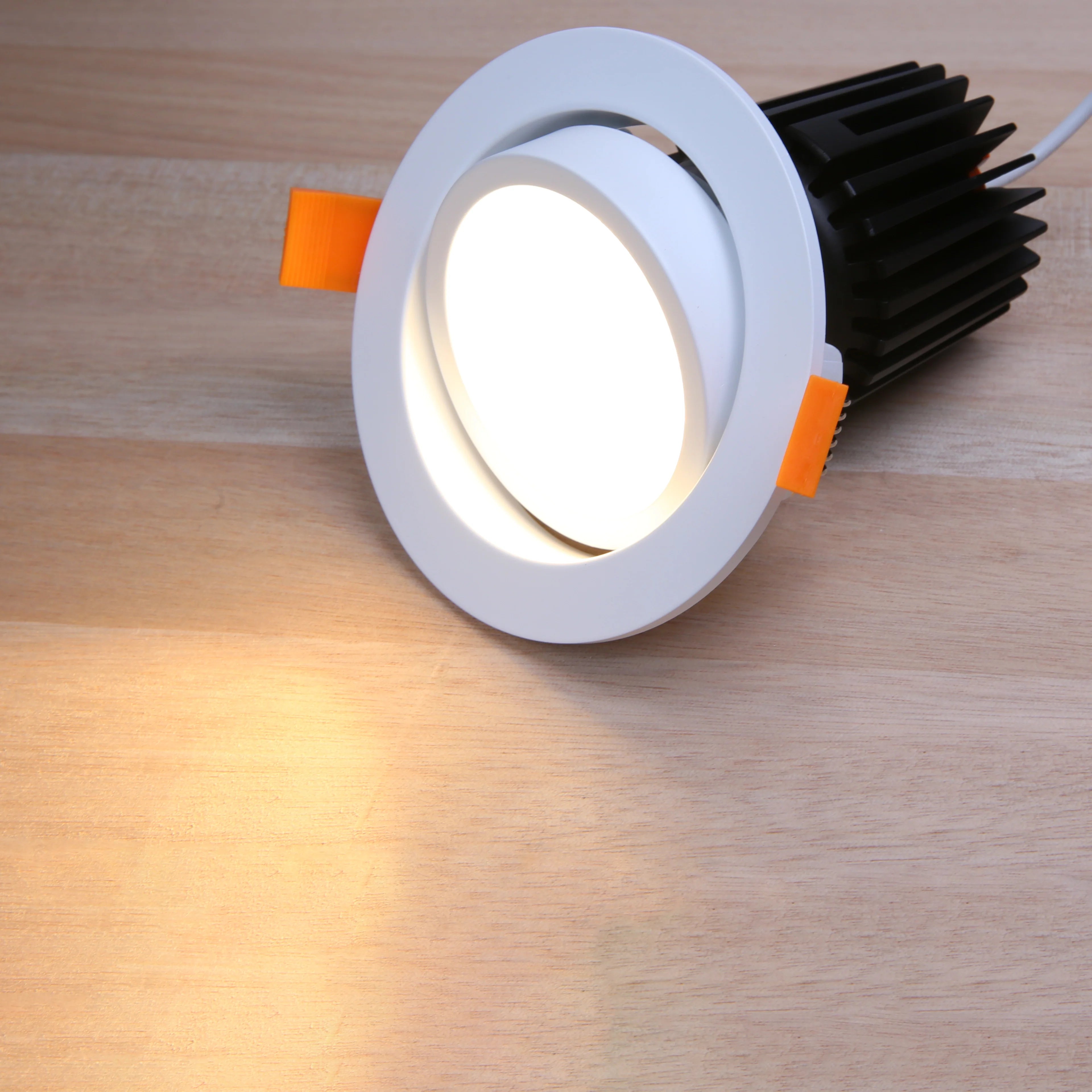

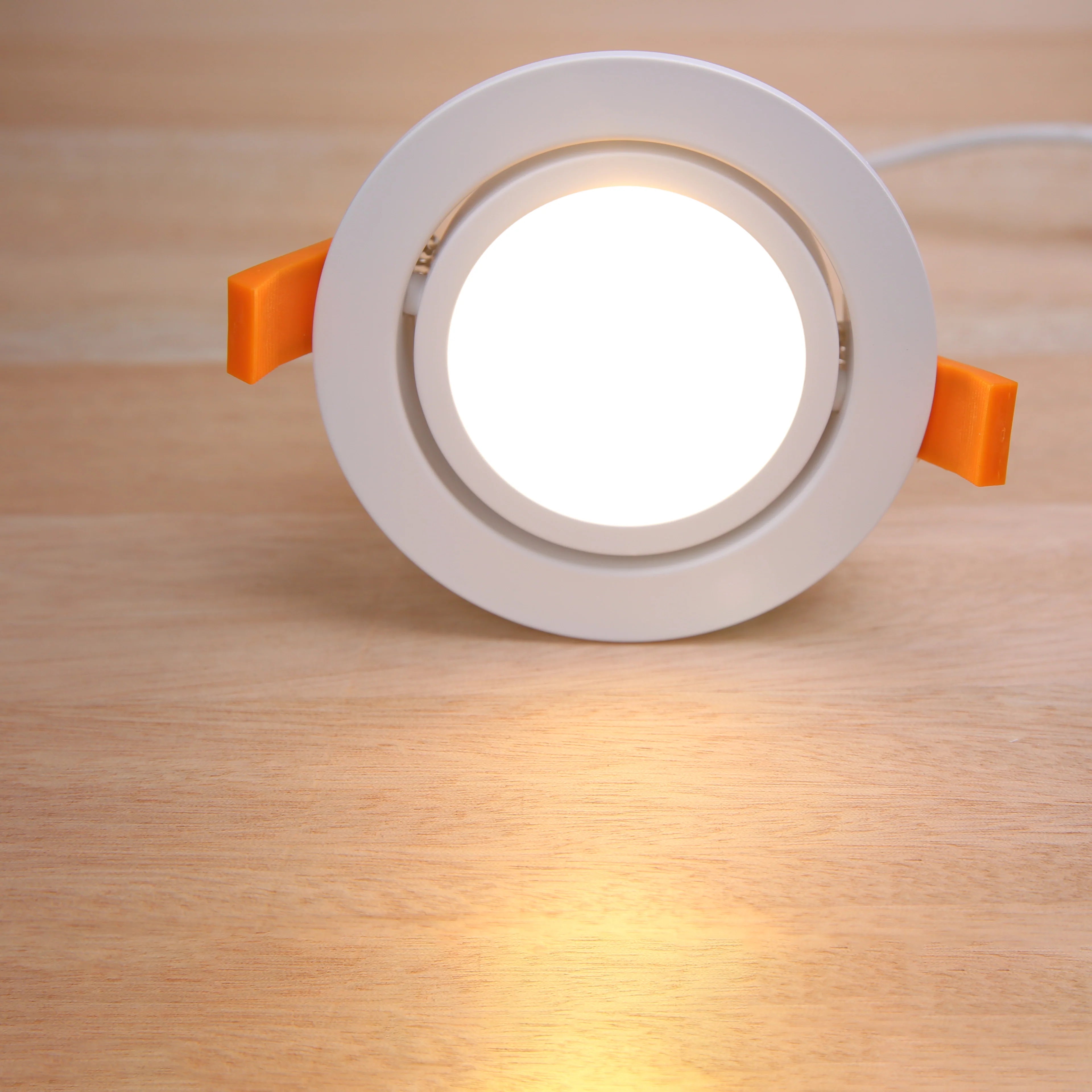

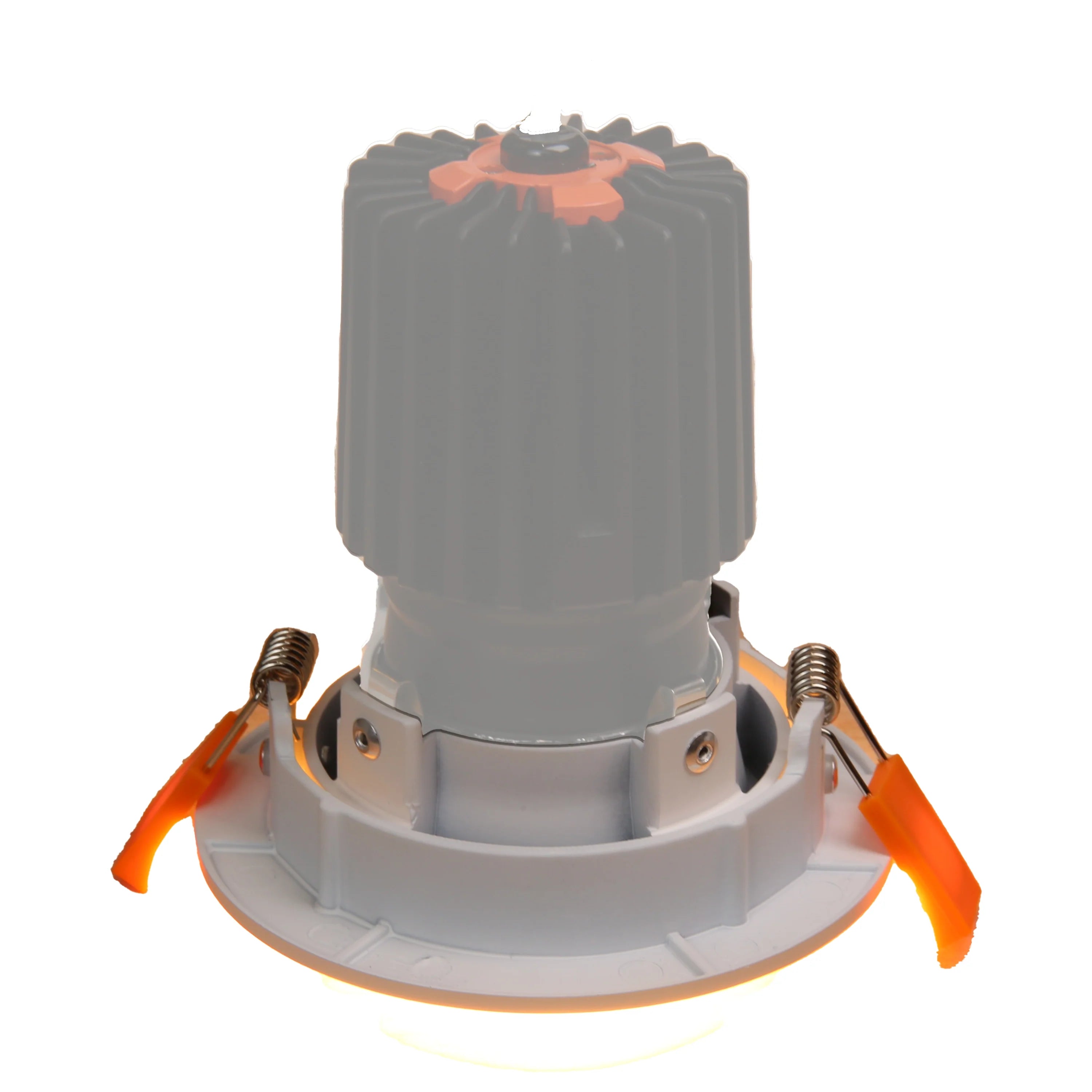

The price is for the surface mount trim only. The light is shown for illustration purposes only.
