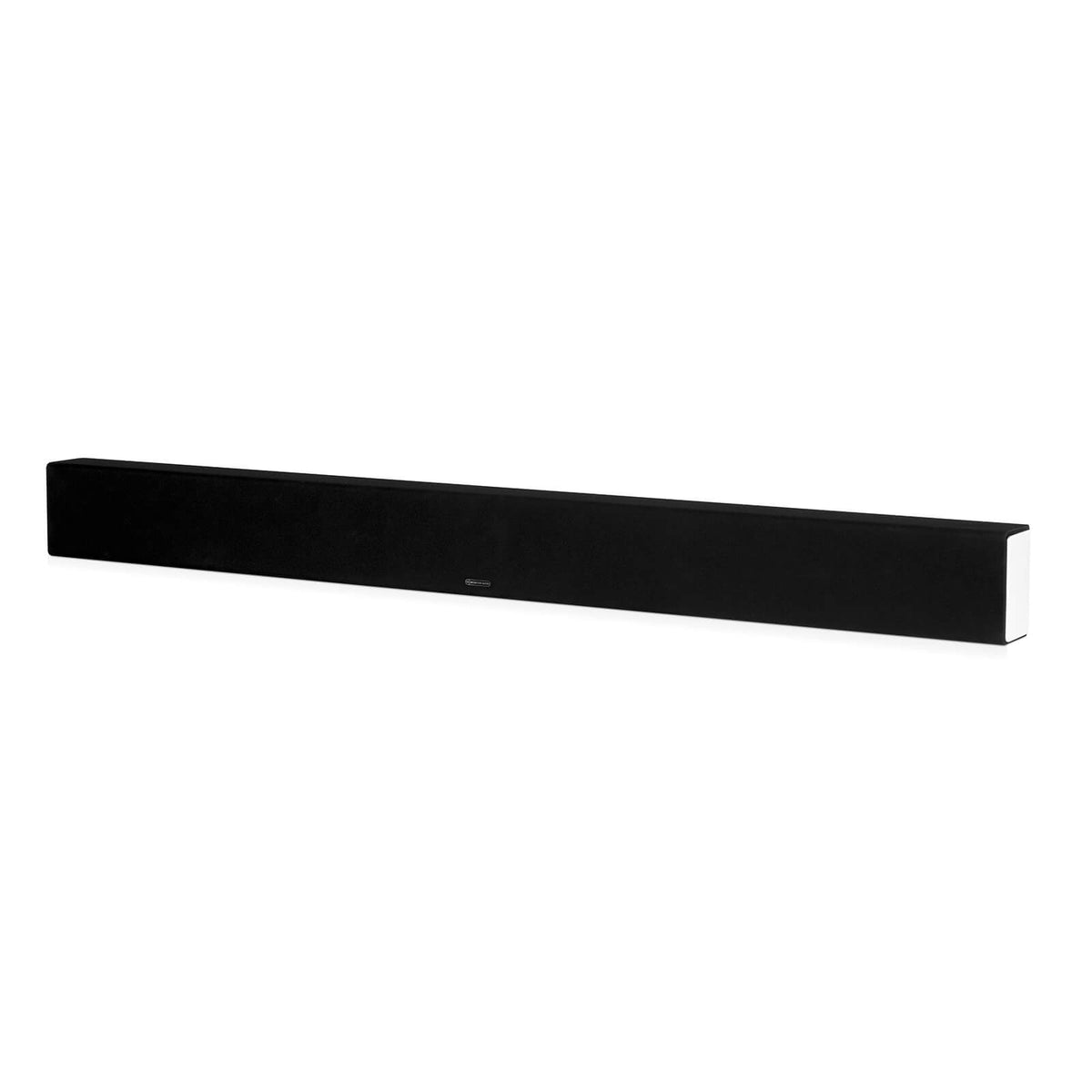

Monitor Audio SB-4 passive soundbar
LUMI-FI
89 Collie Street
Fyshwick ACT 2609
Australia
Choose options
DETAILS
Product Information
The SB-4 passive soundbar is designed to provide a visually balanced audio solution for 70-inch screens and larger. This stylish, high-performance passive soundbar is ideal for installers keen to deliver premium performance in media room applications.
Features at a glance:
All Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver | 2 x 1" (25 mm) C-CAM Gold Dome tweeter | MDF construction | Single through-bolt driver fixing | Neat terminal panel | High quality crossovers | Designed to fit SANUS TV mounting systems | Optional sturdy wall bracket | Low-profile Silicon rubber feet
Bracket:
The custom bracket for SB-4 is an optional extra and does not come included.
Setting the bar for TV sound
The SB-4 incorporates a series of clever technical features and design innovations that demonstrate Monitor Audio’s revered attention to detail and commitment to quality.
Ease of installation is another key advantage of the SB-4. High-quality, low-profile binding posts provide an easy and trouble-free connection, with the terminals recessed neatly to enable a flush-to-wall installation. The terminal panel also houses standard fixing points compatible with SANUS TV mounts, with many options for TV and wall installation. Wall mounting is also possible using Monitor Audio’s low-profile wall mount bracket with cable access, easy pre-alignment, and a fixing template.
The SB-4 is designed to be used with a partnering subwoofer and crossed over to provide the best possible experience and increased system power handling. Alternatively, the soundbar can be used independently to deliver an impressive uplift in TV audio performance with only a slightly reduced power handling.
Frequency Response (-3 dB)
70 Hz – 30 kHz
Sensitivity (1W@1M)
87 dB
Nominal Impedance
8 ohms
Power Handling (RMS)
80 W
System Power Handling (RMS)
100 (High pass filter set to 100 Hz)
Recommended Amplifier Requirements
30 – 100 W
Crossover Frequency
80 — 120 Hz
Maximum SPL
104dBA (108.8 all channels driven)
Bass Alignment
Auxiliary Bass Reflex (ABR) Loading
Drive Unit Complement
All Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver
2 x 1" (25 mm) C-CAM Gold Dome tweeter
Cabinet Dimensions: (H x W x D) (Including Feet)
145 x 1562 x 89 mm (511/16 x 619/16 x 31/2")
External Dimensions (Including Bracket (H x W x D))
145 x 1562 x 100 mm (511/16 x 619/16 x 315/16")
Bracket
Weight
12 kg (26 lb 7 oz)
Sold As
Single Unit
Warranty
Lifetime
