- All lengths support resolutions requiring 48Gbps transfer rates, including 8K60 or 10K60 HDR
- Lightweight ABS connector assembly with 1kg retention force
- UL CMG fire-rated cable (3m and above) for safe in-wall installations
- Flexible design ideal for professional AV setups
- Individually tested for consistent performance that’s ‘Connectivity Assured’
- Gold-plated connectors for optimal signal integrity and longevity
- Lifetime warranty for peace of mind
Technical info
Performance 0.5m – 9.0m PASSIVE
HDMI Certification: High Speed with Ethernet
Supported Data Rate: 48Gbps (12Gbps per lane)
HDMI Clock: Supports HDMI2.1 featuresMECHANICAL
Cable Diameter: 0.5m–2.0m: 4.5mm / 0.18in Ø | 3.0m: 6.0mm / 0.23 | 4.0m–5.0m: 8.0mm | 0.31in Ø| 7.0m–9.0m: 9.0mm | 0.35in Ø
Mounting Length: 0.5m–2.0m: 59.0mm/2.3in | 3.0m: 59.0mm/2.3in | 4.0m–5.0m: 66mm/2.6in | 7.0m–9.0m: 110.5mm/4.4in
Cable Bend Radius: 0.5m–2.0m: 25.0mm/1.0in | 3.0m: 25.0mm/1.0in | 4.0m–5.0m: 32.0mm/1.3in | 7.0m–9.0m: 72.0mm/2.8inCONSTRUCTION
Primary Conductors: Solid 34 – 24 AWG OFC, length dependent
Insulation on TMDS: Polyethelyene
Insulation on 4C + HEAC Pairs: HDPE / Polyethylene
Shielding on TMDS Pairs: AL/Mylar, 125% Coverage
Shielding Overall: AL/Mylar, 125% Coverage + Tinned copper braid, min 85% coverage
Cable Jacket: 0.5m-2.0m: VW-1/ 3.0m-9.0m UL CMG, fire-rated PVC composite materials

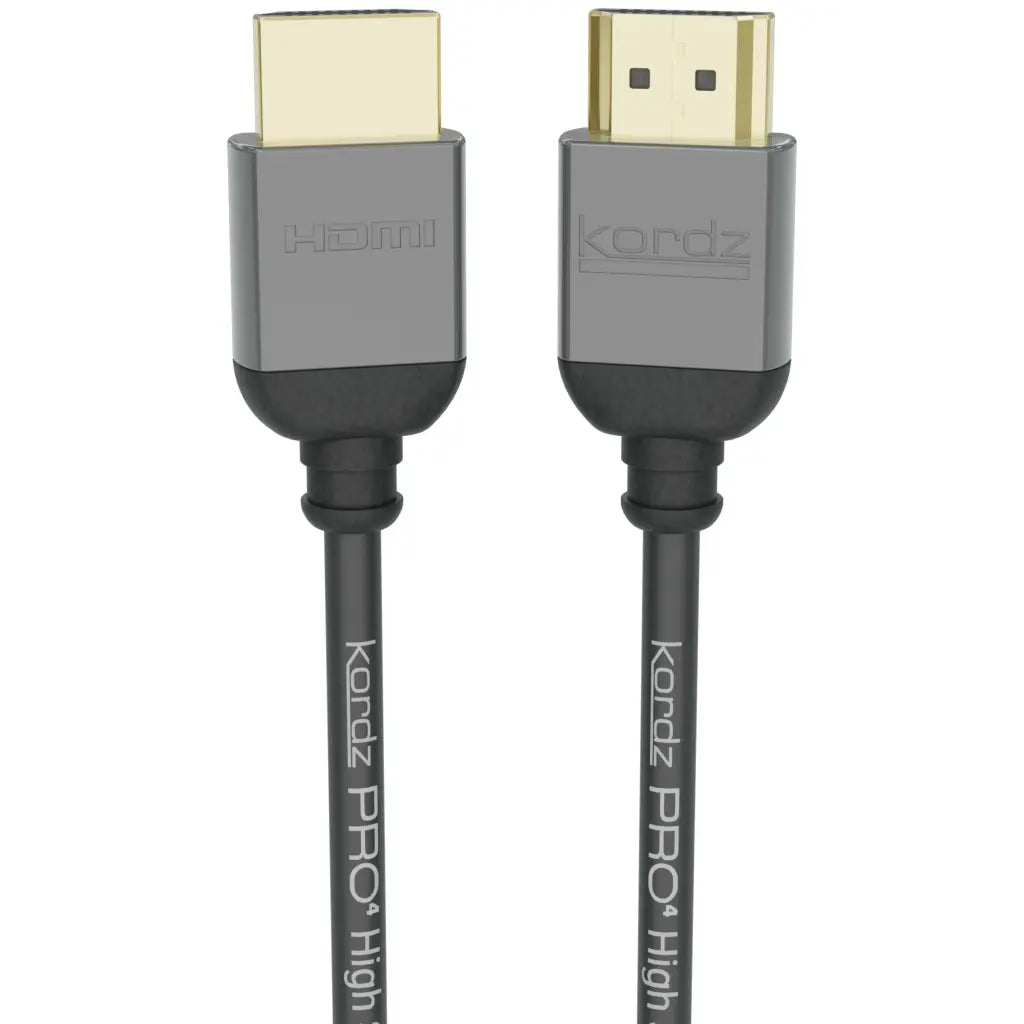

HDMI Connector Shell: Premium gauge folded steel, 1μ” 24K Gold plated
HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated
Termination: High Frequency Soldering
HDMI Backshell: ABS front shell with PVC injection moulded boot and strain relief
