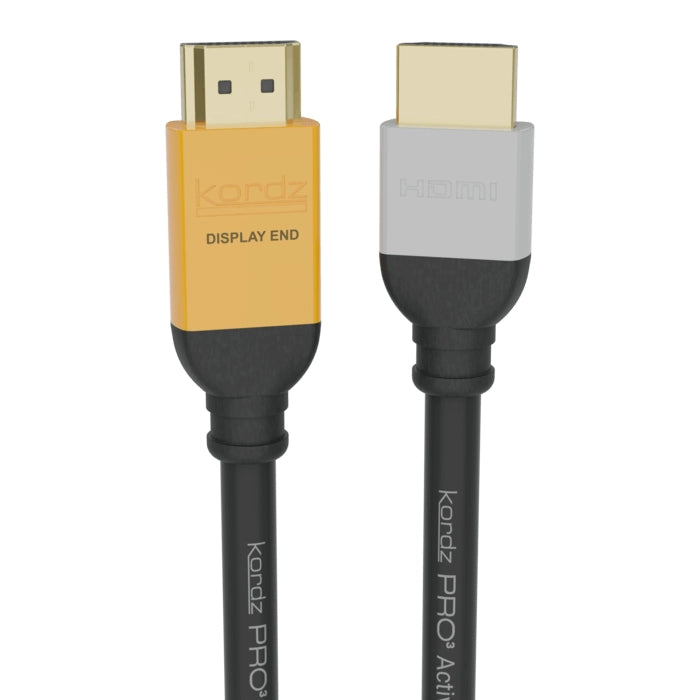

Kordz PRO3 Series 18Gbps 4K Professional HDMI Cables - Active Copper

Kordz PRO3 Series 18Gbps 4K Professional HDMI Cables - Active Copper

$205.00
$205.00
Sale Sold out
Free shipping Australia wide

We will match any competitor's advertised price

Length
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Specifications

Bulk discounts is a genuine discount for customers who are actually looking for more value. Please note that the below conditions will apply to items that were purchased on bulk discount. Returns on bulk buy discounts will be processed at the adjusted price disallowing for bulk discounts. A further deduction of delivery cost for the returned items will also be deducted from the refund amount.

View full details

  • Product outline

    • DPL Labs certified for 18Gbps applications, supporting 4K60 HDR or 8K/30 4:2:0 resolutions.
    • Lightweight ABS connector assembly with gold-plated HDMI connector rated for 1kg retention force.
    • Active Copper technology with no external power dependencies, works just like a normal passiveHDMI cable.
    • Every cable individually production tested.
    • Flexible, UL CMG fire-rated jacket perfect for almost every installation.
    • 2 Year Warranty.

  • Application

    Data Rate: Up to 18.2Gbps (TMDS mode)
    Video Resolution: Up to 8K (7680 x 4320) / 10K (10240 x 4320)
    Video Refresh Rate: Up to 240 frames per second
    Colour Depth: Up to 16 bits
    Colour Formats: RGB 4:4:4 / Y’CBCR 4:2:2 / Y’CBCR 4:2:0
    Content Protection: Up to HDCP 2.2 supported
    Audio Sample Rate / Channel: Up to 192KHz
    Audio Sample Size: Up to 24 bits
    Audio Channels: Up to 32 channels
    Audio Formats Supported: DTS Master, DTS:X, Dolby TrueHD, Dolby Atmos
    Auxiliary HDMI Features Supported: Consumer Electronic Control (CEC), Auto Lip-Sync Correction, Audio Return Channel (ARC), Enhanced Audio Return Channel (eARC), High Dynamic Range (HDR)

  • Technical info

    HDMI CERTIFICATION 7.5m – 12.5m ACTIVE COPPER

    DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps aggregate
    Supported Data Rate: > 6.0Gbpsc,17.82Gbps (4K UHD)
    Supported HDMI Clock: 27-340MHz

    MECHANICAL

    Cable Diameter: 28 AWG 6.8mm | 0.26in Ø
    Mounting Length Display-end: 80.0mm/3.2 in
    Mounting Length Source-end: 71.0mm/2.8 in
    Cable Bend Radius: 35.0mm | 1.4in
    Retention Force (nom): ≥ 9.8N (1kg / 2.2lbs) +10/-5%

    CONSTRUCTION

    TDMS: HDPE, Foamed-PE, length-dependent
    Conductors    : Solid 28 AWG OFC, length dependent
    Insulation on 4C + HEAC Pairs: HDPE
    Shielding Overall: AL/Mylar, 100% coverage + Al-Mg alloy braid, min 65% coverage
    Cable Jacket Material: UL CMG fire-rated PVC composite materials
    HDMI Connector Shell: Premium Gauge folded steel, 1µ” 24K Gold-plated
    HDMI Connector Pins: Solid OFC, 15µ” 24K Gold-plated
    Termination: High-Frequency Soldering
    HDMI Backshells: ABS front shell with PVC injection moulded boot and strain relief

  • Warranty

    The Kordz PRO3 Active Copper HDMI Cable is backed by our 2 Year Product Guarantee.
