Professional-grade Kordz ONE Cat6 U/UTP Network Cable is designed and engineered for systems integrators, delivering robust, reliable and easy-to-install structured network cable systems. The cable provides ANSI/TIA-568.2-D Category 6 performance beyond 550MHz, supporting 1Gbps up to 100m and 10Gbps up to 55m. Solid 24AWG oxygen-free copper conductors and a non-metallic cross separator maintain pair geometry, helping links pass certification across switches, patch panels and outlets. The 5.7mm diameter routes cleanly through conduit and crowded pathways while remaining suitable for both IDC and crimp terminations. The construction also supports PoE++, powering up to 100W for modern access points, displays and AV endpoints. HDBaseT recommended, this cable is metre-marked for predictable pulls, and available in multiple jacket colours along with CPR Dca LSZH or UL CM fire ratings.

Match it with the ONE Push Through Connector or PRO 24AWG RJ45 Crimp Connector and PRO Keystone RJ45 Socket for a complete network system that delivers ‘Connectivity Assured’.

• ETL verified ANSI/TIA-568.2-D Category 6 compliant beyond 550MHz
• Supports 1Gbps up to 100m and 10Gbps up to 55m
• HDBaseT recommended
• 24AWG solid OFC conductors with cross separator for optimal installation stability
• 5.7mm diameter for easy installation in tight spaces
• Supports IEEE802.3bt PoE++ at 100W
• Option of CPR Dca LSZH and UL444 CM PVC fire ratings
• Metre-marked for precise installation

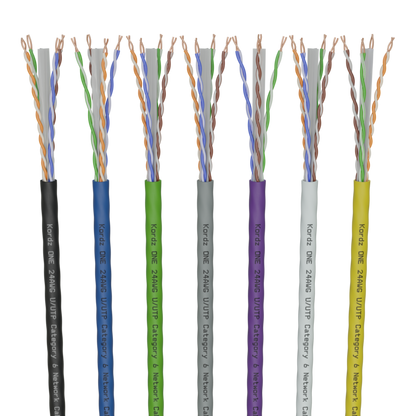

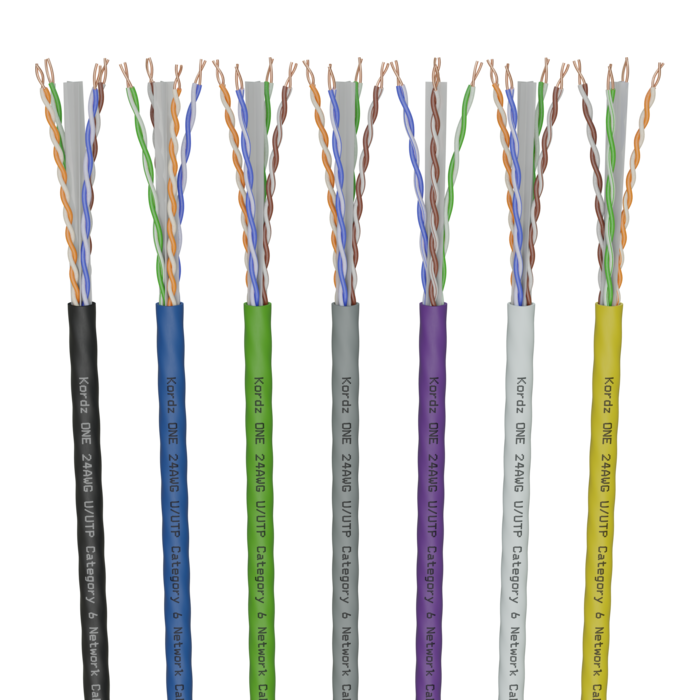

• Available in various colours
• Packaged in a convenient Reel-in-Box
• Kordz Lifetime Warranty

  Technical info

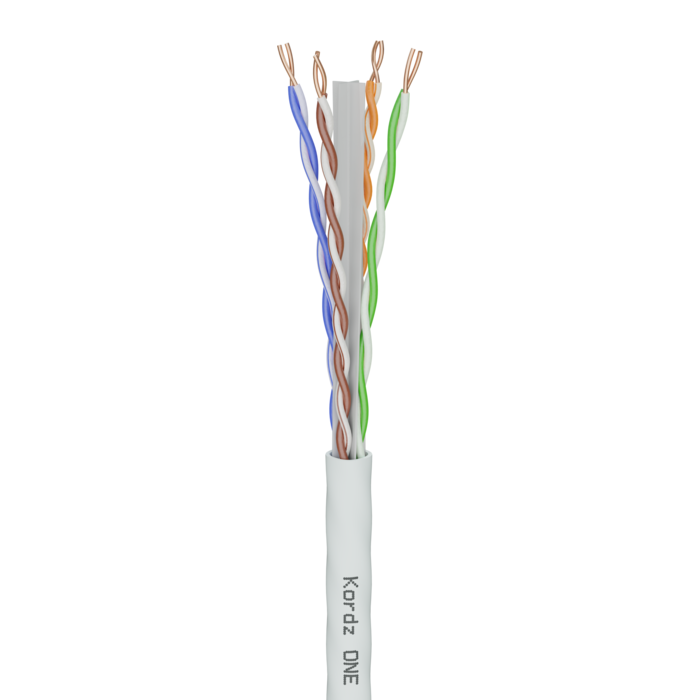

  CONSTRUCTION

  Conductor: Solid OFC annealed bare copper wire 0.537 +0/-0.015mm [24AWG]
  Insulation: Polyethylene, 0.97 +/-0.05 mm
  Twisting: 4 twisted pairs, 2 cores to each pair
  Twisted Pair Colour Code: 1 – white-blue/blue, 2 – white-orange/orange, 3 – white-green/green, 4 – white-brown/brown
  Cable Lay-Up: 4 pairs with different pitches, non-metallic cross separator (spine)
  Outer Diameter: 5.7 +/-0.3 mm

  MECHANICAL

  Bend Radius: without load ≥ 22.8mm /0.89”, with load ≥ 45.6mm /1.79”
  Temperature Range: During Operation: -20°C to 60ºC During Installation:  0°C to 50ºC

  ELECTRICAL

  DC Resistance: ≤ 23.6Ω / 100m at 20ºC
  Resistance Unbalance: max. 4% at 20ºC
  Insulation Resistance (500V): ≥ 5000MΩ / km at 20ºC
  Mutual Capacitance: ≤ 5.6 nF / 100m at 1kHz
  Capacitance Unbalance (Pair to Ground): ≤ 330 pF / 100m at 1kHz
  Nominal Velocity of Propagation: nom. 67% c
  Test Voltage: 1kV DC / 1 min



  MATERIALS/MARKING & FIRE RATING

  LSZH:
  Kordz ONE Solid OFC UHD/4K Video/Data Network Cable. ETL VERIFIED TIA-568-C.2 (3081133CRT-009) LSZH CAT6 U/UTP 24AWG. IEC 60332-1

  FRPVC:
  Kordz ONE Solid OFC UHD/4K Video/Data Network Cable. ETL VERIFIED TIA-568-C.2 (2042398CRT-004) CM CAT6 U/UTP 24AWG. UL 444 CM

  Colour

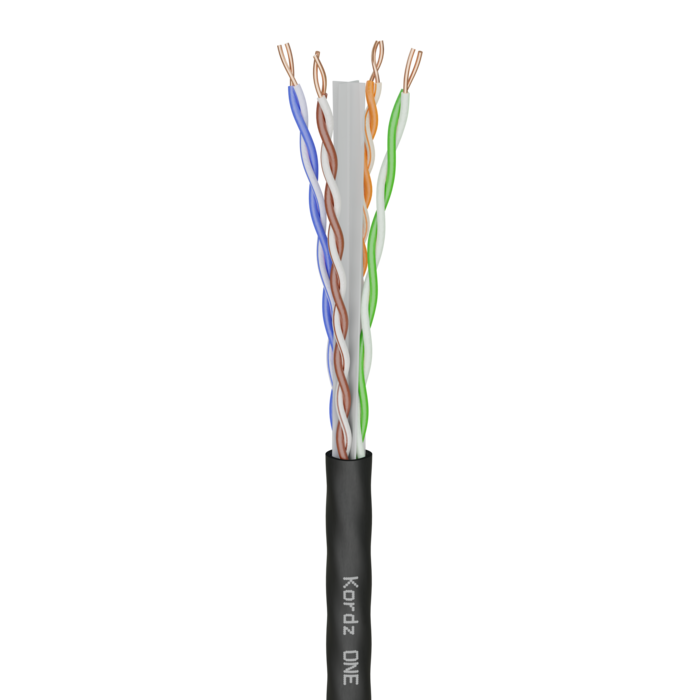

  Black: RAL9011
  Blue: RAL 5015

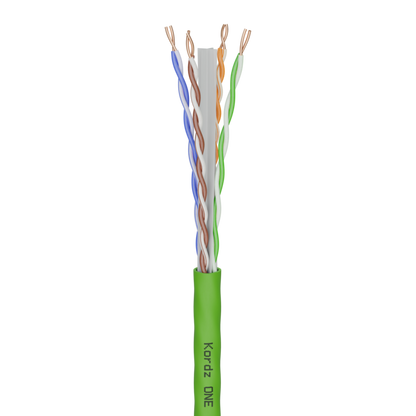

  Green: RAL 6018

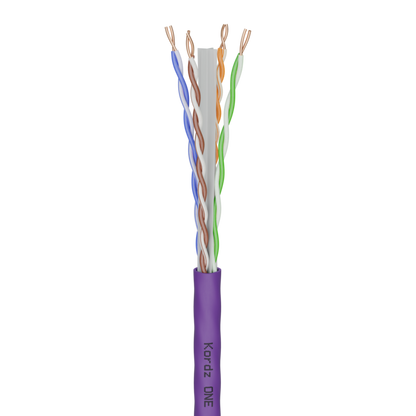

  Purple: RAL 4005

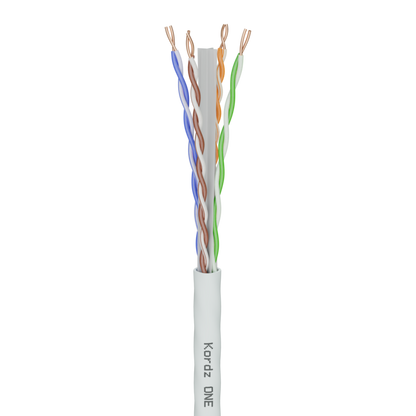

  White: RAL 9003

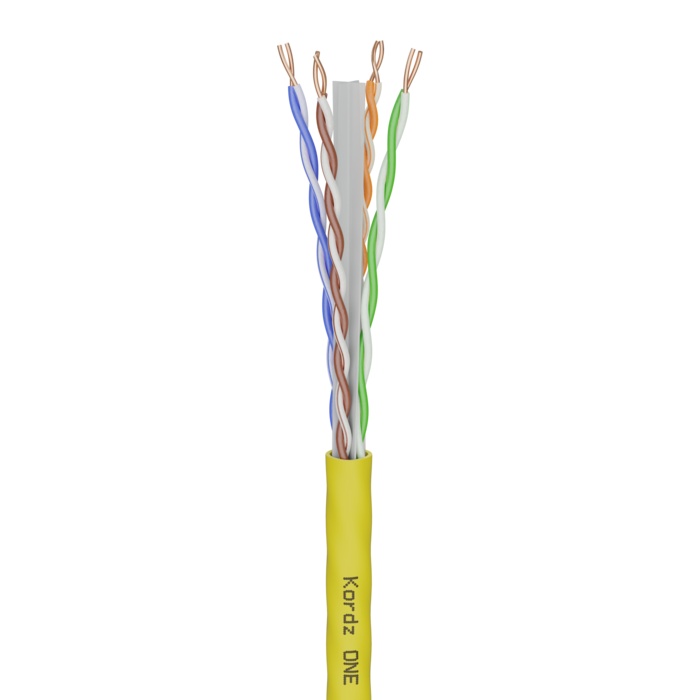

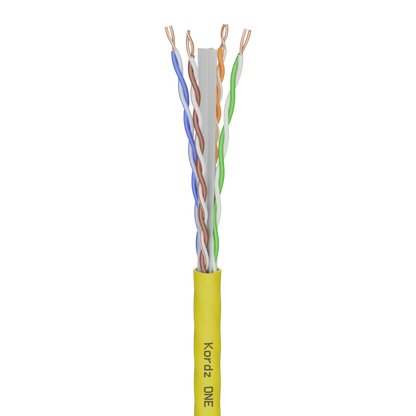

  Yellow: RAL 1018
  Grey: RAL7044



  PACKAGING

  Roll Size: 305m / 1000ft – metre marked
  Carton Dimensions: 330mm (W) x 265mm (D) x 340mm (H) / 13.0in (W) x 10.4in (D) x 13.4in (H)
  Volume: 0.03m2 / 1.05 cu. ft.
  Gross Weight: 13.8kg / 30.4lbs
