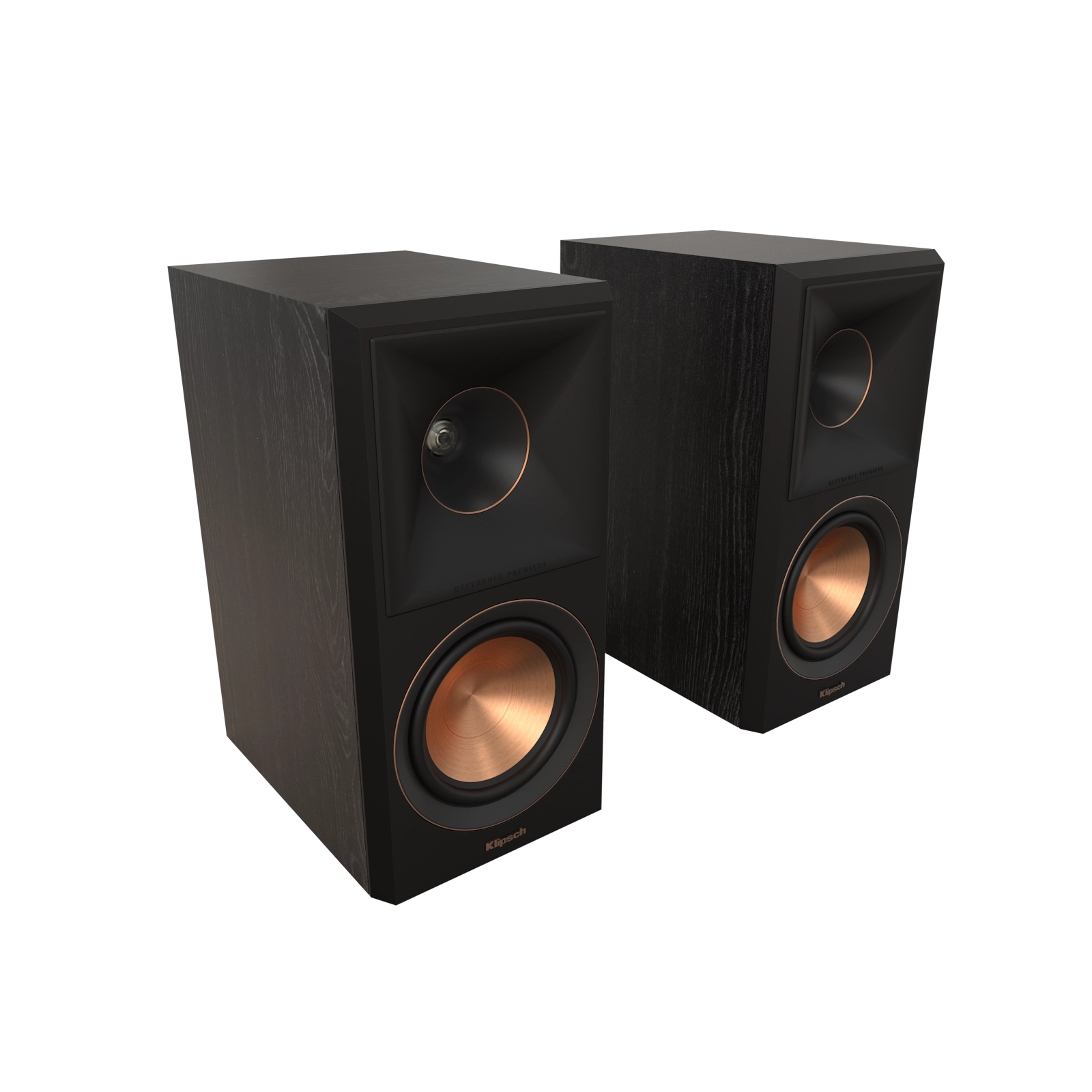

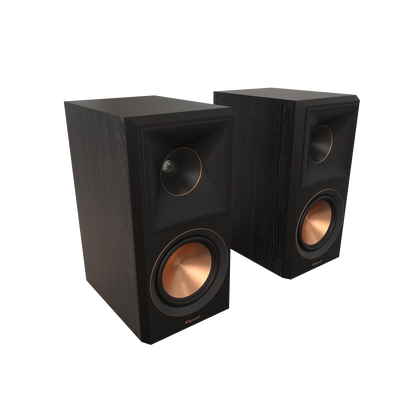

Klipsch RP-500M II Bookshelf Speakers - Pair

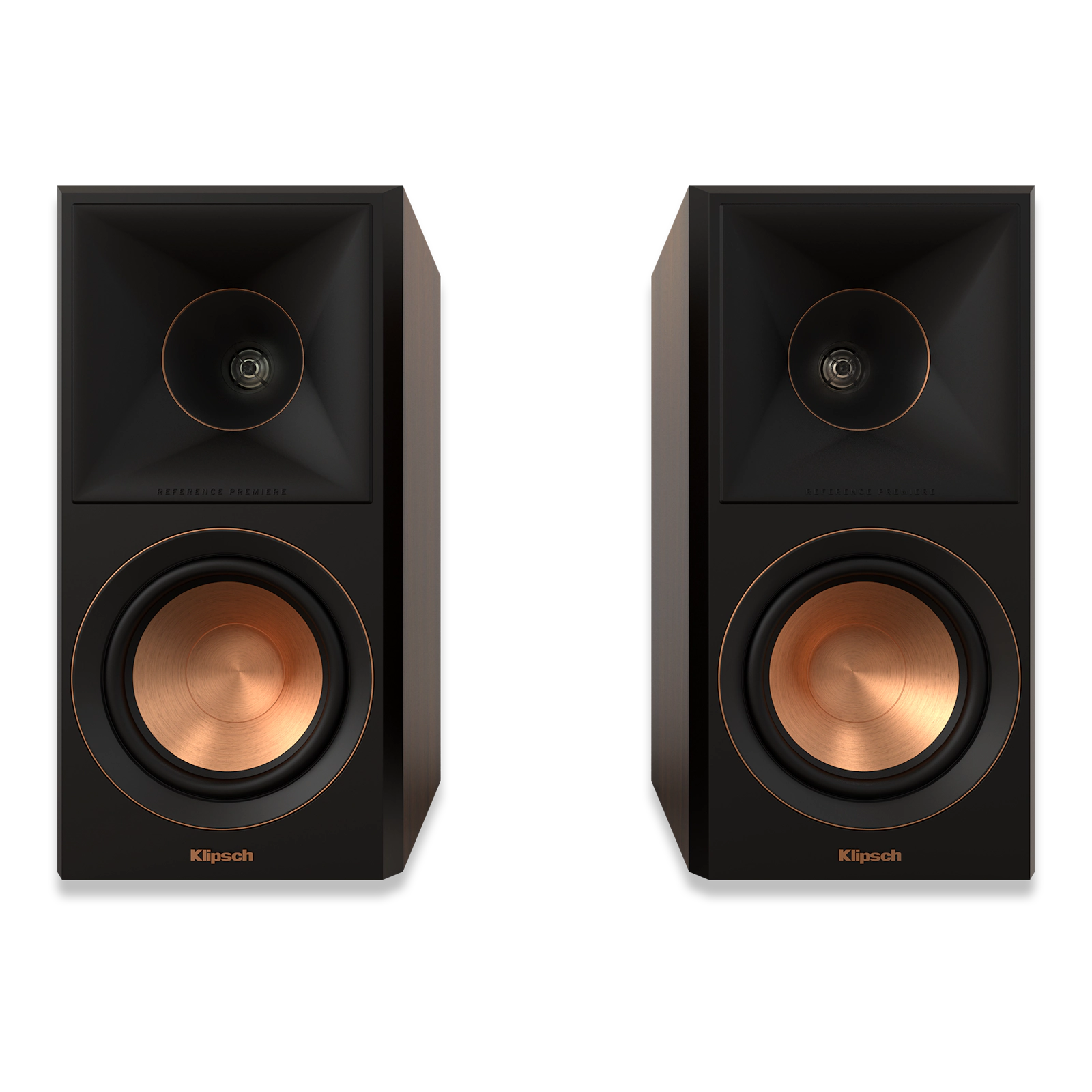

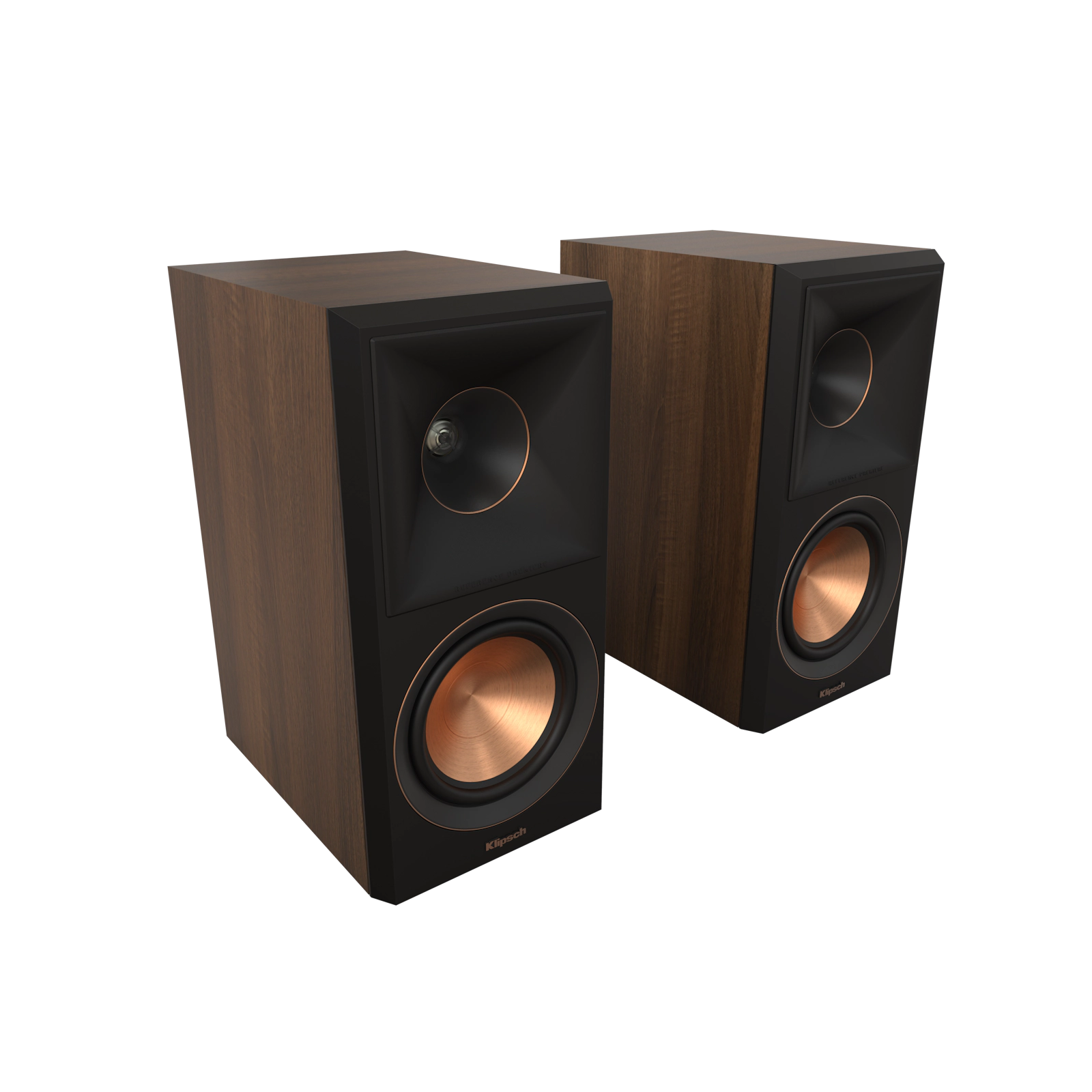

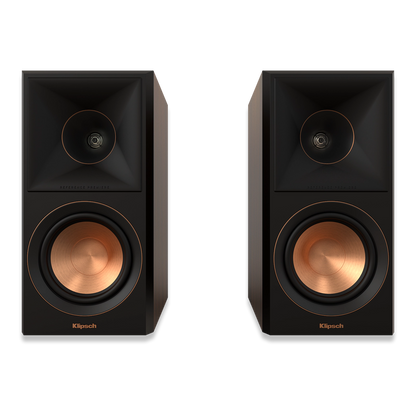

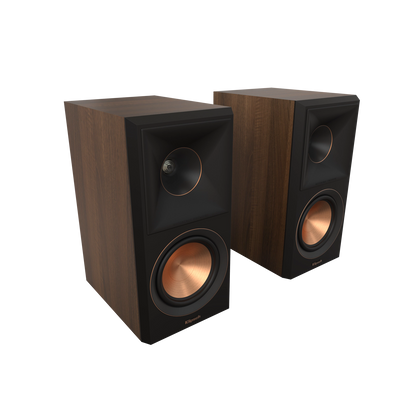

90° X 90° Silicon Composite Hybrid Tractrix Horn

Horn loading maximizes efficiently and increases detail while focusing high frequencies towards the listening area. Proprietary Tractrix geometry provides the most efficient transfer of high frequency waves into the listening area. The phase plug and compressed molded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created. The second generation increases horn size for a larger soundstage and enhanced directivity.

Linear Travel Suspension (Lts) Titanium Diaphragm Tweeter

The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.

Vented Tweeter Design

The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high frequency reproduction.

Cerametallic Woofers – All New Design

A signature feature on the Reference Premiere series, Cerametallic woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. New aluminium shorting rings reduce distortion as well as increased power handling and the new motor structure improve transit response with more control with greater speed and accuracy.

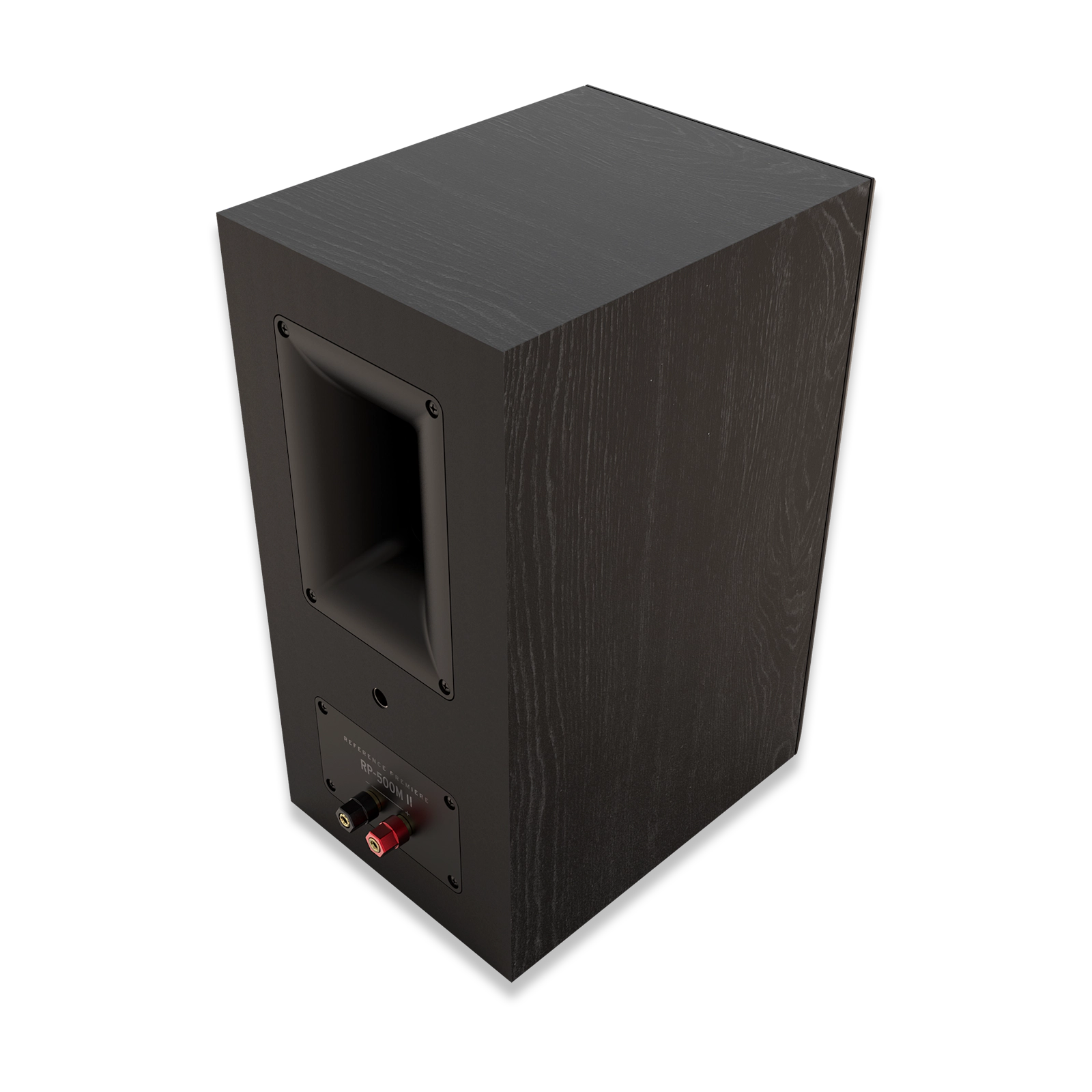

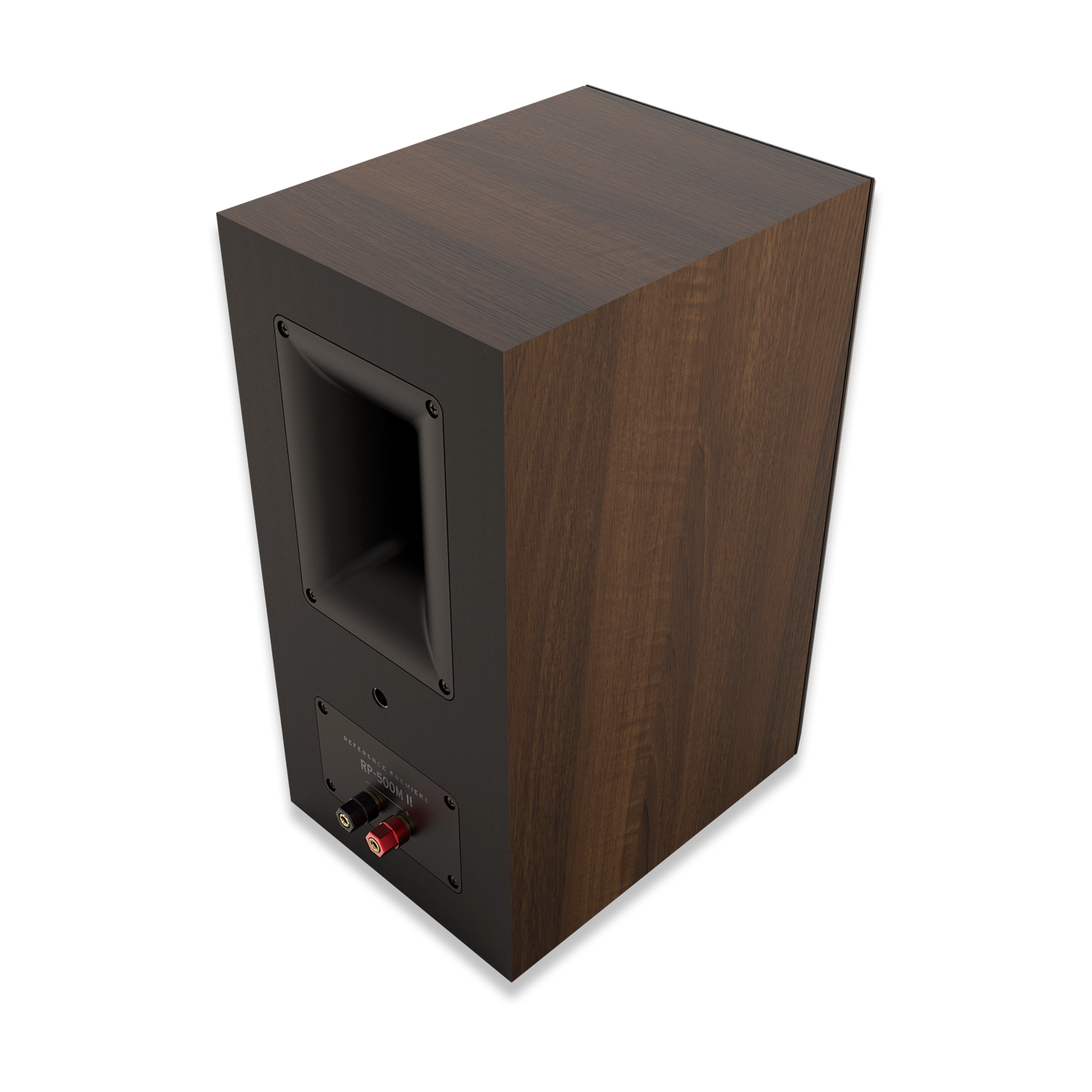

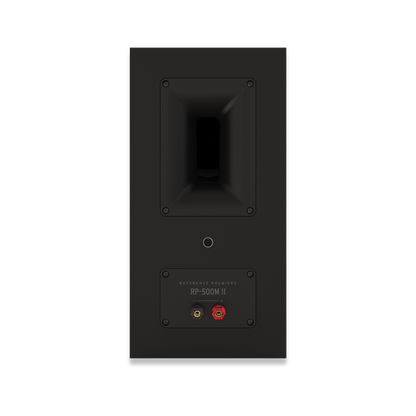

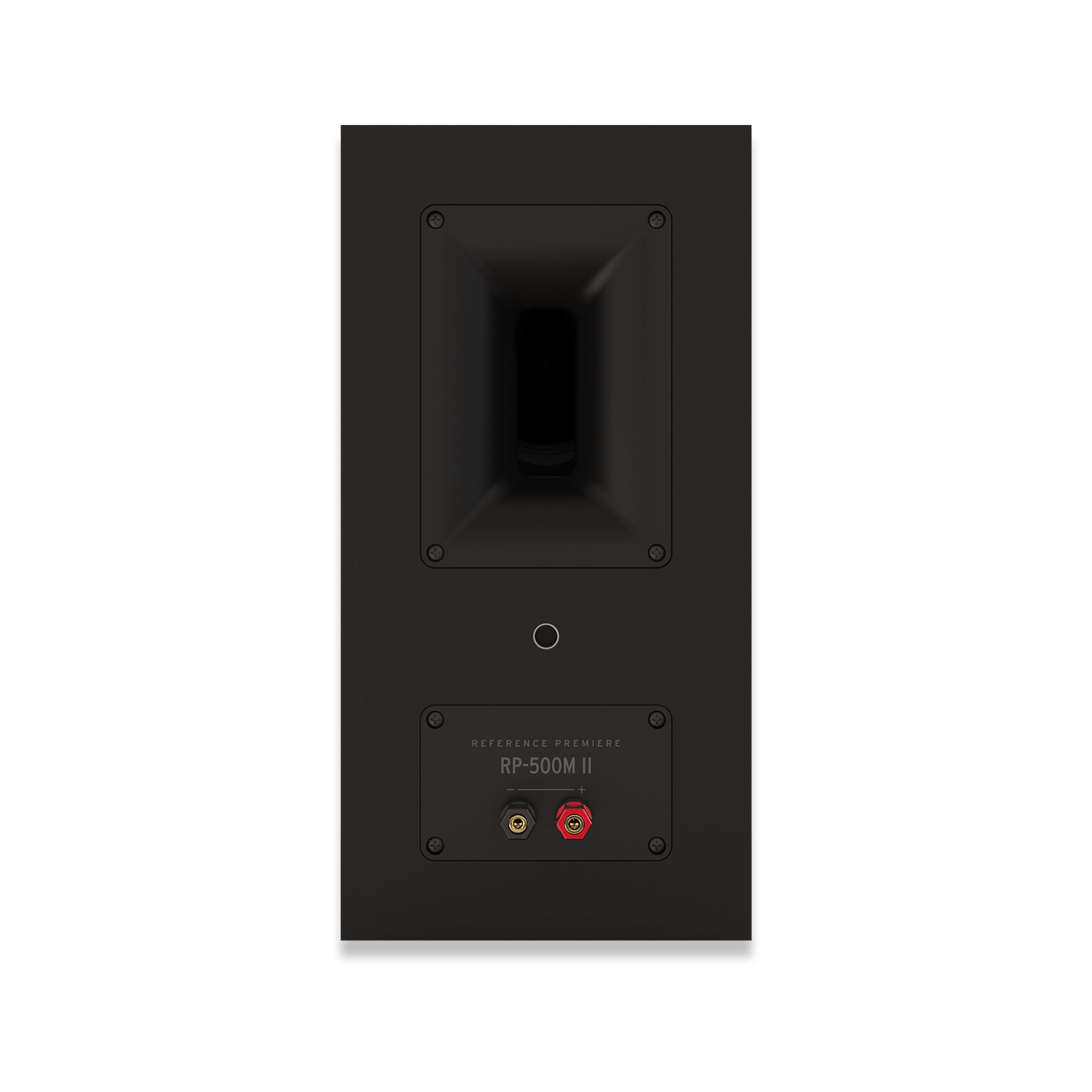

Tractrix Ports

Utilizing Tractrix geometry, the Reference Premiere ports allow for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies. Klipsch Tractrix ports have custom designed inner flares that help reduce air turbulence entering the port. Less turbulent air helps reduce port noise for cleaner, more powerful bass.

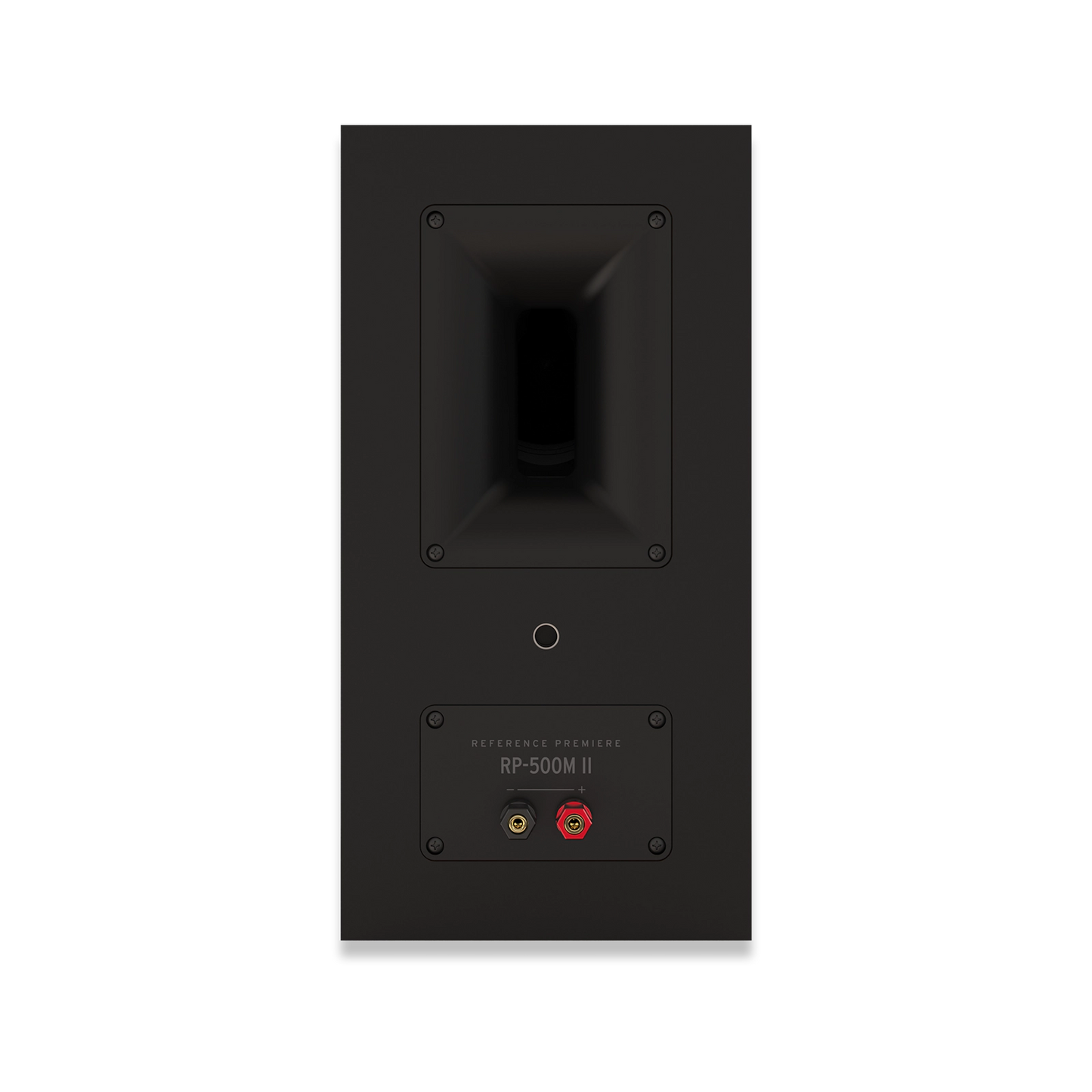

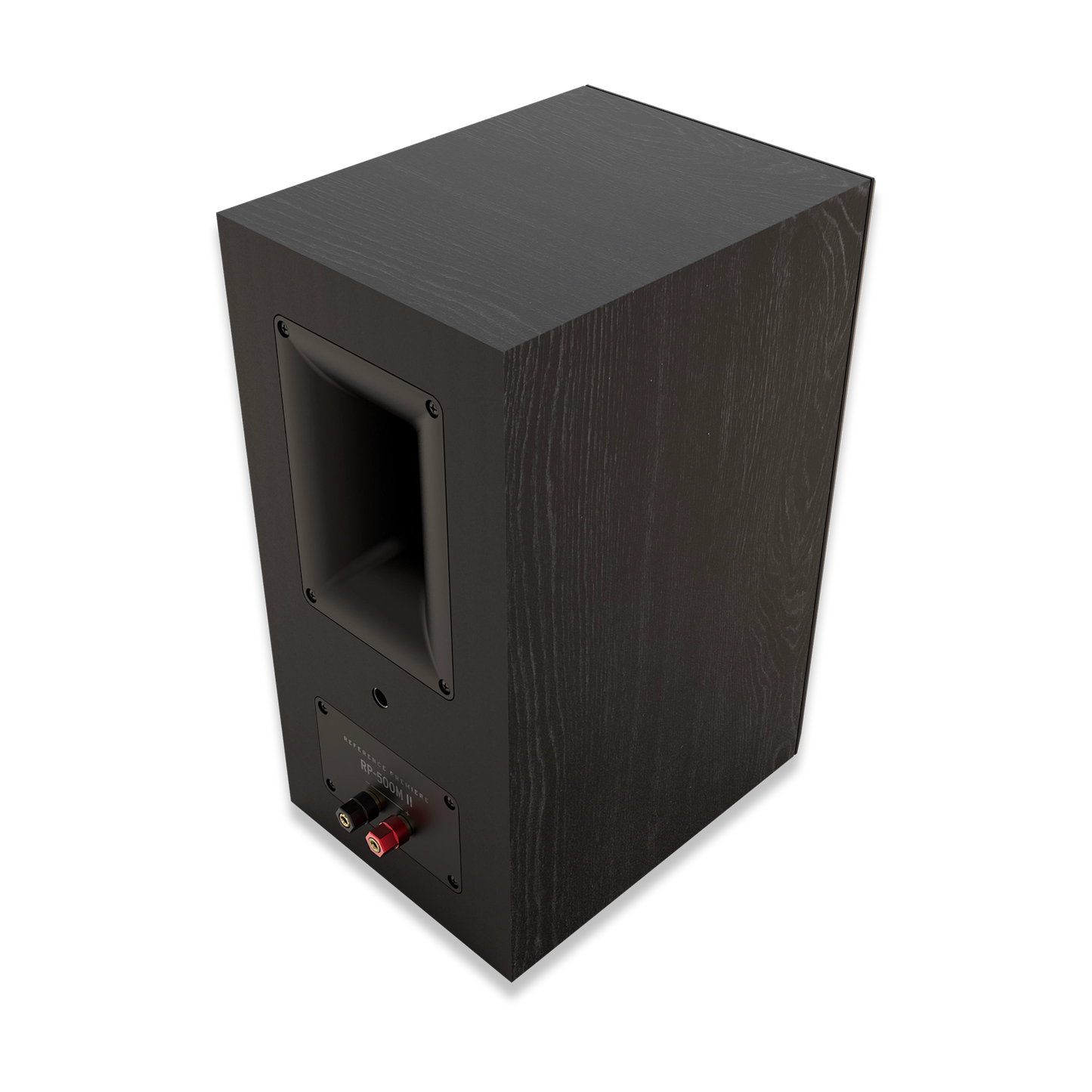

New And Improved Input Panel

Featuring audiophile-grade wire and easily accessible aluminium binding posts for any connection type.

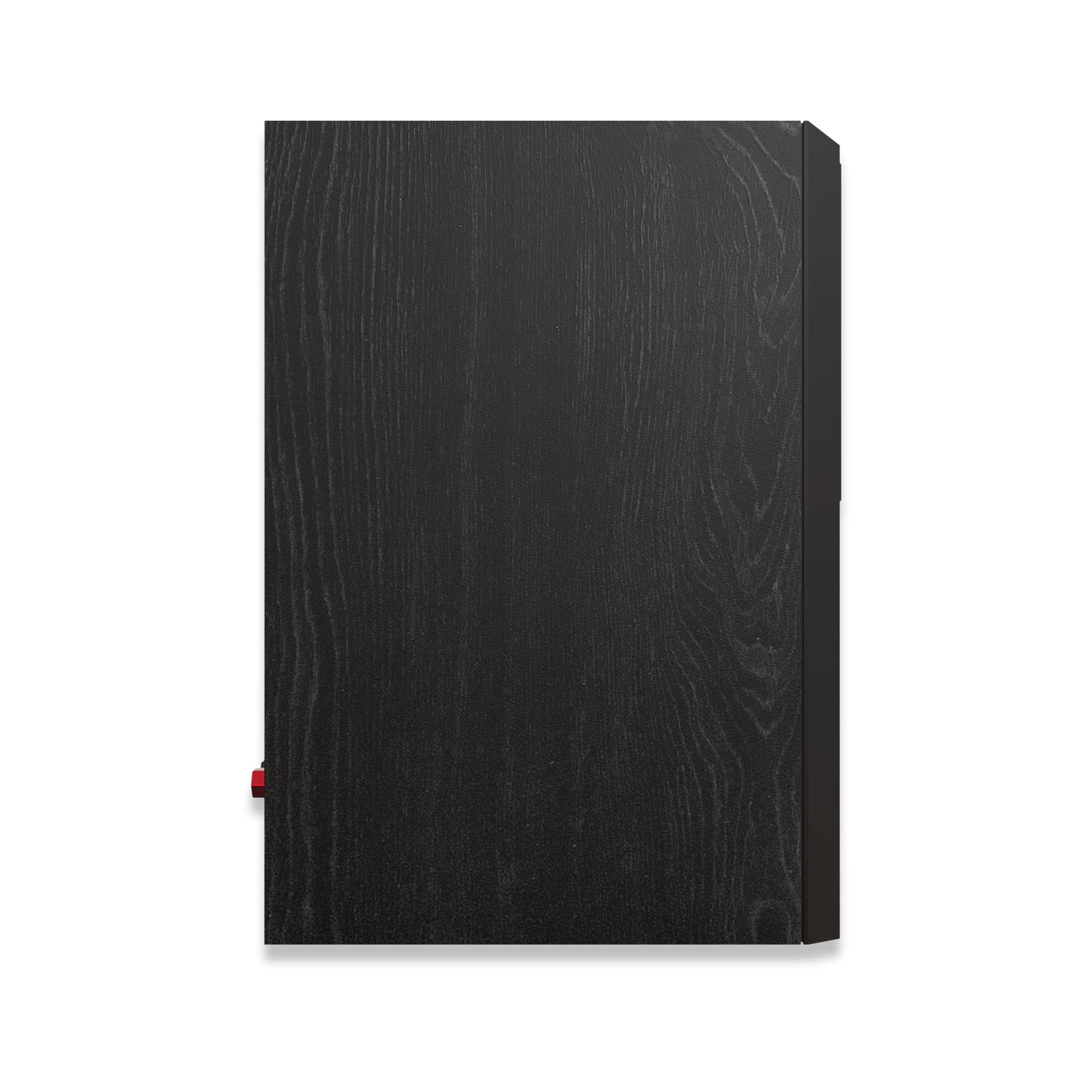

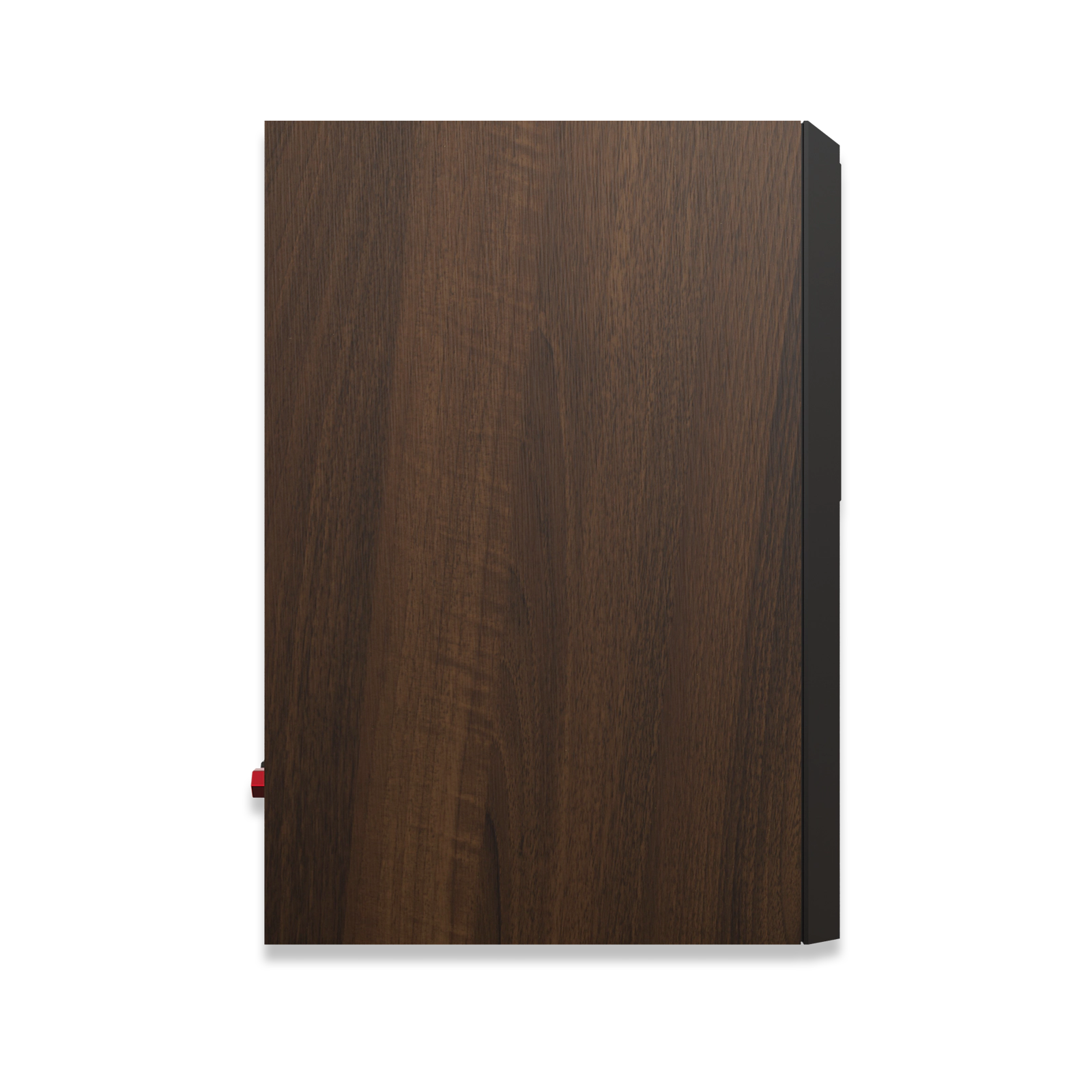

Furniture Grade Materials And Finishes

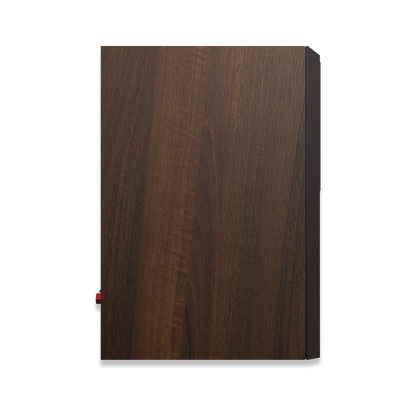

Finishes include ebony vinyl and walnut vinyl that boast satin painted baffles with a scratch resistant finish.

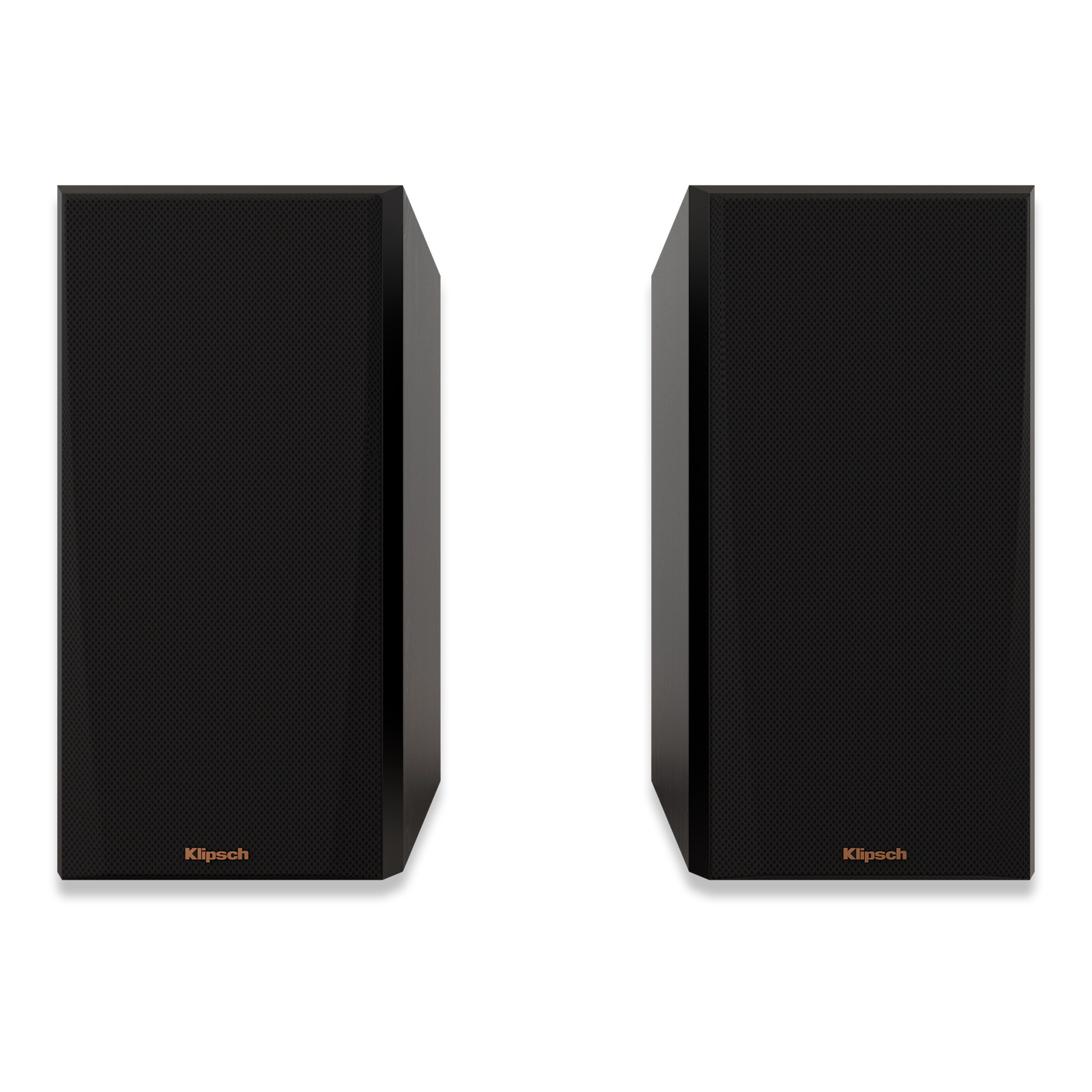

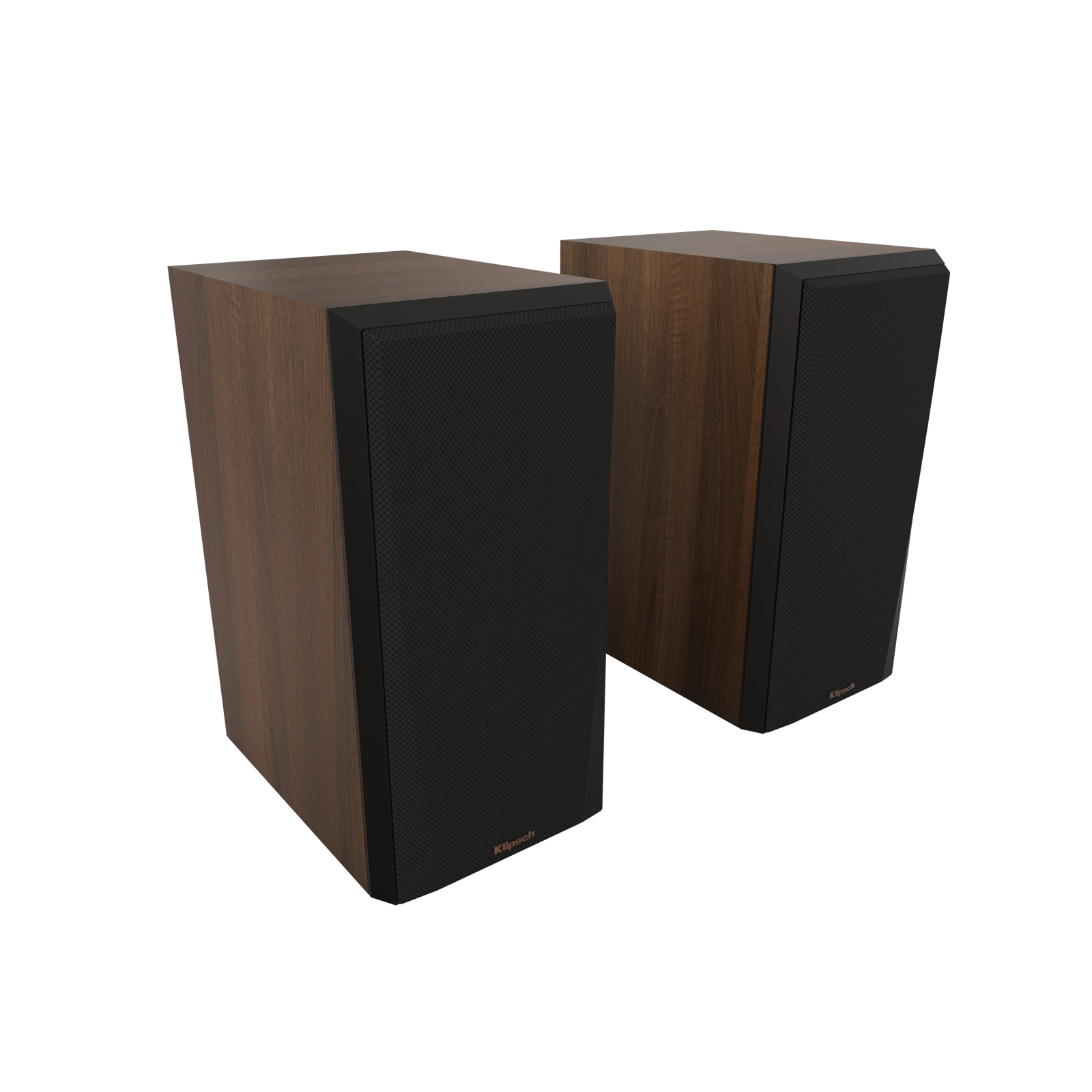

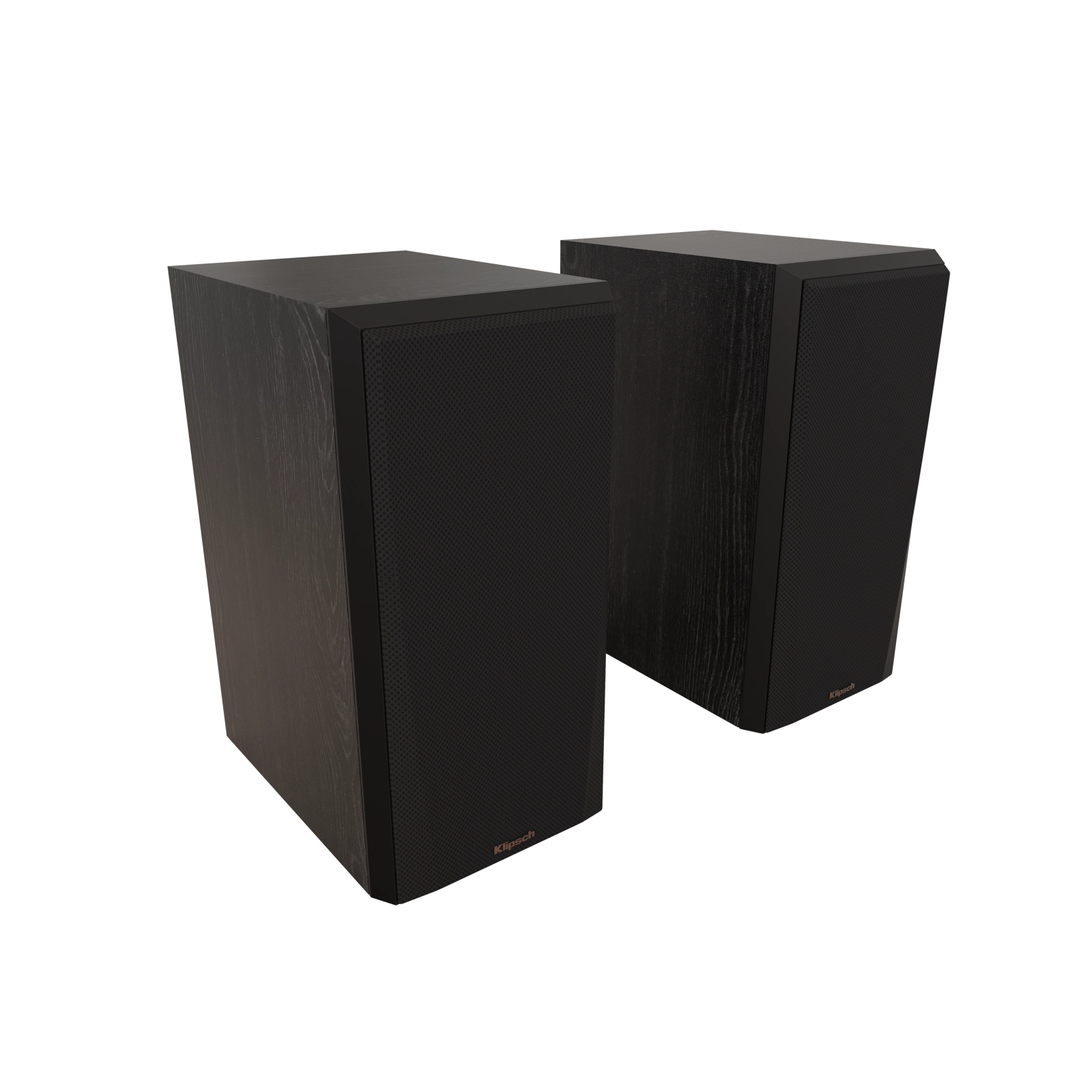

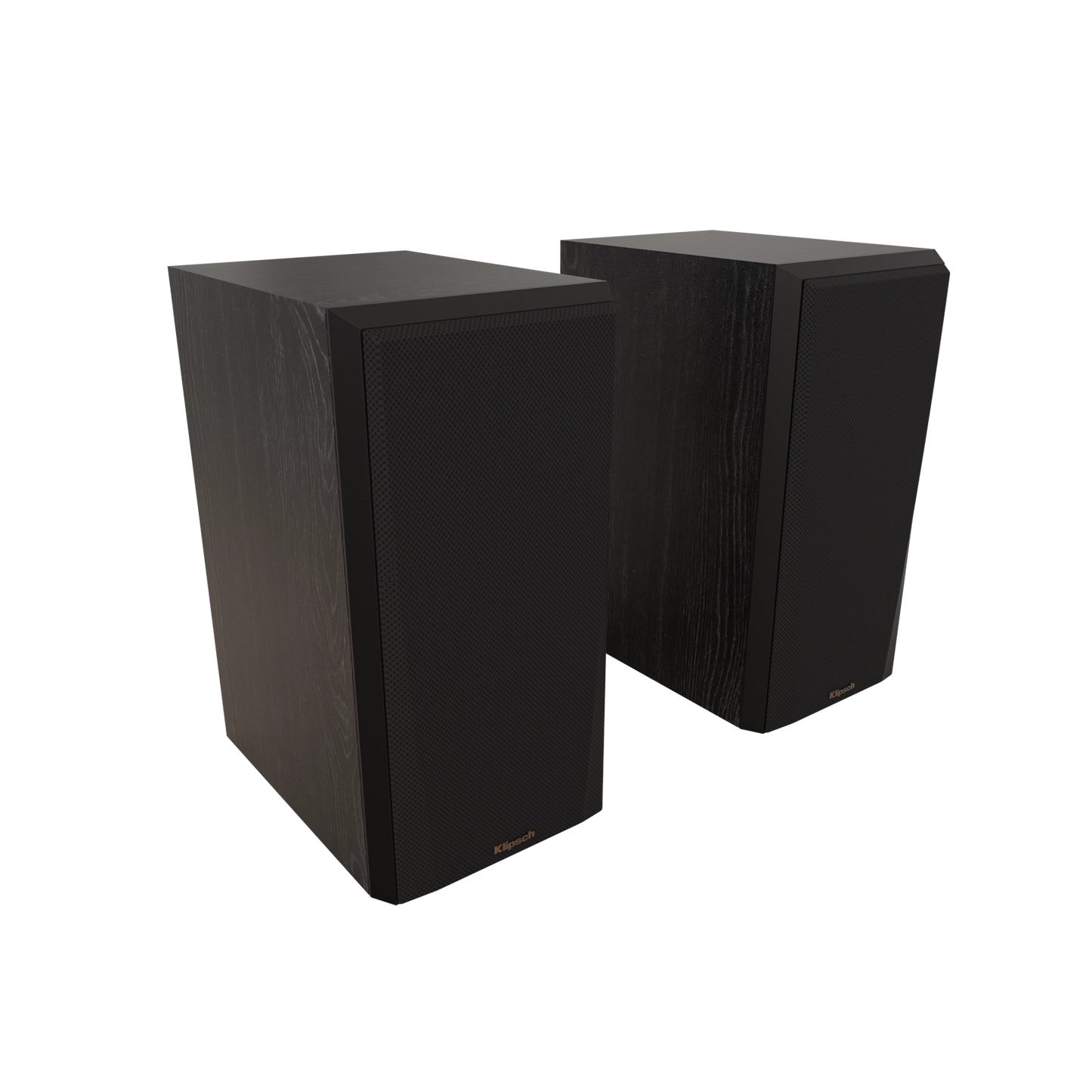

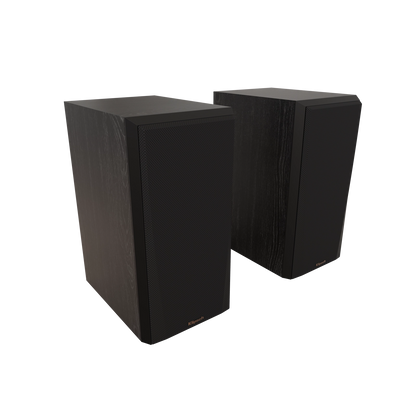

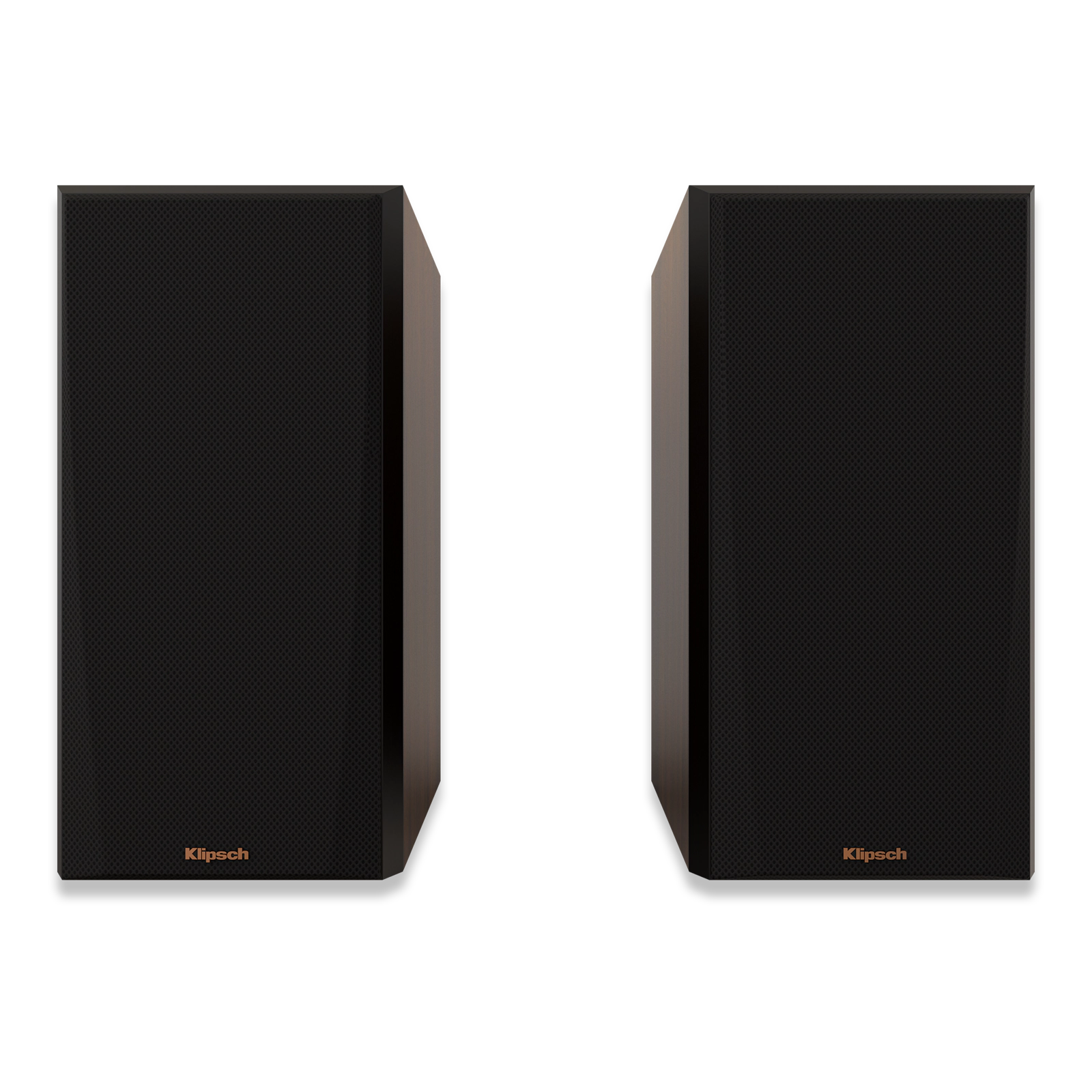

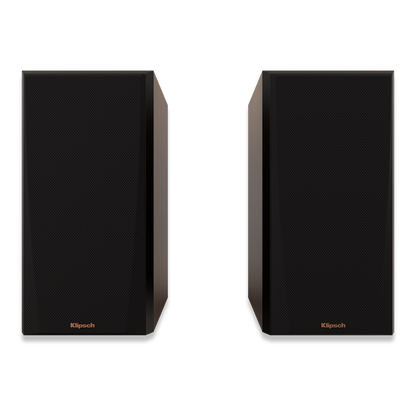

Strong, Flexible, Removable Grille

Attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece.

Cork Pads

Cork pads replace rubber bumpers for security on a stand or table.

FREQUENCY RESPONSE 50-25kHz +/- 3dB

SENSITIVITY* 92dB @ 2.83V / 1m*

POWER HANDLING (CONT/PEAK) 75W / 300W

NOMINAL IMPEDANCE 8 Ohms Compatible

CROSSOVER FREQUENCY 1530Hz

HIGH FREQUENCY DRIVER 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn

LOW FREQUENCY DRIVER Dual 5.25” Cerametallic Cone Woofers with Faraday rings

ENCLOSURE MATERIAL MDF (Internally Braced)

ENCLOSURE TYPE Bass Reflex via dual chamber rear-firing Tractrix® Ports

INPUTS Dual aluminum binding posts / bi-wire / bi-amp with Dolby Atmos® passthrough

HEIGHT INCHES (MM) 344

WIDTH INCHES (MM) 173

DEPTH INCHES (MM) 270

PRODUCT WEIGHT LBS (KG) 5.95

FINISH Ebony, Walnut
