Mood Series - Tuneable White - IP20 - MKI

The tuneable white 3CCT strip is for spaces where the right colour temperature changes throughout the day or across different uses. A home cinema that needs warm mode for movie watching and neutral mode for cleaning. A kitchen that shifts between 2700K ambience in the evening and 4500K task light during meal prep. One strip handles all of it. The 288 Epistar 2216 chips per metre produce smooth, even output — 745lm/m at 2700K, 1595lm/m at 4500K, and 920lm/m at 6000K. Tuning and dimming require the HX-DLV003-RFBK controller. Cutting unit 45.5mm. Bend diameter 60mm. A 5m roll requires a 100W driver. 15cm tail on one end. 3-year warranty.

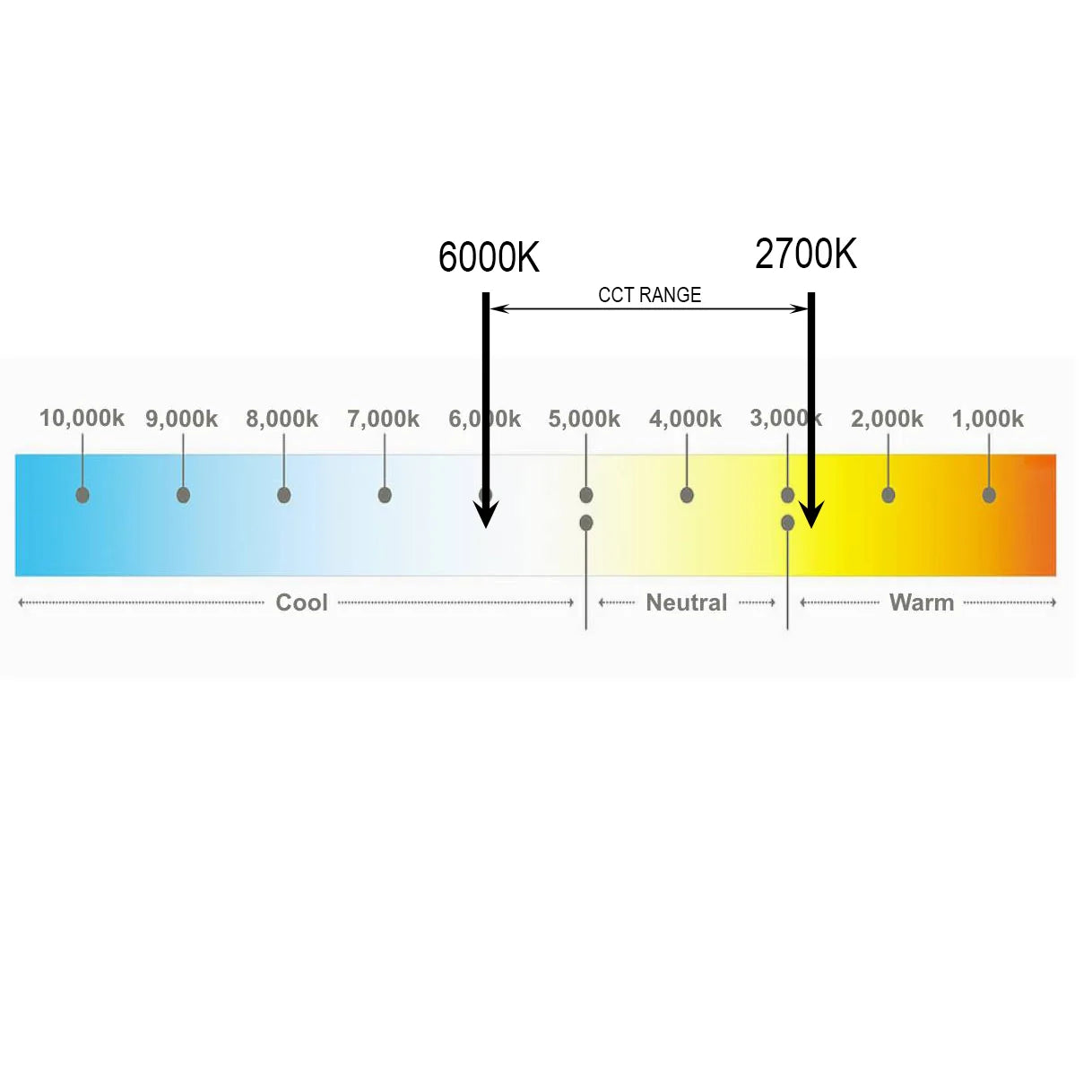

Colour Temperature Range: 2700K–6000K (Tuneable)

Fixed CCT Modes: 2700K / 4500K / 6000K

Lumens at 2700K: 745 lm/m

Lumens at 4500K: 1595 lm/m

Lumens at 6000K: 920 lm/m

Watts per Meter: 18W

LEDs per Meter: 288 × Epistar 2216 SMD

PCB Width: 10mm

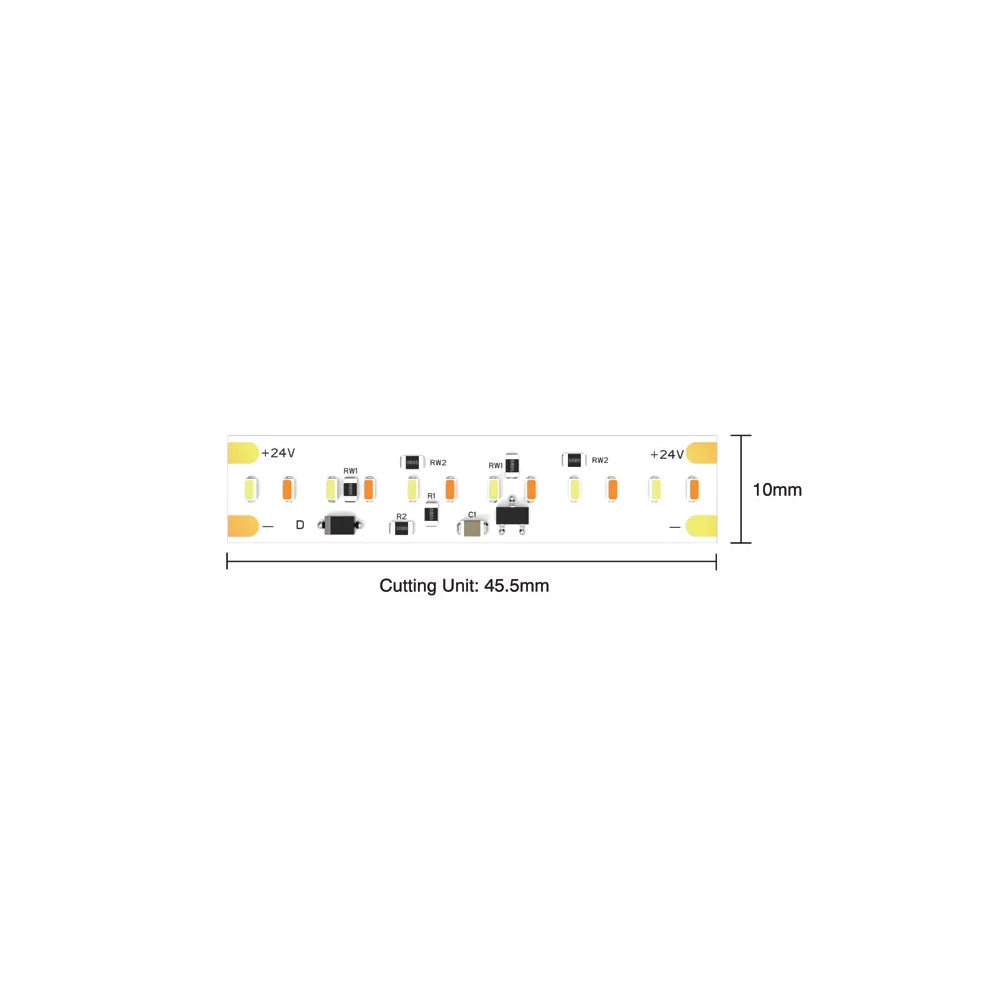

Cutting Unit: 45.5mm

Bend Diameter: 60mm

IP Rating: IP20

Voltage: 24V DC

Roll Length: 5m

Driver Required: 100W constant voltage

Controller Required: HX-DLV003-RFBK (for CCT and dimming)

Warranty: 3 Years
