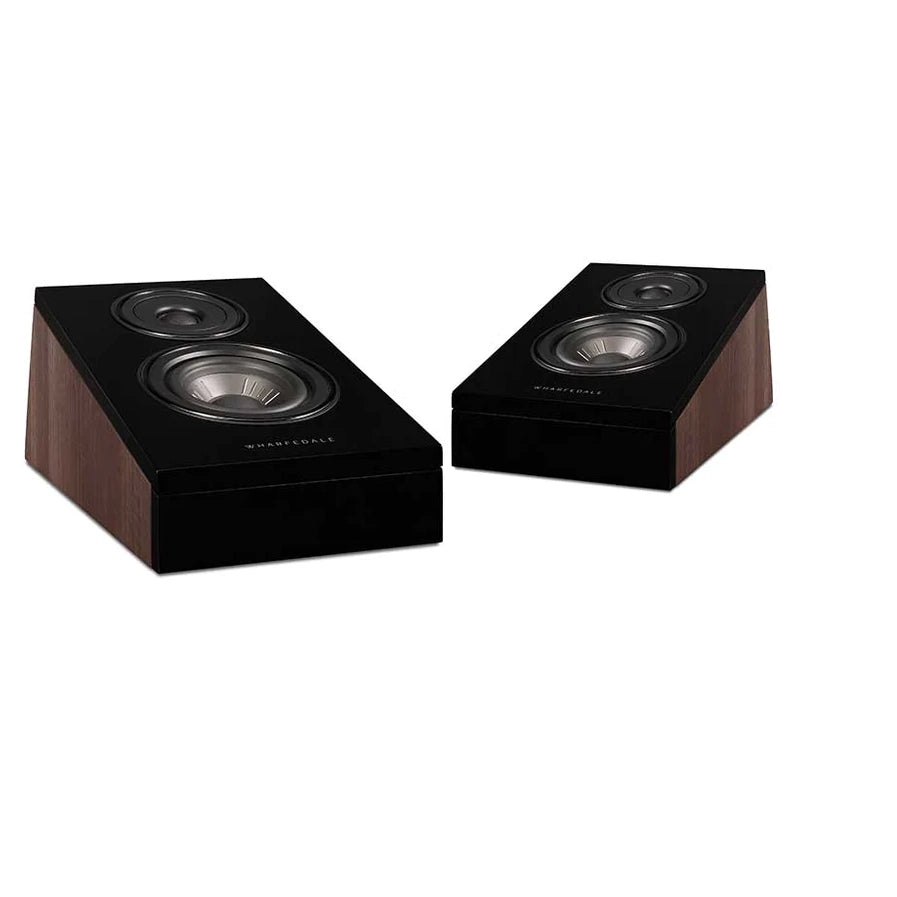

Wharfedale Diamond 12.3D Surround Speakers (pair)
Wharfedale Diamond 12.3D Surround Speakers (pair)
GIVING YOU GOOSEBUMPS
Goosebump-inducing home theatre experiences have long been relegated to only the fattest wallets. But not anymore. Thanks to intelligent design aided by the advancements of modern computer simulation, it’s the movies through Diamond 12 that’ll leave you speechless, not its price.
COSTLY? FINK AGAIN.
Collaboration with one of the most successful loudspeaker designers on the planet, Karl-Heinz Fink, has helped produce Wharfedale’s most impressive Diamond series to date, and your all-access pass to the exclusive world of refined audio engineering.
MOVIE NIGHT EVERY NIGHT

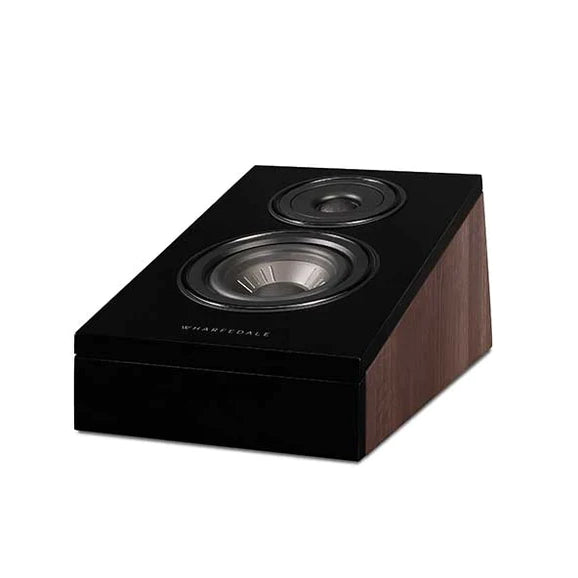

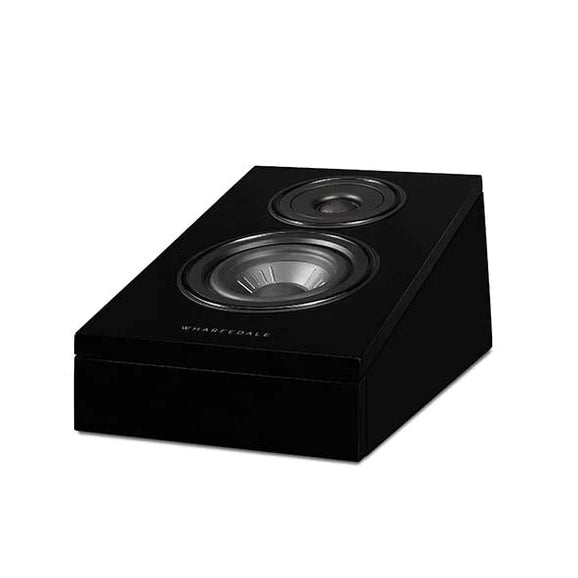

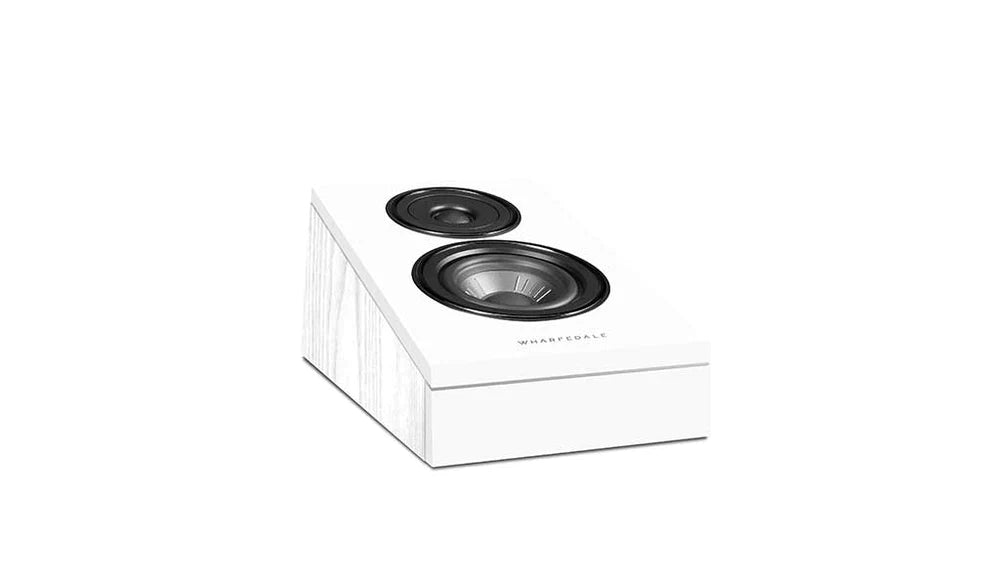

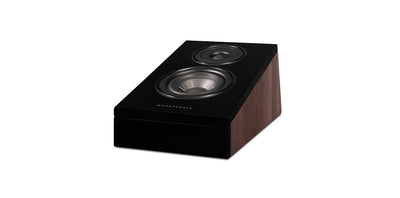

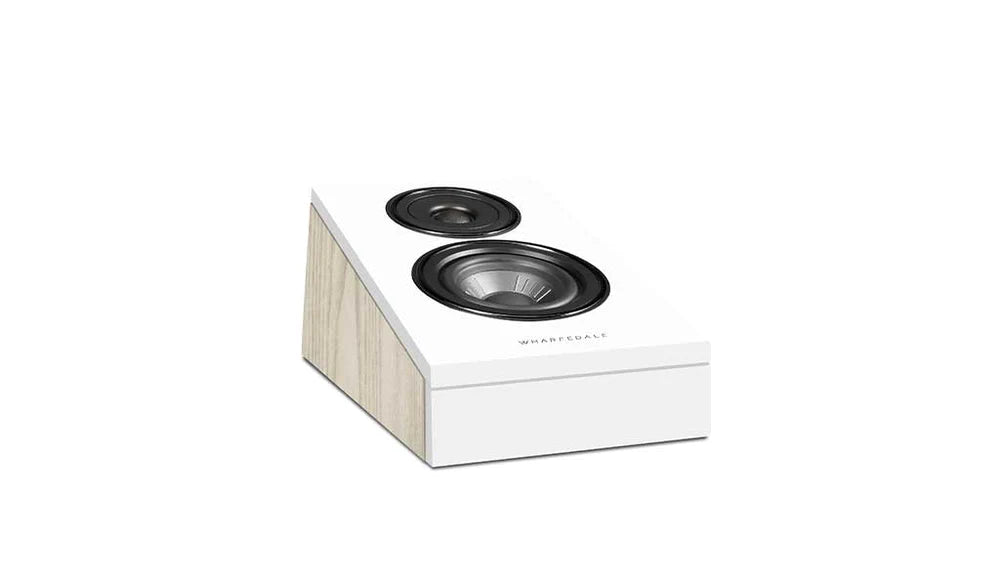

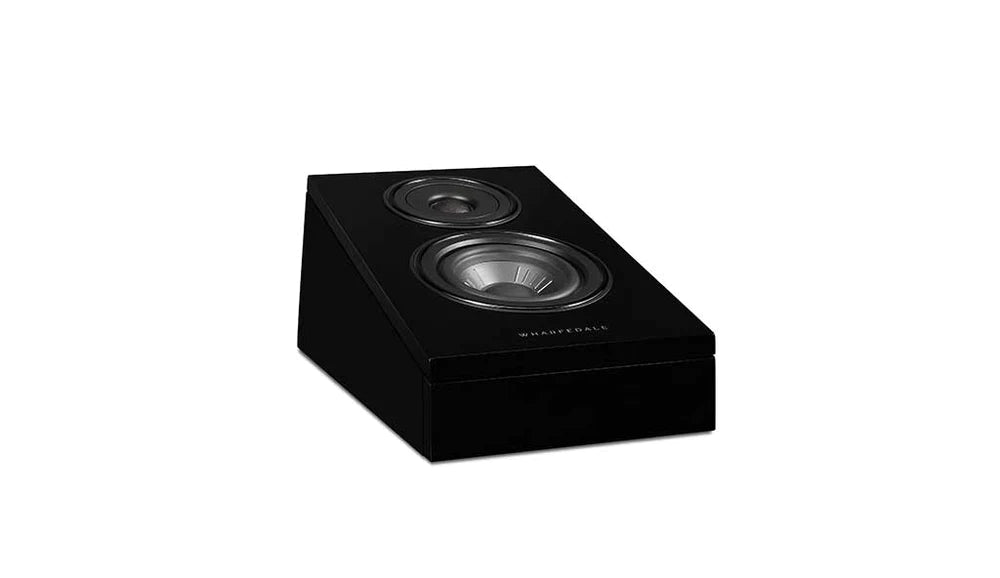

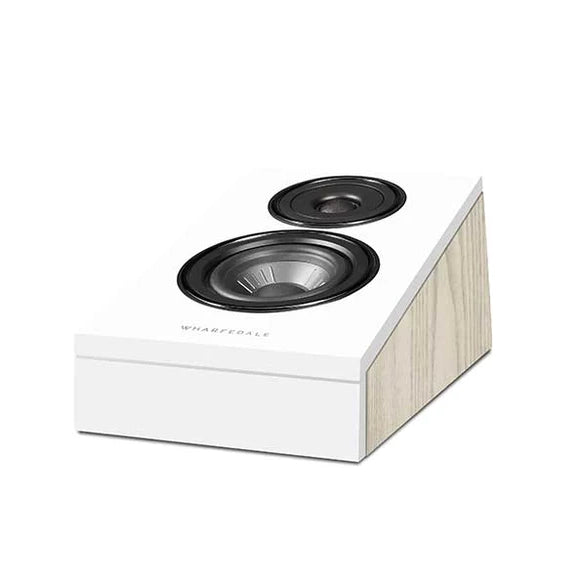

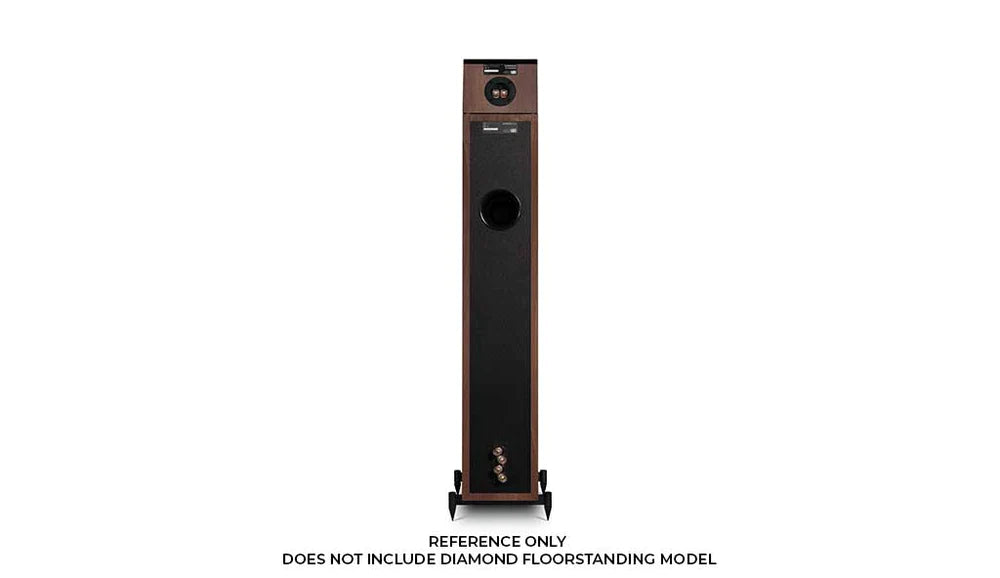

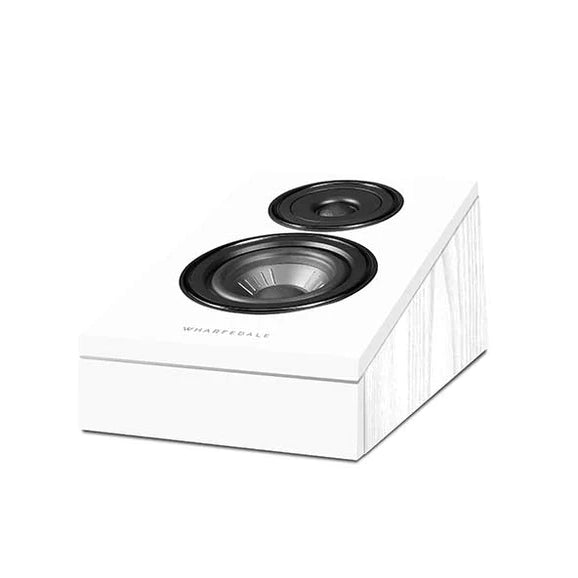

This 2-way vertical channel surround loudspeaker features a 1" (25mm) textile dome tweeter and a 4" (100mm) advanced PP cone driver. Diamond 12 3D is designed to sit flush on top of Diamond 12.1 & 12.3 models; however, it’s also wall-mountable, for height channels in home theatre systems.
PUTTING YOU IN HARMONY

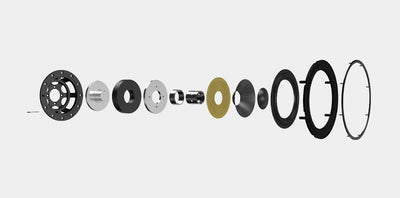

Precision-made magnet systems incorporate aluminium compensation rings to cull distortion and discordant tones caused by intermodulation. Wharfedale’s most advanced Diamond motor system ever built now puts you in perfect harmony with your movies.
WE CALL IT ‘KLARITY’
A new formulated blend of polypropylene and mica significantly reduce flex to create a rigid, lightweight cone with low colouration and lightning-fast response. So, your new Diamond’s play harder, handle more power, and perform flawlessly, every time.
DIVE IN TO YOUR MOVIES
Dome tweeters incorporate woven polyester film and high-loss coatings to generate silky smooth high-frequency extension. And with driver systems optimised for wide dispersion, film scores, high drama, and explosions ripple out, wall-to-wall, bathing you in sound.
DETAIL WITH A SIDE OF RIBS

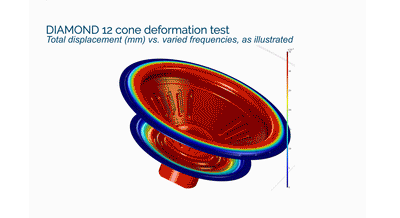

New drive cones include custom-engineered ribbing combined with a low-damping surround. This increases cone rigidity and reduces colouration, giving you a more dynamic, more detailed listening experience – one that honours (not colours) your favourite films.
MULTI-MOUNT VERSATILITY

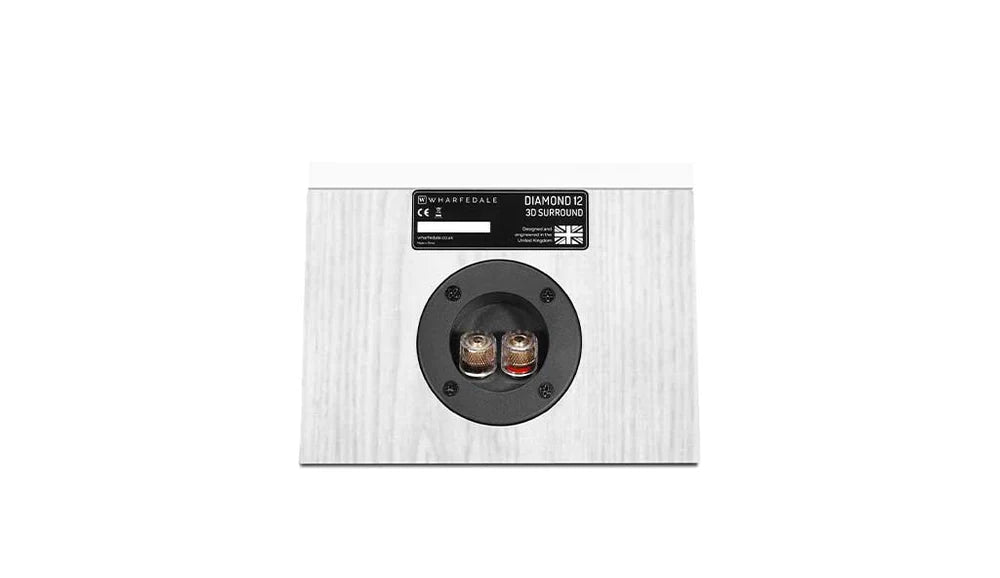

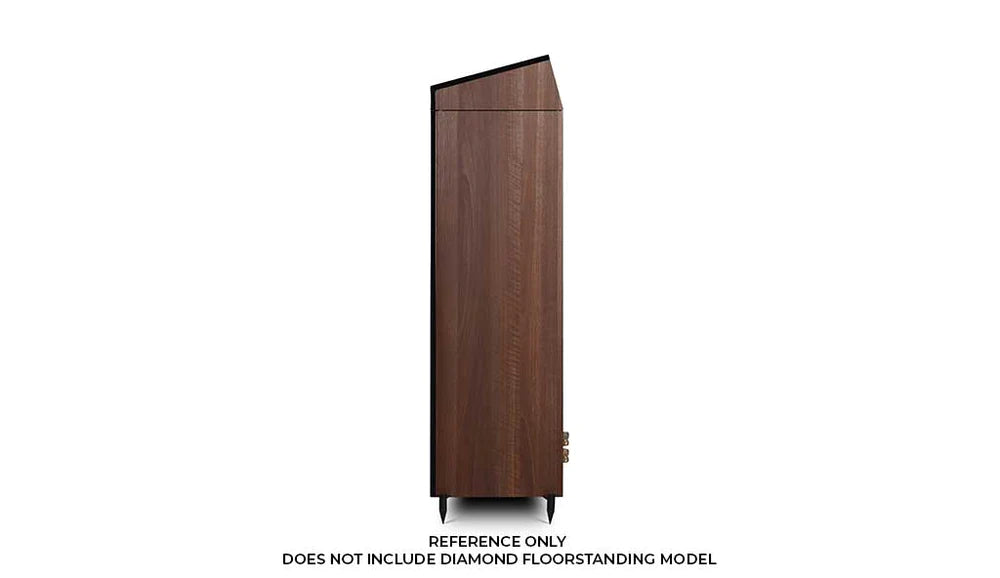

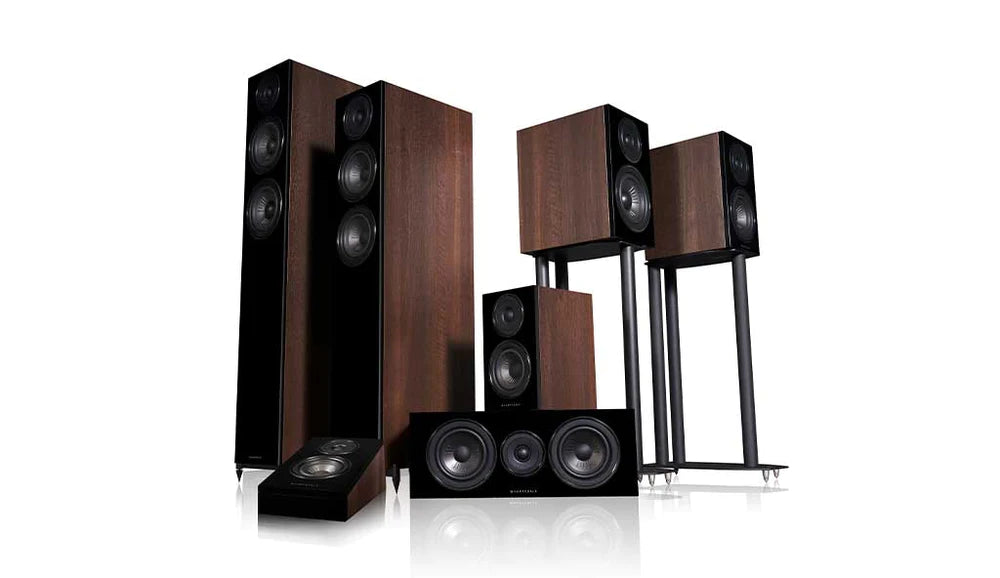

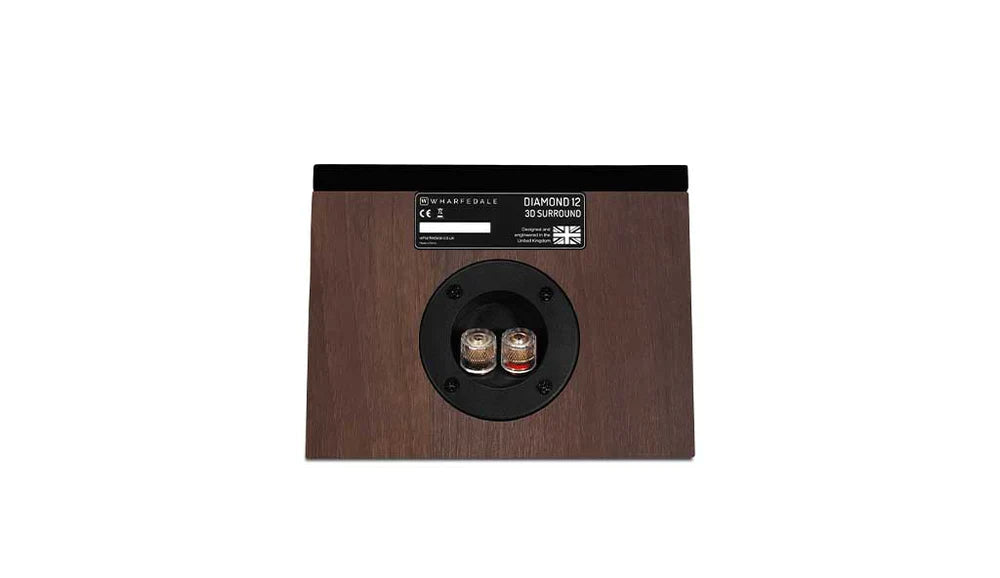

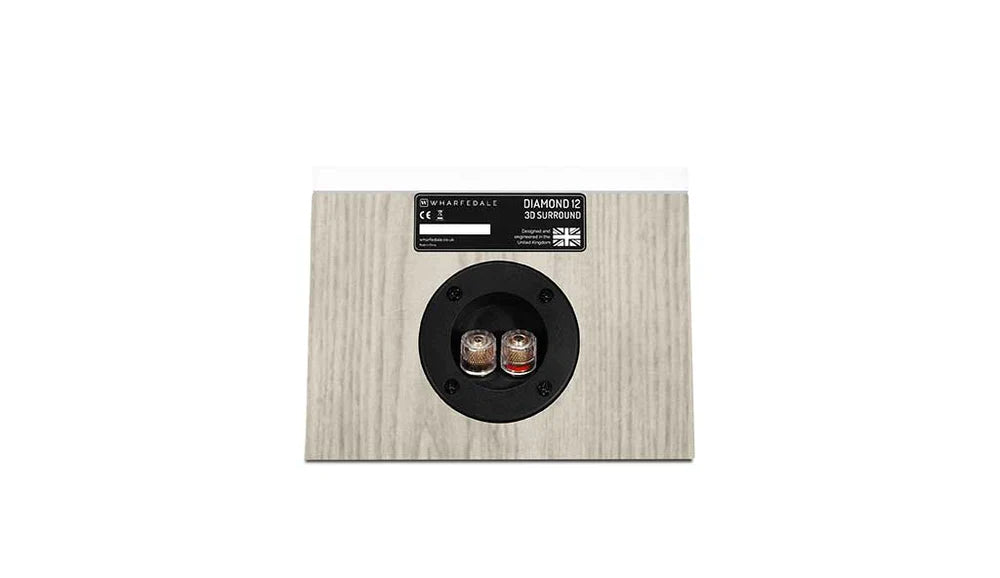

Whether it’s 7.1 or 9.1.2 or beyond, Diamond 12 3D is designed to accommodate a variety of home theatre configurations and placements. Equipped with clever wall-mounting fixings, Diamond 12 3D can sit atop Diamond 12.1 or 12.3 but just as easily be wall mounted or placed on a flat surface.

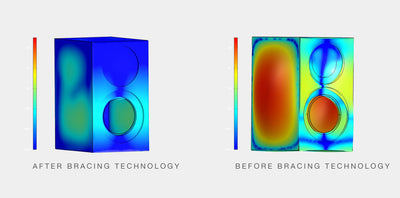

INTELLIGENT SPOT BRACING
Computer simulated design intelligently braces opposing cabinet walls using specific wood composites to create Diamond’s most effective reduction in cabinet resonance. So your favourite films shine in vibrant technicolour, not the colour of your speaker cabinets.
HEARING YOU LOUD & CLEAR
Voice coils are wound on high-power epoxy/glass fibre bobbins seen only in the most expensive loudspeaker models. The reduced distortion and increased power handling means you can go loud, real loud, and still enjoy incredible clarity.
DIAMOND 12.3D SURROUND SPEAKERS
TECHNICAL SPECIFICATIONS
General description | 2-way vertical channel speaker |
Bass driver | 1x4"(100mm) advanced PP Cone |
Treble driver | 1"(25mm) Textile Dome |
Recommended amplifier power | 20-100W |
Nominal impedance | 8Ω Compatible |
Sensitivity(2.83V @ 1m) | 95dB |
Frequency response(+/-3dB) | 110Hz ~ 20kHz |
Dimensions ( H x W x D ) | 380 x 315 x 255mm |
Net weight | 3.2kg/pcs |
